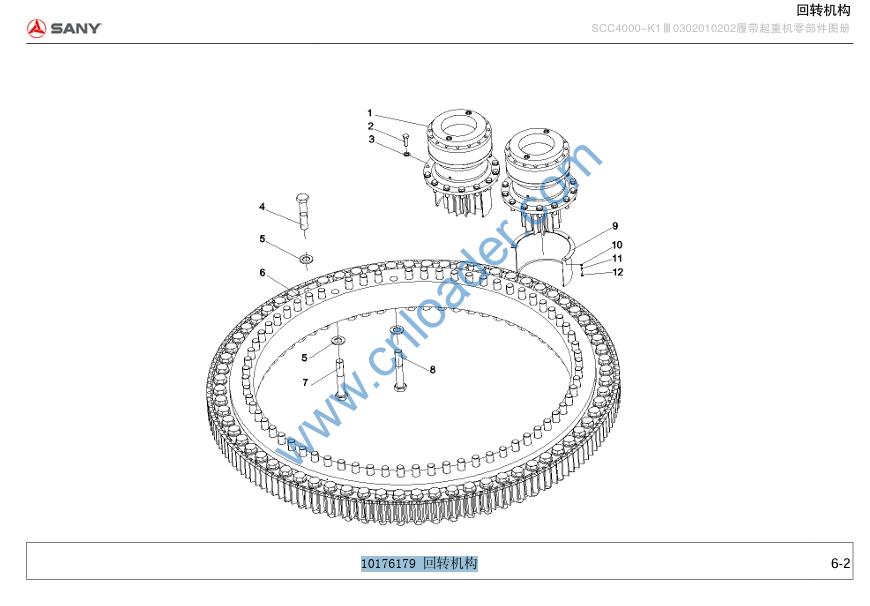

10176179 Rotary mechanism

10176179 Rotary mechanism

1 B220501000431 reducer assembly awasaki 2
2 A210111000200 bolt M24×70GB5783 10.9 grade 28
3 A210405000028 Washer 24GB97.1 300HV 28
4 21013786 bolt GB5785 10.9 grade 68
5 21013784 Washer GB97.1 300HV 136
6 21013785 Slewing bearing 2 1
7 10567851 Bolt 20
8 21013783 bolt GB5785 10.9 grade 48
9 21028787 Reducer protective cover 2
10 A210405000007 Washer 8GB97.1 8
11 A210401000017 Washer 8GB93 8
12 A210111000088 Bolt M8×16GB5783 8

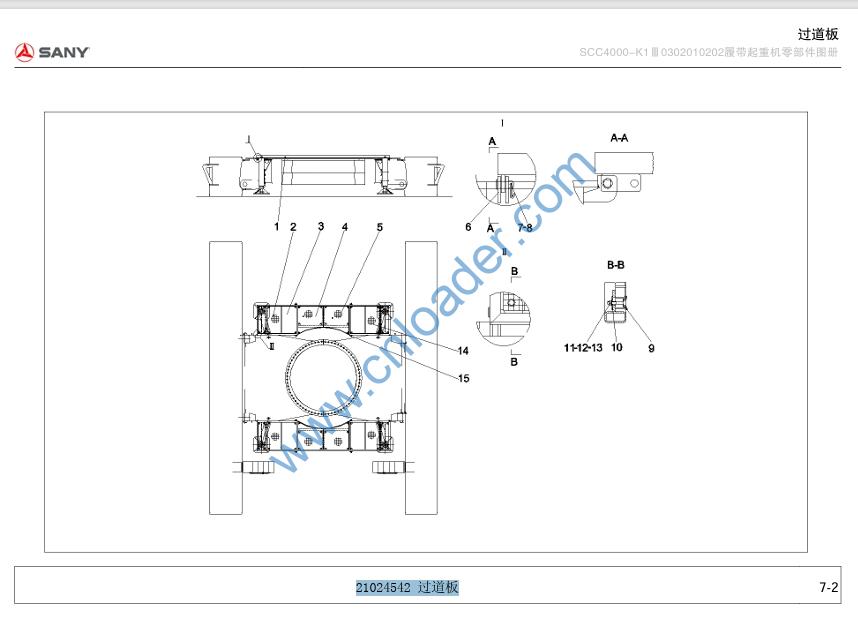

21024542 过道板

1 21024551 Bracket 2
2 21024543 steel grating 2
3 21024544 steel grating 4
4 21024545 steel grating 2
5 21024546 steel grating 2
6 21024547 mounting plate 8
7 10140567 pin 4
8 21012137 Pin Pin 4
9 21031264 upper clip 52
10 21034518 Steel grating gasket 52
11 A210204000342 screw M8×60GB70.1 10.9 level 52
12 A210405000007 gasket 8GB97.1 52
13 A210307000012 nut M8GB6170 52
14 10084734 steel grating 2
15 A210856000033 Shackle 8
