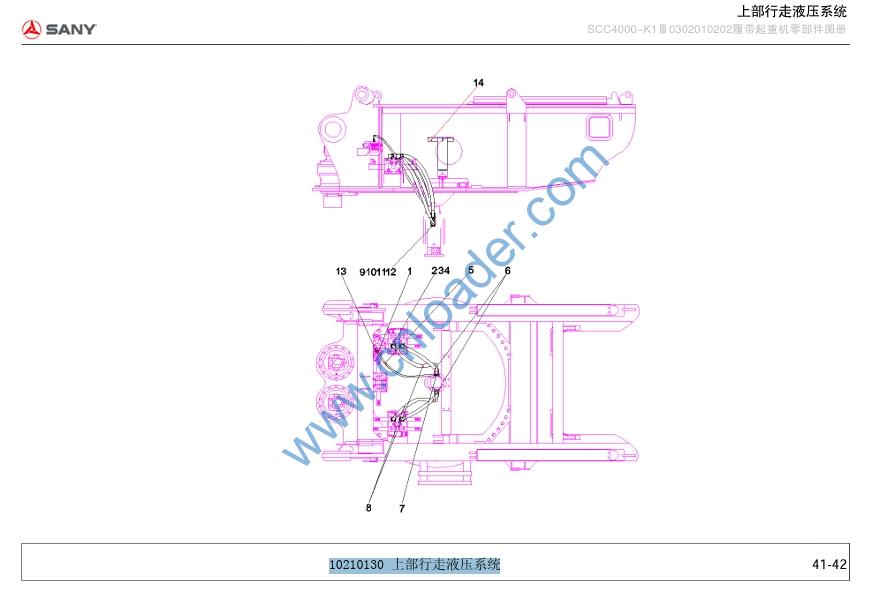

10210130 上部行走液压系统

10210130 上部行走液压系统

1 21002822 pipe joint 1
2 B229900000333 split flange 4
3 A229900003567 Right angle flange joint 4
4 B230101002070 O-ring fluorine rubber 4
5 B230103001166 hose Q/SY1102 1
6 21028825 hose 200Q/SY1102 2
7 A229900002820 pipe joint 1
8 B230103008121 hose 1200Q/SY1102 2
9 A229900005120 split flange 4
10 21015724 flange joint 2
11 A210204000462 screw M12×45GB70.1 10.9 level 32
12 B230101002071 O-ring fluorine rubber 4
13 21001442 Plug 4BN-08WD 1
14 11034367 Outdoor unit assembly mounting bracket Q400C.122(a).8.1 1

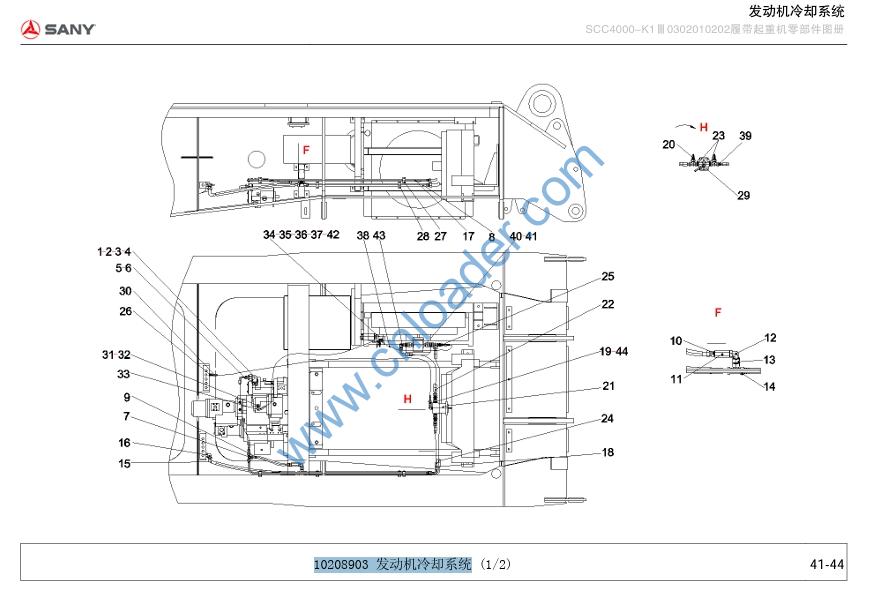

10208903 发动机冷却系统

1 B229900000332 split flange 1
2 B230101000215 O-ring 1
3 21002810 Right angle flange joint 1
4 A210204000181 screw GB70.1 4
5 21023810 pipe joint 1
6 B230103000355 hose Q/SY1102 1
7 A229900003479 pipe joint 1
8 10208915 steel pipe assembly 1
9 B230103006238 hose Q/SY1102 1
10 21002850 pipe joint 1
11 21018928 One-way valve 1
12 A229900002901 pipe joint 1
13 21019845 pipe joint 1
14 21003064 pipe joint 4
15 B230103008101 hose 1000Q/SY1102 1
16 A229900002897 pipe joint 1
17 10208916 Steel pipe assembly 1
18 B230103003134 hose Q/SY1102 1
19 21008727 pipe joint 1
20 21083672 Test connector 2
21 21013722 Gear motor 1
22 B230103000391 hose 2SN16-DKOL-DKOL90-550Q/SY1102 1

23 21002856 pipe joint 2
24 B230103008102 hose 1450Q/SY1102 1
25 21009103 pipe joint 1
26 21002821 pipe joint 1
27 B210851000003 single pipe clamp 2
28 21016829 Single pipe clamp 2
29 A229900002600 pipe joint 1
30 B230103002290 hose Q/SY1102 1
31 21002884 pipe joint 1
32 21026749 pipe joint 1
33 B230103000074 hose Q/SY1102 1
34 21013769 Temperature control valve 06 1
35 21002841 pipe joint 1
36 21083668 Test connector 1
37 21002868 Pipe joint 1
38 B230103000730 hose Q/SY1102 1
39 21015581 pipe joint 1
40 21002825 pipe joint 2
41 11064198 flange 2
42 21003059 pipe joint 1
43 A229900004342 pipe joint 1
44 A229900002533 pipe joint 1
