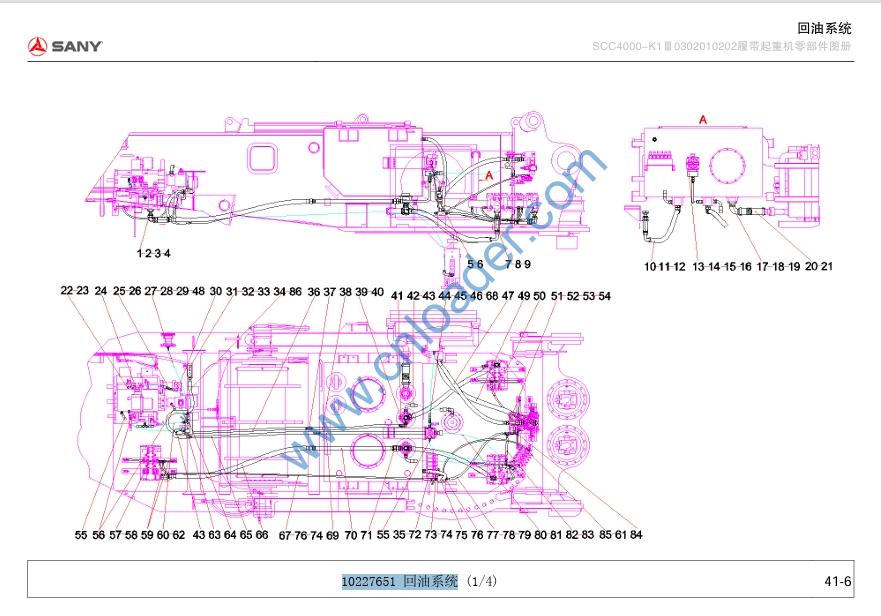

10227651 回油系统

10227651 回油系统

1 21033893 Flange clamp 4
2 B230101000647 O-ring 37.69×3.53 4
3 A210204000206 screw M12×35GB70.1 10.9 level 16
4 10227657 Connector 4
5 10227664 flange joint 1
6 A210204000338 screw M12×40GB70.1 10.9 level 8
7 21022083 One-way valve 4
8 A210770000665 pipe joint 4
9 21015736 pipe joint 4
10 B230103005975 hose Q/SY1102 2
11 21002866 pipe joint 3
12 21008677 pipe joint 3
13 10227652 Oil return block Ⅰ 1
14 21030251 O-ring 1
15 21008079 screw M10×85 (GB70.1) 12.9 level 4
16 A210401000001 Washer 10GB93 4
17 10227658 connector 1
18 21018528 Split flange 1
19 B230101000414 O-ring 1
20 10227653 rubber tube 1
21 21004569 T-shaped hoop φ76.6-φ85.6 2
22 21002823 pipe joint 2

23 A210609000269 O-ring 3
24 B230103000038 hose Q/SY1102 1
25 21024284 pipe joint 3
26 21003051 pipe joint 2
27 B230103000694 hose Q/SY1102 1
28 A210770000616 pipe joint 14
29 21002955 pipe joint 2
30 B230103000638 hose Q/SY1102 1
31 10227654 Oil return block II 1
32 A210204000220 screw GB70.1 10.9 level 12
33 A210401000017 Washer 8GB93 12
34 B230103004432 hose Q/SY1102 1
35 21002864 pipe joint 1
36 10227660 steel pipe assembly 1
37 21010021 Pipe joint 2
38 10227662 Steel pipe assembly 1
39 23004575 pipe joint 2
40 A229900004138 pipe joint 1
41 21016846 plug 4
42 21002875 pipe joint 1
43 21030901 hose Q/SY1102 2
44 21002824 pipe joint 1

45 21003064 pipe joint 1
46 B230103000611 hose Q/SY1102 1
47 B230103006914 hose Q/SY1102 1
48 21007930 pipe joint 3
49 B230103008257 hose Q/SY1102 1
50 21017518 hose 1
51 A220401000298 One-way valve 1
52 21027130 pipe joint 2
53 21020851 Pipe joint 2C-30-36 1
54 21002826 Pipe joint 2
55 B230103000278 hose Q/SY1102 2
56 A831513048000 hose Q/SY1102 2
57 B230103000979 hose Q/SY1102 4
58 A229900002938 pipe joint 8
59 21003891 hose 8
60 B230103006295 hose Q/SY1102 1
61 21002821 Pipe joint 2
62 21002822 Pipe joint 5
63 21016842 plug 1
64 10227655 Oil return block III 1
65 10227665 steel pipe assembly 1
66 B230103008258 hose Q/SY1102 1

67 B230103008175 hose Q/SY1102 1
68 21005746 pipe joint 1
69 10242579 Steel pipe assembly 1
70 10227669 Steel pipe assembly 1
71 21015743 pipe joint 1
72 B230103006344 Hose (ST)Q/SY1102 1
73 B230103002543 hose Q/SY1102 1
74 21002827 Pipe joint 3
75 10227656 Oil return block IV 1
76 21032221 Pipe joint 1
77 21020722 Hose 2 1
78 21015581 pipe joint 1
79 A229900003479 pipe joint 2
80 21003840 hose Q/SY1102 1
81 21029888 Pipe joint 2
82 B230103003949 hose Q/SY1102 1
83 A229900002938 pipe joint 2
84 A229900002542 Pipe joint 1
85 B230103005325 hose Q/SY1102 1
86 21002828 Pipe joint 2
