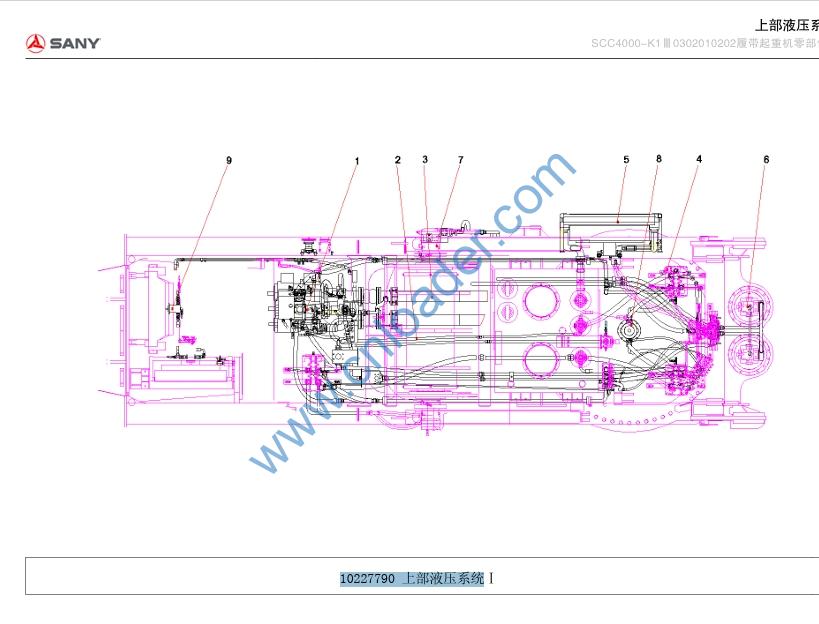

10227790 上部液压系统

10227790 上部液压系统

1 10207676 pump set 1
2 10227651 Oil return system 1
3 10210177 Oil suction system 1
4 10222788 Pump/Valve Hydraulic System 1
5 10220451 Hydraulic oil dispersion and air conditioning motor hydraulic system 1
6 10207692 Rotary hydraulic system 1
7 10208899 Main boom luffing hydraulic system 1
8 10210130 Upper traveling hydraulic system 1
9 10208903 Engine cooling system 1

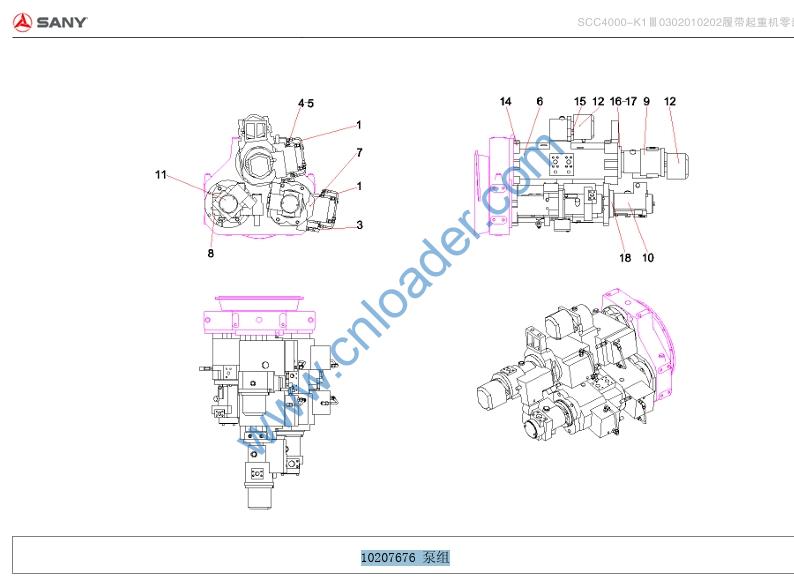

10207676 泵组

1 A831311025000 hose Q/SY1102 4
3 21083669 test connector 6
4 A210770000616 pipe joint 15
5 A229900002559 pipe joint 8
6 B220301000632 plunger pump K5V200DTP140L-9E09 Kawasaki 1
7 B220301000631 plunger pump K5V200DT-140L-9E09 Kawasaki 1
8 B220301000630 plunger pump K3V112S-1F6L-1E69 Kawasaki 1
9 B220301000626 plunger pump 3 Kawasaki 1
10 B220301000625 plunger pump 5 Kawasaki 1
11 B220301000624 Piston pump 4 Kawasaki 1
12 60009306 pump AZPG-11-038LDC07KB-S0023 2
14 A210204000317 screw M20×60GB70.1 12.9 level 12
15 A210204000225 screw GB70.1 12.9 grade 8
16 A210111000212 bolt M16×35GB5783 10.9 level 2
17 B230101000614 O-ring 1
18 A210609000003 O-ring 4
