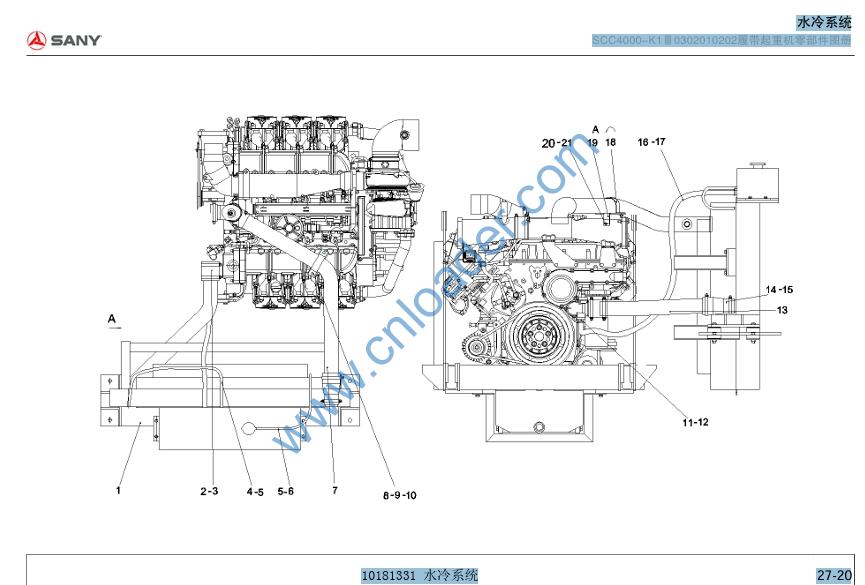

10181331 Water cooling system

10181331 Water cooling system

1 A220700000020 Radiator SY015028 1
2 10181322 Hose Q400C.20(a).7-2 1
3 21004569 T-shaped hoop φ76.6-φ85.6 5
4 21011805 hose 1
5 A229900002960 hose hoop φ12-φ16QC619 3
6 21011804 hose 1
7 10921720 Return pipe Q400C.20(a).7.4 1
8 A210111000197 bolt M10×25GB5783 10.9 level 2
9 A210307000017 Nut M10GB6170 2
10 A210401000001 Washer 10GB93 2
11 10181309 connector Q400C.20(a).7.1-1 2
12 A210434000014 Washer 30JB982 2
13 10181325 Outlet pipe 1
14 10181326 hose Q400C.20(a).7-6 2
15 A229900003150 Clamp 0
16 21011809 hose 1
17 21053361 Hose hoop φ22-φ32QC619 2
18 21011817 Clamp 1
19 10921772 Bracket Q400C.20(a).7.5 1
20 A210111000089 bolt M8×20GB5783 2
21 A210401000017 Washer 8GB93 2

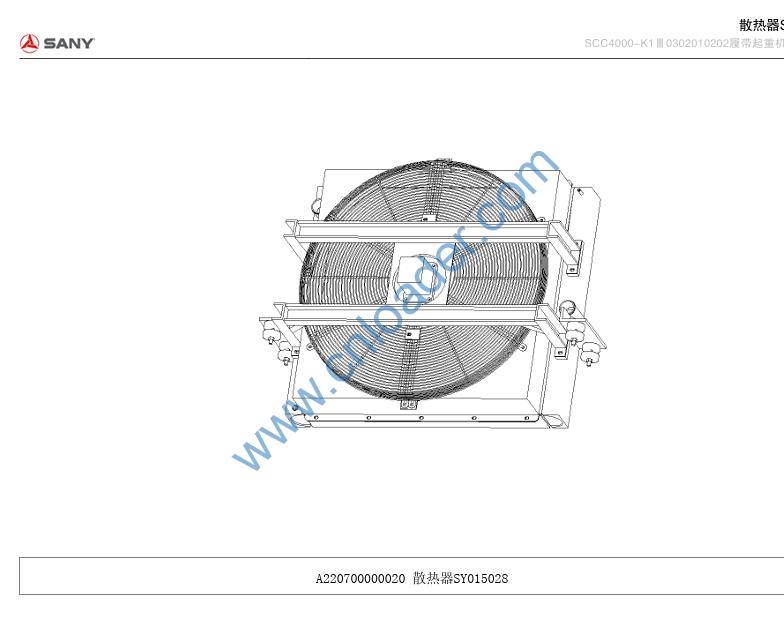

A220700000020 散热器SY015028
