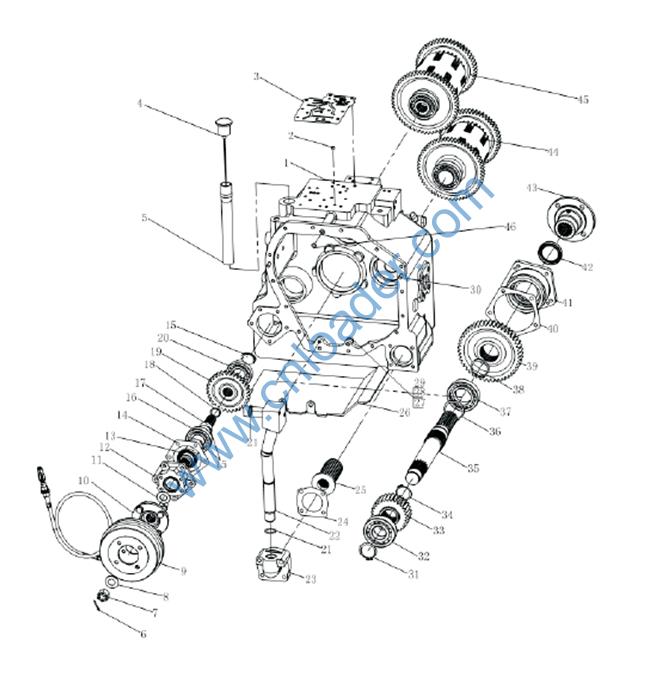

1 YQX100-01001 变速箱箱体 Transmission
2 YQX100-01004 阻尼螺塞 Damping plug
3 YQX100-07032 控制阀衬垫 Control valve gasket
4 YQX100-01300C 加油口盖 Oil filler cap
5 YQX100-01005 加油管 Oil filling pipe
6 GB91 开口销 4×36 Cotter pin 4×36
7 GB9457-88 螺母 M20×1.5 Nut M20×1.5
8 YQX100-08002 垫片 Gasket
9 YQX100-08200 停车制动器总成 Parking brake assembly
10 YQX100-08003-1 配合法兰 Fitting flange
11 YQX100-08008 止推环 C Thrust ring C
12 YQX100-08004 制动轴端盖 Brake shaft end cover
13 YQX100-08009 油封 40×62×11 Oil seal 40×62×11
14 YQX100-08005 制动轴衬垫 Brake shaft gasket
15 GB894.1-86 弹性挡圈 40 Spring sprag 40
16 GB/T276 深沟球轴承 6208NR Ball bearing 6208NR
17 YQX100-08001 停车制动轴 Parking brake shaft
18 GB894.1-86 弹性挡圈 30 Spring sprag 30
19 YQX100-08006 停车制动齿轮 Parking brake gear
19 YQX100-08006-1 停车制动齿轮 Parking brake gear
20 GB/T276 深沟球轴承 6208 Ball bearing 6208
21 GB1235-76 O 形圈 353.1 O ring 353.1
22 YQX100-01100 吸油管总成 Oil suction pipe assembly
23 YQX100-01002 滤油器盖 Oil filter cover
24 YQX100-01003 滤油器衬垫 Oil filter gasket
25 YQX100-01200 滤油器 Oil filter
26 YQX100-01006 挡板 Baffle
27 GB5783-86 螺栓 M8×16 Bolt M8×16
28 GB93-87 弹簧垫圈 8 Spring washer 8
29 GB97.1-85 平垫圈 8 Plane washer
30 GB119 圆柱销 B10×20 Round pin
31 GB894.1-86 弹性挡圈 45 Spring sprag 45
32 GB/T276 深沟球轴承 6309 Ball bearing 6209
33 YQX100-04002 高速齿轮 High speed gear
33 YQX100-04002-1 高速齿轮 High speed gear
34 GB894.1-86 弹性挡圈 50 Spring sprag 50
35 YQX100-04001 输出轴 Output shaft
36 GB894.1-86 弹性挡圈 60 Spring sprag 60
37 GB/T276 深沟球轴承 7211C Balll bearing 7211C
38 GB894.1-86 弹性挡圈 55 Spring sprag 55
39 YQX100-04003 低速齿轮 Idle speed gear
39 YQX100-04003-1 低速齿轮 Idle speed gear
40 YQX100-04004 输出轴衬垫 Output shaft gasket
41 YQX100-04005 输出轴端盖 Output shaft end cover
42 YQX100-04009 油封 52×75×12 Oil seal 52×75×12
43 YQX100-01400 联接法兰 Coupling flange
44 YQX100-02000R 离合器总成 R Clutch assembly
45 YQX100-02000F 离合器总成 F Clutch assembly
46 GB1235-76 O 形圈 152.4 O ring 152.4

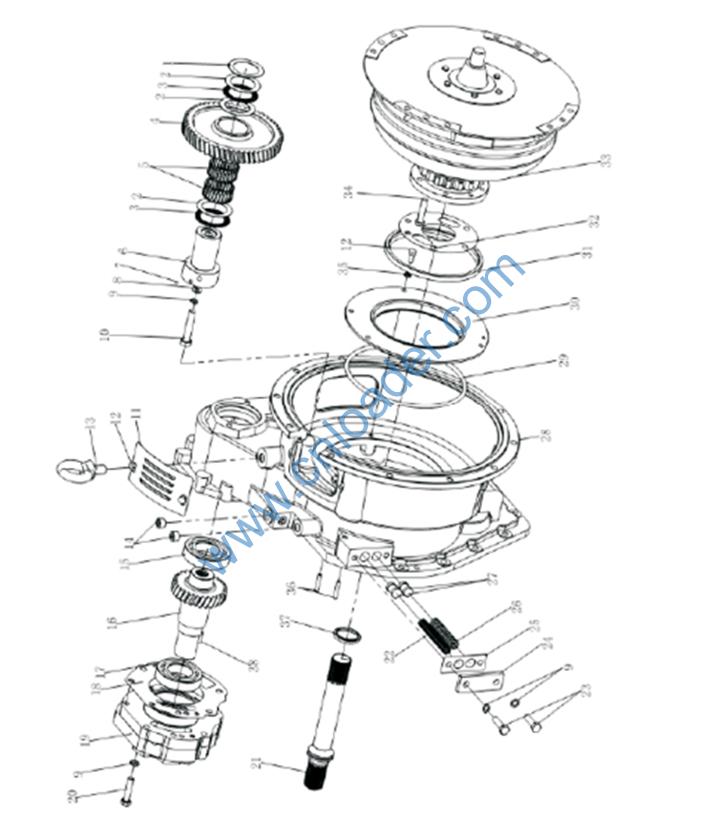

1 YQX100-03004A 调整垫片 Adjustment gasket
YQX100-03004B 调整垫片 Adjustment gasket
YQX100-03004C 调整垫片 Adjustment gasket
YQX100-03004D 调整垫片 Adjustment gasket
2 GB4605-84 止推垫圈 Thrust washer
3 GB4605 889109 推力滚针轴承 Thrust needle bearing
4 YQX100-03002 惰轮 Idler wheel
5 GB5846 滚针轴承 K455325 Needle bearing K455325
6 YQX100-03003 惰轮支架 idler wheel bracket
7 GB308-77 钢球 1/4〞 Steel ball 1/4〞
8 GB97.1-85 平垫圈 10 Plane washer 10
9 GB93-87 弹簧垫圈 10 Spring washer 10
10 GB5785-86 螺栓 M10×1.25×105 Bolt M10×1.25×105
11 YQX100-03016 变矩器壳盖 Torque converter case
12 GB5783-86 螺栓 M8×16 Bolt M8×16
13 GB825-88 吊环螺钉 M16 Eye screw M16
14 JB/ZQ4446 螺塞 Rc3/8〞 Plug Rc3/8〞
15 GB/T276 深沟球轴承 6209RS Ball bearing 6209RS
16 YQX100-05006 泵传动齿轮 Pump drive gear
17 GB/T276 深沟球轴承 6209 Ball bearing 6209
18 YQX100-05005 供油泵衬垫 Oil pump gasket
19 YQX100-05000 供油泵 Oil pump
20 GB5785-86 螺栓 M10×1.25×60 Bolt M10×1.25×60
21 YQX100-06001 涡轮轴 Turbine shaft
22 YQX100-03008 弹簧 Spring
23 GB5785-86 螺栓 M10×1.25×30 Bolt M10×1.25×30
24 YQX100-03006 盖板 Cover plate
25 YQX100-03007 溢流阀衬垫 Overflow vale gasket
26 YQX100-03009 弹簧 Spring
27 YQX100-03005 活塞 B Piston B
28 YQX100-03001 变矩器壳 Torque converter case
YQX100-03001-1 变矩器壳 Torque converter case
29 GB1235-76 O 形圈 220×5.7 O ring 220×5.7
30 YQX100-06003 后盖 Rear cover
31 YQX100-06009 油封 130×160×15 Oil seal 130×160×15
32 YQX100-06004 导轮座衬垫 Guide wheel gasket
33 YJH315 变矩器总成 Torque converter assembly
34 GB70-85 螺钉 M10X50 Screw M10X50
35 GB93-87 弹簧垫圈 8 Spring washer 8
36 GB119 圆柱销 B6×50 Round pin B6×50
37 YQX100-06002 密封环 D Seal ring D
38 YQX100-05007 平键 10.5×7×21 Plane key 10.5×7×21

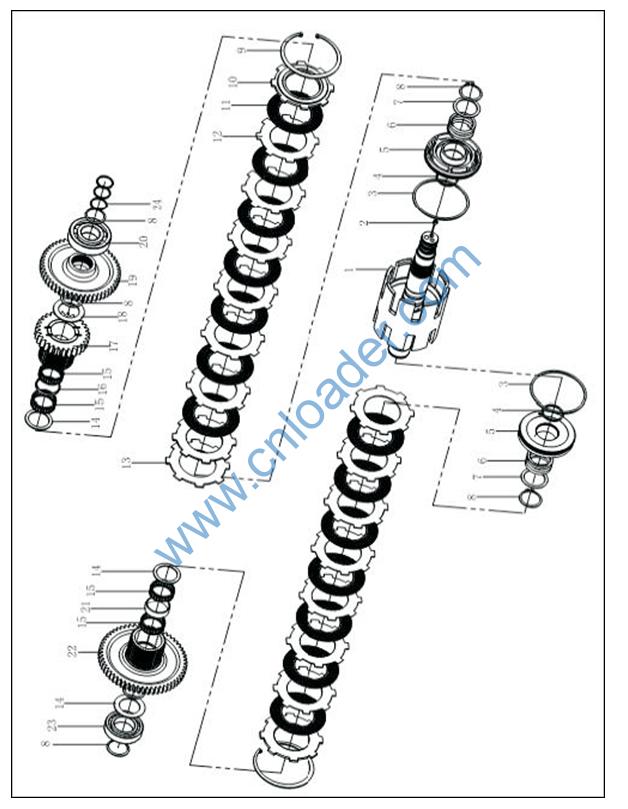

A YQX100-02000F 离合器总成 F Clutch assembly F
B YQX100-02000R 离合器总成 R Clutch assembly R
1 YQX100-02100F 轴总成 F Shaft assembly F
1 YQX100-02100R 轴总成 R Shaft assembly R
2 JB/ZQ4446 螺塞 Rc1/8″ Plug Rc1/8〞
3 YQX100-02008 密封环 B Seal ring B
4 YQX100-02007 密封环 A Seal ring A
5 YQX100-02200 活塞总成 Piston assembly
6 YQX100-02011 弹簧 Spring
7 YQX100-02012 弹簧座 Spring seat
8 GB894.1-86 弹性挡圈 50 Spring sprag 50
9 YQX100-02004 卡环 Clamp ring
10 YQX100-02005 端板 End plate
11 YQX100-02019 摩擦片 Friction plate
12 YQX100-02006 隔片 Distance plate
13 YQX100-02010 压板 Pressure plate
14 YQX100-02013 止推环 B Thrust ring B
15 GB5846 滚针轴承 K505820 Needle bearing K505820
16 YQX100-02002 隔圈 A Spacing collar
17 YQX100-02014 一档齿轮 Gear I gear
17 YQX100-02014-1 一档齿轮 Gear I gear
18 YQX100-02001 止推环 A Thrust ring A
19 YQX100-02016 传动齿轮 Drive gear
20 GB/T276 深沟球轴承 6309 Ball bearing 6309
21 YQX100-02015 隔圈 B Spacing collar
22 YQX100-02003 二档齿轮 F Gear II gear F
22 YQX100-02003-1 二档齿轮 F Gear II gear F
22 YQX100-02018 二档齿轮 R Gear II gear R
22 YQX100-02018-1 二档齿轮 R Gear II gear R
23 GB/T276 深沟球轴承 6210 Ball bearing 6210
24 YQX100-02017 密封环 C Seal ring C

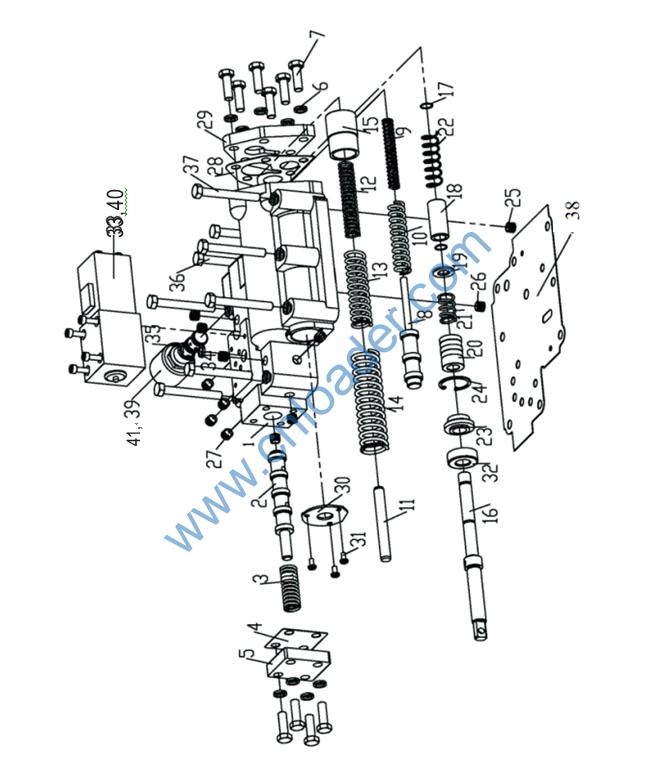

B YQX100-D07000 电液控制阀总成 Control valve assy.
1 YQX100-07001-1 阀体 Valve body
2 YQX100-07029 活塞II Piston II
3 YQX100-07049 弹簧φ2.3×φ1.7×45 Spring
4 YQX100-07033 衬垫I Gasket
5 YQX100-07034 盖I Cover
6 GB/T 93 垫圈8 Washer 8
7 GB/T 5783 螺栓M8×25 Bolt M8×25
8 YQX100-07047 微调阀芯 Valve core
9 YQX100-07050 弹簧φ1.6×φ10.8×79.4 Spring
10 YQX100-07051 弹簧φ2.6×φ17×79.4 Spring
11 GB/T 119.2 SD14×30× 1销0 10×80 Pin
12 YQX100-07052 弹簧φ1.8×φ14.9×126 Spring
13 YQX100-07053 弹簧φ2.6×φ21.1×126 Spring
14 YQX100-07054 弹簧φ3.2×φ28.5×131 Piston
15 YQX100-07031 活塞 Piston
16 YQX100-07048 微动阀杆 Inching valve rod
17 GB/T 895.2 挡圈12 Snap ring
18 YQX100-07030 活塞 Piston
19 YQX100-07035 垫圈 Washer
20 YQX100-07036 滑阀 Slide valve
21 YQX100-07055 弹簧φ2×φ16.7×29 Spring
22 YQX100-07056 弹簧φ1.4×φ16.9×60 Snap ring
23 YQX100-07037 挡圈 Snap ring
24 GB/T 893.1 挡圈30 Snap ring
25 YQX100-07038 螺堵II(φ1.7) Plug
26 YQX100-07039 螺堵I(φ1.2) Plug
27 YQX100-07040 螺堵（ZG 1/8”） Plug
28 YQX100-07041 衬垫II Gasket
29 YQX100-07042 盖II Cover
30 YQX100-07043 压盖 Pressure cover
31 GB/T 67 螺钉M4×10 Screw
32 YQX100-07044 油封 Oil seal
33 SWM-G02-C4- D24-30-S006 电磁阀（方向） Solenoid valve
34 YQX100-07045 滤网 Filter screen
35 GB 1235 O型密封圈12×2.4 O-seal ring
36 GB/T 5782 螺栓M8×43 Bolt
37 GB/T 5782 螺栓M8×63 Bolt
38 YQX100-07046 衬垫V Gasket
39 SV08-33-0-V-24DL 电磁阀（速度） Solenoid valve
40 DJ7041W-F3-10 防水接头 Water-proof connector
41 DJ7021-2-20 防水接头 Water-proof connector

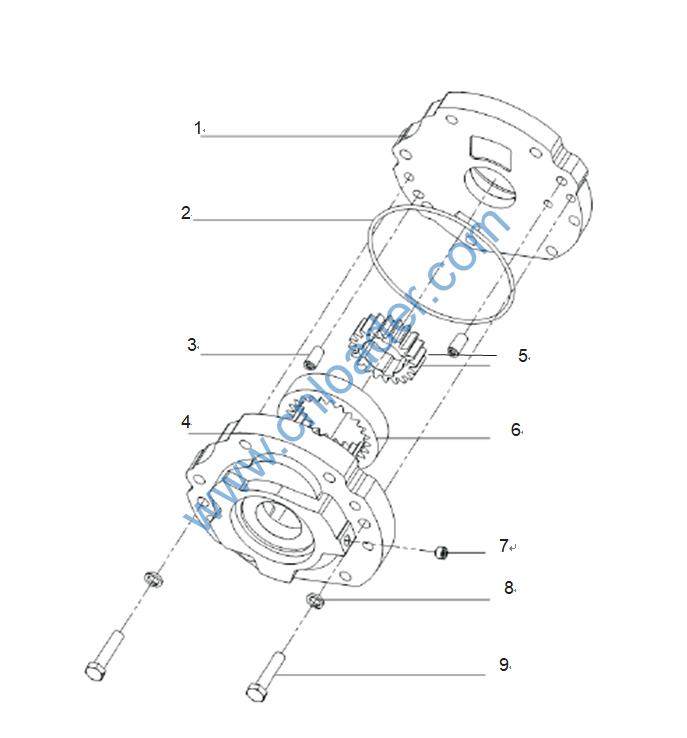

A YQX100-05000 供油泵总成 Oil pump assembly
1 YQX100-05001 泵体 Pump body
2 GB1235-76 O 形圈 145×3.1 O ring 145 145×3.1
3 GB119-86 销 B10×25 Pin B10×25
4 YQX100-05002 泵盖 Pump cover
5 YQX100-05004 泵齿轮 Pump gear
6 YQX100-05003 供油泵内齿圈 Ring gear of oil pump
7 JB/ZQ4446-86 螺塞 Rc1/8″ Plug Rc1/8″
8 GB93-87 弹簧垫圈 10 Spring washer 10
9 GB5785-86 螺栓 M10×1.25×40 Bolt M10×1.25×40

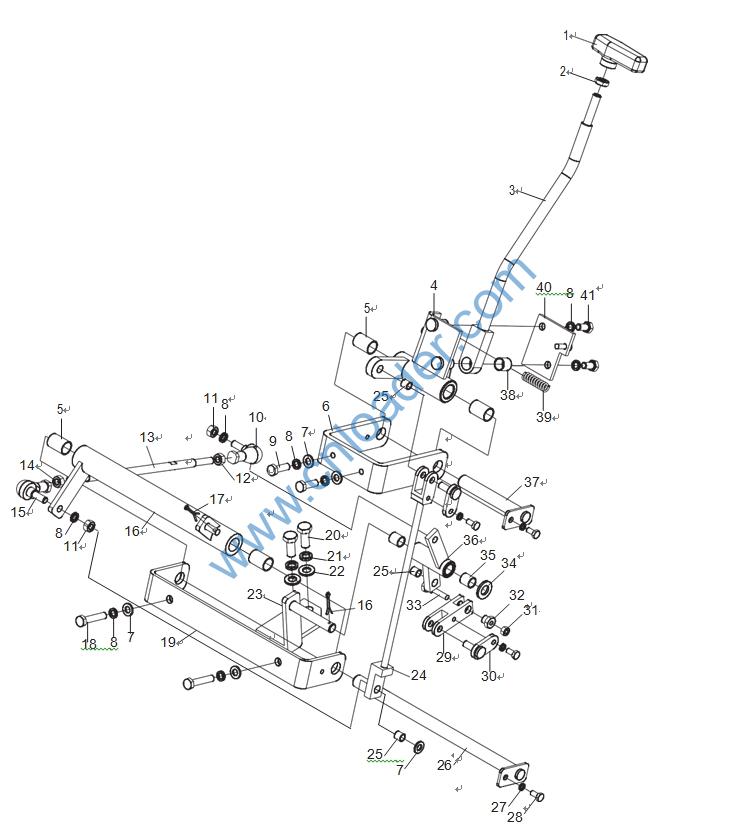

A 30002020113 LG0075DTG.02.03.02 变速操纵总成 Speed change control assembly
1 60980000549 30T-0221001 变速手柄球 Speed handle ball
2 51311000925 GB/T6172.1 螺母M10 Nut M10
3 30002020606 LG0075DTG.02.03.02.01 操纵杆焊合 Control rod weldment
4 30002025608 LG0075DTG.02.03.02.07 摇臂焊合 Rocker weldment
5 52011000101 GB/T12613.1 滑动轴承16X18X25 Sliding bearing 16×18×25
6 30002018101 LG0060DT.02.03.01.09 支架焊合 Bracket weldment
7 51421090115 GB/T97.1 垫圈8 Wasehr 8
8 51401090107 GB/T93 垫圈8 Wasehr 8
9 51204091114 GB/T5783 螺栓M8X25 Bolt M8×25
10 60911010462 LG0060DT.02.03.01.08-004 球关节 Joint bearing
11 51307000919 GB/T6170 螺母M8 Nut M8
12 51311000825 GB/T6172.1 螺母M8-LH Nut M8-LH
13 30002117503 LG0075DTG.02.03.02-001 连接杆 Connecting rod
14 51311000824 GB/T6172.1 螺母M8 Nut M8
15 60911010373 LG0060DT.02.03.01.08-001 球关节 Joint bearing
16 30002026503 LG0075DTG.02.03.02.04 轴套焊合 Sleeve weldment
17 51512081201 GB/T91 销3.2X25 Pin 3.2×25
18 51204091414 GB/T5783 螺栓M8X40 Bolt M8×40
19 30002018111 LG0075DTG.02.03.02.03 支架焊合 Bracket weldment
20 51207105114 GB/T5786 螺栓M10X1.25X25 Bolt M10×1.25×25
21 51401100107 GB/T93 垫圈10 Washer 10
22 51421100115 GB/T97.1 垫圈10 Washer 10
23 30002018102 LG0060DT.02.03.01.11 支架焊合 Bracket weldment
24 30002022801 LG0075DTG.02.03.02.02 连接杆焊合 Connecting rod weldment
25 52011001501 GB/T12613.1 滑动轴承8X10X10 Sliding bearing 8×10×10
26 30002025002 LG0060DT.02.03.01.06 销轴焊合 Pin shaft weldment
27 51401080107 GB/T93 垫圈6 Washer 6
28 51204080814 GB/T5783 螺栓M6X12 Bolt M6×12
29 30002150900 LG0075DTG.02.03.02-004 连杆 Linkage
30 30002025007 LG0075DTG.02.03.02.06 销轴焊合 Pin shaft weldment
31 51307000819 GB/T6170 螺母M6 Nut M6
32 30002130900 LG0075DTG.02.03.02-003 螺母 Nut
33 30002119508 LG0075DTG.02.03.02-002 销轴 Pin shaft
34 51421110115 GB/T97.1 垫圈12 Washer 12
35 52011001201 GB/T12613.1 滑动轴承12X14X15 Sliding bearing 12×14×15
36 30002025607 LG0075DTG.02.03.02.05 摇臂焊合 Rocker weldment
37 30002025005 LG0030DTⅢ.02.02 销轴焊合 Pin shaft weldment
38 52011001601 GB/T12613.1 滑动轴承14X16X15 Sliding bearing 14×16×15
39 30002140100 LG0100DT.02.03.01.01-001 弹簧 Spring
40 30002047100 LG0075DTG.02.03.02.08 连接板焊合 Connecting board
41 51204090914 GB/T5783 螺栓M8X16 Bolt M8×16

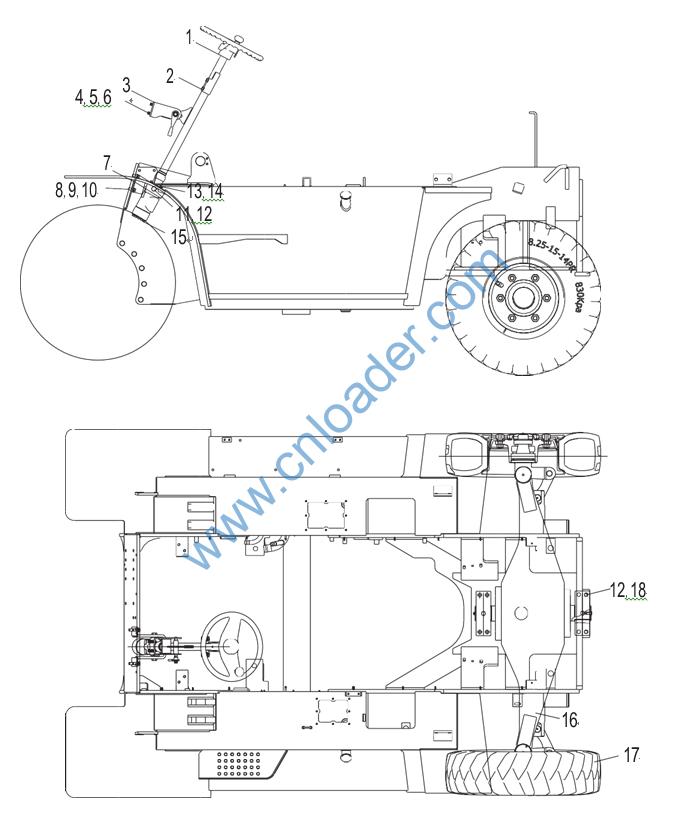

1 60305000017 LG0030D.03.01.02 方向盘总成 Steering wheel assembly
2 30003033709 LG0075DTG.03.02 转向管柱总成 Steering column asembly
3 30003018118 LG0075DTG.03.03 支架总成 Bracket
4 51204091114 GB/T5783 螺栓M8×25 Bolt M8×25
5 51401090107 GB/T93 垫圈8 Washer 8
6 51421090115 GB/T97.1 垫圈8 Washer 8
7 30003018117 LG0075DTG.03.04 支架焊合 Bracket weldment
8 51204111214 GB/T5783 螺栓M12×30 Bolt M12×30
9 51401110107 GB/T93 垫圈12 Washer 12
10 51421110115 GB/T97.1 垫圈12 Washer 12
11 30003111114 LG0075DTG.03-001 螺栓 Bolt
12 51401130107 GB/T93 垫圈16 Washer 16
13 51204101714 GB/T5783 螺栓M10×55 Bolt M10×55
14 51401100107 GB/T93 垫圈10 Washer 10
15 60900002244 LG0050DTIII.03.01 转向器总成 Steering gear assembly
16 60200000291 LG0050DTIII.03.02 转向桥总成 Steering axle assembly
17 33003034500 LG0060DT.03.04.02 转向轮总成 Steering wheel assembly
18 51207131814 GB/T5786 螺栓M16×1.5×60 Bolt M16×1.5
A 30003033709 LG0075DTG.03.02 转向管柱总成 Steering column asembly
1 51312000719 GB/T6173 螺母M16×1.5 Nut M16×1.5
2 51421130115 GB/T97.1 垫圈16 Washer 16
3 60900001361 LG0075DTG.03.02.01 衬套总成 Spacer assembly
4 60900001356 LG0075DTG.03.02-005 衬套 Spacer
5 60900001357 LG0075DTG.03.02-006 转向轴 Shaft
6 30003033711 LG0075DTG.03.02.02 管柱 Column
7 60900001354 LG0075DTG.03.02-003 导线 Conducting wire
8 60900001355 LG0075DTG.03.02-004 塑料管 Plastic tube
9 30003112302 LG0030D.03.01-005 套管 Sleeve
10 30003132905 LG0030D.03.01-004 橡胶圈 Rubber ring
11 60980000372 DJ7011-6.3-10 接插件 Connector
12 60980000346 LG0060DT.03.02.04 扎带4×150 Bel
13 60900001353 LG0075DTG.03.02-002 密封圈 Seal ring
14 60900001352 LG0075DTG.03.02-001 连接座 Linking seat
15 52011001601 GB/T12613.1 滑动轴承14×16×15 Bearing
16 52241000502 GB/T301 轴承51104 Bearing 51104
17 51453200107 GB/T894.1 挡圈20 Snap ring 20
18 60900002244 LG0050DTⅢ.03.01 转向器总成 Steering gear assembly
19 51204101714 GB/T5783 螺栓M10×55 Bolt M10×55
20 51401100107 GB/T93 垫圈10 Washer 10
21 51204111214 GB/T5783 螺栓M12×30 Bolt M12×30
22 51401110107 GB/T93 垫圈12 Washer 12
23 51421110115 GB/T97.1 垫圈12 Washer 12
24 30003018117 LG0075DTG.03.04 支架焊合 Bracket weldment
25 30003111114 LG0075DTG.03-001 螺栓 Bolt
26 51401130107 GB/T93 垫圈16 Washer 16
B 30003032201 LG0075DTG.03.03.02 锁紧手柄总成 Lock handle
27 51204102814 GB/T5783 螺栓M10×16 Bolt M10×16
28 51421100115 GB/T97.1 垫圈10 Washer 10
29 30003032206 LG0075DTG.03.03.02.01 锁紧手柄 Lock handle
30 30003111111 LG0075DTG.03.03.02-003 螺栓 Bolt
31 30003112305 LG0075DTG.03.03.02-002 套管 Bushing
32 30003130900 LG0075DTG.03.03.02-001 螺母 Nut
33 51204091114 GB/T5783 螺栓M8×25 Bolt M8×25
34 51401090107 GB/T93 垫圈8 Washer 8
35 51421090115 GB/T97.1 垫圈8 Washer 8
36 30003018116 LG0075DTG.03.03.01 支架焊合 Bracket weldment
37 60305000017 LG0030D.03.01.02 方向盘总成 Steering wheel assembly

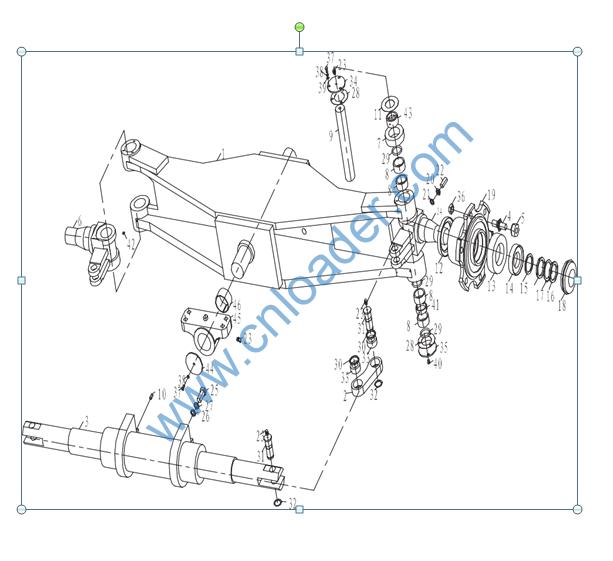

A 60200000291 LG0050DTⅢ.03.02 转向桥总成 Steering axle
01 Z05070-QT000 转向桥体总成 Axle ass’y
02 Z05070-LG000 连杆 Linkage
03 Z5070DⅢ-ZXYG0 转向油缸总成 Power cylinder ass’y
04 Z05070-LGLS 轮毂螺栓M20x1.5 Bolt
05 Z05070-LGLM 轮毂螺母M20x1.5 Nut
06 Z5070-ZXJ-L 左转向节总成 Knuckle L.h. ass’y
07 推力轴承 198911 Bearing
08 GB/T290 滚针轴承HK455524 Bearing
09 Z05070-ZX00 转向节主销 Pin,king
10 GB120. 圆柱销10h6x25 Pin
11 Z5070-TZD00 调整垫 Shim
12 GB9877.1 油封FB95x130x12 Seal oil
13 GB/T297 轴承32215 Bearing
14 GB/T297 轴承32211 Bearing
15 Z5070-ZTD 止推垫 Thrust washer
16 GB/T810 圆螺母M55x2 Round nut
17 GB/T858 止动垫圈55 Washer
18 Z5070-LGG00 轮毂盖 Cap
19 Z5070-LG000 轮毂 Hub
20 GB/T6172.1 扁螺母M16 Mut
21 GB/T97.1 标准型平垫 16 Washer
22 GB/T78 内六角紧定螺钉M16x40 Hub
23 JB/T7940.2 油杯 Z/1/8-27(90°) Fitting grease
24 Z5070-ZXJ-R 右转向节总成 Knuckle R.h. ass’y
25 GB/T5783 螺栓20×1.5×50 Bolt
26 GB/T97.1-1985 垫圈20 Washer 20
27 GB/T93-1987 标准型弹簧垫片20 Spring gasket 2
28 Z5070-MFDP 密封垫片 seal gasket
29 GB/T3452.1 O型圈45.0×5.30G O-ring
30 Z5070-DQ000 挡圈 Bushing
31 Z5070-LGX00 连杆销 Pin
32 GB/T894.1 轴用弹性挡圈30 spring sprag
33 GB/T304 关节轴承GE30ES Bearing
34 Z5070-ZXSG 主销上盖 king pin upper cover
35 Z5070-ZXXG 主销下盖 King pin lower cover
36 GB/T6171 螺母M20x1.5 Nut M20x1.5
37 GB/T5783 螺栓M8x16 Bolt M8x16
38 GB/T93 标准型弹簧垫片 8 Spring gasket 8
39 GB/T97.1 标准型平垫片8 plain gasket 8
40 GB/T819.2 十字槽沉头螺钉 M8x12 Screw M8x12
41 Z5070-GT 隔套 Spacer
42 JB/T7940.1 油杯M6 Oil cup
43 Z5070-CT 衬套 Bushing
44 ZAH5070-ZDDB 轴端挡板 Baffle
45 Z5070-ZCZZ 支承轴座 Support shaft seat
46 Z5070-GBCT 钢背衬套 Steel-backed bushing

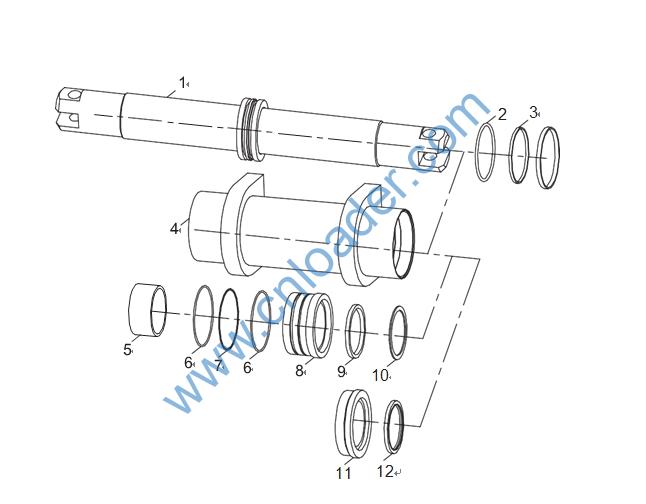

A Z5070DⅢ-ZXYG 转向油缸 Steering cylinder
01 Z5070-HSG 活塞杆 Piston Rod
02 GB/T345.1 O型密封圈100×5.3 O ring
03 Z5070-ZXGG-ZCH 支撑环110x115x6.4 Support ring
05 Z5070-ZXYG-GT 缸筒 Cylinder
06 GB/T345.1 钢背套85x90x55 Steel-backed sleeve
07 109X3.1 O型密封圈109×3.1 O ring
08 Z5070-ZXYG-DP1 挡片115×110.5×1.5 Guide plate
09 Z5070-ZXYG-ZT 轴套 Shaft sleeve
10 ISI-/D2-85 轴用密封圈85x100x9 seal ring
11 Z5070-ZXYG-DP2 挡片85x100x3 Check Ring
12 缸盖 Cylinder cover
13 骨架防尘圈85x99x8/11 Dust ring

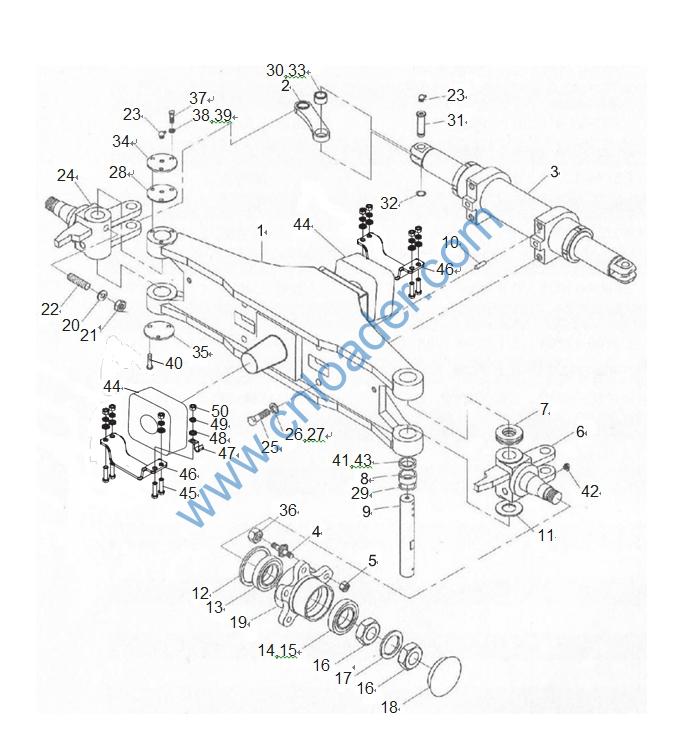

A 30003035300 LG0075DTG.03.01 转向桥总成 Steering axle assembly
1 Z075SC-QT000 转向桥体总成 Axle body assembly
2 Z070SC-LG000 连杆 Linkage
3 Z070SC-ZXYG0 转向油缸总成 Steering cylinder assembly
4 Z05070-LGLS0 轮毂螺栓M20X1.5 Hub bolt M20×1.5
5 Z05070-LGLM0 轮毂螺母M20X1.5 Hub nut M20×1.5
6 Z070SC-ZXJ-L 左转向节总成 Left steering knuckle assembly
7 198911 推力轴承198911 Thrust bearing
8 GB/T290 滚针轴承HK455524 Needle bearing
9 Z05070-ZX00 转向节主销 King pin of steering knuckle
10 GB/T120.2 圆柱销6X25 Cylindrical pin 6×25
11 Z5070-TZD00 调整垫 Adjustmnet gasket
12 GB/T9877.1 油封FB95X130X12 Oil seal
13 52324001301 GB/T297 轴承32215 Bearing
14 52324000901 GB/T297 轴承32211 Bearing
15 Z5070-ZTD 止推垫 Thrust gasket
16 GB/T810 圆螺母M55X2 Round nut
17 51439310105 GB/T858 止动垫圈55 Stop washer
18 Z5070-LGG00 轮毂盖 hub cap
19 Z5070-LG000 轮毂 Hub
20 51311001124 GB/T6172.1 螺母M16 NutM16
21 51421130115 GB/T97.1 垫圈16 Washer 16
22 GB/T78 螺钉M16X40 Screw M16×40
23 56203000201 JB/T7940.2 油杯Z/1/8-27(90°) Oil cup
24 Z5070-ZXJ-L 右转向节总成 Right steering knuckle assembly
25 51207151614 GB/T5783 螺栓M20X1.5X50 Bolt M20×1.5×50
26 51421150115 GB/T97.1 垫圈20 Washer 20
27 51401150107 GB/T93 垫圈20 Washer 20
28 Z5070-MFDP 密封垫片 seal gasket
29 56145011904 GB/T3452.1 O形圈45X5.3 O-ring 45×5.3
30 Z5070-DQ000 挡圈 Snap ring
31 Z5070-LGX00 连杆销 Linage pin
32 51453270107 GB/T894.1 轴用弹性挡圈30 Snap rign 30
33 52123000101 GB/T304 关节轴承GE30ES Joint bearing GE30ES
34 Z5070-ZXSG 主销上盖 Upper cover of king pin
35 Z5070-ZXXG 主销下盖 Lower cover of king pin
36 51309001019 GB/T6171 螺母M20X1.5 Nut M20×1.5
37 51204090914 GB/T5783 螺栓M8X16 Bolt M8×16
38 51401090107 GB/T93 垫圈8 Washer 8
39 51421090115 GB/T97.1 垫圈8 Washer 8
40 51159210204 GB/T819.2 螺钉M8X12 Screw M8×12
41 Z5070-GT 隔套 Spacer
42 56201000101 JB/T7940.1 油杯M6 Oil cup M6
43 Z5070-CT 衬套 Bushing
44 30003109001 LG0075DTG.03-002 减震垫 Rubber gasket
45 51204134314 GB/T5783 螺栓M16X65 Bolt M16×65
46 30008107321 LG0075DTG.08-002 盖板 Cover plate
47 30008107812 LG0075DTG.08-003 管夹 Pipe clip
48 51421130115 GB/T97.1 垫圈16 Washer 16
49 51401130107 GB/T93 垫圈16 Washer 16
50 51307001319 GB/T6170 螺母M16 Nut M16

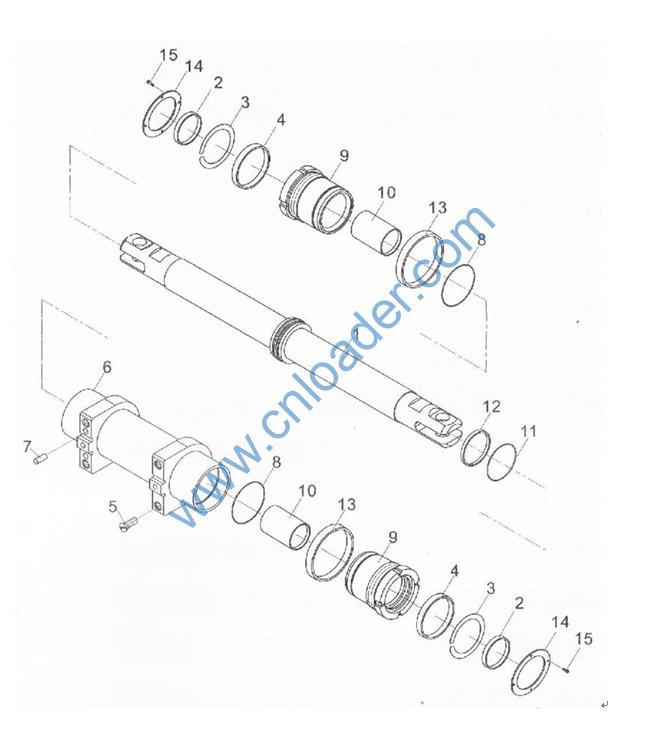

A A02ZA-50201 转向油缸 Steering cylinder assembly
1 A02ZA-50301 活塞杆总成 Piston rod assembly
2 REF339093
24450-82231 防尘圈D85 Seal,dust
3 25908-42471 挡片85X100X3 Snap ring
4 REF340213
24450-82241 密封圈D85 Seal ring
5 CPT3-81-011 堵头M16X1.5X16 Plug
6 A02Z4-50401 缸筒体 Steering cylinder body
7 E5784-12551 紧固销 Pin
8 56146017101 GB/T1235 0型圈115X3.1 0-ring 115×3.1
9 A02Z4-50501 导向套 Guide
10 Z2134-08580 钢背轴承8580 Bushing
11 56146017004 GB/T1235 0型圈110X5.7 0-ring 110×5.7
12 E5784-12571 支承环 Pivot ring
13 E5784-12601 导向套支承环 Pivot ring
14 A02Z4-52031 挡片 Snap ring
15 GB/T67 螺钉M4X10 Screw M4×10
