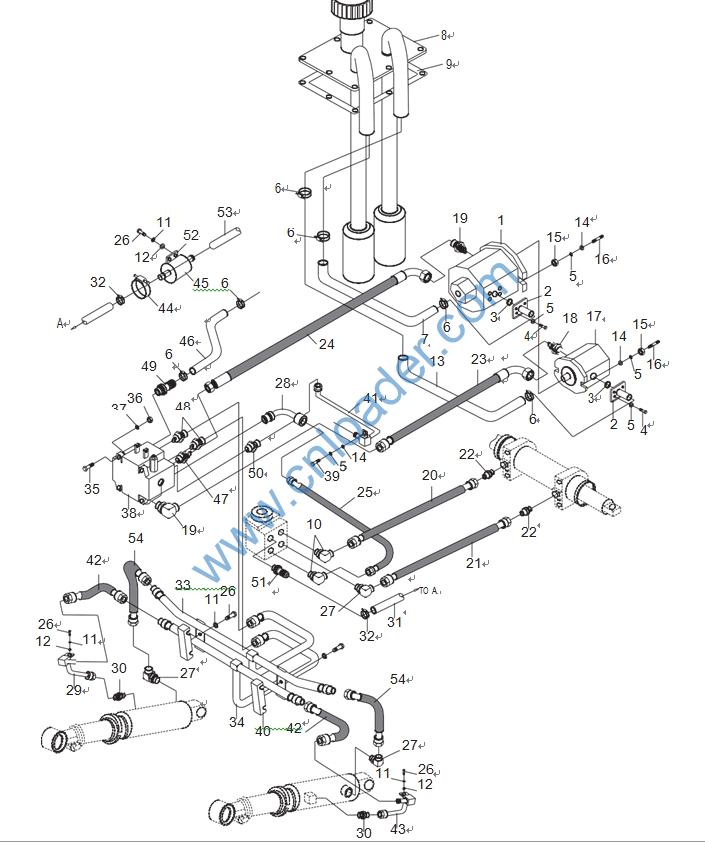

1 60300000440 LG0075DTG.12.11 双联齿轮泵 Duplex gear pump 1
2 60911010850 LG0060DT.12.12 后泵进油接头 Transition connector 2
3 56145010001 GB/T3452.1 O形圈37.5X3.55 O-ring 37.5×3.55 2
4 51204101214 GB/T5783 螺栓M10X30 Bolt M10×30 8
5 51401100107 GB/T93 垫圈10 Washer 10 13
6 56171000601 JB/T8870 喉箍d50(32~50) Hoop d50(32~50) 6
7 30012171037 LG0075DTG.12-005 吸油管 Oil suction pipe 1
8 30012073014 LG0075DTG.12.12 液压油箱盖板总成 Cover plate assembly 1
9 30012111502 LG0075DTG.12-006 密封垫 Rubber gasket 1
10 30012008315 LG0075DTG.12.20 过渡接头 Transition connector 2
11 51401090107 GB/T93 垫圈8 Washer 8 6
12 51421090115 GB/T97.1 垫圈8 Washer 8 4
13 30012171038 LG0075DTG.12-007 吸油管 Oil suction pipe 1
14 51421100115 GB/T97.1 垫圈10 Washer 10 5
15 51309000319 GB/T6171 螺母M10X1.25 Nut M10×1.25 4
16 51290105904 GB/T899A 螺柱M10X1.25X25 Stud M10×1.25×25 4
17 60301000200 LG0060DT.12.13 齿轮泵 Gear pump 1
18 17601000194 LG0060DT.12.14 过渡接头 Transition connector 1
19 17601000193 LG0060DT.12.18 过渡接头 Transition connector 2
20 17272011143 LG0075DTG.12.13 胶管总成 Hose assembly 1
21 17272011144 LG0075DTG.12.14 胶管总成 Hose assembly 1
22 17601000218 LG0060DT.12-018 过渡接头 Transition connector 2
23 17272011145 LG0075DTG.12.15 胶管总成 Hose assembly 1
24 17272011146 LG0075DTG.12.16 胶管总成 Hose assembly 1
25 17272011147 LG0075DTG.12.17 胶管总成 Hose assembly 1
26 51204090914 GB/T5783 螺栓M8X16 Bolt M8×16 6
27 17601000291 LG0060DT.12.15 过渡接头 Transition connector 3
28 30012013019 LG0060DT.12.16 钢管焊合 Steel tube weldment 1
29 30012013060 LG0075DTG.12.18 钢管焊合 Steel tube weldment 1
30 17601000454 LG0060DT.12-025 过渡接头 Transition connector 2
31 30012187933 LG0060DT.12-011 回油管 Oil return pipe 1
32 56171000301 JB/T8870 喉箍d32(20~32) Hoop d32(20~32) 6
33 30012013057 LG0075DTG.12.04 钢管焊合 Steel tube weldment 1
34 30012013056 LG0075DTG.12.03 钢管焊合 Steel tube weldment 1
35 51204111614 GB/T5783 螺栓M12X50 Bolt M12×50 4
36 51341000719 GB/T889.1 螺母M12 Nut M12 4
37 51401110107 GB/T93 垫圈12 Washer 12 4
38 60300000441 LG0075DTG.12.05 多路阀 Multi-way valve 1 二联
60300000573 LG0075DTG.12.05 多路阀 Multi-way valve 1 三联
60300000574 LG0075DTG.12.05 多路阀 Multi-way valve 1 四联
60300000575 LG0075DTG.12.05 多路阀 Multi-way valve 1 五联
39 51204101014 GB/T5783 螺栓M10X20 Bolt M10×20 1
40 30012107818 LG0060DT.12-008 管夹 Clip 2
41 30012013058 LG0075DTG.12.07 钢管焊合 Steel tube weldment 1
42 17272011142 LG0075DTG.12.09 胶管总成 Hose assembly 2
43 30012013059 LG0075DTG.12.08 钢管焊合 Steel tube weldment 1
44 56171002901 JB/T8870 喉箍d120(100~120) Hoop d120(100~120) 1
45 30012023305 LG0075DTG.12.10 过滤器总成 Air filter assembly 1
46 30012187951 LG0075DTG.12-003 回油管 Oil return pipe 1
47 17601000460 LG0060DT.12-026 过渡接头 Transition connector 1
48 17601000258 LGA0060DT.12-028 过渡接头 Transition connector 2
49 60911010856 LG0060DT.12-029 过渡接头 Transition connector 1
50 17601000162 LG0060DT.12-027 过渡接头 Transition connector 3
51 30012071703 LG0075DTG.12.19 接头焊合 Connector weldment 1
52 30012115006 LG0060DT.12-012 支架 Bracket 1
53 30012187921 LG0060DT.12-014 回油管 Oil return pipe 1
54 17272012425 20411D-182T06450 胶管总成 Hose assembly 2

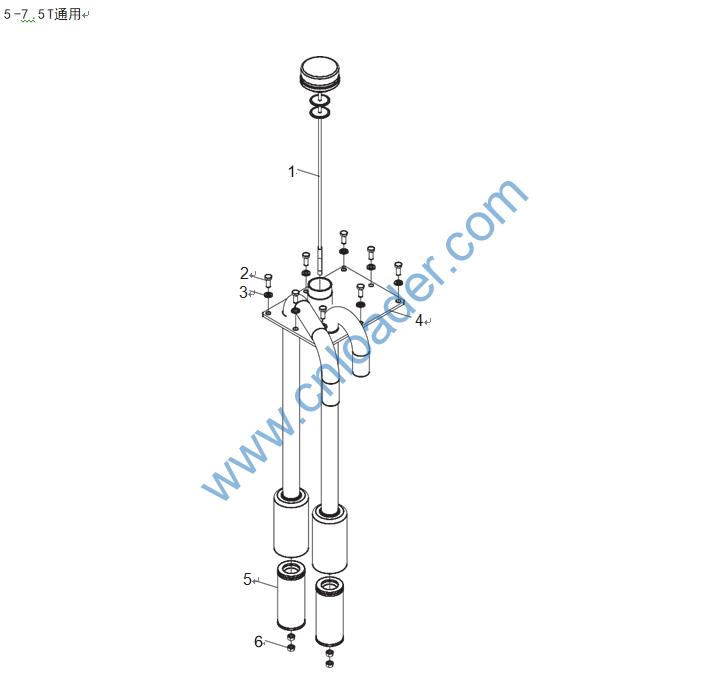

1 30012026211 LG0075DTG.12.12.01 油尺总成 Oil dipstick assembly
2 51204091014 GB/T5783 螺栓M8X20 Bolt M8×20
3 56147012401 JB/T982 组合垫圈8 Combination washer 8
4 30012072828 LG0075DTG.12.12.02 液压油箱盖板焊合 Cover plate weldment
5 30012015103 LG0075DTG.12.12.03 滤芯总成 Filter element
6 51307000919 GB/T6170 螺母M8 Nut M8

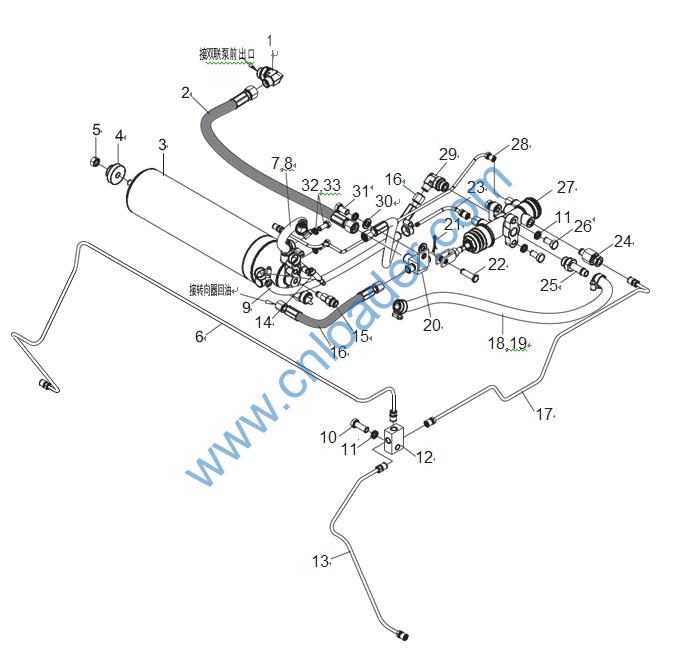

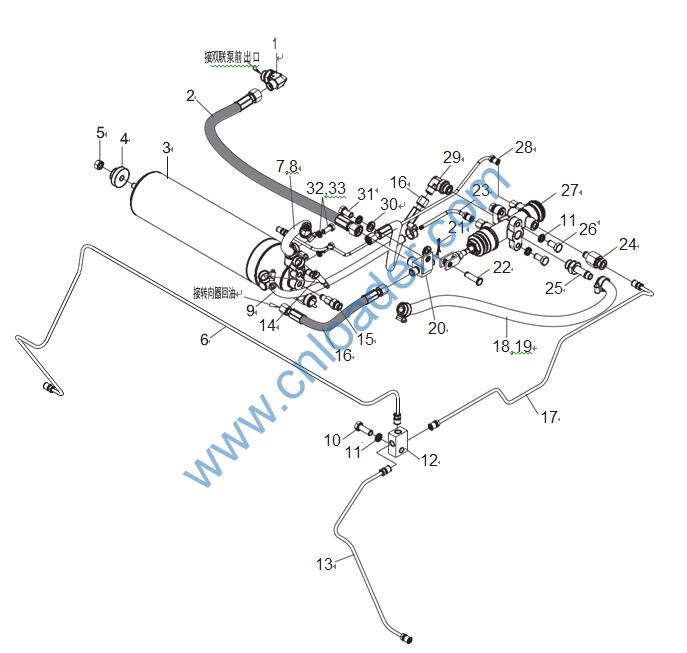

1 17601000186 LG0045Q.12.02 过渡接头 Transition connector
2 17272011148 LG0075DTG.13.03 胶管总成 Hose assembly
3 60300000439 LG0075DTG.13.02 蓄能器 Accumulator
4 60922010057 LG0100DT.13-011 橡胶垫 Rubber gasket
5 51307001019 GB/T6170 螺母M10 Nut M10
6 60900002247 LG0050DTⅢ.13.01 钢管总成 Steel pipe assembly
7 33001109203 LG0075DTG.13-004 胶管 Oil return pipe
8 56171001301 JB/T8870 喉箍d20(12~20) Hoop d20(12~20)
9 33006109200 LG0025QT.06-006 胶管 Hose
10 51204101214 GB/T5783 螺栓M10×30 Bolt M10×30
11 51401100107 GB/T93 垫圈10 Washer 10
12 30013112001 LG0075DTG.13-005 三通接头 T-connector
13 60900002248 LG0050DTⅢ.13.02 钢管总成 Steel pipe assembly
14 30013072000 LG0075DTG.13.12 三通接头总成 T-connector assembly
15 30013116701 LG0075DTG.13-006 接头 Connector
16 17272011149 LG0075DTG.13.09 胶管总成 Hose assembly
17 30013013310 LG0075DTG.13.06 钢管总成 Steel pipe assembly
18 56171002301 JB/T8870 喉箍d25(16~25) Hoop d25(16~25)
19 30012187919 LG0030B.12-006 回油管 Oil return pipe
20 30013071900 LG0075DTG.13.10 三通接头焊合 T-connector weldment
21 51512081201 GB/T91 销3.2×25 Pin 3.2×25
22 51511061502 GB/T882 销B10×35 Pin B10×35
23 30013013308 LG0075DTG.13.04 钢管总成 Steel pipe assembly
24 60300000418 LG0100DT.13.22 安全阀 Safety valve
25 30013116700 LG0075DTG.13.07 接头 Connector
26 51207105014 GB/T5786 螺栓M10×1.25×20 Bolt M10×1.25×20
27 60304100026 LG0100DT.13.02 制动阀总成 Brake valve assembly
28 30013013309 LG0075DTG.13.05 钢管总成 Steel pipe assembly
29 17601000378 LG0045Q.13.09 过渡接头 Transition connector
30 51421100115 GB/T97.1 垫圈10 Washer 10
31 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
32 51204091014 GB/T5783 螺栓M8×20 Bolt M8×20
33 51401090107 GB/T93 垫圈8 Washer 8
1 17601000186 LG0045Q.12.02 过渡接头 Transition connector
2 17272011148 LG0075DTG.13.03 胶管总成 Hose assembly
3 60300000439 LG0075DTG.13.02 蓄能器 Accumulator
4 60922010057 LG0100DT.13-011 橡胶垫 Rubber gasket
5 51307001019 GB/T6170 螺母M10 Nut M10
6 30013013307 LG0075DTG.13.01 钢管总成 Steel pipe assembly
7 33001109203 LG0075DTG.13-004 回油管 Oil return pipe
8 56171001301 JB/T8870 喉箍d20(12~20) Hoop d20(12~20)
9 33006109200 LG0025QT.06-006 胶管 Hose
10 51204101214 GB/T5783 螺栓M10×30 Bolt M10×30
11 51401100107 GB/T93 垫圈10 Washer 10
12 30013112001 LG0075DTG.13-005 三通接头 T-connector
13 30013013311 LG0075DTG.13.11 钢管总成 Steel pipe assembly
14 30013072000 LG0075DTG.13.12 三通接头总成 T-connector assembly
15 30013116701 LG0075DTG.13-006 接头 Connector
16 17272011149 LG0075DTG.13.09 胶管总成 Hose assembly
17 30013013310 LG0075DTG.13.06 钢管总成 Steel pipe assembly
18 56171002301 JB/T8870 喉箍d25(16~25) Hoop d25(16~25)
19 30012187919 LG0030B.12-006 回油管 Oil return pipe
20 30013071900 LG0075DTG.13.10 三通接头焊合 T-connector weldment
21 51512081201 GB/T91 销3.2×25 Pin 3.2×25
22 51511061502 GB/T882 销B10×35 Pin B10×35
23 30013013308 LG0075DTG.13.04 钢管总成 Steel pipe assembly
24 60300000418 LG0100DT.13.22 安全阀 Safety valve
25 30013116700 LG0075DTG.13.07 接头 Connector
26 51207105014 GB/T5786 螺栓M10×1.25×20 Bolt M10×1.25×20
27 60300000437 LG0075DTG.13.08 制动阀总成 Brake valve assembly
28 30013013309 LG0075DTG.13.05 钢管总成 Steel pipe assembly
29 17601000378 LG0045Q.13.09 过渡接头 Transition connector
30 51421100115 GB/T97.1 垫圈10 Washer 10
31 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
32 51204091014 GB/T5783 螺栓M8×20 Bolt M8×20
33 51401090107 GB/T93 垫圈8 Washer 8

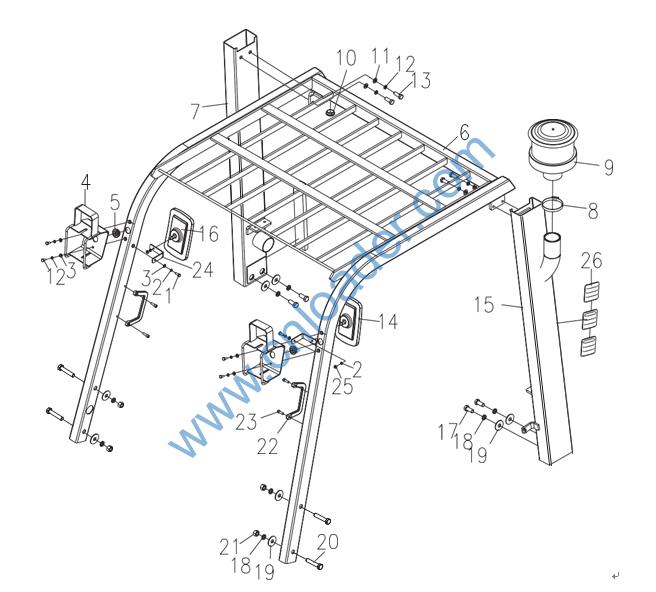

1 51204091114 GB/T5783 螺栓M8×25 Bolt M8×25 6
2 51401090107 GB/T93 垫圈8 Washer 8 8
3 51421090115 GB/T97.1 垫圈8 Washer 8 6
4 30014018120 LG0075DTG.14.02 支架焊合 Bracket weldment 2
5 60900001323 LG0075DTG.14-001 过线圈 Rubber ring 2
6 30014058521 LG0075DTG.14.01 护顶架焊合 Overhead guard 1
7 30014057588 LG0120DT.14.01 立柱焊合 Stand column weldment 1
8 60911011895 JB/T8870 美式重型喉箍105(83-105) American heavy hoop 1
9 60101100895 LG0078DTYA.14.02 空气预滤器 Air pre-filter 1
10 30014158000 LG0020BD.14-006 橡胶盖 rubber cover 1
11 51420110121 GB/T96.1 垫圈12 Washer 12 4
12 51401110107 GB/T93 垫圈12 Washer 12 4
13 51207115314 GB/T5786 螺栓M12×1.25×35 Bolt M12×1.25×35 4
14 60917010007 LG0030D.14-001 倒车镜 Seal stripe 1
15 30014057595 LG0050DTGAⅢ.14.01 立柱焊合 Stand column weldment 1
60800000334 LG0050DTGAⅢ.14B.01 立柱焊合 Stand column weldment 1
60800000335 LG0050DTGAⅢ.14C.01 立柱焊合 Stand column weldment 1
30014057626 LG0050DTGAⅢ.14S.01 立柱焊合 Stand column weldment 1
16 60700000364 LG0030DⅢ.09.03 倒车镜 Rear-view mirror 1
17 51207131314 GB/T5786 螺栓M16×1.5×35 Bolt M16×1.5×35 4
18 51401130107 GB/T93 垫圈16 Washer 16 8
19 51420130121 GB/T96.1 垫圈16 Washer 16 8
20 51210132214 GB/T5785 螺栓M16×1.5×80 Bolt M16×1.5×80 4
21 51309000719 GB/T6171 螺母M16×1.5 Bolt M16×1.5 4
22 30009156200 20B-0900001 把手 Handle 2
23 51139210405 GB/T70.1 螺钉M8×20 Screw M8×20 4
24 30014115024 LG0060DT.14-003 支架 Bracket 2
25 51307000919 GB/T6170 螺母M8 Nut M8 2
26 60980000403 LG0060DT.14-002 进气罩 Air inlet hood 3

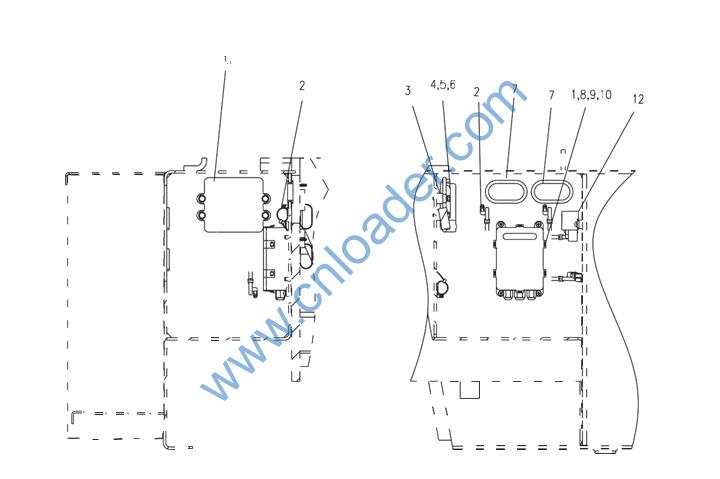

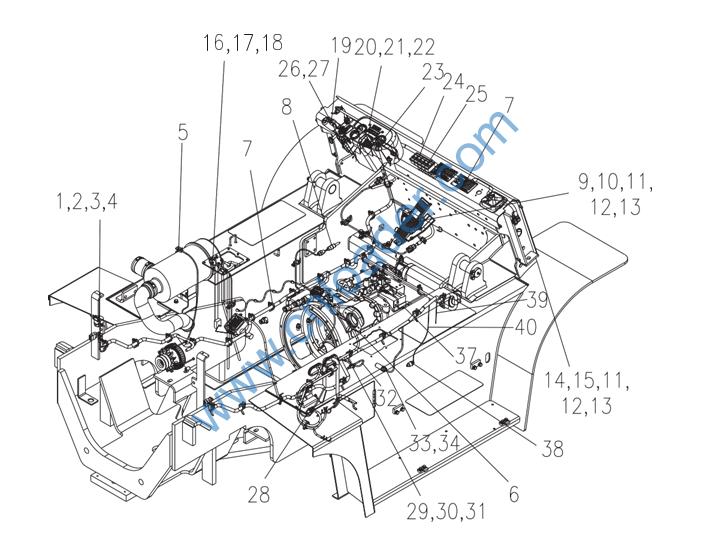

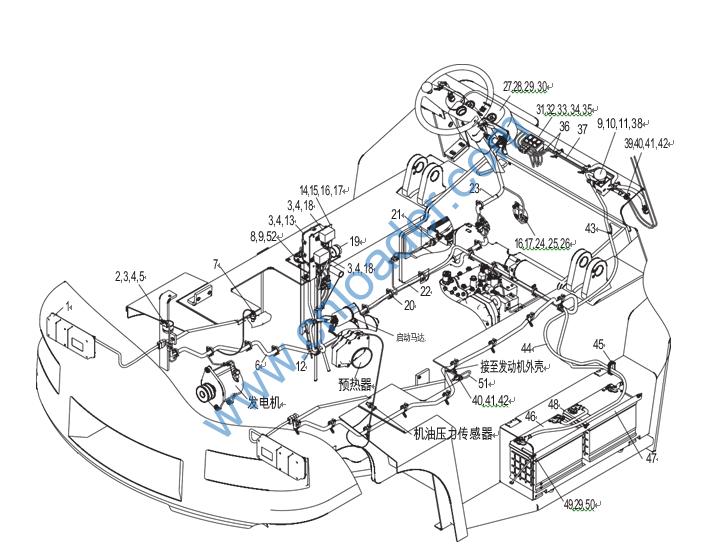

1 60401050091 LG0060DT.15-011 倒车蜂鸣器 Backup buzzer 1
2 51158190304 GB/T818 螺钉M6×12 Screw M6×12 1
3 51421080115 GB/T97.1 垫圈6 Washer 6 1
4 51401080107 GB/T93 垫圈6 Washer 6 1
5 30015066341 LG0100DTKDⅢ.15.01.04 连接线束 Connecting harness 1 OPS用
6 30015063317 LG0050DTGAⅢ.15.01.01 发动机线束 Engine harness 1
7 60980005598 LG0030DⅢ.15-003 扎带 Binding tape 43
8 60405020218 JK205A(带引) 刹车灯开关 Brake lamp switch 1
9 30015065007 LG0050DTⅣ.15.01.07 加速踏板总成 Acceleration pedal assembly 1
10 51204091114 GB/T5783 螺栓M8×25 Bolt M8×25 2
11 51421090115 GB/T97.1 垫圈8 Washer 8 5
12 51401090107 GB/T93 垫圈8 Washer 8 5
13 51307000919 GB/T6170 螺母M8 Nut M8 3
14 60401050090 DL224 喇叭 Horn 1
15 51204090914 GB/T5783 螺栓M8×16 Bolt M8×16 1
16 60400001033 LG0120DT.15.05.03 油量传感器 Oil capacity sensor 1
17 56147000101 JB/T982 组合垫圈5 Combination washer 5 5
18 51158170404 GB/T818 螺钉M5×12 Screw M5×12 5
19 60400000862 LG0050DTⅢ.15.02 组合开关 Combination switch 1 电液变速箱用
20 30015163436 LG0050DTGAⅢ.15.01.03 仪表总成 Instrument assembly 1
21 51204081214 GB/T5783 螺栓M6×30 Bolt M6×30 4
22 51430080114 GB/T5287 垫圈6 Washer 6 4
23 60405020047 LG0030D.15-003 组合开关 Combination switch 1 机械变速箱用
24 30015161508 LG0050DTGAⅢ.15.01.04 翘板开关 Panel switch 1
25 30015161509 LG0050DTGAⅢ.15.01.05 翘板开关 Panel switch 1
26 30015162314 LG0016B.15A.27 微动开关 Panel switch 1 自动换挡用
27 51158140804 GB/T818 螺钉M4×20 Screw M4×20 2 自动换挡用
28 30015068302 LG0030DⅢ.15.09 易熔线 Fusible wire 2
29 51401100107 GB/T93 垫圈10 Washer 10 1
30 51421100115 GB/T97.1 垫圈10 Washer 10 1
31 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20 1
32 30015061510 LG0075DTG.15.15 地线电缆 Ground cable 1
33 30015162101 LG0050DTⅢ.15.17 速度传感器 Speed sensor 1
34 60900002259 LG0050DTⅢ.15.18 垫圈 Washer 1 自动换挡用
35 30015067627 LG0050DTGAⅢ.15.01.06 线束总成 Harness assembly 1 自动换挡用
36 30015067628 LG0050DTGAⅢ.15.01.07 线束总成 Harness assembly 1 液力/电液换挡用
37 60400001089 LG0050DTGAⅢ.15.01.08 连接线束 Connecting harness 1 电液换挡用
38 30015163703 LG0060DT.15-023 温度报警开关 Temperature alarm sensor 1 选配
39 30015066327 LG0050DTⅢ.15.12 连接线束 Connecting harness 1 选配液压OPS用
40 30015066328 LG0050DTⅢ.15.13 连接线束 Connecting harness 1 选配油温传感器用

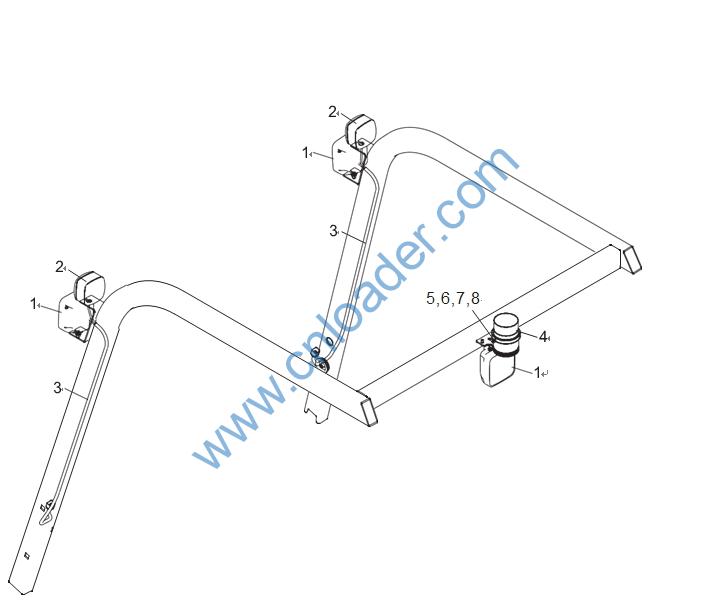

1 30015064401 LG0060DT.15.09 后组合灯 Rear combination lamp 2 选配
2 60400000840 LG0050DTID.15.03 后组合灯 Rear combination lamp 2 LED

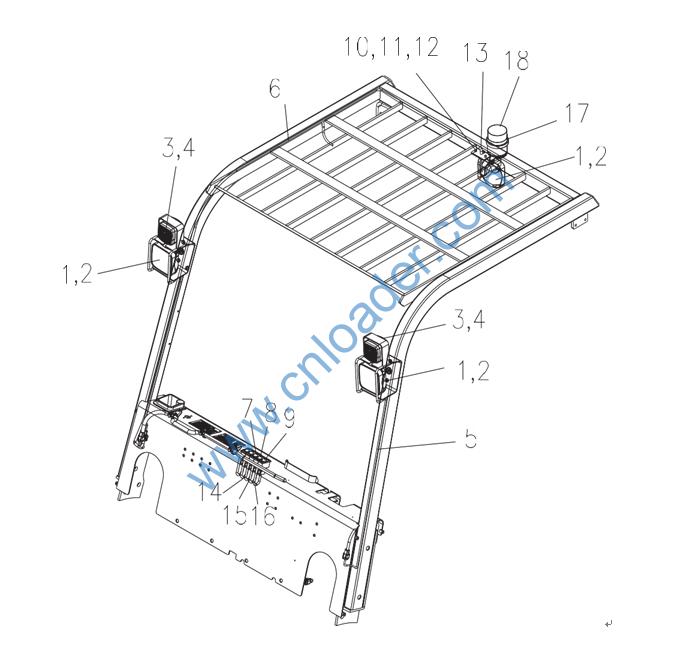

1 60400000838 LG0050DTID.15.01 工作灯 Working lamp 2 选配LED
2 30015064202 LG0045DT.15.01 工作灯 Working lamp 2
3 60400001090 LG0050DTGAⅢ.15.02.01 前组合灯 Front combination lamp 2
4 60400000839 LG0050DTID.15.02 前组合灯 Front combination lamp 2 选配LED
5 30015064504 LG0030DⅢ.15.07 护顶架线束 Overheadguard harness 2
6 30015066323 LG0050DTⅢ.15.03 连接线束 Connecting harness 1 警示灯后照灯风扇用
7 30015161505 LG0050DTⅢ.15.09 翘板开关 Panel switch 1 选配后照灯用
8 30015161506 LG0050DTⅢ.15.10 翘板开关 Panel switch 1 选配前雨刮用
9 30015161507 LG0050DTⅢ.15.11 翘板开关 Panel switch 1 选配暖风机用
10 51204080914 GB/T5783 螺栓M6×16 Bolt 2 警示灯后照灯用
11 51421080115 GB/T97.1 垫圈6 Washer 6 2
12 51401080107 GB/T93 垫圈6 Washer 6 2
13 30015115018 LG0050DTⅢ.15-001 支架 Bracket 1 选配警示灯后照灯用
14 30015066324 LG0050DTⅢ.15.05 连接线束 Connecting harness 1 选配后照灯用
15 30015066325 LG0050DTⅢ.15.06 连接线束 Connecting harness 1 选配前雨刮用
16 30015066326 LG0050DTⅢ.15.07 连接线束 Connecting harness 1 选配暖风机用
17 30015061322 LG0050DTⅢ.15.08 灯具线束 Lamp harness 1 选配
18 30015064403 LG0030B.15.19 警示灯 Warning harness 1 选配

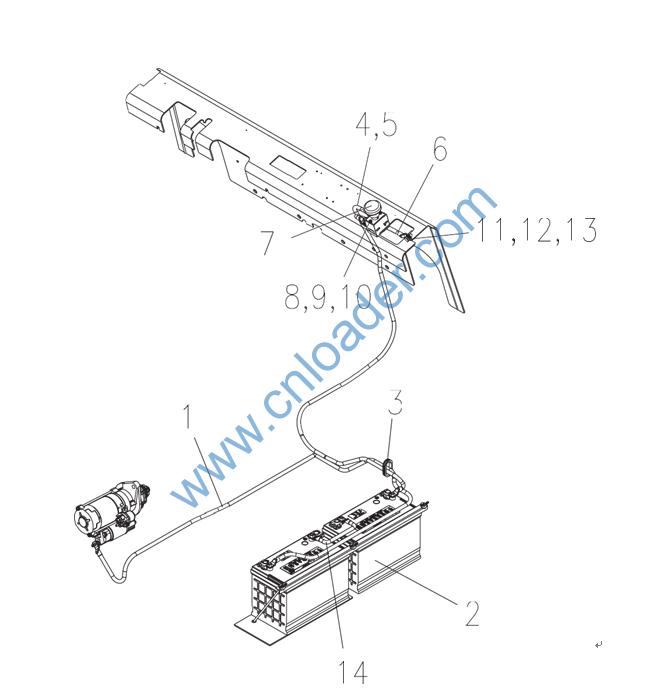

1 30015066223 LG0050DTGAⅢ.15.05.01 连接电缆 Connecting cable 1
2 30015068011 LG0075DTG.15.14 蓄电池盒总成 Battery box assembly 1
3 30015161102 LG0075DTG.15-001 橡胶环 Rubber ring 1
4 30015061509 LG0075DTG.15.12 地线电缆 Ground cable 1 选配电源开关
5 30015061511 LG0050DTⅢ.15.14 地线电缆 Ground cable 1 不选电源开关
6 30015061508 LG0075DTG.15.08 地线电缆 Ground cable 1 选配电源开关用
7 60400000465 LG0075DTG.15.07 电源开关 Electrical switch 1 选配
8 51158170404 GB/T818 螺钉M5×12 Screw M5×12 2
9 51421070115 GB/T97.1 垫圈5 Washer 5 2 选配电源开关用
10 51401070107 GB/T93 垫圈5 Washer 5 2 选配电源开关用
11 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20 1 选配电源开关用
12 51421100115 GB/T97.1 垫圈10 Washer 10 1 选配电源开关用
13 51401100107 GB/T93 垫圈10 Washer 10 1 选配电源开关用
14 30015066222 LG0075DTG.15.13 连接电缆 Connecting cable 1
1 30015161401 LG0050DTGAⅢ.15.04.02 控制器 Controller 1 发动机带
2 60980005598 LG0030DⅢ.15-003 扎带 Binding tape 6
3 30015162501 LG0050DTGAⅢ.15.04-002 橡胶块 Rubber ring 1 发动机带
4 51204091414 GB/T5783 螺栓M8×40 Bolt M8×40 4
5 51421090115 GB/T97.1 垫圈8 Washer 8 4
6 51401090107 GB/T93 垫圈8 Washer 8 4
7 30015161103 LG0050DTGAⅢ.15.04-001 橡胶环 Rubber ring 2
8 30015069114 LG0050DTGAⅢ.15.04.0 控制盒 Control box 1 5-7t自动换挡用
30015069125 LG0100DTGAⅢ.15.01.01 控制盒 Control box 1 7.5t自动换挡用
9 51421080115 GB/T97.1 垫圈6 Washer 6 6
10 51158190304 GB/T818 螺钉M6×12 Screw M6×12 6
11 30015069116 LG0050DTⅣ.15.01.06.01 控制盒 Control box 1 电液换档用
12 60405030074 LG0060DT.15-015 启动继电器 Start relay 1
1 30015064412 LG0075DTG.15.06 后组合灯 Rear combination lamp 2
2 60401050091 LG0060DT.15-011 倒车蜂鸣器 Backup buzzer 1
3 51158190304 GB/T818 螺钉M6X12 Screw M6×12 17
4 51421080115 GB/T97.1 垫圈6 Washer 6 17
5 51401080107 GB/T93 垫圈6 Washer 6 1
6 30015063312 LG0075DTG.15.17 发动机线束 Engine wire harness 1
7 30015162002 LG0100DT.15-011 水温传感器 Water temperature sensor 1
8 30015163600 LG0100DT.15-019 油量传感器 Oil capacity sensor 1
9 51158170404 GB/T818 螺钉M5X12 Screw M5×12 7
10 51421070115 GB/T97.1 垫圈5 Washer 5 2
11 51401070107 GB/T93 垫圈5 Washer 5 2
12 30015068305 LG0075DTG.15.16 易熔线 Fusible wire 1
13 30015069109 LG0075DTG.15.05.01 控制盒 Control box 1
14 30014105305 LG0075DTG.15.05-001 安装板 Mounting plate 1
15 51204090914 GB/T5783 螺栓M8X16 Bolt M8×16 2
16 51421090115 GB/T97.1 垫圈8 Washer 8 3
17 51401090107 GB/T93 垫圈8 Washer 8 3
18 60405030074 LG0060DT.15-015 启动继电器 Starting relay 2
19 30015163900 LG0060DT.15-008 真空报警器 Vacuum alarm 1
20 60980005598 LG0030DⅢ.15-003 扎带 Binding tape 32
21 60405020221 LG0100DT.15-022 制动灯开关 Brake lamp 1
22 30015066221 LG0075DTG.15.11 连接电缆 Connecting cable 1
23 30015068205 LG0075DTG.15.24 仪表线束 Instrument wire harness 1
24 60401050090 LG0060DT.15-005 喇叭 Horn 1
25 51204091114 GB/T5783 螺栓M8X25 Bolt M8×25 1
26 51307000919 GB/T6170 螺母M8 Nut 20 2
27 30015163429 LG0075DTG.15.18 仪表总成 Instrument assembly 1
28 51204081214 GB/T5783 螺栓M6X30 Bolt M6×30 4
29 51430080114 GB/T5287 垫圈6 Washer 6 7
30 60405020197 LG0060DT.15-004 转向手柄 Steering handle 1
31 30015161500 LG0075DTG.15.19 翘板开关 Panel switch 1
32 30015161501 LG0075DTG.15.20 翘板开关 Panel switch 1 后照明灯用
33 30015161502 LG0075DTG.15.21 翘板开关 Panel switch 1 警示灯用
34 30015161503 LG0075DTG.15.22 翘板开关 Panel switch 1 暖风机用
35 30015161504 LG0075DTG.15.23 翘板开关 Panel switch 1 雨刮器用
36 30015061320 LG0075DTG.15.04 灯具线束 Lamp harness 2 后照明灯警示灯各1根
37 30015066318 LG0075DTG.15.10 连接线束 connecting harness 1 暖风机用
38 60400000465 LG0075DTG.15.07 电源开关 Power switch 1
39 30015061508 LG0075DTG.15.08 地线电缆 Gound cable 1
40 51204101014 GB/T5783 螺栓M10X20 Bolt M10×20 2
41 51421100115 GB/T97.1 垫圈10 Washer 10 2
42 51401100107 GB/T93 垫圈10 Washer 10 2
43 60980000547 30D-1500001 扎带4X300 Binding tape 4×300 7
44 30015061509 LG0075DTG.15.12 地线电缆 Gound cable 1
45 30015161102 LG0075DTG.15-001 橡胶环 Rubber ring 1
46 60401030028 LG0030D.15.05.01 蓄电池 Battery 2
47 30015153105 LG0075DTG.15.14-002 压板 Pressure plate 1
48 30015066222 LG0075DTG.15.13 连接电缆 Connecting cable 1
49 30008150203 LG0075DTG.15.14-001 固定杆 Fixed rod 3
50 51354000404 GB/T62.1 螺母M6 Nut M6 3
51 30015061510 LG0075DTG.15.15 地线电缆 Gound cable 1
52 56147000101 JB/T982 组合垫圈5 Combination washer 5 5
1 30015064201 LG0075DTG.15.01 工作灯 Working lamp 2 照明灯数量为3
2 30015067100 LG0075DTG.15.02 前组合灯 Front combination lamp 2
3 30015061319 LG0075DTG.15.03 灯具线束 Lamp harness 2
4 30015064403 LG0030B.15.19 警示灯 Warning lamp 1 选装
5 30008133529 LG0030DTIHⅢ.15-001 支板 Support plate 1 警示灯/后照灯用
6 51204080914 GB/T5783 螺栓M6X16 Bolt M6×16 2 警示灯/后照灯用
7 51401080107 GB/T93 垫圈6 Washer 6 2 警示灯/后照灯用
8 51421080115 GB/T97.1 垫圈6 Washer 6 2 警示灯/后照灯用
