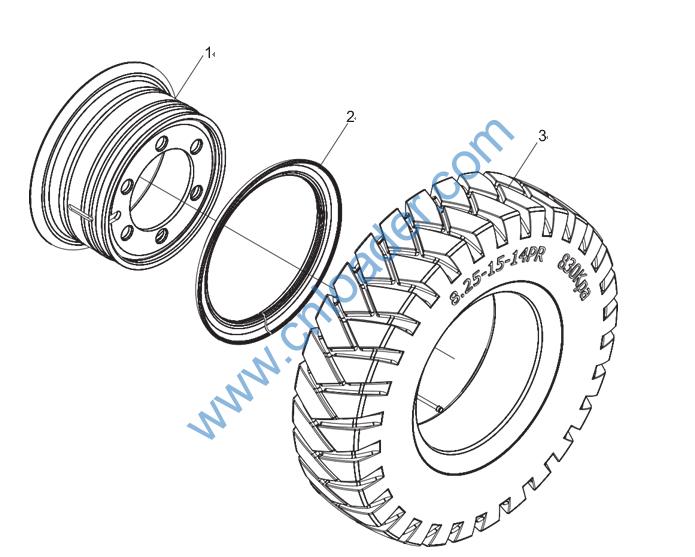

A 60205000156 LG0060DT.03.04-001 轮辋总成6.5-15 Rim 6.5-15
1 挡圈 Snap ring
2 轮辋体 Rim
3 60205000189 GB/T2982 轮胎总成8.25-15-14PR Trye assembly
1 51421110115 GB/T97.1 垫圈12 Washer 12
2 51204111114 GB/T5783 螺栓M12X25 Bolt M12×25
3 51401110107 GB/T93 垫圈12 Washer 12

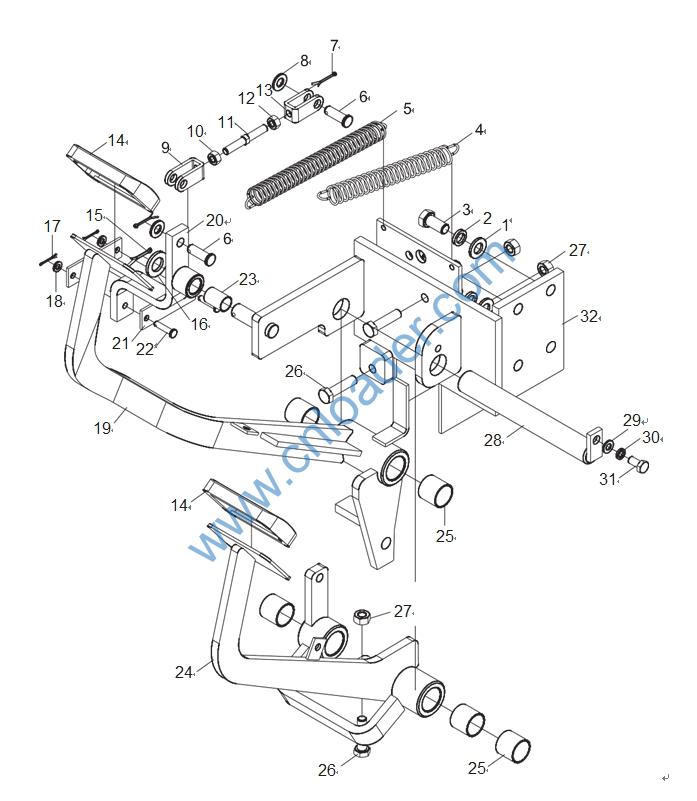

A 30006042222 LG0075DTG.06.01 行车制动总成 Service brake assembly
4 60980004285 LG0060DT.06.08-003 拉簧1 Pull spring 1
5 60980004284 LG0060DT.06.08-002 拉簧2 Pull spring 2
6 51511061302 GB/T882 销B10X30 Pin B10×30
7 51512071201 GB/T91 销2.5X25 Pin 2.5×25
8 51421100115 GB/T97.1 垫圈10 Washer 10
9 60980004290 LG0060DT.06.08.03-002 连接叉 Connecting fork
10 51307003119 GB/T6170 螺母M8-LH Nut M8-LH
11 60980004291 LG0060DT.06.08.03-003 螺柱 Stud
12 51307000919 GB/T6170 螺母M8 Nut M8
13 60980004292 LG0060DT.06.08.03-004 连接叉 Connecting fork
14 60980004281 LG0060DT.06.08-001 脚踏套 Pedal sheath
15 51512081201 GB/T91 销3.2X25 Pin 3.2×25
16 51421130115 GB/T97.1 垫圈16 Washer 16
17 51512060801 GB/T91 销2X16 Pin 2×16
18 51421080115 GB/T97.1 垫圈6 Washer 6
19 30006040608 LG0075DTG.06.01.04 踏板总成 Brake pedal assembly
20 30006054201 LG0075DTG.06.01.01.01 弯板焊合 Bent plate
21 30006110513 LG0075DTG.06.01.01-00 1连接板 Connecting board
22 51511041102 GB/T882 销B6X26 Pin 6×26
23 52011000101 GB/T12613.1 滑动轴承16X18X25 Sliding bearing 16×18×25
24 30006040607 LG0075DTG.06.01.03 踏板总成 Brake pedal assembly
25 52011000402 GB/T12613.1 滑动轴承25X28X25 Sliding bearing 25×28×25
26 51204101414 GB/T5783 螺栓M10X40 Bolt M10×40
27 51307001019 GB/T6170 螺母M10 Nut M10
28 30006018115 LG0075DTG.06.01.02 支架焊合 Bracket weldment
29 51421090115 GB/T97.1 垫圈8 Washer 8
30 51401090107 GB/T93 垫圈8 Washer 8
31 51204090914 GB/T5783 螺栓M8X16 Bolt M8×16
32 30006043610 LG0075DTG.06.01.05 转轴焊合 Rotarion shaft weldment

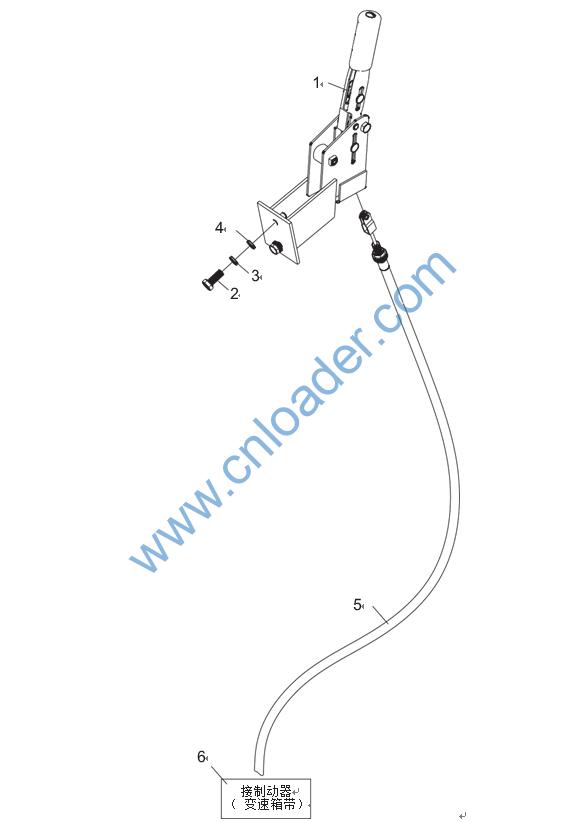

1 60500000047 LG0075DTG.07.04 手制动手柄总成 Parking brake handle
2 51204101314 GB/T5783 螺栓M10×35 Bolt M10×35
3 51401100107 GB/T93 垫圈10 Washer 10
4 51421100115 GB/T97.1 垫圈10 Washer 10
5 60208000090 LG0060DT.07.02 拉索总成 Cable assembly
6 60208000091 LG0060DT.07.03 手制动器总成 Handle assembly

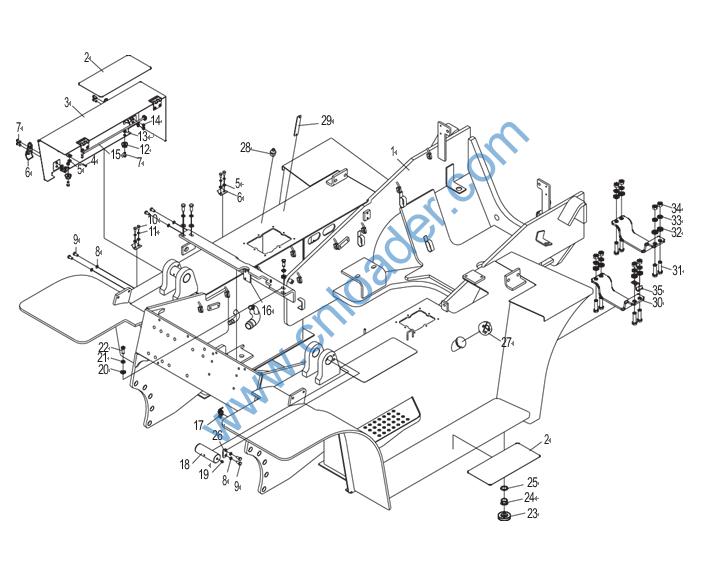

1 30008050121 LG0050DTGAⅢ.08.01 车架焊合 Frame weldment
30008050144 LG0075DTGAⅢ.08.01 车架焊合 Frame weldment
2 30008155203 LG0075DTG.08-001 防滑垫 Antiskid gasket
3 30008046509 LG0075DTG.08.03.01 盖板焊合 Cover plate
4 51512061001 GB/T91 销2×20 Pin2×20
5 51421090115 GB/T97.1 垫圈8 Wahser 8
6 60900001288 LG0075DTG.08.04 弹簧卡总成 Spring clip
7 51204091014 GB/T5783 螺栓M8×20 Bolt M8×20
8 51401100107 GB/T93 垫圈10 Washer 10
9 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
10 51204090914 GB/T5783 螺栓M8×16 Bolt M8×16
11 51401090107 GB/T93 垫圈8 Washer 8
12 30008109001 LG0075DTG.08.03-001 减震垫 Damper gasket
13 51341000519 GB/T889.1 螺母M8 Nut M8
14 51307000919 GB/T6170 螺母M8 Nut M8
15 30008052000 LG0075DTG.08.03.02 防护杆焊合 Protecting rod
16 30008047122 LG0075DTG.08.02 连接板焊合 Connecting plate
17 60980005598 LG0030DⅢ.15-003 扎带 Binding tape
18 30008119502 LG0060DT.08-006 销轴 Pin shaft
19 56201000301 JB/T7940.1 油杯M10×1 Oil cup M10×1
20 51421110115 GB/T97.1 垫圈12 Washer 12
21 51401110107 GB/T93 垫圈12 Washer 12
22 51204111214 GB/T5783 螺栓M12×30 Bolt M12×30
23 30008154200 LG0060DT.08-003 磁铁70×32×15 Magnet 70×32×15
24 56302001202 JB/ZQ4444 螺塞M30×1.5 Plug M30×1.52
25 56147011701 JB/T982 组合垫圈30 Combination washer
26 30008153700 LG0060DT.08-007 止动片 Stop sheet
27 60980000847 30D-0131400 加油口盖 Oil filler cap
28 56201000101 JB/T7940.1 油杯M6 Oil cup M6
29 60701010034 LG0260DT.08.05.03-002 门锁 Door lock
30 30008107321 LG0075DTG.08-002 盖板 Cover plate
31 51204134314 GB/T5783 螺栓M16×65 Bolt M16×65
32 51421130115 GB/T97.1 垫圈16 Washer 16
33 51401130107 GB/T93 垫圈16 Washer 16
34 51307001319 GB/T6170 螺母M16 Nut M16
35 30008107812 LG0075DTG.08-003 管夹 Clip

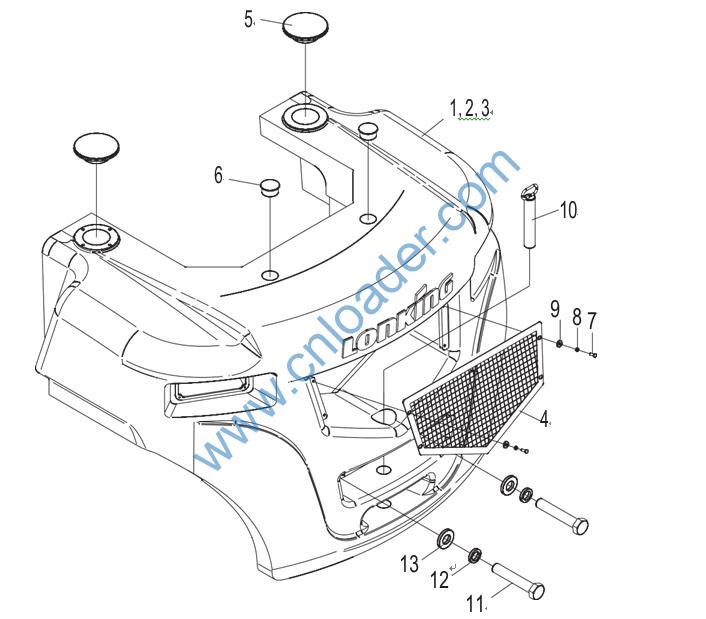

1 60900002250 LG0050DTⅢ.17.01 平衡重焊合 Counter weight weldment
2 60900002251 LG0060DTⅢ.17.01 平衡重焊合 Counter weight weldment
3 60900002252 LG0070DTⅢ.17.01 平衡重焊合 Counter weight weldment
4 60900002243 LG0050DTⅢ.17.02 保护罩焊合 Shield weldment
5 30017159101 LG0030DⅢ.17-001 孔塞 Plug
6 30017159100 30D-1700002 孔塞 Plug
7 51204091014 GB/T5783 螺栓M8×20 Bolt M8×20
8 51401090107 GB/T93 垫圈8 Washer 8
9 51420090121 GB/T96.1 垫圈8 Washer 8
10 30017038506 LG0060DT.08.02 牵引销焊合 Traction pin weldment
11 51203213214 GB/T5782 螺栓M36×200 Bolt M36×200
12 51401230107 GB/T93 垫圈 36 Washer 36
13 30017106402 LG0060DT.08-004 垫圈 Washer

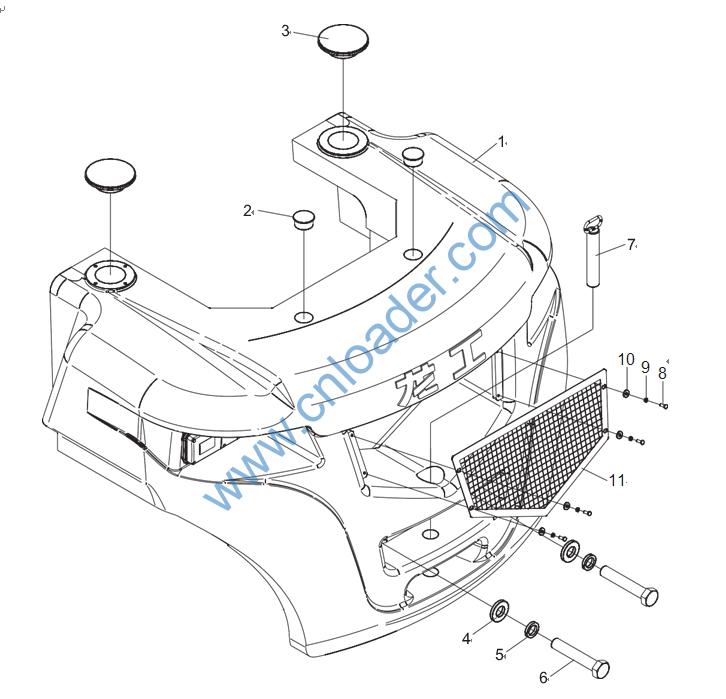

1 30017038711 LG0075DTG.17.01 平衡重焊合 Counter weight weldment
2 30017159100 30D-1700002 孔塞 Plug
3 30017159101 LG0030DⅢ.17-001 孔塞 Plug
4 30017106402 LG0060DT.08-004 垫圈 Washer
5 51401230107 GB/T93 垫圈36 Washer 36
6 51203213214 GB/T5782 螺栓M36X200 Bolt M36×200
7 30017038506 LG0060DT.08.02 牵引销焊合 Traction pin weldment
8 51204091014 GB/T5783 螺栓M8X20 Bolt M8×20
9 51401090107 GB/T93 垫圈8 Washer 8
10 51420090121 GB/T96.1 垫圈8 Washer 8
11 30017018300 LG0075DTG.17.02 保护罩焊合 Shield weldment

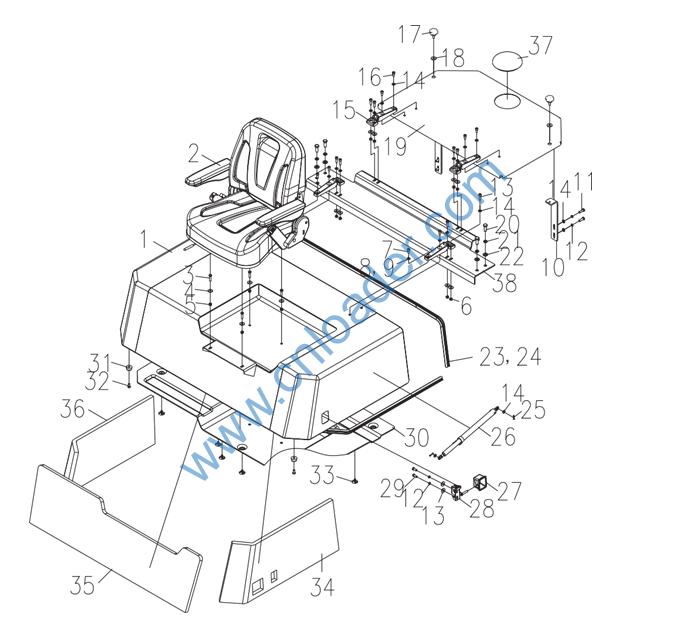

1 30009056803 LG0075DTG.09.01.01 机罩焊合 Engine hood weldment
2 60920011458 LG0030D.09.06 座椅总成 Seat assembly
3 51204091214 GB/T5783 螺栓M8×30 Bolt M8×30
4 51420090121 GB/T96.1 垫圈8 Nut M8
5 51347000319 GB/T6184 螺母M8 Washer 8
6 51307000919 GB/T6170 螺母M8 Nut M8
7 51139220605 GB/T70.1 螺钉M10×40 Screw M10×40
8 51401100107 GB/T93 垫圈10 Washer 10
9 51421100115 GB/T97.1 垫圈10 Washer 10
10 30009115057 LG0050DTGAⅢ.09-001 支架 Bracket
11 51204091114 GB/T5783 螺栓M8×25 Bolt M8×25
12 51401090107 GB/T93 垫圈8 Washer 8
13 51139210505 GB/T70.1 螺钉M8×25 Screw M8×25
14 51421090115 GB/T97.1 垫圈8 Washer 8
15 60701010156 LG0030D.09.08 铰链 Hinge
16 51139210305 GB/T70.1 螺钉M8×16 Screw M8×16
17 30009157300 20B-0900003 螺钉 Screw
18 51420100121 GB/T96.1 垫圈10 Washer 10
19 30009046526 LG0050DTGAⅢ.09.03 盖板焊合 Cover plate assembly
20 51204111214 GB/T5783 螺栓M12×30 Air spring
21 51420110121 GB/T96.1 垫圈12 Transverse plate weldment
22 51401110107 GB/T93 垫圈12 Bolt M12×30
23 30009159205 LG0075DTG.09-004 密封条 Washer 12
24 60700000101 LG0075DTG.09-006 密封条 Washer 12
25 51512061001 GB/T91 销2×20 Pin 2×20
26 60900001321 LG0075DTG.09.05 气弹簧 Air spring
27 30009104100 LG0075DTG.09.01-004 方盒 Square box
28 30009047306 LG0075DTG.09.01.02 锁扣总成 Lock assembly
29 51204091014 GB/T5783 螺栓M8×20 Bolt M8×20
30 30009156800 LG0075DTG.09.01-001 隔热垫 Thermal gasket
31 30008109001 LG0075DTG.08.03-001 减震垫 Rubber gasket
32 51204090914 GB/T5783 螺栓M8×16 Bolt M8×16
33 30009144102 LG0075DTG.09.01-002 固定夹 Fixed block
34 30009157800 LG0075DTG.09.01-003 吸声块 Sound absorption block
35 30009157801 LG0075DTG.09.01-005 吸声块 Sound absorption block
36 30009157802 LG0075DTG.09.01-007 吸声块 Sound absorption block
37 60700000744 LG0050DTGAⅢ.09-002 橡胶盖 Rubber cover
38 30009126511 LG0050DTGAⅢ.09-003 横板 Tranverse plate

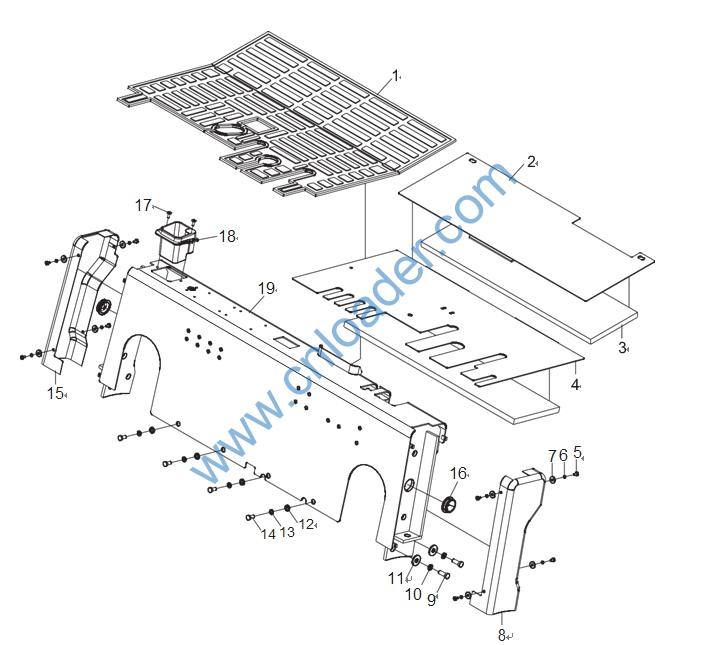

1 60700000763 LG0100DTGAⅢ.09-001 踏板垫 Pedal gasket
2 30009045954 LG0075DTG.09.04 底板焊合 Bottom plate weldment
3 30009157803 LG0075DTG.09-003 吸声块 Sound Asorption block
4 30009045965 LG0050DTGAⅢ.09.02 底板焊合 Bottom plate weldment
5 51158190304 GB/T818 螺钉M6×12 Screw M6×12
6 51401080107 GB/T93 垫圈6 Washer 6
7 51430080114 GB/T5287 垫圈6 Washer 6
8 60903000010 LG0060DT.09-005 覆盖件 Mantle
9 51204111214 GB/T5783 螺栓M12×30 Bolt M12×30
10 51420110121 GB/T96.1 垫圈12 Washer 12
11 51401110107 GB/T93 垫圈12 Washer 12
12 51421100115 GB/T97.1 垫圈10 Washer 10
13 51401100107 GB/T93 垫圈10 Washer 10
14 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
15 60903000011 LG0060DT.09-006 覆盖件 Mantle
16 60900001322 LG0075DTG.09-002 过线圈 Rubber ring
17 51158190504 GB/T818 螺钉M6×16 Screw M6×16
18 60903000019 H24C6-42072 工具盒 Tool kit
19 30009058027 LG0050DTGAⅢ.09.01 仪表架焊合 Instrument carriage weldment

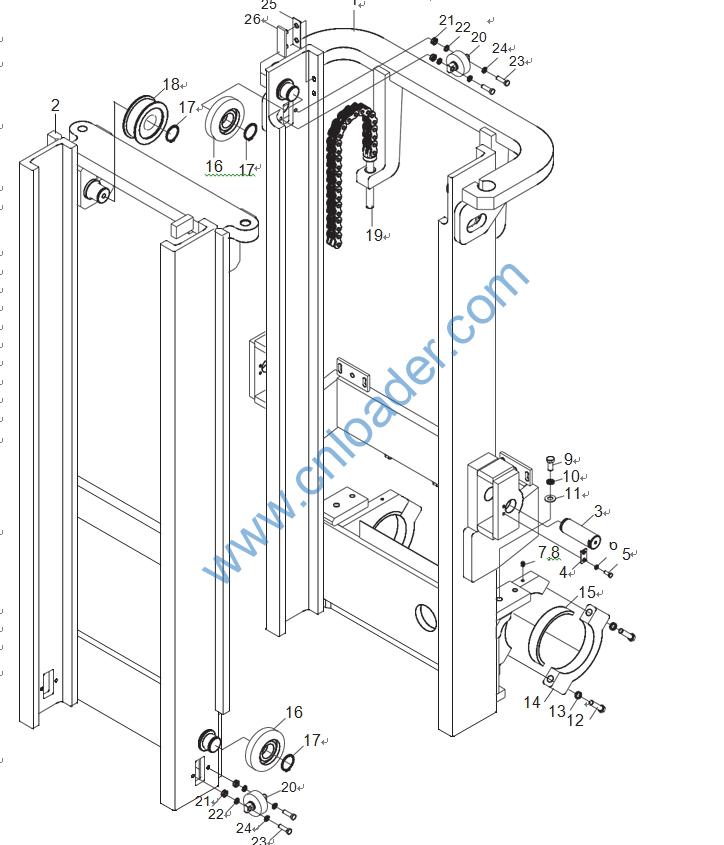

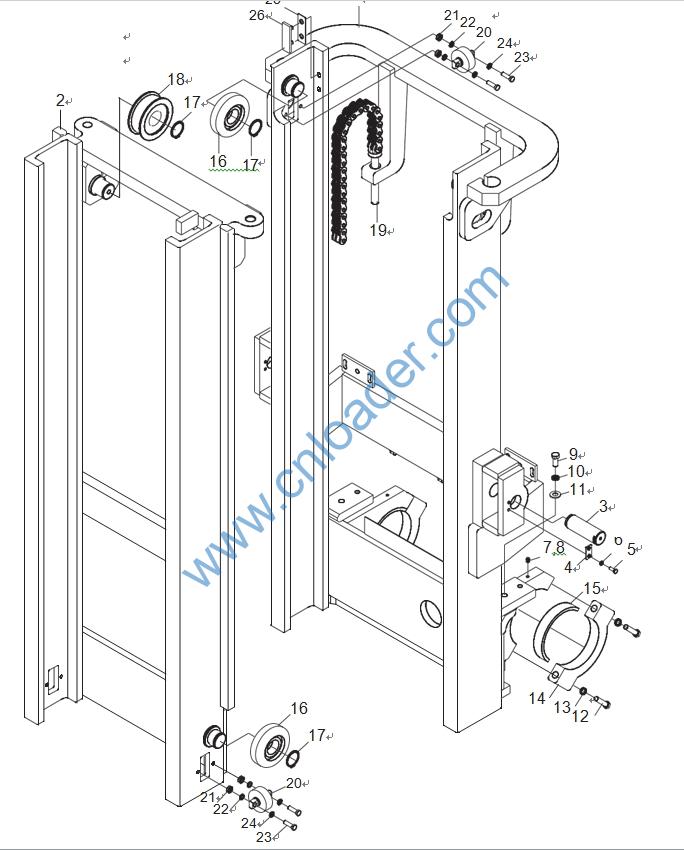

1 30086082554 LG0050DTIII.10.01 外门架焊合 Outer mast weldment
2 30086081500 LG0050DTIII.10.02 内门架焊合 Inner mast weldment
3 30086119500 LG0060DT.10-005 销轴 Pin shaft
4 30008153700 LG0060DT.08-007 止动片 Stop
5 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
6 51401100107 GB/T93 垫圈10 Washer 10
7 56201000301 JB/T7940.1 油杯M10×1 Oil cup M10×1
8 60980005823 LG0030D.10-021 红色保护套 Red sheath
9 51207131314 GB/T5786 螺栓M16×1.5×35 Bolt M6×1.5×35
10 51421130115 GB/T97.1 垫圈16 Washer 16
11 51401130107 GB/T93 垫圈16 Washer 16
12 51210172914 GB/T5785 螺栓M24×2×130 Bolt M24×2×130
13 51401170107 GB/T93 垫圈24 Washer 24
14 30088118504 LG0075DTG.10-003 端盖 End cover
15 30086184501 LG0060DT.10-012 轴衬 Bushing
16 30086141001 LG0060DT.10-009 滚轮 Roller
17 51453420107 GB/T894.1 挡圈55 Snap ring 55
18 30086185701 LG0060DT.10-001 链轮 Chain wheel
19 30086080519 LG0075DTG.10.03 链条总成LH2044 Chain assembly LH2044
20 30088081402 LG0075DTG.10.06 滚轮总成 Roller assembly
21 30086106400 LG0060DT.10-007 垫圈 Washer
22 30086118200 LG0060DT.10-008 垫片 Gasket
30086118201 LG0060DT.10-008 垫片 Gasket
23 51207115614 GB/T5786 螺栓M12×1.25×50 Bolt M12×1.25×50
24 51401110107 GB/T93 垫圈12 Washer 12
25 30086154802 LG0060DT.10-015 调整垫 Adjusting gasket
30086154804 LG0060DT.10-015 调整垫 Adjusting gasket
30086154805 LG0060DT.10-015 调整垫 Adjusting gasket
26 30088185101 LG0075DTG.10-004 滑块 Slide block
30086910048 2000 30086081697 30086082551 – –
30086910049 2500 30086081698 30086082552 30086080516 53
30086910050 2700 30086081699 30086082553 30086080500 55
30086910051 3000 30086081500 30086082554 30086080519 61
30086910052 3300 30086081501 30086082555 30086080520 65
30086910053 3500 30086081502 30086082556 30086080521 69
30086910054 3750 30086081503 30086082557 – –
30086910055 4000 30086081504 30086082558 30086080505 79
30086910056 4250 30086081505 30086082559 30086080506 83
30086910057 4500 30086081506 30086082560 30086080533 85
30086910058 4750 30086081507 30086082561 – –
30086910059 5000 30086081508 30086082562 30086080508 93
30086910060 5500 30086081509 30086082563 30086080535 103
30086910061 6000 30086081510 30086082564 30086080536 111

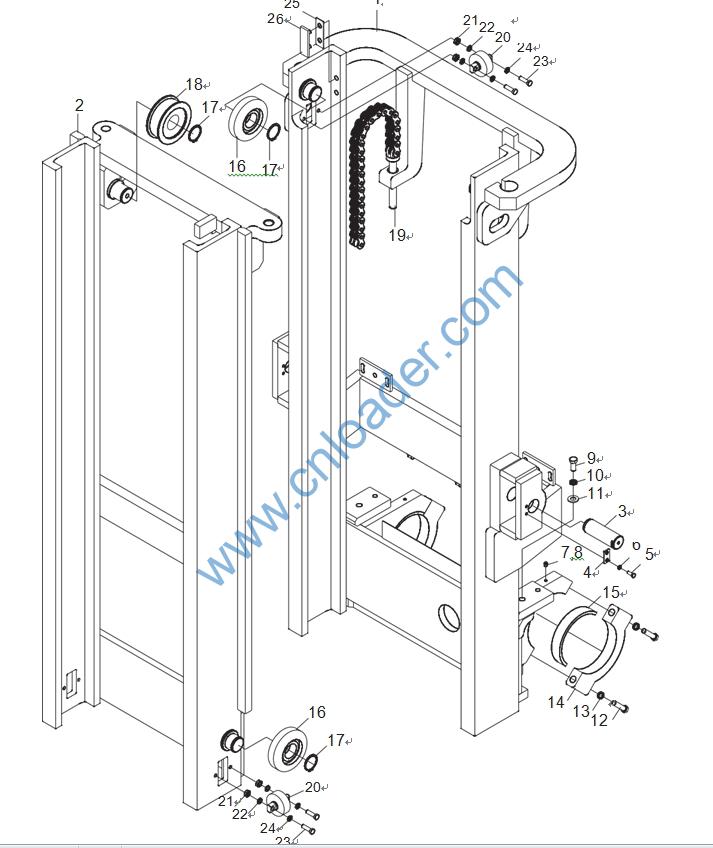

1 30088082788 LG0075DTG.10.01 外门架焊合 Outer mast weldment
2 30088081757 LG0075DTG.10.02 内门架焊合 Inner mast weldment
3 30086119500 LG0060DT.10-005 销轴 Pin shaft
4 30008153700 LG0060DT.08-007 止动片 Stop
5 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20
6 51401100107 GB/T93 垫圈10 Washer 10
7 56201000301 JB/T7940.1 油杯M10×1 Oil cup M10×1
8 60980005823 LG0030D.10-021 红色保护套 Red sheath
9 51207131314 GB/T5786 螺栓M16×1.5×35 Bolt M6×1.5×35
10 51401130107 GB/T93 垫圈16 Washer 16
11 51421130115 GB/T97.1 垫圈16 Washer 16
12 51210172914 GB/T5785 螺栓M24×2×130 Bolt M24×2×130
13 51401170107 GB/T93 垫圈24 Washer 24
14 30088118504 LG0075DTG.10-003 端盖 End cover
15 30086184501 LG0060DT.10-012 轴衬 Bushing
16 30086141001 LG0060DT.10-009 滚轮 Roller
17 51453420107 GB/T894.1 挡圈55 Snap ring 55
18 30086185701 LG0060DT.10-001 链轮 Chain wheel
19 30086080519 LG0075DTG.10.03 链条总成LH2044 Chain assembly LH2044
20 30088081402 LG0075DTG.10.06 滚轮总成 Roller assembly
21 30086106400 LG0060DT.10-007 垫圈 Washer
22 30086118200 LG0060DT.10-008 垫片 Gasket
30086118201 LG0060DT.10-008 垫片 Gasket
23 51207115614 GB/T5786 螺栓M12×1.25×50 Bolt M12×1.25×50
24 51401110107 GB/T93 垫圈12 Washer 12
25 30086154802 LG0060DT.10-015 调整垫 Adjusting gasket
30086154804 LG0060DT.10-015 调整垫 Adjusting gasket
30086154805 LG0060DT.10-015 调整垫 Adjusting gasket
26 30088185101 LG0075DTG.10-004 滑块 Slide block
30088910125 2500 30088081755 30088082786 30086080516
30088910126 2700 30088081756 30088082787 30086080500
30088910128 3000 30088081757 30088082788 30086080519
30088910129 3300 30088081758 30088082789 30086080520
30088910130 3500 30088081759 30088082790 30086080521
30088910132 4000 30088081760 30088082791 30086080505
30088910133 4250 30088081761 30088082792 30086080506
30088910134 4500 30088081762 30088082793 30086080533
30088910136 5000 30088081763 30088082794 30086080508
30088910137 5500 30088081764 30088082795 30086080535
30088910138 6000 30088081765 30088082796 30086080536
1 30088082788 LG0075DTG.10.01 外门架焊合 Outer mast weldment
2 30088081757 LG0075DTG.10.02 内门架焊合 Inner mast weldment
3 30088119500 LG0100DT.10-005 销轴 Pin shaft
4 30086123001 LG0060DT.10-004 挡板 Baffle
5 51204101014 GB/T5783 螺栓M10X20 Bolt M10×20
6 51401100107 GB/T93 垫圈10 Washer 10
7 56201000301 JB/T7940.1 油杯M10X1 Oil cup M10×1
8 60980005823 LG0030D.10-021 红色保护套 Red sheath
9 51207131314 GB/T5786 螺栓M16X1.5X35 Bolt M6×1.5×35
10 51401130107 GB/T93 垫圈16 Washer 16
11 51421130115 GB/T97.1 垫圈16 Washer 16
12 51210172914 GB/T5785 螺栓M24X2X130 Bolt M24×2×130
13 51401170107 GB/T93 垫圈24 Washer 24
14 30088118504 LG0075DTG.10-003 端盖 End cover
15 30086184501 LG0060DT.10-012 轴衬 Bushing
16 30086141001 LG0060DT.10-009 滚轮 Roller
17 51453420107 GB/T894.1 挡圈55 Snap ring 55
18 30086185701 LG0060DT.10-001 链轮 Chain wheel
19 30086080519 LG0075DTG.10.03 链条总成LH2044 Chain assembly LH2044
20 30088081402 LG0075DTG.10.06 滚轮总成 Roller assembly
21 30086106400 LG0060DT.10-007 垫圈 Washer
22 30086118200 LG0060DT.10-008 垫片 Gasket
30086118201 LG0060DT.10-008 垫片 Gasket
23 51207115614 GB/T5786 螺栓M12X1.25X50 Bolt M12×1.25×50
24 51401110107 GB/T93 垫圈12 Washer 12
25 30086154802 LG0060DT.10-015 调整垫 Adjusting gasket
30086154804 LG0060DT.10-015 调整垫 Adjusting gasket
30086154805 LG0060DT.10-015 调整垫 Adjusting gasket
26 30086185100 LG0060DT.10-014 滑块 Slide block
编 码
Code 起升高度
Lifting H 内门架
Inner mast 外门架
Outer mast 链条编码
Code,chain 链条节数
Chain,leaf 备 注
Remark
30088910058 2500 30088081755 30088082786 30086080516 53
30088910059 2700 30088081756 30088082787 30086080500 55
30088910060 3000 30088081757 30088082788 30086080519 61 标准
30088910061 3300 30088081758 30088082789 30086080520 65
30088910062 3500 30088081759 30088082790 30086080521 69
30088910063 4000 30088081760 30088082791 30086080505 79
30088910064 4250 30088081761 30088082792 30086080506 83
30088910065 4500 30088081762 30088082793 30086080533 85
30088910066 5000 30088081763 30088082794 30086080508 93
30088910067 5500 30088081764 30088082795 30086080535 103
30088910068 6000 30088081765 30088082796 30086080536 111
1 30086081216 1070×150×60 30086081225 1070×150×65
2 30086081217 1220×150×60 30086081226 1220×150×65 标配
3 30086081218 1370×150×60 30086081227 1370×150×65
4 30086081219 1520×150×60 30086081228 1520×150×65
5 30086081220 1670×150×60 30086081229 1670×150×65
6 30086081221 1820×150×60 30086081230 1820×150×65
7 30086081222 1900×150×65 30086081231 1900×150×70
8 30086081223 2000×150×65 30086081232 2000×150×70
9 30086081224 2420×150×65 30086081233 2420×150×70

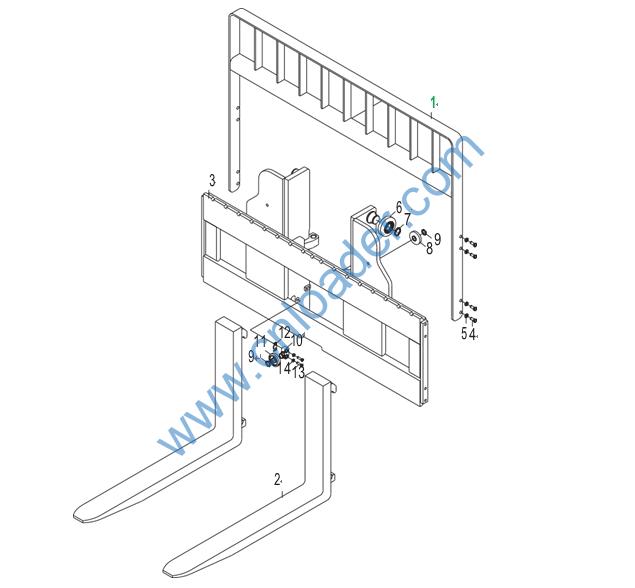

1 30088086000 LG0075DTⅢ.10.01 挡货架焊合 Load restrainer weldment 1
2 30086081217 LG0060DT.10.06 货叉总成 Fork assembly 2 5-6T
30086081226 LG0070DT.10.04 货叉总成 Fork assembly 2 7T
3 30086081055 LG0050DTⅢ.10.03 货叉架焊合 Fork carrier weldment 1 5-6T
30086081056 LG0050DTⅢ.10.04 货叉架焊合 Fork carrier weldment 1 7T
4 51204134214 GB/T5783 螺栓M16×30 Bolt M16×30 8
5 51401130107 GB/T93 垫圈16 Washer 16 8
6 30086141001 LG0060DT.10-009 滚轮 Roller 4 7T6个
7 51453420107 GB/T894.1 挡圈55 Snap ring 55 4 7T6个
8 30086141002 LG0060DT.10.05-001 滚轮 Roller 2
9 51453310107 GB/T894.1 挡圈35 Snap ring 35 4
10A 30086081400 LG0060DT.10.05 滚轮总成 Roller assembly 2 含9,10,11项
10 30086180702 LG0060DT.10.05-002 滚轮轴 Roller shaft 2
11 30086141002 LG0060DT.10.05-001 滚轮 Roller 2
12 30086154801 LG0060DT.10-002 调整垫 Adjusting gasket 2 0.5mm
30086154808 LG0060DT.10-002 调整垫 Adjusting gasket 2 1.0mm
13 51204161914 GB/T5783 螺栓M22×65 Bolt M22×65 4
14 51401160107 GB/T93 垫圈22 Washer 22 4
