1 60600000126 1220×150×70
2 60600000127 1370×150×70
3 60600000128 1520×150×70
4 60600000129 1670×150×70
5 60600000130 1820×150×70
6 60600000131 1970×150×70
7 60600000132 2120×150×70
8 60600000133 2270×150×70
9 30086081233 2420×150×70

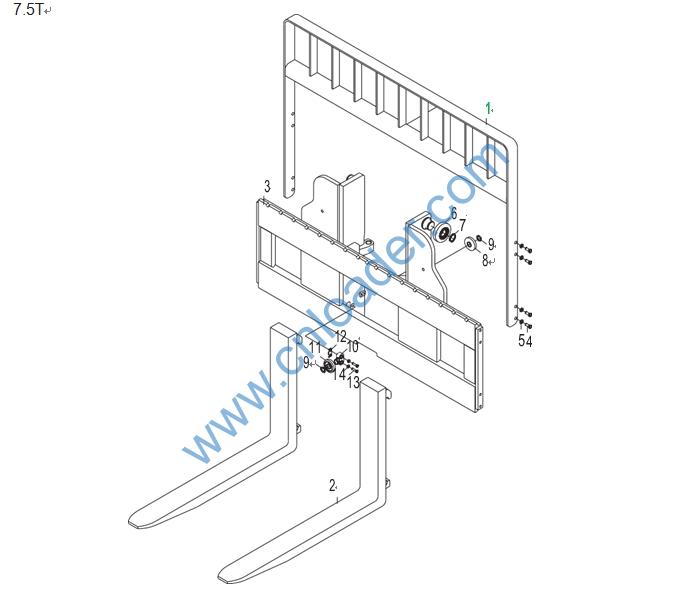

1 30088086000 LG0075DTⅢ.10.01 挡货架焊合 Load restrainer weldment
2 60600000126 LG0075DTⅢ.10.03 货叉总成 Fork assembly
3 30080081014 LG0075DTⅢ.10.02 货叉架焊合 Fork carrier weldment
4 51204134214 GB/T5783 螺栓M16×30 Bolt M16×30
5 51401130107 GB/T93 垫圈16 Washer 16
6 30086141001 LG0060DT.10-009 滚轮 Roller
7 51453420107 GB/T894.1 挡圈55 Snap ring 55
8 30086141002 LG0060DT.10.05-001 滚轮 Roller
9 51453310107 GB/T894.1 挡圈35 Snap ring 35
10A 30086081400 LG0060DT.10.05 滚轮总成 Roller assembly
10 30086180702 LG0060DT.10.05-002 滚轮轴 Roller shaft
11 30086141002 LG0060DT.10.05-001 滚轮 Roller
12 30086154801 LG0060DT.10-002 调整垫 Adjusting gasket
30086154808 LG0060DT.10-002 调整垫 Adjusting gasket
13 51204161914 GB/T5783 螺栓M22×65 Bolt M22×65
14 51401160107 GB/T93 垫圈22 Washer 22
1 30088081322 1220×150×70
2 30088081323 1370×150×70
3 30088081324 1520×150×70
4 30088081325 1670×150×70
5 30088081326 1820×150×70
6 30088081327 1970×150×70
7 30088081328 2120×150×70
8 30088081329 2270×150×70
9 30088081330 2420×150×70

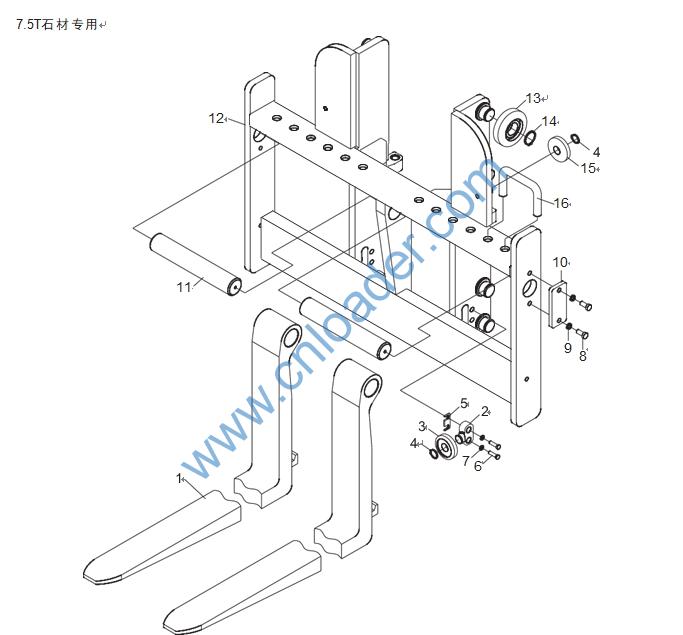

1 30088081322 LG0075DTG.10.04 货叉总成 Fork assembly
2A 30086081400 LG0060DT.10.05 滚轮总成 Roller assembly
2 30086180702 LG0060DT.10.05-002 滚轮轴 Roller shaft
3 30086141002 LG0060DT.10.05-001 滚轮 Roller
4 51453310107 GB/T894.1 挡圈35 Snap ring 35
5 30086154801 LG0060DT.10-002 调整垫 Adjusting gasket
30086154808 LG0060DT.10-002 调整垫 Adjusting gasket
6 51204161914 GB/T5783 螺栓M22X65 Bolt M22×65
7 51401160107 GB/T93 垫圈22 Washer 22
8 51207131314 GB/T5786 螺栓M16X1.5X35 Bolt M6×1.5×35
9 51401130107 GB/T93 垫圈16 Washer 16
10 30088123011 LG0075DTG.10-002 挡板 Baffle
11 30088120221 LG0075DTG.10-001 轴 Shaft
12 30080081001 LG0075DTG.10.05 货叉架焊合 Fork carriage
13 30086141001 LG0060DT.10-009 滚轮 Roller
14 51453420107 GB/T894.1 挡圈55 Snap ring 55
15 30086141002 LG0060DT.10.05-001 滚轮 Roller
16 30088144100 LG0075DTCAA.10-002 固定夹 Retaining clip
1 30088081335 1220×150×70
2 30088081336 1370×150×70
3 30088081337 1520×150×70
4 30088081338 1670×150×70
5 30088081339 1820×150×70
6 30088081340 1970×150×70
7 30088081341 2120×150×70
8 30088081342 2270×150×70
9 30088081343H 2420×150×70

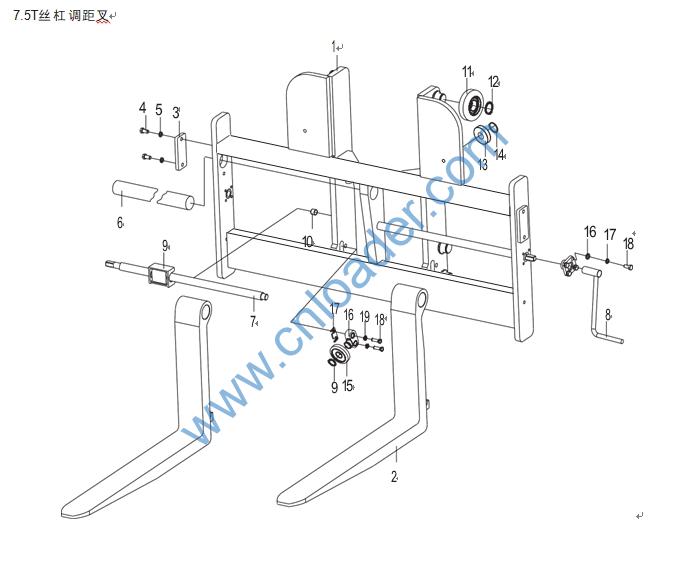

1 30080081015 LG0075DTⅢ.10Ⅰ.02 货叉架焊合 Fork carrier weldment
2 30088081336 LG0075DTⅢ.10Ⅰ.01 货叉总成 Fork assembly
3 30088123011 LG0075DTG.10-002 挡板 Baffle
4 51207131314 GB/T5786 螺栓M16×1.5×35 Bolt M6×1.5×35
5 51401130107 GB/T93 垫圈16 Washer 16
6 30088120229 LG0075DTⅢ.10Ⅰ-001 轴 Shaft
7 30088191007 LG0075DTⅢ.10Ⅰ-002 丝杠 Lead-screw
8 30088090100 LG0080DT.10.03 摇把焊合 Handle weldment
9 30088190100 LG0080DT.10-003 叉移螺块 Screw block
10 52001000302 GB/T12949 滑动轴承30×34×25 Sliding bearing
11 30086141001 LG0060DT.10-009 滚轮 Roller
12 51453420107 GB/T894.1 挡圈55 Snap ring 55
13 30086141002 LG0060DT.10.05-001 滚轮 Roller
14 51453310107 GB/T894.1 挡圈35 Snap ring 35
15A 30086081400 LG0060DT.10.05 滚轮总成 Roller assembly
15 30086141002 LG0060DT.10.05-001 滚轮 Roller
16 30086180702 LG0060DT.10.05-002 滚轮轴 Roller shaft
17 30086154801 LG0060DT.10-002 调整垫 Adjustment gasket
18 51204161914 GB/T5783 螺栓M22×65 Bolt M22×65
19 51401160107 GB/T93 垫圈22 Washer 22

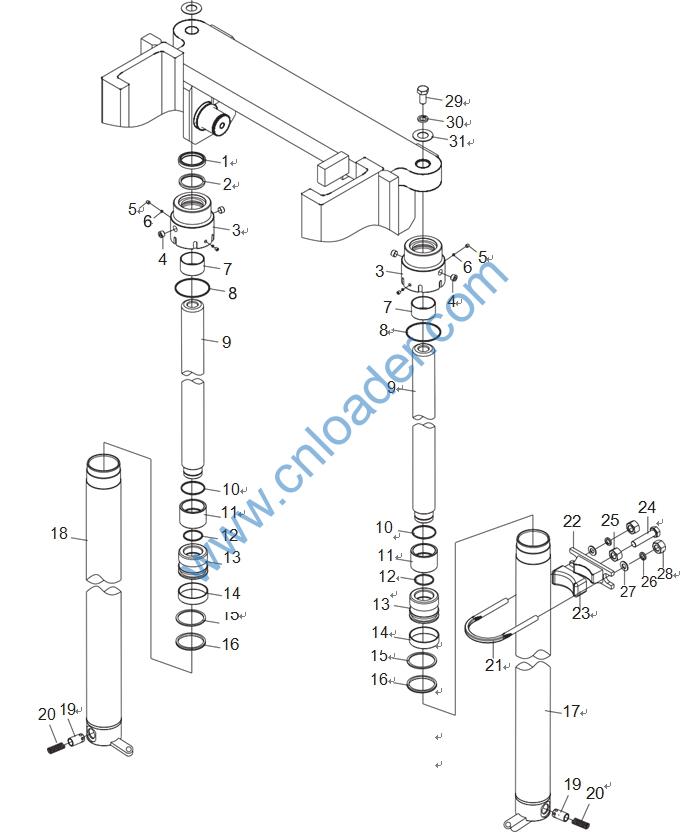

A 16600153650 LGG075SP300LH 起升油缸 Left lift cylinder
B 16600153790 LGG075SP300RH 起升油缸 Right lift cylinder
1 56193000701 防尘圈60X74X8 Dus ring 60×74×8
2 56187001401 轴用密封圈60X70X7 Seal ring 60×70×7
3 36600032040 LGG060SP300H-01 缸盖 Cylinder cover
4 56944000301 JB/ZQ4446 螺塞R3/8 Plug R3/8
5 51106211007 GB/T77 螺钉M8X8 Screw M8×8
6 36600321010 LGG030SP300H-02 锁紧垫Φ6X3 Lock gasket Φ6×3
7 52500003001 钢背轴承60X65X35 Bearing 60×65×35
8 56900005007 AS568 O形圈88.49X3.53 O-ring 88.49×3.55
9 36600048290 LGG075SP300H-01 活塞杆 Piston rod
10 56194010801 EKM O形圈60X3 O-ring 60×3
11 36600070070 LGG060SP400H-07 间隔套 Spacer
36600070080 LGG060SP550H-07 间隔套 Spacer
12 51466400119 GB/T895.1 挡圈50 Snap ring 50
13 36600021160 LGG060SP300H-04 活塞 Piston
14 56199009001 支承环75X80X20 Pivot ring 75×80×20
15 56192015901 挡圈70X80X3 Snap ring 70×80×3
16 56191001501 活塞密封圈80X70X7 Seal ring 80×70×7
17 36600019370 LGG075SP300LH.10 左缸体 Left cylinder
18 36600019510 LGG075SP300RH.10 右缸体 Right cylinder
19 36600330010 LGG035SP300RH-07 滑阀 Sliding valve
20 36600191010 LGG035SP300RH-08 弹簧 Spring
21 30086105000 LG0060DT.10-017 U形螺栓 U-bolt
22 30086185000 LG0060DT.10-018 箍座 Clamp seat
23 30086113900 LG0060DT.10-019 橡胶垫 Rubber seat
24 51207132014 GB/T5786 螺栓M16X1.5X70 Bolt M16×1.5×70
25 51309000719 GB/T6171 螺母M16X1.5 Bolt M16×1.5
26 51401110107 GB/T93 垫圈12 Washer 12
27 51421110115 GB/T97.1 垫圈12 Washer 12
28 51309000519 GB/T6171 螺母M12X1.25 Nut M12×1.25
29 51207130114 GB/T5786 螺栓M30X2X70 Bolt M30×2×70
30 51401200107 GB/T93 垫圈30 Washer 30
31 30086154803 LG0060DT.10-016 调整垫0.5mm Adjustable gasket
30086154806 LG0060DT.10-016 调整垫1.0mm Adjustable gasket
30086154807 LG0060DT.10-016 调整垫2.0mm Adjustable gasket
左缸
Left lift cylinder
右缸
Right lift cyinder 起升高度
Lifting height 活塞杆
Piston rod 左缸体
Left cylinder body 右缸体
Right cylinder body
16600153620 16600153760 2000 36600048260 36600019340 36600019480
16600153630 16600153770 2500 36600048270 36600019350 36600019490
16600153640 16600153780 2700 36600048280 36600019360 36600019500
16600153650 16600153790 3000 36600048290 36600019370 36600019510
16600153660 16600153800 3300 36600048300 36600019380 36600019520
16600153670 16600153810 3500 36600048310 36600019390 36600019530
16600153680 16600153820 3750 36600048320 36600019400 36600019540
16600153690 16600153830 4000 36600048330 36600019410 36600019550
16600153700 16600153840 4250 36600048340 36600019420 36600019560
16600153710 16600153850 4500 36600048350 36600019430 36600019570
16600153720 16600153860 4750 36600048360 36600019440 36600019580
16600153730 16600153870 5000 36600048370 36600019450 36600019590
16600153740 16600153880 5500 36600048380 36600019460 36600019600
16600153750 16600153890 6000 36600048390 36600019470 36600019610
16600150390 16600150400 6°-12° —
16600150410 16600150420 6°-6° —
16600150430 16600150440 3°-6° 36600070160
16600150450 16600150460 6°-10° 36600070180
16600150630 16600150640 3°-3° 36600071480

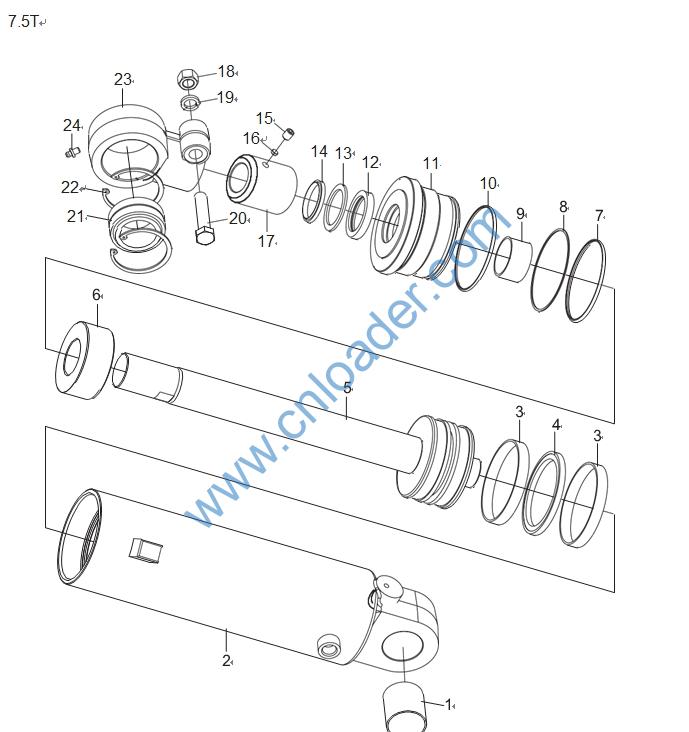

A 16600150390 LGG100X6/12LH 左倾斜油缸 Left tilt cylinder
B 16600150400 LGG100X6/12RH 右倾斜油缸 Right tilt cylinder
1 52809000401 边界润滑轴承50X54X55 Bearing 50×54×55
2A 36600010300 LGG100X6/12LH.20 左缸体 Left cylinder
2B 36600010310 LGG100X6/12RH.20 右缸体 Right cylinder
3 56199000501 支承环110X115X15 Pivot ring 110×115×15
4 56189007303 活塞密封圈115X94X8.1 Seal ring115×94×8.1
5 36600040210 LGG100X6/12H.10 活塞杆组件 Piston element
6 36600070190 LGG100X6/12H-05 间隔套 Spacer
7 56908000404 JISB2401 O形圈109.4X3.1 O-ring 109.4×3.1
8 56192031701 挡圈110X115X1.25 Snap ring 110×115×1.25
9 52500000301 钢背轴承50X55X30 Bearing 50×55×30
10 56908000504 JISB2401 O形圈114.4X3.1 O-ring 114.4×3.1
11 36600030030 LGG100X6/12H-03 导向套 Guide sleeve
12 56187019701 轴用密封圈50X65X11 Seal ring 50×65×11
13 56192015301 挡圈50X65X3 Snap ring 50×65×3
14 56185002401 防尘圈50X58X6 Dust ring
15 51106221707 GB/T 77 螺钉M10X12 Screw M10×12
16 36600321020 LGG030X6/12H-02 锁紧垫φ8X3 lock gasket φ8×3
17 36600070160 LGG100X6/6H-02 限位套 Stop collar
18 51309000720 GB/T6171 螺母M16X1.5 Nut M16×1.5
19 51401130107 GB/T93 垫圈16 Washer 16
20 51210132015 GB/T5785 螺栓M16X1.5X70 Bolt M16×1.5×70
21 52555000201 JB/T8879 关节轴承GE50ES-C3 Joint bearing GE50ES-C3
22 51451520107 GB/T893.1 挡圈75 Snap ring 75
23 36600240370 LGG100X6/12HA-01 杆头 Rod head
24 56201000501 JB/T7940.1 油杯PT1/8 Oil cup PT1/8
16600150510 16600150540 10°-12° —
16600150520 16600150550 6°-12° 36600071360
16600150530 16600150560 6°-6° 36600071360
A 16600150520 LG075X10/12LH 左倾斜油缸 Left tilt cylinder
B 16600150550 LG075X10/12RH 右倾斜油缸 Right tilt cylinder
1 52809000401 边界润滑轴承50X54X55 Bearing 50×54×55
2A 36600018180 LG075X10/12LH.20 左缸体 Left cylinder
2B 36600018190 LG075X10/12RH.20 右缸体 Right cylinder
3 56199000501 支承环110X115X15 Pivot ring 110×115×15
4 56189007303 活塞密封圈115X94X8.1 Seal ring115×94×8.1
5 36600047300 LG075X10/12H.10 活塞杆组件 Piston element
6 36600071370 LG075X10/12H-03 间隔套 Spacer
7 56908000404 JISB2401 O形圈109.4X3.1 O-ring 109.4×3.1
8 56192031701 挡圈110X115X1.25 Snap ring 110×115×1.25
9 52500000301 钢背轴承50X55X30 Bearing 50×55×30
10 56908000504 JISB2401 O形圈114.4X3.1 O-ring 114.4×3.1
11 36600030030 LGG100X6/12H-03 导向套 Guide sleeve
12 56187019701 轴用密封圈50X65X11 Seal ring 50×65×11
13 56192015301 挡圈50X65X3 Snap ring 50×65×3
14 56185002401 防尘圈50X58X6 Dust ring
15 51106221707 GB/T 77 螺钉M10X12 Screw M10×12
16 36600321020 LGG030X6/12H-02 锁紧垫φ8X3 lock gasket φ8×3
17 36600071360 LG075X6/6H-02 限位套 Stop collar
18 51309000720 GB/T6171 螺母M16X1.5 Nut M16×1.5
19 51401130107 GB/T93 垫圈 16 Washer 16
20 51210132015 GB/T5785 螺栓M16X1.5X70 Bolt M16×1.5×70
21 52555000201 JB/T8879 关节轴承GE50ES-C3 Joint bearing GE50ES-C3
22 51451520107 GB/T893.1 挡圈75 Snap ring 75
23 36600240300 LG075X10/12LH-01 杆头 Rod head
24 56201000301 JB/T7940.1 油杯M10X1 Oil cup PT1/8

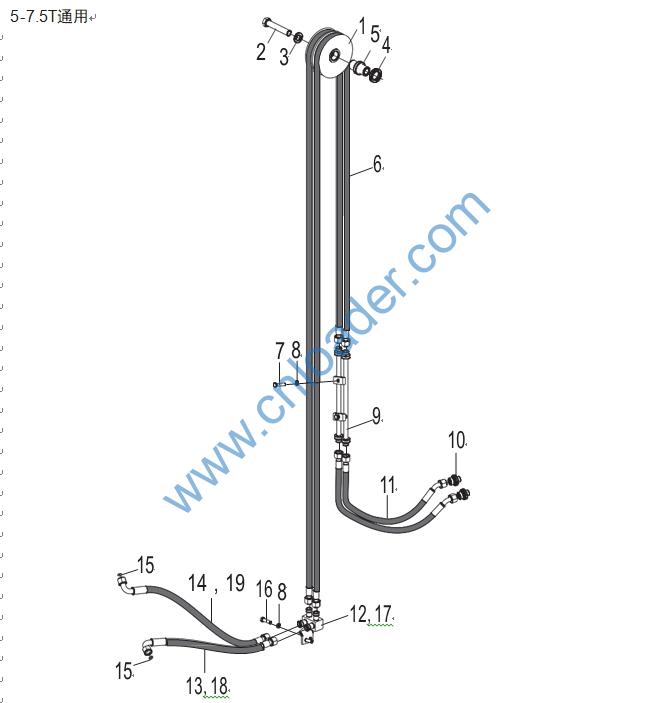

1 30082185208 LG0030D.10B.11-002 滑轮 Pulley 2 四联4个
2 51210132414 GB/T5785 螺栓M16×1.5×90 Bolt 1 四联2个
3 51401130107 GB/T93 垫圈16 Bolt M16×30 1 四联2个
4 51421130115 GB/T97.1 垫圈16 Washer 16 1 四联2个
5 30086186504 LG0045D.10.21-002 套筒 Sleeve 1 四联2个
6 17272008637 LG0060DT.10.11.01 胶管总成(L3150) Hose 2 四联4根
7 51204091214 GB/T5783 螺栓M8×30 Bolt M8×30 2 四联4个
8 51401090107 GB/T93 垫圈8 Washer 8 4 四联8个
9 30082013300 LG0030D.10.13.02 钢管总成 Steel pipe assembly 1 四联2个
10 17601000226 L1CH-18-30L46 过渡接头 Tansition connector 2 四联4个
11 17272001863 LG0160DT.13.17 胶管总成 Hose assembly 2 四联4根
12 60911010761 LG0025D.10.08.02 接头 Connector 1
13 17272005350 LG0025D.10.08.03 胶管总成 Hose assembly 1
14 17272008103 LG0025D.10.08.12 胶管总成 Hose assembly 1
15 56145077501 GB/T3452.1 O形圈8×2.65 O-ring 8×2.65 2 四联4个
17 60911010762 LG0025D.10.08.04 接头 Connector 1 四联用
16 51204090914 GB/T5783 螺栓M8×16 Bolt M8×16 2 四联4个
18 17272005520 LG0025D.10.08.10 胶管总成 Hose assembly 1 四联用
19 17272005521 LG0025D.10.08.11 胶管总成 Hose assembly 1 四联用

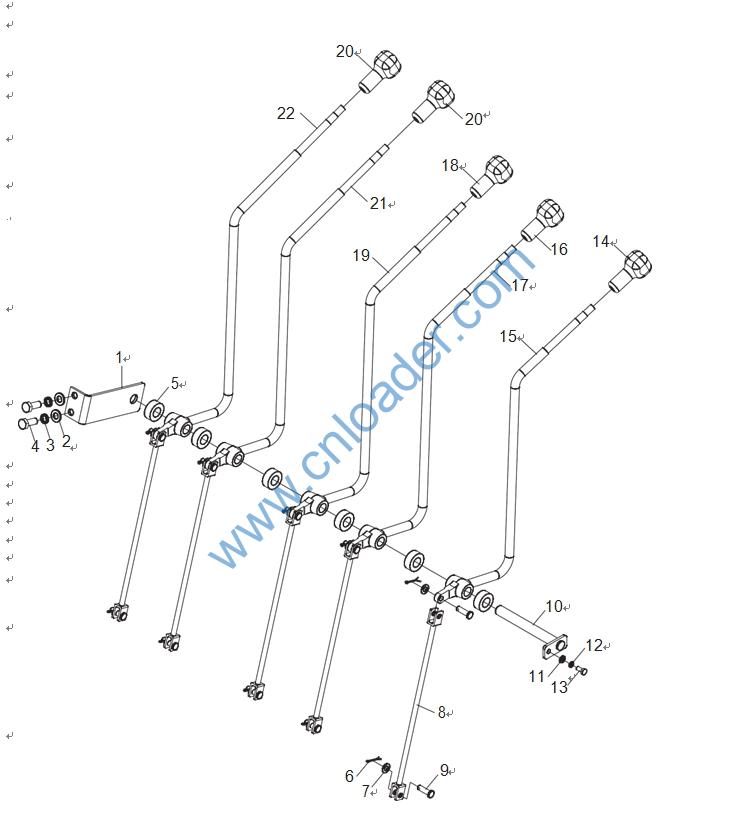

1 30011040102 LG0060DT.11.06 固定板焊合 Fixed plate 1
2 51421100115 GB/T97.1 垫圈10 Washer 10 2
3 51401100107 GB/T93 垫圈10 Washer 10 2
4 51204101114 GB/T5783 螺栓M10×25 Bolt M10×25 2
5 30011106403 LG0060DT.11-001 垫圈 Washer 3 三联4件/四联5件/五联6件
6 51512071001 GB/T91 销2.5×20 Pin 2.5×20 4 三联6件/四联8件/五联10件
7 51421090115 GB/T97.1 垫圈8 Washer 8 4 三联6件/四联8件/五联10件
8 30002117500 LG0060DT.11.07 连接杆 Connecting rod 2 三联3件/四联4件/五联5件
9 51511051102 GB/T882 销B8×26 Pin B8×26 4 三联6件/四联8件/五联10件
10 30011025005 30D-1131100 销轴焊合 Pin shaft weldment 1
二联用
30011025018 LG0060DT.11.12 销轴焊合 Pin shaft weldment 1
三联用
30011025019 LG0060DT.11.13 销轴焊合 Pin shaft weldment 1
四联用
30002025002 LG0060DT.02.03.01.06 销轴焊合 Pin shaft weldment 1
五联用
11 51421080115 GB/T97.1 垫圈6 Washer 6 1
12 51401080107 GB/T93 垫圈6 Washer 6 1
13 51204080814 GB/T5783 螺栓M6×12 Bolt M6×12 1
14 60207010081 30D-1100002 手柄总成 Knob assembly 1
15 30011020632 LG0075DTG.11.02 操纵杆焊合 Control joystick weldment 1
16 60207010080 30D-1100001 手柄总成 Knob assembly 1
17 30011020633 LG0075DTG.11.03 操纵杆焊合 Control joystick weldment 1
18 60207010082 LG0030D.11-003 手柄总成 Knob assembly 1 三联1件/四联1件/五联1件
19 30011020634 LG0075DTG.11.04 操纵杆焊合 Control joystick weldment 1
20 60207010083 LG0030D.11-004 手柄总成 Knob assembly 1 四联1件/五联2件
21 30011020635 LG0075DTG.11.05 操纵杆焊合 Control joystick weldment 1
22 30011020644 LG0075DTG.11.06 操纵杆焊合 Control joystick weldment 1

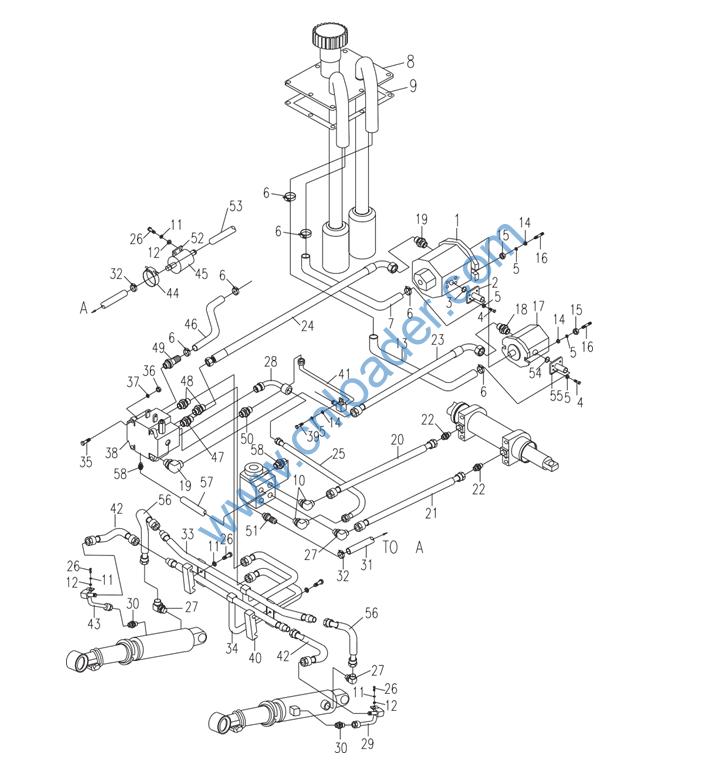

1 60300000440 LG0075DTG.12.11 双联齿轮泵 Duplex gear pump
2 60911010850 LG0060DT.12.12 后泵进油接头 Connector
3 56145010001 GB/T3452.1 O形圈37.5×3.55 O-ring 37.5×3.55
4 51204101214 GB/T5783 螺栓M10×30 Bolt M10×30
5 51401100107 GB/T93 垫圈10 Washer 10
6 56171000601 JB/T8870 喉箍d50(32~50) Hoop d50(32~50)
7 30012171037 LG0075DTG.12-005 吸油管 Oil suction pipe
8 30012073014 LG0075DTG.12.12 液压油箱盖板总成 Cover plate assembly
9 30012111502 LG0075DTG.12-006 密封垫 Rubber gasket
10 30012008315 LG0075DTG.12.20 过渡接头 Transition connector
11 51401090107 GB/T93 垫圈8 Washer 8
12 51421090115 GB/T97.1 垫圈8 Washer 8
13 30012171038 LG0075DTG.12-007 吸油管 Oil suction pipe
14 51421100115 GB/T97.1 垫圈10 Washer 10
15 51309000319 GB/T6171 螺母M10×1.25 Nut M10×1.25
16 51290105904 GB/T899 螺柱M10×1.25×25 Stud M10×1.25×25
17 60301000200 LG0060DT.10B.04.11 齿轮泵 Gear pump
18 17601000194 LG0060DT.12.14 过渡接头 Transition connector
19 17601000193 LG0060DT.12.18 过渡接头 Transition connector
20 17272011143 LG0075DTG.12.13 胶管总成 Hose assembly
21 17272011144 LG0075DTG.12.14 胶管总成 Hose assembly
22 17601000218 LG0060DT.12-018 过渡接头 Transition connector
23 17272011145 LG0075DTG.12.15 胶管总成 Hose assembly
24 17272011146 LG0075DTG.12.16 胶管总成 Hose assembly
25 17272011147 LG0075DTG.12.17 胶管总成 Hose assembly
26 51204090914 GB/T5783 螺栓M8×16 Bolt M8×16
27 17601000291 LG0060DT.12.15 过渡接头 Transition connector
28 30012013019 LG0060DT.12.16 钢管焊合 Steel tube weldment
29 30012013021 LG0060DT.12.17 钢管焊合 Steel tube weldment
30 17601000454 LG0060DT.12-025 过渡接头 Transition connector
31 30012187933 LG0060DT.12-011 回油管 Oil return pipe
32 56171000301 JB/T8870 喉箍d32(20~32) Hoop d32(20~32)
33 30012013057 LG0050DTGAⅢ.12.02 钢管焊合 Steel tube weldment
34 30012013056 LG0050DTGAⅢ.12.01 钢管焊合 Steel tube weldment
35 51204111614 GB/T5783 螺栓M12×50 Bolt M12×50
36 51341000719 GB/T889.1 螺母M12 Nut M12
37 51401110107 GB/T93 垫圈12 Washer 12 4
38 60900002245 LG0050DTⅢ.12.01 多路阀 Multi-way valve 1
60300000638 LG0050DTⅢ.12.01 多路阀 Multi-way valve 1 二联
60300000639 LG0050DTⅢ.12.01 多路阀 Multi-way valve 1 三联
60300000640 LG0050DTⅢ.12.01 多路阀 Multi-way valve 1 四联
60900002246 LG0050DTⅢ.12.03 多路阀 Multi-way valve 1 五联
60300000641 LG0050DTⅢ.12.03 多路阀 Multi-way valve 1 二联/ OPS
60300000642 LG0050DTⅢ.12.03 多路阀 Multi-way valve 1 三联/ OPS
60300000643 LG0050DTⅢ.12.03 多路阀 Multi-way valve 1 四联/ OPS
39 51204101014 GB/T5783 螺栓M10×20 Bolt M10×20 1 五联/ OPS
40 30012107818 LG0060DT.12-008 管夹 Clip 2
41 30012013058 LG0075DTG.12.07 钢管焊合 Steel tube weldment 1
42 17272011142 LG0075DTG.12.09 胶管总成 Hose assembly 2
43 30012013030 LG0060DT.12.07 钢管焊合 Steel tube weldment 1
44 56171002901 JB/T8870 喉箍d120(100~120) Hoop d120(100~120) 1
45 30012023305 LG0075DTG.12.10 滤清器总成 Air filter assembly 1
46 30012187951 LG0075DTG.12-003 回油管 Oil return pipe 1
47 17601000460 LG0060DT.12-026 过渡接头 Transition connector 1
48 17601000258 LG0060DT.12-028 过渡接头 Transition connector 2
49 60911010856 LG0060DT.12-029 过渡接头 Transition connector 1
50 17601000162 LG0060DT.12-027 过渡接头 Transition connector 3
51 30012071703 2L0G4010-7154DT/T2G04.1921-.19
14T1K04320 接头焊合 Connector weldment 1
52 30012115006 LG0060DT.12-012 支架 Bracket 1
53 30012187921 LG0060DT.12-014 回油管 Oil return pipe 1
54 56145008201 GB/T3452.1 O形圈30×2.65 O-ring 30×2.65 1
55 60700000742 LG0050DTGAⅢ.12.03 后泵进油接头 Connector 1
56 17272012425 20411D-182T06450 胶管总成 Hose assembly 2
57 17272012194 胶管总成 Hose assembly 1
58 17601000202 L1CH-14-12 过渡接头 Transition connector 2
