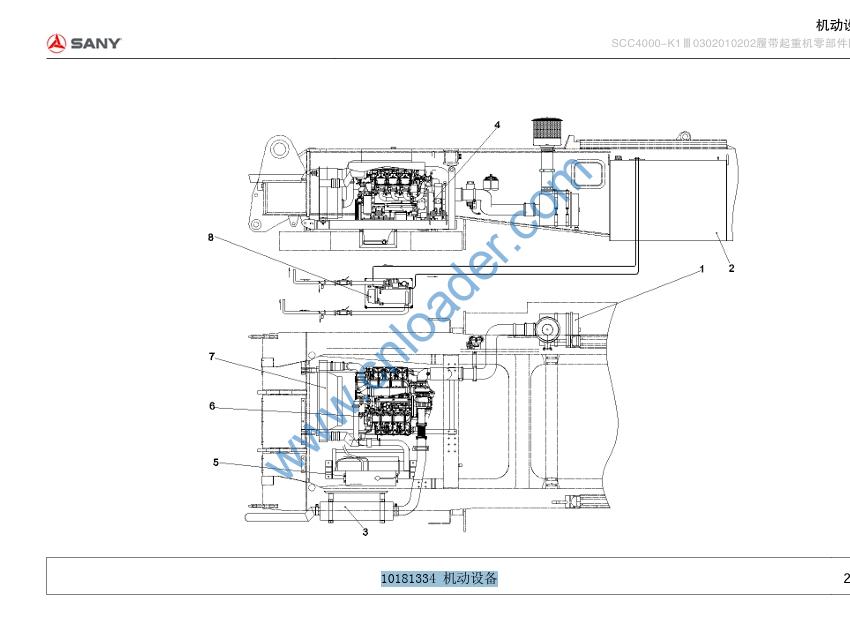

10181334 机动设备

10181334 机动设备

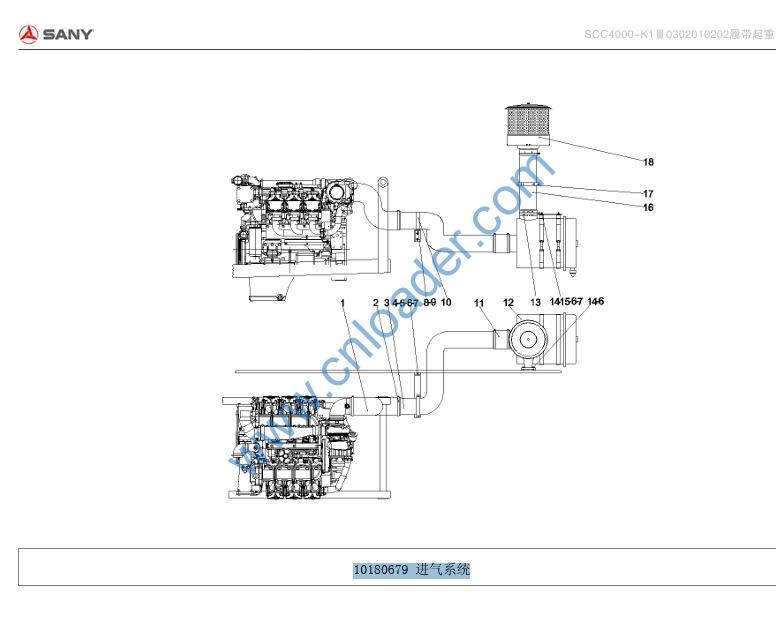

1 10180679 Air intake system 1
2 10181068 Fuel system 1
3 10181245 Exhaust system 1
4 10181246 Transfer case installation 1
5 10181331 Water cooling system 1
6 10181303 engine installation 1
7 10181259 Intercooling system 1
8 11161372 Auxiliary heating system 1

1 10180672 Air intake hose Q400C.20(a).1-1 1
2 A229900005985 T-shaped hoop φ162-φ174 4
3 10180673 Air intake steel pipe 1
4 10180671 Bracket 1
5 A210111000012 bolt M10×20GB5783 10.9 level 2
6 A210405000011 gasket 10GB97.1 6
7 A210401000001 Washer 10GB93 8
8 A210111000089 bolt M8×20GB5783 4
9 A210401000017 Washer 8GB93 4
10 10180676 Clamp 2
11 10180674 Air intake hose Q400C.20(a).1-3 1
12 A222100000537 air filter 1
13 21020421 clamp (replace with 23005190) 0
14 A210111000197 bolt M10×25GB5783 10.9 level 6
15 A210307000017 Nut M10GB6170 4
16 10180675 tube 1
17 10474250 Bracket Q400C.20(a).1.2 1
18 A222100000470 Air pre-filter 1

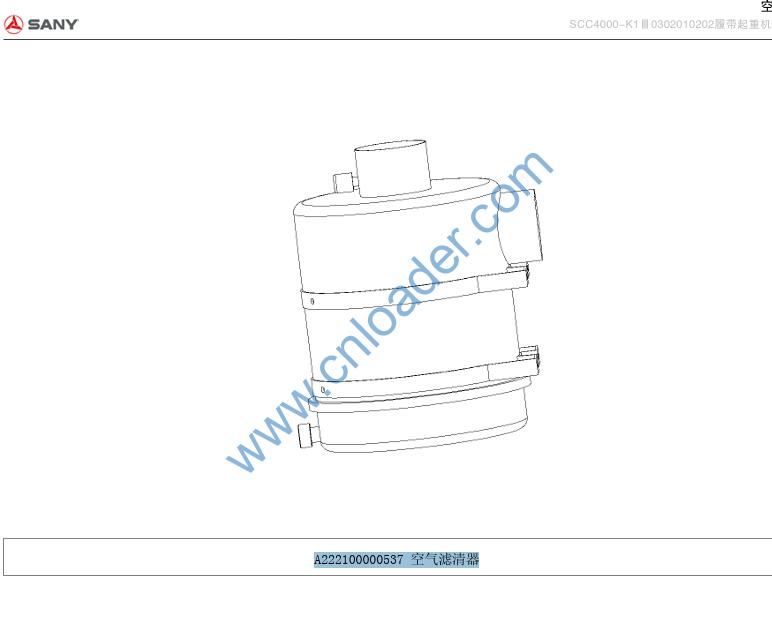

A222100000537 空气滤清器

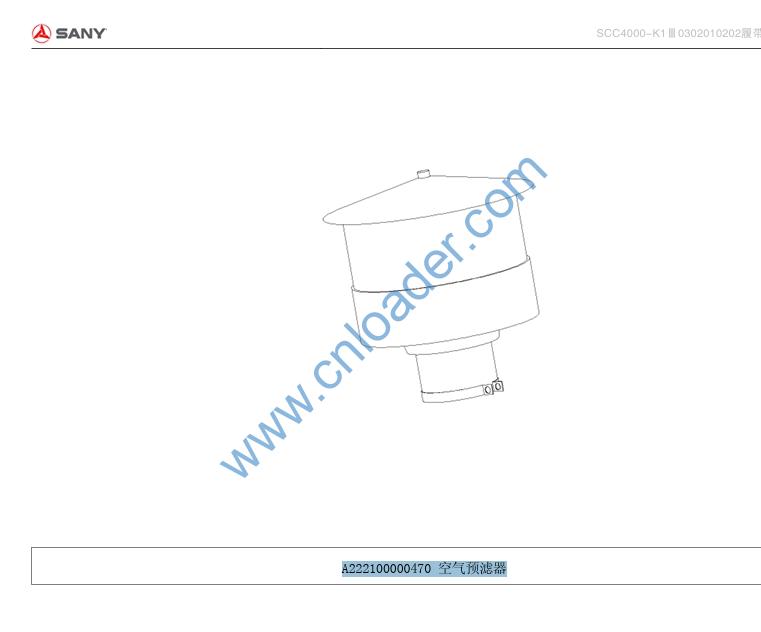

A222100000470 空气预滤器
