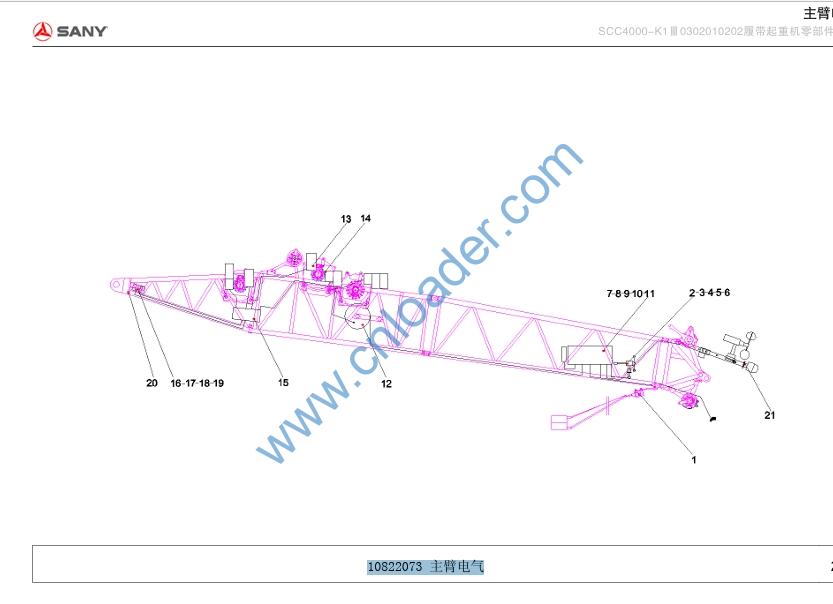

10822073 主臂电气

10822073 主臂电气

1 10562598 Main arm over-roll limiter Q400.102(c).13 0
2 A210210000005 screw M6×25GB818 6
3 A210307000016 Nut M6GB6170 6
4 A210401000016 Washer 6GB93 6
5 A210405000006 gasket 6GB97.1 6
6 10822074 Main arm upper section arm junction box TB3 electrical 1
7 A210210000002 screw M5×16GB818 16
8 A210307000015 nut M5GB6170 16
9 A210401000015 gasket 5GB93 16
10 A210405000005 gasket 5GB97.1 16
11 10842860 Main arm cable drum C2 installation 1
12 10822078 Encoder installation Q400C.102(a)A.56 2
13 10822081 Boom motor control valve plug-in installation Q400C.102(a)A.57 3
14 10822076 Main arm lower section arm junction box TB4 electrical 1
15 60004068 socket 70-300-2440-0 2
16 60004049 closed base 71-340-2428-1 2
17 A210309000005 nut M5GB6172.1 8
18 A210111000071 Bolt M5×20GB5783 8
19 10620912 Lightning protection grounding device 1
20 60028851 Marking strap MCV-100L 0
21 11173945 Anemometer navigation light installation 1

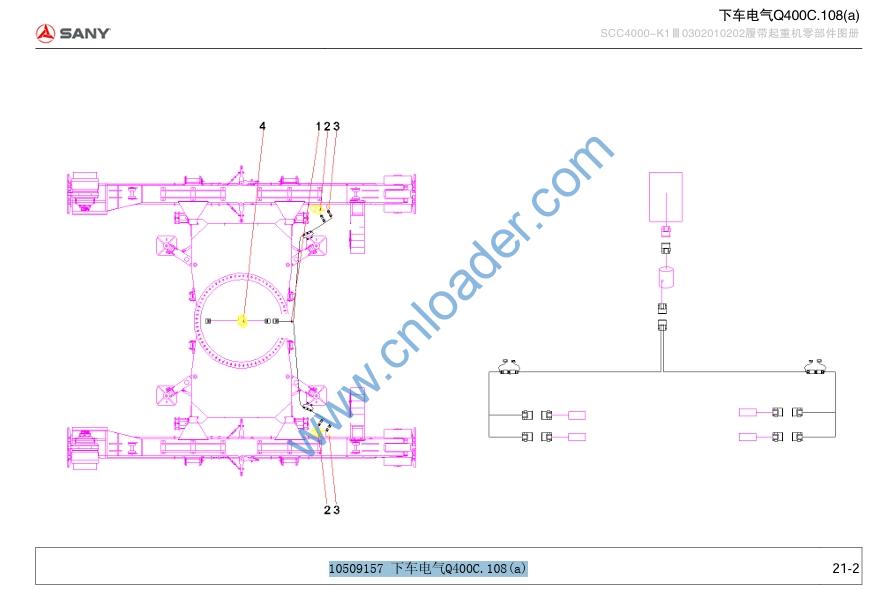

10509157 下车电气Q400C.108(a)

1 10509158 Connecting cable Q400C.108(a).1 1
2 10600537 Lubrication pump installation 2
3 10600538 Lubrication distribution valve installation Q400C.108(a).3 2
4 10600539 Central rotary joint wiring harness installation 1
