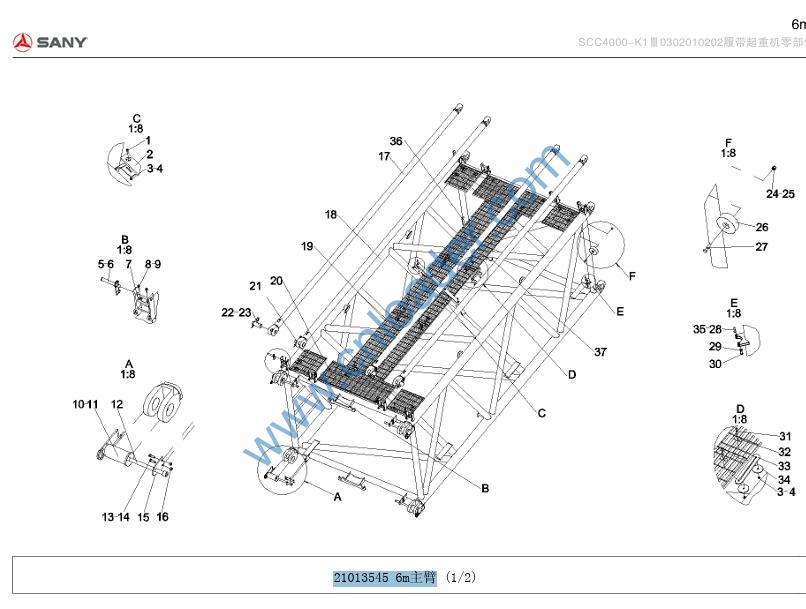

21013545 6m main boom

21013545 6m main boom

1 A210204000164 screw M8×30GB70.1 2
2 21011895 wear-resistant plate 2
3 A210314000008 Nut M8GB6184 62
4 A210401000017 Washer 8GB93 62
5 21011762 Pin Pin 8
6 10115369 pin 8
7 10125082 Nylon pad 8
8 A210204000162 screw M8×25GB70.1 16
9 A210405000007 gasket 8GB97.1 16
10 21012139 Pin Pin 4
11 21011893Kingpin 4
12 21013408 screw 4
13 A210401000002 gasket 12GB93 8
14 A210111000203 bolt M12×35GB5783 10.9 level 8
15 21011892 Connector 4
16 A210307000031 Nut M12GB6170 Level 10 8
17 21012996 Draw tube 4
18 21013549 Boom structural member 1
19 21013546 steel grating 3
20 21013527 Steel grating 2
21 21013526 steel grating 4
22 21012138 Pin Pin 4
