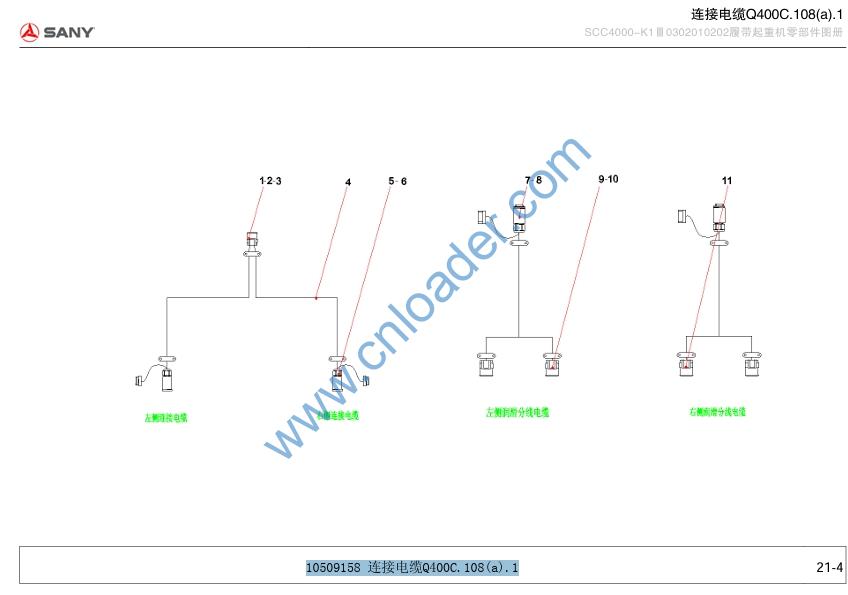

10509158 Connection cable Q400C.108(a).1

10509158 Connection cable Q400C.108(a).1

1 60004059 Six-wire plug sheath assembly 282108-1Q/SY1149 6PCA 1
2 60004056 pin 282109-1 10
3 A241000000272 seal blocked 14
4 60000492 Cable 575-5G1.0 UL/CE/VDE0295 11
5 21015254 CAN bus splitter plug PG9 2
6 A241000000286 connector dust cover 2
7 21015255 CAN bus splitter plug PG9 2
8 A241000000287 connector dust cover 2
9 B241000000018 Second-wire socket sheath assembly Q/SY1149 2
10 60004062 Jack 282110-1 4
11 B241000000003 second-wire plug sheath assembly Q/SY1149 2

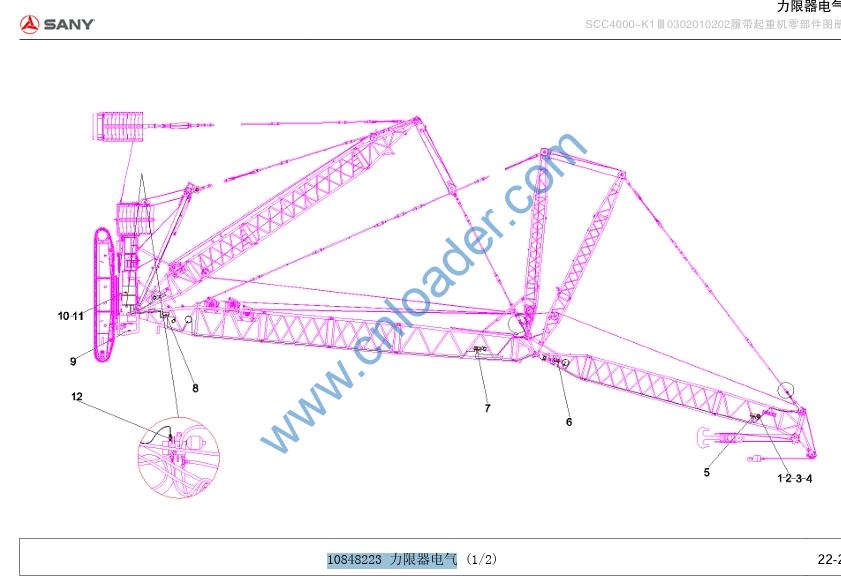

10848223 Force limiter electrical

1 A210111000071 bolt M5×20GB5783 10
2 A210309000005 nut M5GB6172.1 10
3 A210405000005 Washer 5GB97.1 10
4 A210405000005 Washer 5GB97.1 10
5 10848224 junction box TB1 lightning arrester installation 1
6 10848225 junction box TB2 lightning arrester installation 1
7 10848226 Junction box TB3 lightning arrester installation 1
8 10848227 Junction box TB4 lightning arrester installation 1
9 10848228 Force limiter display installation 1
10 10848229 Force limiter host installation 1
11 60000128 Force limiter assembly Q400-JX6C Hirschmann 1
12 10915433 Pressure sensor installation Q400C.110(b).7 1
