SY215C9 hydraulic excavator SANY QE





零件代码 PART NUMBER

名称 PART NAME

A210111000343

螺栓M8×20GB5783 10.9级

Bolt

24000511

垫圈8GB93 达克锈

Washer

60204189

左扶手箱总成

Armrest AS, left

60240844

控制面板

Cover, left

60249819

螺钉M6×16GB70.1 10.9级

Screw

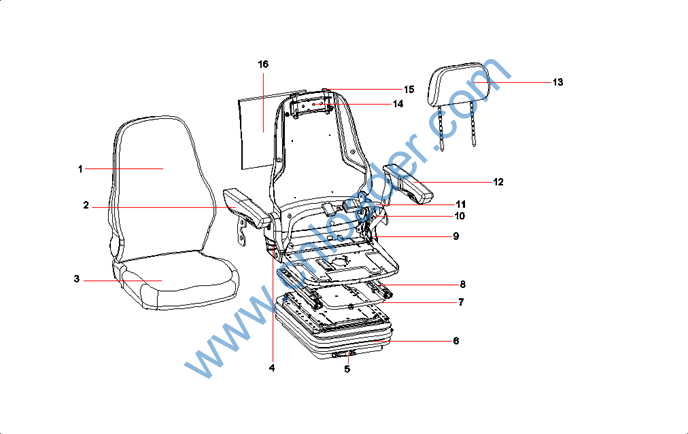

零件代码 PART NUMBER

名称 PART NAME

60309859

靠背海绵总成

Back, seat

60309857

扶手总成(右)

Armrest AS, right

60309865

座垫海绵总成

Cushion, lower seat

60309864

右罩壳

Covering, casing

60309872

调荷手柄

Handle, adjustment, weight

60309871

减振防尘罩

Cover, seat base

60309869

滑道手柄

Handle, slide, seat

60309866

滑道

Track, seat adjustment

60309863

左罩壳

Casing, left

60309861

调角器手柄

Handle, seat tilt

60309856

两点式安全带

Belt, safety

60309862

扶手总成(左)

Armrest AS, left

60309858

头枕总成

Headrest AS

60309868

头枕固定塑料管帽

Bracket, headrest

60309870

头枕固定塑料管

Insert, headrest

60309860

文件袋

Bag, rear

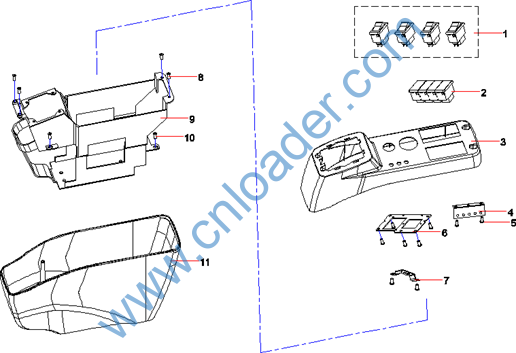

零件代码 PART NUMBER

名称 PART NAME

A241200000121

翘板开关(四联)

Seesaw switch (four joints)

60309919

四联框

4-section frame

60307221

右扶手箱上盖

Cover, upper, right console

60309924

线束固定架

Bracket

A210210000006

螺钉

Bolt, socket head

60309925

油门旋钮支架

Bracket

60309915

点火开关支架

Bracket

A210210000017

螺钉

Screw

60309927

右钢架

bracket

A210210000008

螺钉

Screw

60309922

下壳体

Console, lower right

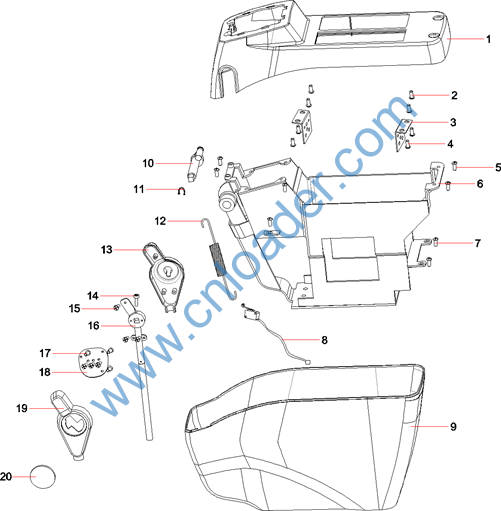

零件代码 PART NUMBER

名称 PART NAME

60307219

左扶手箱上盖

Cover, upper, left console

A210210000006

螺钉

Bolt, socket head

60309918

收音机支架

Bracket

A210210000002

螺钉

Screw

A210210000017

螺钉

Screw

60309930

左钢架

Bracket

A210210000008

螺钉

Screw

60309921

微动开关

Microswitch

60309922

下壳体

Console, lower right

60309920

凸轮轴

Rod

60309917

卡簧

Clip

60309914

弹簧

Spring

60309929

左端盖

Base, lever

60062048

螺钉

Bracket

A210210000015

螺钉

Screw

60309923

先导杆

Rod, lever

A210210000009

螺钉

Bolt

60309916

端盖连接板

Plate, mounting

60309926

右端盖

Cover, lever

60309928

圆盖

Cap

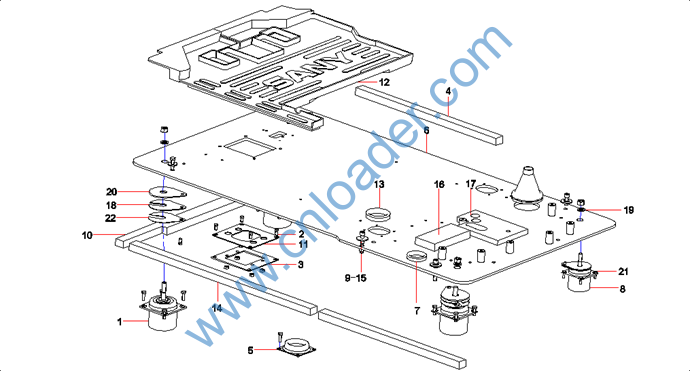

零件代码 PART NUMBER

名称 PART NAME

B229900000244

司机室支承

Cab, mount

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt

A810402050021

连接板

Plate

12385099

驾驶室底板海绵

Cab, seal

12827984

橡胶垫

Pad, rubber

12830177

底板

Plate, base

A820606030059

护孔环

protecting ring

B229900000245

司机室支承

Cab, support

60060548

垫圈12GB96.1 达克锈

Washer

12768939

驾驶室底板海绵

Cab, seal

11937141

脚踏阀密封垫

Gasket

变更或见其他配置

地板垫

Floor Cushion

A820606030056

护孔环

protecting ring

12768943

驾驶室底板海绵

Cab, seal

A210307000028

螺母

Nut

A820699000215

背部海绵

Back sponge

11935737

密封海绵

Foam, seal

11594064

垫片

Cab, shim

A210491000118

垫圈

High-strength steel washer

11546613

垫板

Cushion board

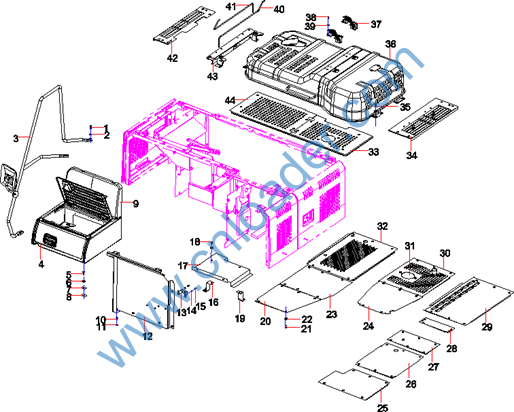

零件代码 PART NUMBER

名称 PART NAME

A210111000024

螺栓    Bolt

11593942

垫片    Spacer








零件代码 PART NUMBER

名称 PART NAME

60262509

螺栓M12×40GB5783 10.9级 锌镍    Bolt

60262513

垫圈12GB1230 锌镍合金    Washer

14099806

扶手总成    hand rail

12908466

工具箱总成    Box, storage

A210111000204

螺栓    Bolt

60060548

垫圈12GB96.1 达克锈    Washer

A820101210711

垫片    Washer

A820101210712

垫片    Washer

12908471

装饰盖    Box, storage, cover

A210111000101

螺栓M12×25GB5783 10.9级    Bolt

A210491000121

垫圈    Washer

13556748

左前隔板总成    left front spacing plate assembly

A820101216763

检修灯安装支架    Bracket

24000633

垫圈8GB97.1 达克锈    Washer

A210111000342

螺栓M8×16GB5783 10.9级    Bolt

13603367

撑板    Bracket

13556738

先导管左盖板    Cover

A210111000199

螺栓M12×20GB5783 10.9级    Bolt

11459285

撑板    Bracket

12181098

燃油箱底盖板    Cover, bottom, fuel tank








零件代码 PART NUMBER

名称 PART NAME

60262507

螺栓M12×25GB5783 10.9级 锌镍    Bolt

60262511

垫圈12GB96.1 锌镍合金    Washer

10723433

液压油箱底盖板    Cover, bottom, hydraulic tank

A820101337218

主阀底盖板    Cover, bottom, main control valve

A820101117950

驾驶室底前盖板    Cover, bottom, front, cab

A820101117949

后中盖板    Cover, bottom, rear middle

A820101119480

底盖板    Cover, bottom

12119218

过渡块盖板    Cover, bottom, partition

13466000

左中底盖板    Cover, bottom, coolers

13627383

盖    Cover, bottom, engine

13649153

盖    Cover

13649152

右侧底盖板    Cover, bottom, pump

13579065

空滤盖板    Air filter plate

13556767

左上后盖板    Left Upper Rear Cover Plate

60262508

螺栓M12×30GB5783 10.9级 锌镍    Bolt

13625845

机顶罩总成    Hood GP

60275176

机顶罩锁    Latch, hood

60262506

螺栓M8×20GB5783 10.9级 锌镍合    Bolt

60262510

垫圈8GB96.1 锌镍合金    Washer

13579490

前部弹簧    Spring, long








零件代码 PART NUMBER

名称 PART NAME

13579489

后部弹簧

Spring, short

13627028

右上后盖板

Cover, upper, pump

13107173

托架

SUPPORTING BRACKET

13579071

中盖板

Cover, bottom, engine
