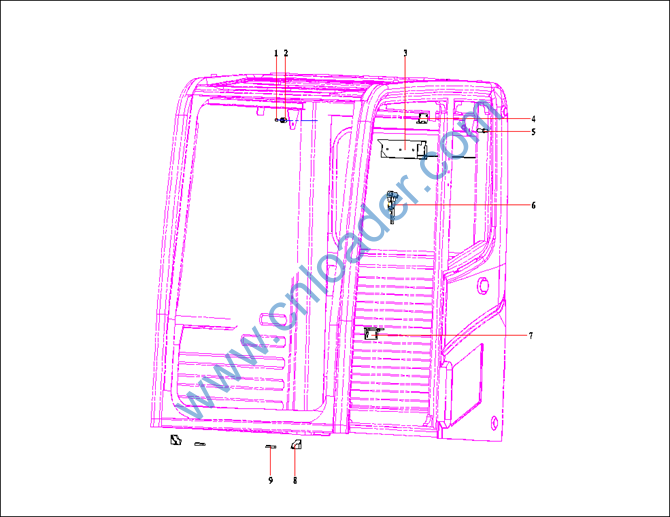

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071738 |
挂衣钩 |
Clothes-hook |
|
61018440 |
空调盖板左连接板 |
Plate,air conditioner,left |
|
61018441 |
开门限位锁件 |
Lock AS |
|
61018442 |
弹簧 |
Spring |
|
61018554 |
天窗锁止块 |
Lock,roof window |
|
60071750 |
右轨道拐角 |
Right corner |
|
60071752 |
左轨道拐角 |
Left corner |
|
61018443 |
前移窗缓冲块 |
Block,buffer,front window |
|
61018444 |
开门固定锁开启拉杆组件 |
Lock rod AS,lock AS |
|
61018445 |
连杆限位板橡胶板 |
Rubber,link plate |
|
61018446 |
连杆限位板 |
Plate,link |
|
61018433 |
左后风道压板 |
Plate,duct,left |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
61018447 |
缓冲座堵头 |
Plug,buffer seat |
|
61018448 |
缓冲座 |
Seat,buffer |
|
60071763 |
卷簧平衡器 |
Balancer |
|
61018555 |
前窗限位块中部 |
Limit block,glass,front |
|
61018556 |
前移窗锁扣 |
Lock,window,forward window |
|
61018449 |
逃生锤 |
Hammer |
|
61018450 |
空调盖板右连接板 |
Plate,air conditioner,right |
|
61018557 |
前下玻璃限位块 |
Limit block,glass,lower,front |
|
61018558 |
前下玻璃缓冲块 |
Buffer block,glass,lower,front |
|

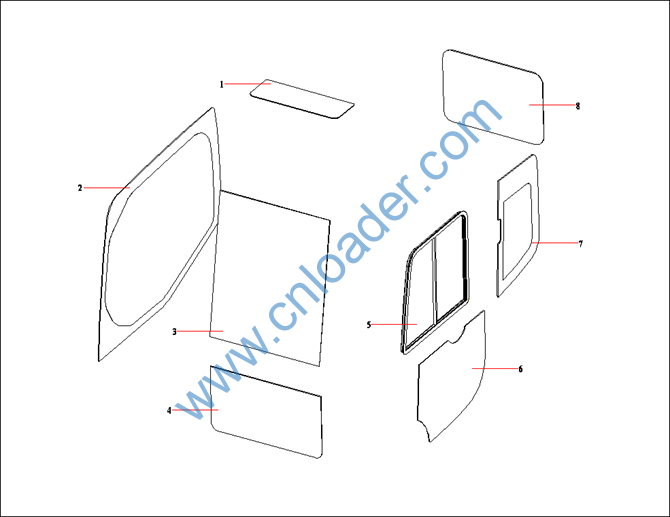

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071787 |
顶天窗玻璃 |
Sunroof Glass |
|
60071792 |
右侧玻璃 |
Right Side Glass |
|
60071791 |
前移窗玻璃 |
Windshield |
|
60071790 |
前下玻璃 |
Front lower glass |
|
60071741 |
门移窗总成 |
Sliding Window |
|
60071789 |
门下玻璃 |
Door lower glass |
|
60071793 |
左侧玻璃 |
Left-hand glass |
|
60071788 |
后玻璃 |
Rear window |
|

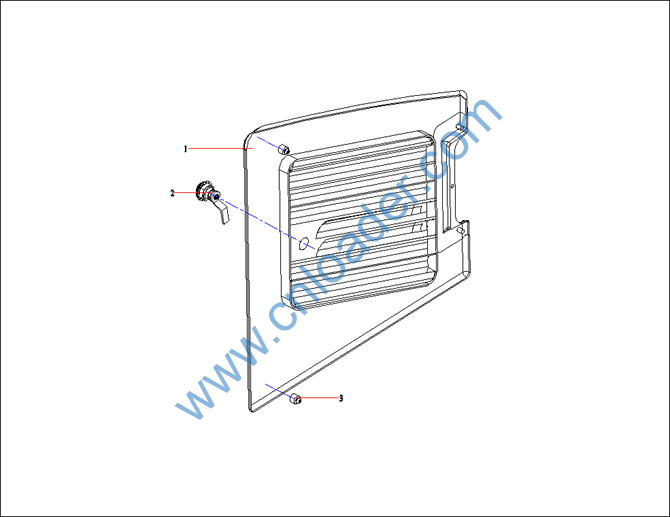

零件代码 PART NUMBER |
名称 PART NAME |
|
61018457 |
吸风窗焊合 Suction window weldment AS |
|
60154451 |
风窗旋钮锁 wind-screen lock |
|
61018458 |
吸风窗缓冲块 Buffer block,suction window |
|

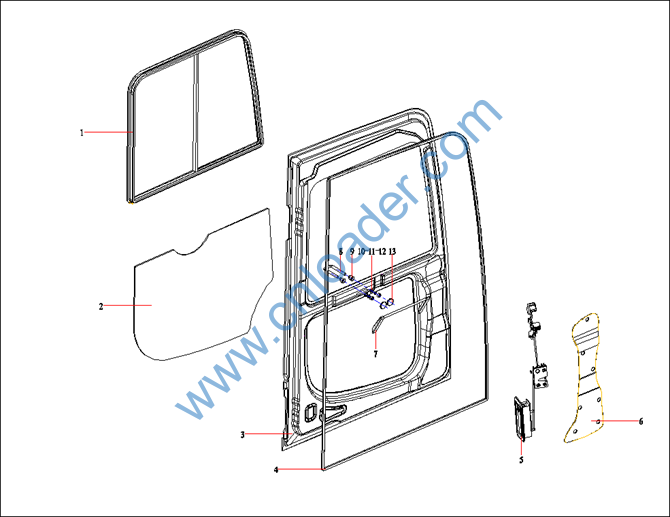

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071741 |
门移窗总成 |
Sliding Window |
|
60071789 |
门下玻璃 |
Door lower glass |
|
60071740 |
门焊合总成 |
Door |
|
60071782 |
门密封胶条 |
door sealant strip |
|
60071756 |
门锁 |
Lock |
|
60071769 |
门锁盖板 |
Cover |
|
60071767 |
门内拉手 |
Handle |
|
61018451 |
U型锁扣 |
U-latch |
|
61018559 |
U型锁扣护套 |
Cover, rubber |
|
24000637 |
垫圈10GB97.1 达克锈 |
Washer |
|
24000512 |
垫圈10GB93 达克锈 |
Washer |
|
A210307000036 |
螺母 |
Nut |
|
61018438 |
Φ30盖板 |
Plate，Φ30 |
|

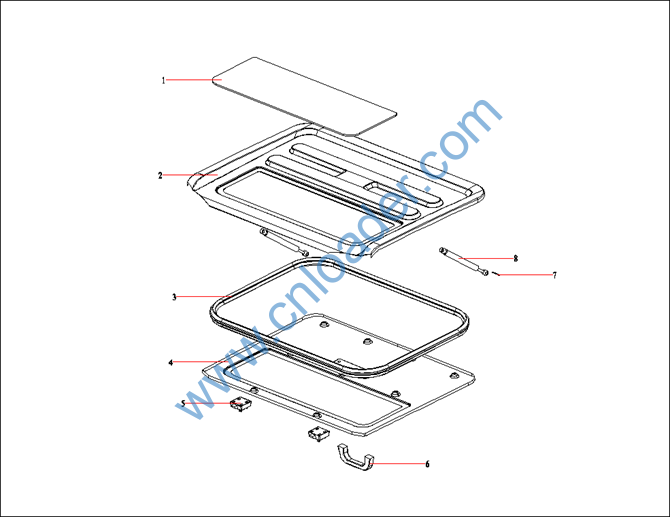

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071787 |
顶天窗玻璃 |
Sunroof Glass |
|
60071772 |
天窗焊合总成 |
Sunroof |
|
60071786 |
天窗密封胶条 |
Sunroof Seal Rubber Strip |
|
60071774 |
天窗装饰件 |
Sunroof inner-decoration |
|
61018456 |
顶窗锁总成 |
Lock AS,top window |
|
60071765 |
拉手 |
Handle |
|
A210491000008 |
销 |
Pin, Cotter |
|
60071773 |
天窗气弹簧 |
Gas Spring |
|

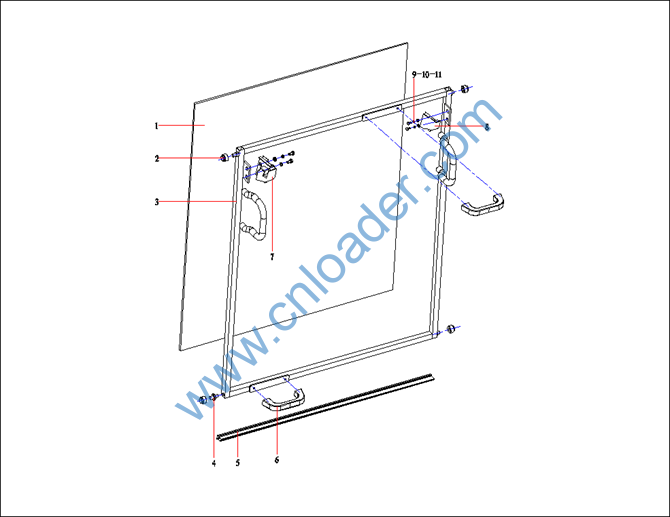

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071791 |
前移窗玻璃 |
Windshield |
|
61018454 |
左滚轮 |
Roller,left |
|
60071743 |
前移窗焊接总成 |
Front Window |
|
61018455 |
左下轴 |
Shaft,lower,left |
|
60071785 |
前移窗下密封胶条 |
Sealant strip |
|
60071765 |
拉手 |
Handle |
|
60071757 |
前移窗锁 |
Lock |
|
60071758 |
前移窗锁 |
Lock |
|
A210111000342 |
螺栓M8×16GB5783 10.9级 |
Bolt |
|
24000511 |
垫圈8GB93 达克锈 |
Washer |
|
60060565 |
垫圈8GB96.1 达克锈 |
Washer |
|

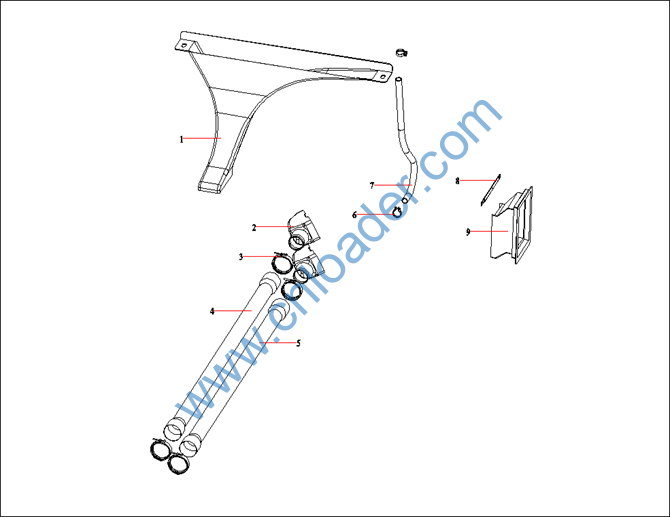

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60071762 |
后风道 |
Rear channel |
|
61018429 |
空调风道接头 |
Fitting,air duct |
|
61018430 |
大卡箍 |
Big clamp |
|
61017858 |
空调软管 |
Hose,air conditioner |
|
61017859 |
空调软管 |
Hose,air conditioner |
|
61018431 |
小卡箍 |
Small clamp |
|
61018432 |
保鲜盒软管 |
Hose,crisper |
|
61018433 |
左后风道压板 |
Plate,duct,left |
|
60071778 |
左侧风道 |
Left-hand air channel |
|

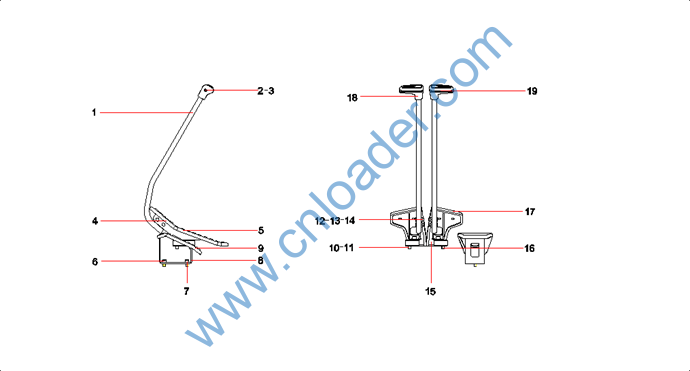

零件代码 PART NUMBER |
名称 PART NAME |
|
|
13162846 |
操纵杆 |
Control Lever |
|
60060562 |
垫圈4GB97.1 达克锈 |
Washer |
|
A210210000030 |
螺钉 |
Bolt, socket head |
|
12010268 |
脚踏阀垫板套右 |
Backup sleeve of pedal |
|
12009972 |
脚踏阀垫板总成右 |
Right backup plate of pedal Asy. |
|
24000511 |
垫圈8GB93 达克锈 |
Washer |
|
A210204000340 |
螺钉M8×16GB70.1 10.9级 |
Bolt, socket head |
|
12004584 |
脚踏 |
Pedal |
|
12002592 |
脚踏套 |
Pedal sleeve |
|
A210204000313 |
螺钉M10×20GB70.1 12.9级 |
Screw |
|
11571909 |
联接块 |
Block |
|
A210307000036 |
螺母 |
Nut |
|
A210111000197 |
螺栓 |
Bolt |
|
A210491000120 |
垫圈 |
Washer, Gear Thrust |
|
12003641 |
脚踏阀垫板总成左 |
Left backup plate of pedal |
|
A210204000334 |
螺钉M10×16GB70.1 10.9级 |
Bolt, socket head |
|
12009258 |
蝶形脚踏垫板套 |
Backup sleeve of pedal |
|
12691132 |
右手柄 |
right handle |
|
12688927 |
左手柄 |
left Handle |
|

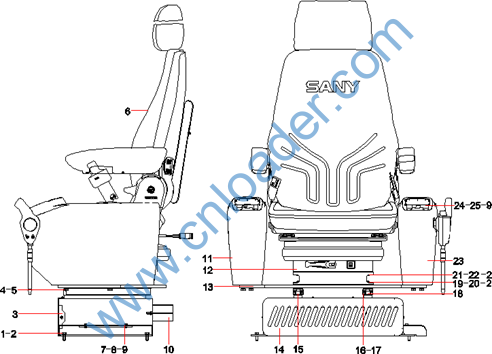

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210111000342 |
螺栓M8×16GB5783 10.9级 |
Bolt |
|
60060565 |
垫圈8GB96.1 达克锈 |
Washer |
|
13285402 |
座椅下底座架 |
Frame, lower base |
|
A210111000012 |
螺栓 M10×20GB5783 10.9级 |
Bolt |
|
A210491000120 |
垫圈 |
Washer, Gear Thrust |
|
60188806 |
驾驶座椅 |
Seat AS |
|
A210111000079 |
螺栓 |
Bolt |
|
60238783 |
垫圈6GB96.1 达克锈 |
Washer |
|
24000632 |
垫圈6GB97.1 达克锈 |
washer |
|
10241175 |
风道连接法兰 |
Air duct connection flange |
|
60215683 |
右扶手箱 |
Console group, right |
|
10115295 |
座椅上底座架 |
Seat upper base frame |
|
10115283 |
支撑平板 |
Supporting flat plat |
|
10140450 |
电装底座架前盖 |
Front cover of electric assembly |
|
60313916 |
座椅右导轨 |
Rail guide, right |
|
60313915 |
座椅左导轨 |
Rail guide, left |
|
B229900000494 |
座椅拉杆 |
Seat, lock rod |
|
A210204000340 |
螺钉M8×16GB70.1 10.9级 |
Bolt, socket head |
|
24000431 |
螺钉M8×30GB70.1 10.9级 |
Bolt, socket head |
|
A210307000055 |
螺母M8GB6170 10级 |
Nut |
