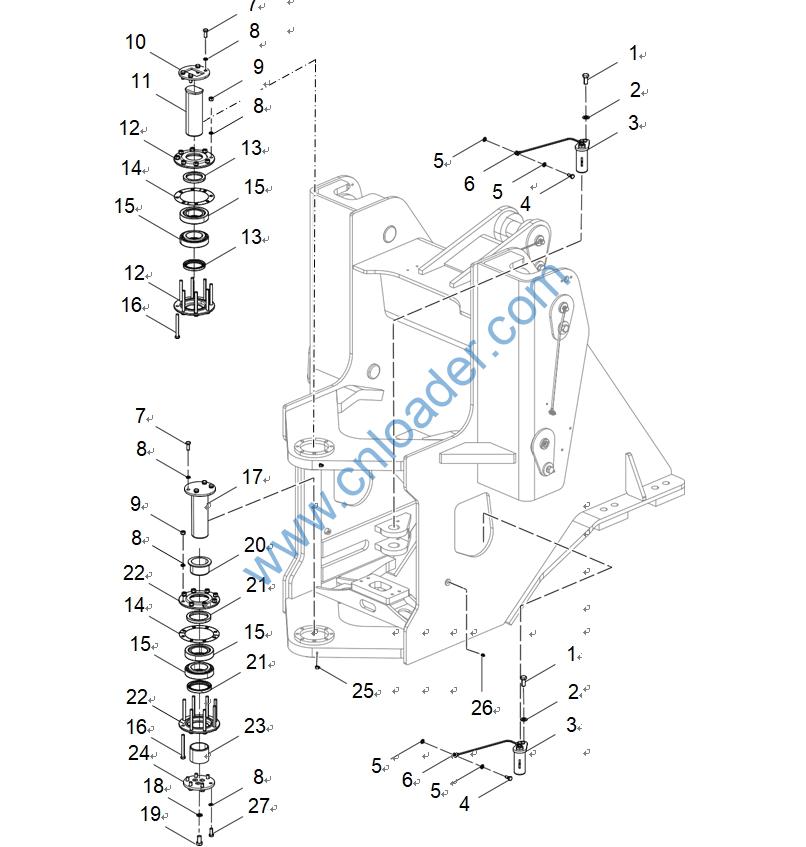

51204134714 螺栓M16×25 BOLT M16×25 GB/T5783
30811103028 垫圈16 WASHER 16 LG50CKⅠ.11-001
30890000071 前转向销轴焊合 PIN, STEERING FRONT LG50CKⅠ.10.07
30893100787 通油螺栓 BOLT LG853.10.06-001
60980000179 垫圈10 WASHER 10 LG853.10.06-005
60300008628 转向注油管总成 ADAPTER# STEERING LG855ⅩG.10.09
51204111214 螺栓M12×30 BOLT M12×30 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51307001119 螺母M12 NUT M12 GB/T6170
30810100704 压板 PLATE LG853.10-006
30810114495 上铰接销 ARTICULATED PIN, UPPER LG855NGⅩⅥ.10-002
30810100703 上轴承盖 BEARING COVER, UPPER LG853.10Ⅲ-003
56161012401 密封圈FB75×100×12 SEAL RING FB75×100×12 GB/T13871.1
60980000184 调整垫 ADJUSTING GASKET LG853.10Ⅲ-001
52324001301 轴承32215 BEARING 32215 GB/T297
51203112714 螺栓M12×110 BOLT M12×110 GB/T5782
30810114496 下铰接销焊合 ARTICULATED PIN, LOWER LG855NGⅩⅥ.10.10
51401130107 垫圈16 WASHER 16 GB/T93
51204133018 螺栓M16×45 BOLT M16×45 GB/T5783
30810113790 上轴套 UPPER SLEEVE LG50NCGSⅧ.10-001
56161006501 密封圈FB85×110×12 SEAL RING FB85×110×12 GB/T13871.1
30810100702 下轴承盖 BEARING COVER, LOWER LG853.10Ⅲ-002
30861100128 下轴套 SLEEVE, LOWER LG860.10-002
30810114530 下端盖 END COVER, LOWER LG855NGⅩⅥ.10-001
56202000301 油杯45°M10×1 OIL CUP 45° M10×1 JB/T7940.2
56201000301 油杯M10×1 OIL CUP M10×1 JB/T7940.1
51204111414 螺栓M12×40 BOLT M12×40 GB/T5783

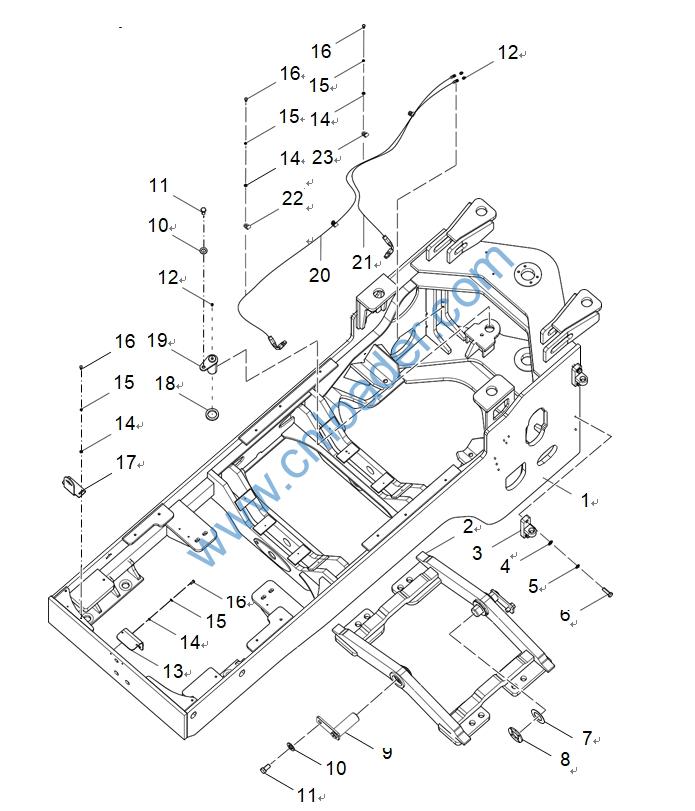

30810017343 后车架焊合 LG855BⅥ.10Ⅰ.02Ⅰ
30863900215 摆动架焊合 SWING SPAN LG855.10.03
30810000562 油箱固定座焊合 FIXING SEAT, OIL TANK LG855.10.08
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204133314 螺栓M16×50 BOLT M16×50 GB/T5783
30810101358 摆动架调整垫 ADJUSTING SHIM, SWING SPAN LG855.10-008
30810101445 铜垫 COPPER WASHER LG855.10-004
30810013783 摆动架销焊合 PIN, SWING SPAN LG50NCGSⅧ.10.04
30811103028 垫圈16 WASHER 16 LG50CKⅠ.11-001
51204134714 螺栓M16×25 BOLT M16×25 GB/T5783
56201000301 油杯M10×1 OIL CUP M10×1 JB/T7940.1
30810102361 蜂鸣器固定板 FIXING PLATE, BUZZER LG833BG.10Ⅸ-001
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
30810100600 电源总开关固定板 PLATE, MAIN POWER SWITCH CDM856E.10Ⅰ-002
30810101356 转向缸后垫套 STEERING CYLINDER REAR SHIM LG855.10-002
30890000070 后转向销轴焊合 PIN, REAR STEERING LG50CKⅠ.10.06
60900009686 摆动架注油管总成 ADAPTER, SWING SPAN CDM856NⅦ.10-001
60911012402 摆动架销轴注油管总成(二) ADAPTER, SWING SPAN PIN 2 LG855DⅡ.10.12
60911010971 注油管夹总成 CLAMP ASSEMBLY LG855.10Ⅰ.06
60980004834 注油管夹总成 CLAMP ASSEMBLY LG850DGⅠ.10.05

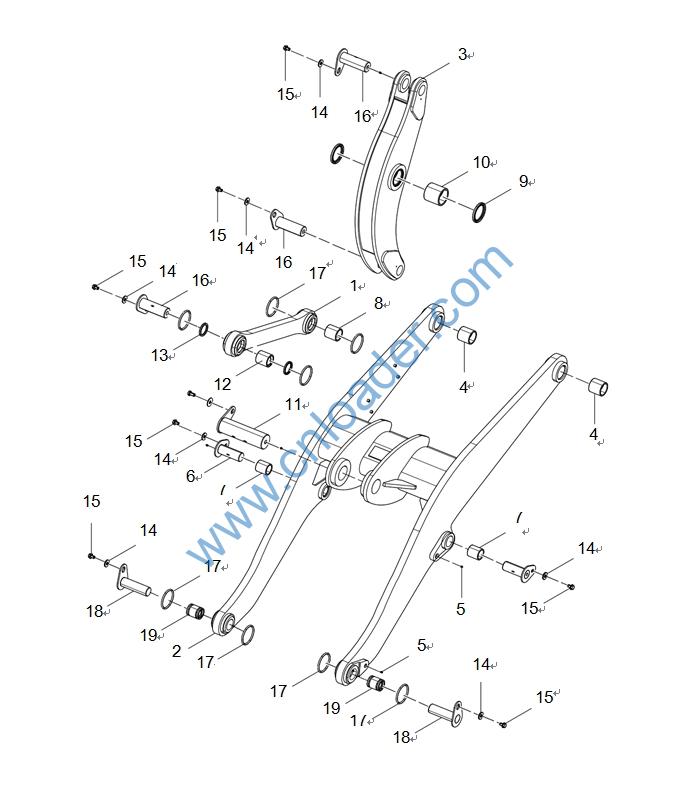

30872900160 拉杆焊合 PULL ROD FABRICATE LG855T.11.02
30811015863 动臂焊合 LG855BGⅥ.11.03Ⅳ
30811017335 摇臂焊合 LG855T.11.04Ⅱ
30811100208 动臂上轴套 SLEEVE,BOOM UPPER LG853.11-001
56201000301 油杯M10×1 OIL CUP M10×1 JB/T7940.1
30871014416 动臂缸上销轴焊合 PIN, BOOM CYLINDER UPPER LG855N.11.25
30811100402 动臂下轴套 LG853.11-007
30811100403 拉杆轴套 LG853.11-008
56176009601 密封圈B120×150×12 SEAL RING B120×150×12 GB/T13871.1
60916010029 摇臂中轴套 SLEEVE, TILT ARM, MIDDLE LG853.11-002
30811015845 摇臂中销轴焊合 LG855N.11.26Ⅰ
30811102006 拉杆轴套 CDM858.11Ⅰ-003
56162001101 密封圈B80×100×10 GB/T13871.1
30811103028 垫圈16 WASHER 16 LG50CKⅠ.11-001
51204134714 螺栓M16×25 BOLT M16×25 GB/T5783
30871014422 铲斗上销轴焊合 UPPER PIN, BUCKET LG855N.11.27
60980000185 O型密封圈 O-RING LG853.11-005
30871014425 铲斗下销轴焊合 LOWER PIN, BUCKET LG855N.11.28
30811100292 动臂下轴套 LOWER SLEEVE, BOOM LG853.11-003

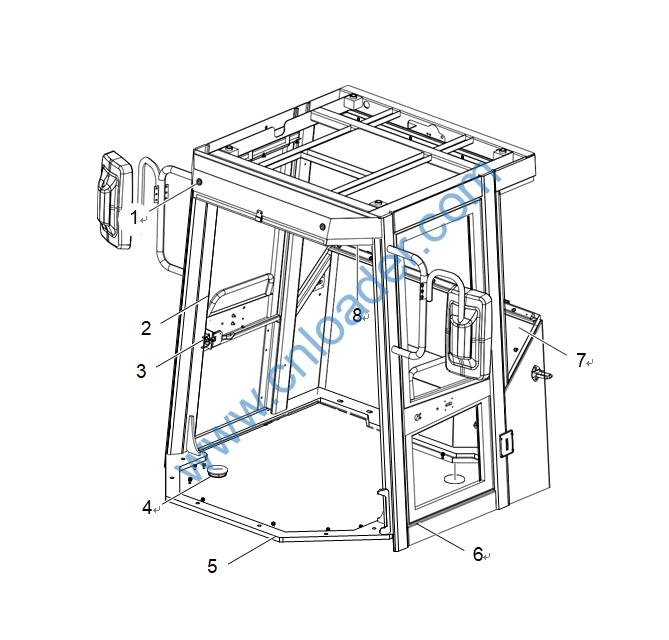

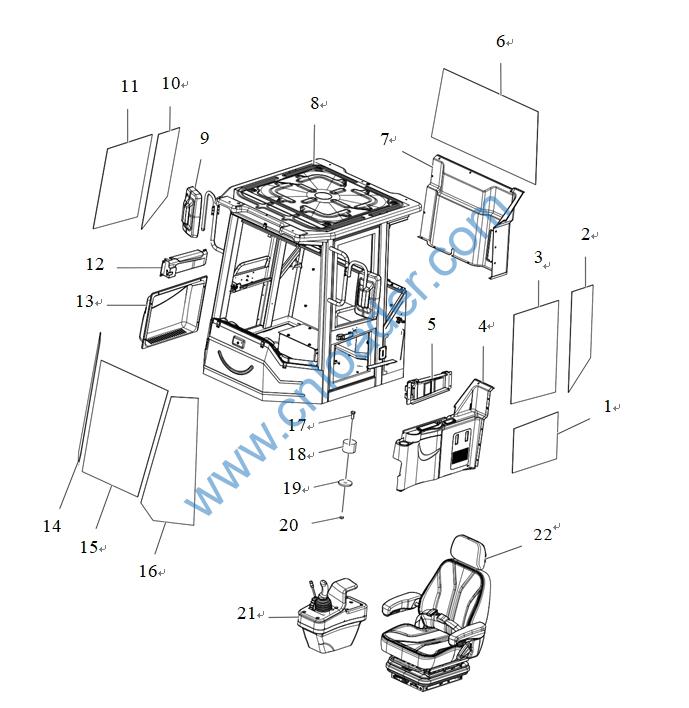

30812102109 左门下玻璃 LOWER GLASS, DOOR, L.H. LG855BⅣ.12-046
60900001616 左后玻璃 REAR GLASS, L.H. LG855BⅣ.12-004
30812102012 左门玻璃 DOOR GLASS, L.H. LG855BⅣ.12-042
30812113318 右后围板 REAR BOARDING, R.H. LG855NⅠ.12Ⅰ.20-021
60900001607 左门饰板 DOOR TRIM, L.H. LG855BⅣ.12-021
30812102010 后玻璃 REAR GLASS LG855BⅣ.12-040
60900001603 后围板 REAR COWL PANEL LG855BⅣ.12-018
30881000602 驾驶室焊合 CABIN FABRICATE LG855BⅣ.12.01
60917010022 倒车镜 REVERSE MIRROR LG50C.12Ⅳ.08
60900001621 右后玻璃 REAR GLASS, R.H. LG855BⅣ.12-009
30812102011 右门玻璃 DOOR GLASS, R.H. LG855BⅣ.12-041
60900001611 右门饰板 DOOR TRIM, R.H. LG855BⅣ.12-025
30812102274 蒸发器罩壳 EVAPORATOR COVER LG855BⅣ.12-053
60900001617 右前玻璃 FRONT GLASS, R.H. LG855BⅣ.12-005
60900001619 前玻璃 FRONT GLASS LG855BⅣ.12-007
60900001620 左前玻璃 FRONT GLASS, L.H. LG855BⅣ.12-008

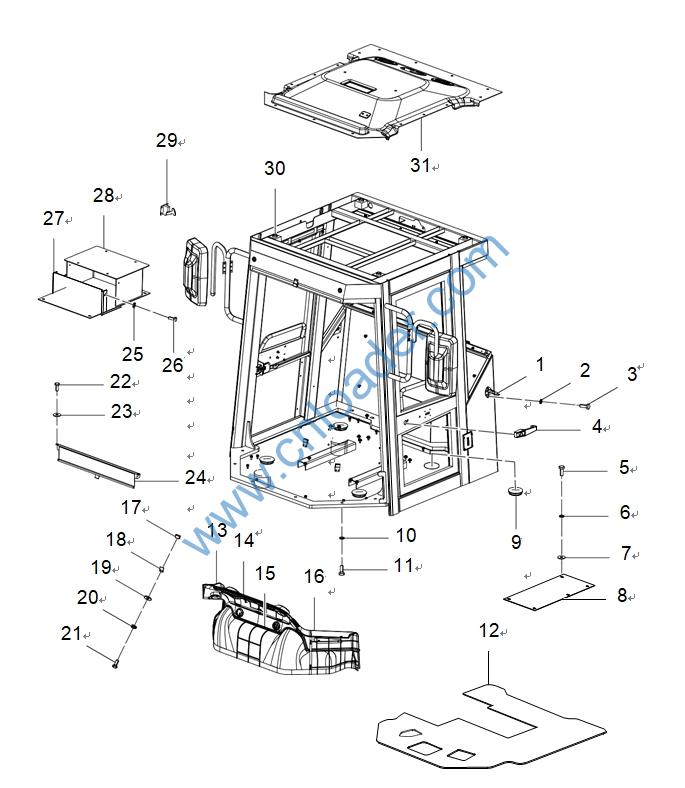

51210173014 螺栓M24×2×140 BOLT M24×2×140 GB/T5785
60900001615 减震器总成 SHOCK ABSORBER ASSEMBLY LG855BⅣ.12.04
30812102005 垫板 SHIM PLATE LG855BⅣ.12-003
51341001819 螺母M24×2 NUT M24×2 GB/T889.1
30881000612 先导操纵箱 PILOT CONTROL BOX CDM835EⅢ.12.14
60900002846 航空座椅 OPERATOR SEAT LG855BⅣ.12.14
30812000623 左碰锁总成 LOCK, L.H. LG855BⅣ.12.17
51401090107 垫圈8 WASHER 8 GB/T93
51204080914 螺栓M6×16 BOLT M6×16 GB/T5783
30812000885 新外观驾驶室门锁总成 CABIN LOCK ASSEMBLY LG855BⅣ.12.30
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51420090121 垫圈8 WASHER 8 GB/T96.1
51420090121 垫圈8 WASHER 8 GB/T96.1
60900001602 底座密封盖 SEAL COVER LG855BⅣ.12-017
51401170107 垫圈24 WASHER 24 GB/T93
51204171814 螺栓M24×60 BOLT M24×60 GB/T5783
30812000630 地垫 MAT CDM860Ⅰ.12Ⅱ-027
60900001598 右前围板 FRONT BOARDING, R.H. LG855BⅣ.12-015
60900001596 前围板 FRONT BOARDING LG855BⅣ.12-013
60900001600 空调管道组件 TUBE COMPONENT, A.C. LG855BⅣ.12.08
60900001597 左前围板 FRONT BOARDING, L.H. LG855BⅣ.12-014
30812101620 玻璃固定橡胶垫 FIXING RUBBER PAD, GLASS LG856.12-028
30812102020 玻璃压板 PLATE, GLASS LG855BⅣ.12-043
51401070107 垫圈5 WASHER 5 GB/T93
51421070115 垫圈5 WASHER 5 GB/T97.1
51158171304 螺钉M5×18 SCREW M5×18 GB/T818
51166700111 自攻螺钉ST5×20 SCREW ST5×20 GB/T845
51421080115 垫圈6 WASHER 6 GB/T97.1
30881000365 遮阳帘 SHADE CDM856DⅠ.12.11
51401080107 垫圈6 WASHER 6 GB/T93
51777000101 碟形螺钉M6×12 SCREW M6×12 DIN316
30812000613 控制器座焊合 CONTROLLER SEAT LG855BⅣ.12.19
30812000608 中活动面板焊合 MOVABLE PLATE, MIDDLE LG855BⅣ.12.03
30812000861 碰锁安装架焊合 FIXING BRACKET, DOOR LOCK LG833NGⅦ.12.01
51142260208 螺钉M20 SCREW M20 GB/T825A
30881101705 内顶饰 INTERIOR, TOP LG855BⅣ.12-027
30812101051 线束密封套 SEAL SLEEVE, HARNESS CDM858A.12Ⅰ-001
60900001613 右门胶条总成 RUBBER STRIP, R.H., DOOR LG855BⅣ.12.12
60919010019 U型胶条 U-TYPE RUBBER STRIP LG856.13.06-001
30812102873 雨刮水管密封套 SEAL SLEEVE, WIPER PIPE LG855N.12-030
30881101707 密封垫 SEAL GASKET LG855BⅣ.12-029
60900001606 左门胶条总成 RUBBER STRIP, L.H., DOOR LG855BⅣ.12.11
30881000614 驾驶室处吸音海绵总成 SOUND-ABSORBING SPONGE,
CABIN CDM835EⅢ.12.03
60900001625 内视镜总成 MIRROR, INNER LG855BⅣ.12.05

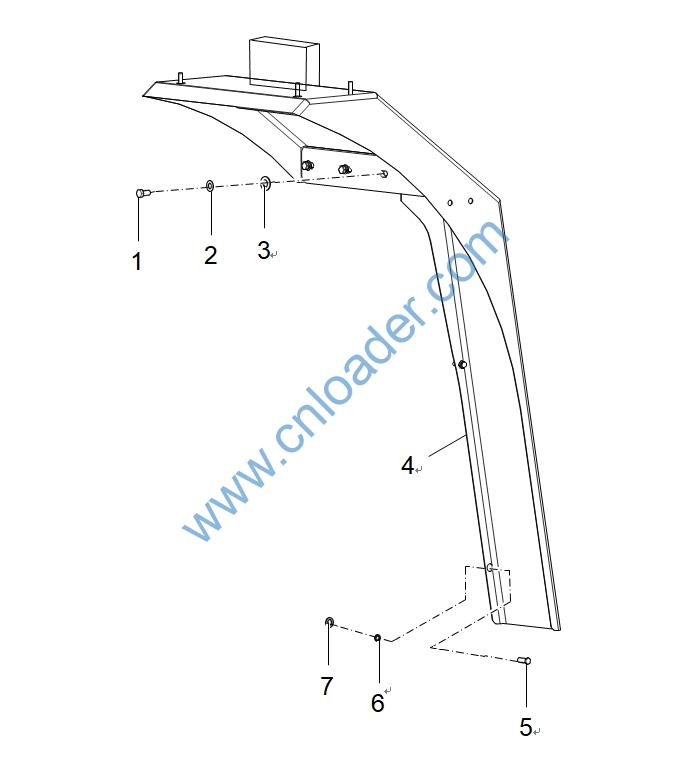

30884900001 前右挡泥板总成 MUDGUARD ASSEMBLY, R.H.
FRONT LG853.13.02
51204111014 螺栓M12×20 BOLT M12×20 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
30813000536 组合灯右支架焊合 BRACKET FABRICATE, R.H.,
COMBIN ED LAMP LG855DⅡ.13.03.02

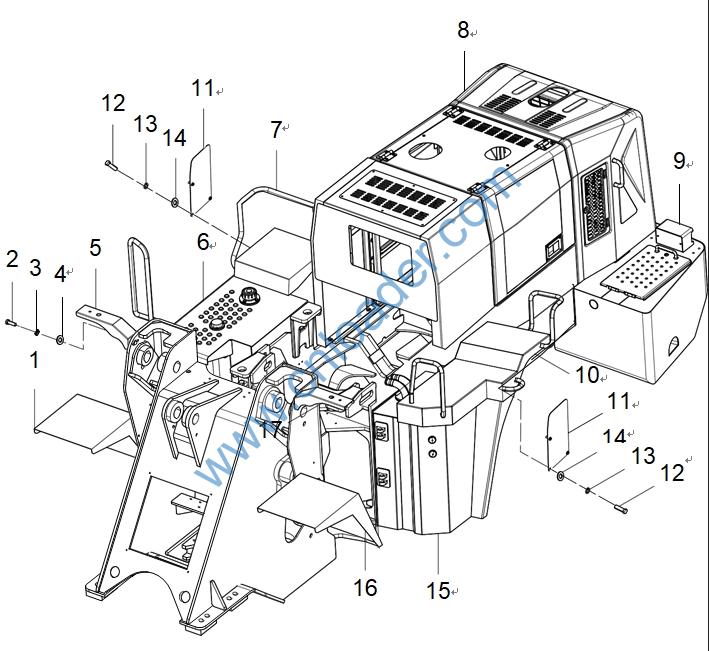

30888913324 燃油箱总成 LG50CⅦ.13Ⅱ.08
30885913010 后右挡泥板总成 MUDGUARD, R.H. REAR LG863NⅤ.13.04
30885913284 后右挡泥板总成 LG50CⅦ.13.04
30886015361 机罩总成 LG855NGcⅠ.13.06
30887900058 平衡重总成 LG855BⅥ.13.07
30887900059 平衡重总成 LG855BGⅥ.13.07
30885913006 后左挡泥板总成 MUDGUARD, L.H. REAR CDM863.13.05
30813113362 侧封板 LG855NGⅩⅥ.13-002
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
51401090107 垫圈8 WASHER 8 GB/T93
51420090121 垫圈8 WASHER 8 GB/T96.1
30889913448 液压油箱总成 LG50CⅦ.13Ⅱ.09
30884900000 前左挡泥板总成 MUDGUARD ASSEMBLY, L.H.
FRONT LG853.13.01
30813000535 组合灯左支架焊合 BRACKET FABRICATE, L.H.,
COMBIN ED LAMP LG855DⅡ.13.03.01
51204111314 螺栓M12×35 BOLT M12×35 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
30885013283 后右挡泥板焊合 LG50CⅦ.13.04.01
51204101114 螺栓M10×25 BOLT M10×25 GB/T5783
51401100107 垫圈10 WASHER 10 GB/T93
51421100115 垫圈10 WASHER 10 GB/T97.1

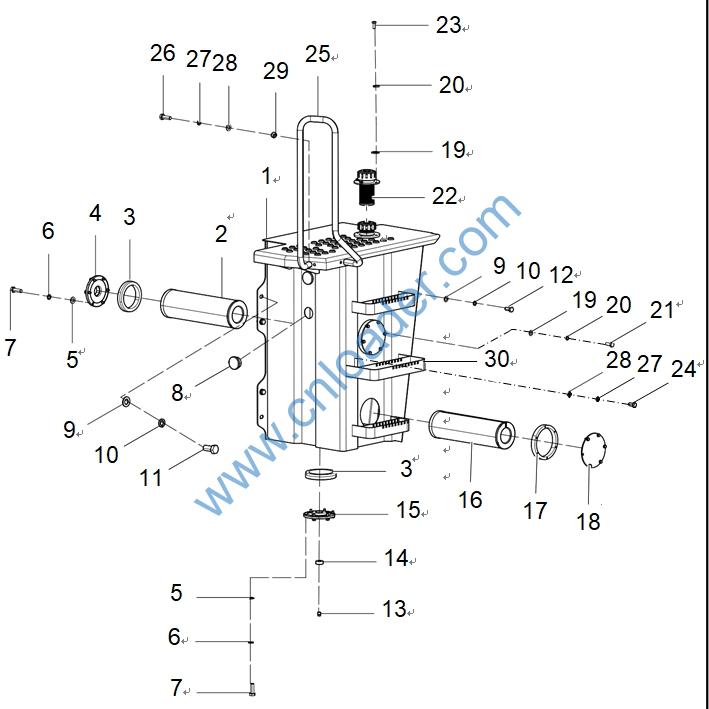

30889013441 液压油箱体焊合 LG50NCGSⅧ.13Ⅰ.09.01
60308000030 回油滤清器 LG855.13.09.03
60922010032 垫片 SHIM LG853.13.08-002
30889100005 回油法兰盖 FLANGE COVER, OIL RETURN CDM860.13.09.04
51421100115 垫圈10 WASHER 10 GB/T97.1
51401100107 垫圈10 WASHER 10 GB/T93
51204101214 螺栓M10×30 BOLT M10×30 GB/T5783
60307010012 圆形油标 OIL INDICATER LG853.13.08.05
51421130115 垫圈16 WASHER 16 GB/T97.1
51401130107 垫圈16 WASHER 16 GB/T93
51204134214 螺栓M16×30 BOLT M16×30 GB/T5783
51204132514 螺栓M16×35 BOLT M16×35 GB/T5783
30813100211 堵头 PLUG LG853.13.08-001
60980000189 磁铁φ80Xφ40X12 MAGNET φ80Xφ40X12 LG853.13.08-003
30888000071 放油盖焊合 OIL DRAIN COVER LG853.13.08.03
60308000031 吸油滤清器 FILTER, OIL SUCTION LG855.13.09.05
30889100006 垫片 SHIM LG853.13.09-002
30889000393 法兰盖焊合 FLANGE COVER LG853.13.09.03
51421090115 垫圈8 WASHER 8 GB/T97.1
51401090107 垫圈8 WASHER 8 GB/T93
51204091114 螺栓M8×25 BOLT M8×25 GB/T5783
60401080175 空气滤清器 AIR FILTER LG50C.13Ⅳ.08.04
60101100556 空气滤清器 AIR FILTER LG853.13.09.06
51204091014 螺栓M8×20 BOLT M8×20 GB/T5783
51204111114 螺栓M12×25 BOLT M12×25 GB/T5783
30889013348 左前扶手焊合 LG863S.13.09.03
51204111414 螺栓M12×40 BOLT M12×40 GB/T5783
51401110107 垫圈12 WASHER 12 GB/T93
51421110115 垫圈12 WASHER 12 GB/T97.1
51307001119 螺母M12 NUT M12 GB/T6170
30889013446 左爬梯焊合 LG50NCGSⅧ.13Ⅰ.09.03
