SY215C9 hydraulic excavator SANY GE



零件代码 PART NUMBER

名称 PART NAME

A820205002283

接头

Fitting

B210780000024

直角组合接头

Fitting, Elbow

B210780001426

管接头

Fitting

10137010

接头

Fitting

B220401000916

放油阀

Valve AS, drain

60006360

铜垫圈

Washer, copper

A229900001345

软管环箍

Clamp

10192981

放油软管

Hose, return

A820205002483

PT1/4-M14过渡接头

Fitting

A831233105800

胶管

Hose AS, grease

60083322

线夹

Clamp

A210111000199

螺栓M12×20GB5783 10.9级

Bolt

B229900000686

黄油嘴

Grease nipple

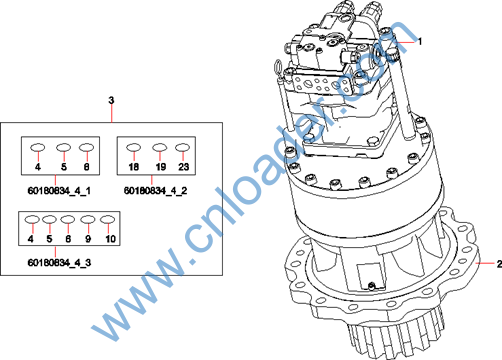

零件代码 PART NUMBER

名称 PART NAME

60180834

回转马达    Motor AS, swing

60180835

回转减速机    Drive AS, swing

B229900003185

20T回转机构维修包    Kit, seal, swing motor

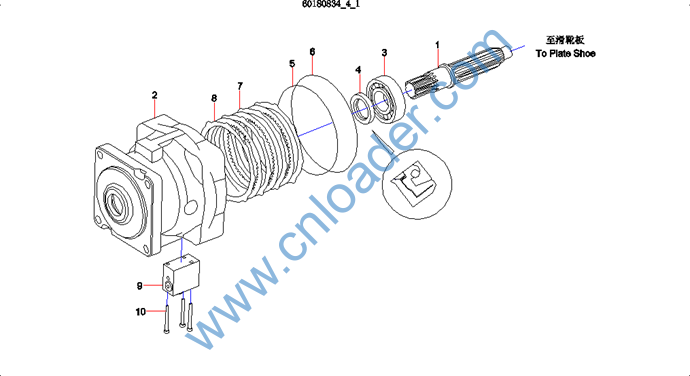

零件代码 PART NUMBER

名称 PART NAME

60008573

驱动轴

Shaft, motor output

60008571

DD3机体

Housing, swing motor

60008740

轴承

Bearing

60008744

密封座

Seal

60008881

O形圈

O-ring

60008883

O形圈

O-ring

B229900003186

20T回转制动从动片

Plate, seperator

B229900003187

20T回转制动主动片

Plate, friction

B220401000688

回转马达延时阀

Valve,brake,delay

60008845

螺栓

Bolt, socket head

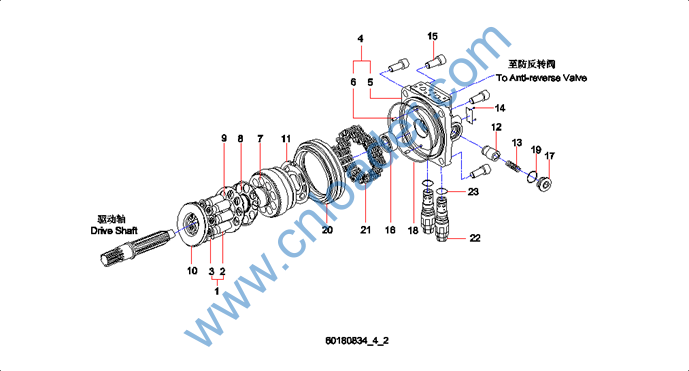

零件代码 PART NUMBER

名称 PART NAME

B229900002240

柱塞

Piston AS

60008580

活塞

Piston

60008574

滑靴

Slipper

60008570

阀体组件

Valve, body GP

60008569

H2阀体

Valve, body

60008878

Pin

60008575

油缸

Cylinder

60008567

架体

plate

60008572

架体

Plate

60008577

滑靴板

Swashplate

B229900002241

配油盘

Plate, port

60008579

单向阀阀体

Body, check valve

60008578

弹簧

Spring

60008722

铆钉

Rivet

60008840

螺栓

Bolt, socket head

60008739

轴承

Bolt

60008716

Plug

60008882

O形圈

O-ring

60008862

O形圈

O-ring

60008576

活塞

Brake, piston








零件代码 PART NUMBER

名称 PART NAME

60008568

弹簧    Spring

B220401000693

20T回转溢流阀    Valve, relief

B230101000036

O形圈    O-ring

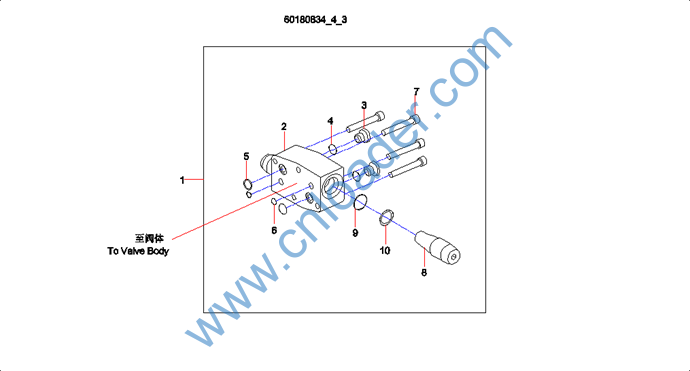

零件代码 PART NUMBER

名称 PART NAME

B220401000687

回转马达防摆阀

Anti-swing Valve of rotary motor

60008793

机体

Valve, body

60008711

Plug

B230103003795

O形圈

O-Ring

60008699

O形圈

O-ring

60008707

O形圈

O-ring

60008848

螺钉

Bolt, socket head

60008753

防反转阀

Valve, anit-rebound

B230101000363

O形圈

O-ring

60008867

密封挡圈

Ring, retainer

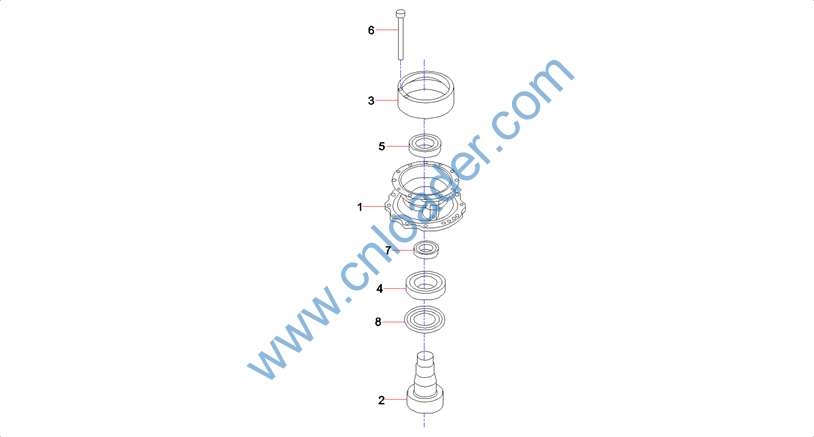

零件代码 PART NUMBER

名称 PART NAME

60065327

Housing, lower

60065314

驱动轴

Gear, pinion

60065240

齿圈

Gear, ring

B221500000627

自动调心轴承

Bearing, self-aligning

B221500000626

自动调心轴承

Bearing, self-aligning

A210204000297

螺钉

Bolt, socket head

60065353

油封

Seal, oil

B230101001021

轴承密封件

Seal, grease








零件代码 PART NUMBER

名称 PART NAME

60065230

行星齿轮

Gear, planet

60065228

太阳齿轮

Gear, sun

60065229

行星齿轮

Gear, planet

60065227

太阳齿轮

Gear, sun

60065319

支架

Carrier, planet gear

60065318

支架

Plate, carrier

60065226

二级行星轮组件

Bearing, shaft AS

60008608

一级行星轮轴

Shaft

60008616

Washer

B229900002800

2 行星齿轮垫片

Washer, thrust

60065255

垫片

Washer ,thrust

60008605

油尺

Dipstick, oil

60008614

油尺外管

Tube, dipstick

60008615

加油管

Tube, fill

B229900002437

呼吸管盖

Cap, breather

60008727

轴套

Bushing

60008875

弹性挡圈

Ring, snap

60008876

弹性挡圈

Ring, snap

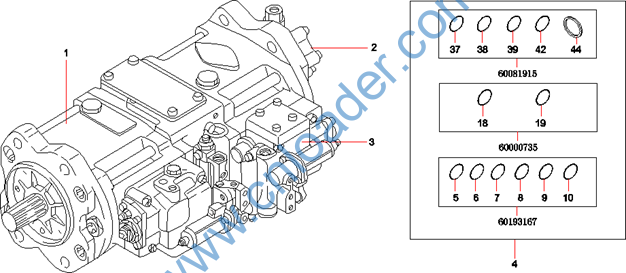

零件代码 PART NUMBER

名称 PART NAME

60081915

柱塞泵组件

Pump GP, piston

60000735

先导齿轮泵

Pump, gear, pilot

60193167

主泵调节器

Regulator, main pump

60204222

主泵维修包

Pump, main, seal kit

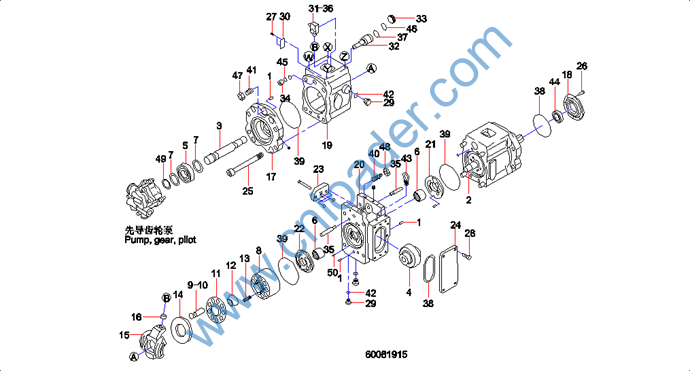

零件代码 PART NUMBER

名称 PART NAME

60008878

Pin

60008528

驱动轴

Shaft, drive

60008527

驱动轴

Shaft, driven

60008492

1号齿轮

Coupling

60006940

前轴承

Bearing, front

60008726

轴承

Bearing

60008582

垫片

Seal

B229900005459

主泵缸体

Barrel AS

60008519

柱塞

Piston

60008517

滑靴

Slipper

60008516

架体

Ring

B229900005452

球面衬套

Bushing, spherical

60008545

弹簧

Spring

B229900005449

滑靴盘

Support, swashplate

B229900005455

斜盘

Swashplate

60008732

衬套

Bushing

B229900005456

斜盘支撑台

Head

60008531

轴承盖板

Plate, bearing

60039298

泵体

Body

60039372

配油壳体

Housing, center
