SY215C9 hydraulic excavator SANY AW



零件代码 PART NUMBER

名称 PART NAME

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

B230103002316

胶管

Hose AS

B230103002317

胶管

Hose AS

A810406012423

上板

Bracket, upper

A810406012424

下板

Bracket, lower

A210204000357

螺钉M10×60GB70.1 10.9级

Bolt

A820606010360

衬垫

Grommet

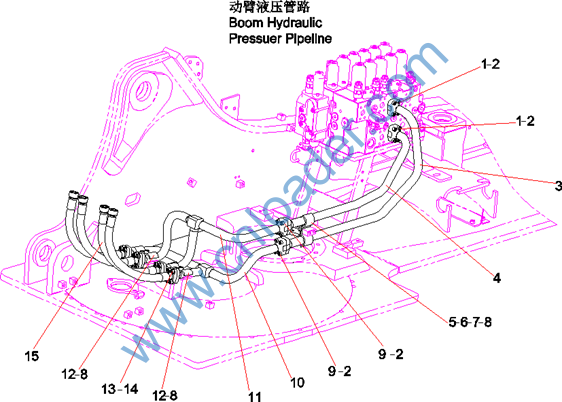

零件代码 PART NUMBER

名称 PART NAME

A210204000215

螺钉M10×35GB70.1 10.9级

Screw

B230101000456

O形圈

O-ring

11538576

钢管总成

Tube group

11538578

钢管总成

Tube group

11539353

压板

Clamp

A820606010360

衬垫

Grommet

24000639

垫圈12GB97.1 达克锈

Washer

A210204000337

螺钉M12×30GB70.1 10.9级

Bolt

A210204000355

螺钉M10×40GB70.1 10.9级

Screw

11539135

动臂大腔钢管

Tube, boom cylinder, head end

11539237

动臂小腔钢管

Tube, boom cylinder, rod end

11654944

压板

Clamp AS

B210780000696

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

B230103002294

胶管

Hose AS

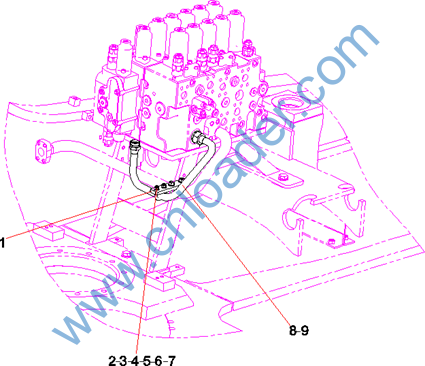

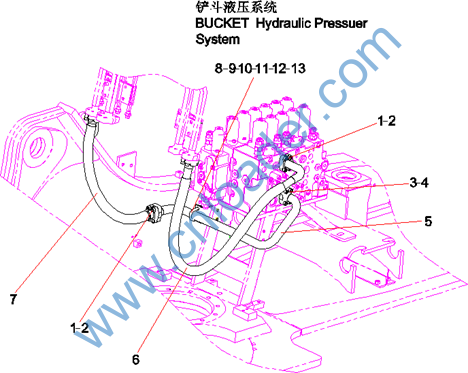

零件代码 PART NUMBER

名称 PART NAME

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

A210204000215

螺钉M10×35GB70.1 10.9级

Screw

B230101000456

O形圈

O-ring

11531616

钢管总成

Tube group

60041191

胶管

Hose AS

60065987

胶管

Hose AS

11144202

支架

Bracket

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

24000637

垫圈10GB97.1 达克锈

Washer

11160698

U型螺栓

U type bolt

A210307000036

螺母

Nut

60060546

垫圈10GB96.1 达克锈

Washer

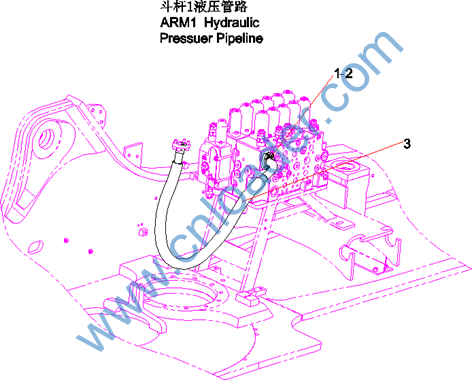

零件代码 PART NUMBER

名称 PART NAME

B210780000244

对开法兰    Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级    Screw

60032054

胶管    Rubber Hose

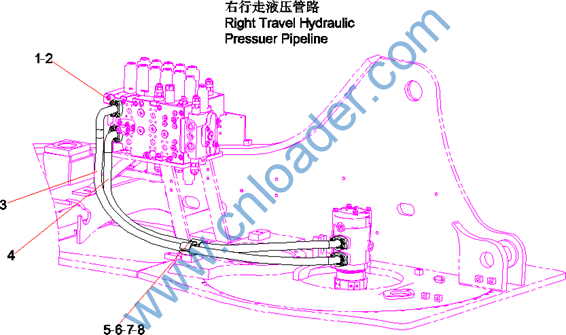

零件代码 PART NUMBER

名称 PART NAME

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

B230103002318

胶管

Hose AS

B230103002320

胶管

Hose AS

A820606010360

衬垫

Grommet

A810406012423

上板

Bracket, upper

A810406012424

下板

Bracket, lower

A210204000357

螺钉M10×60GB70.1 10.9级

Bolt

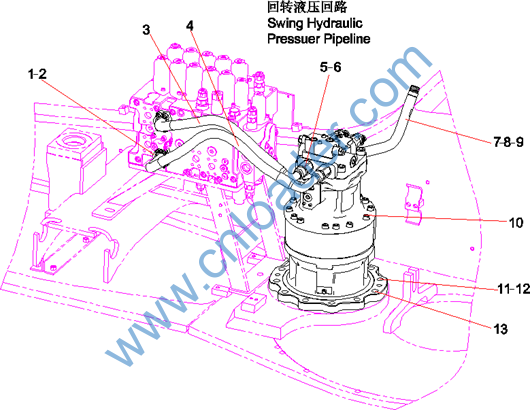

零件代码 PART NUMBER

名称 PART NAME

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

60167468

胶管

Hose AS

60167467

胶管

Hose AS

A820205002474

接头

Fitting

B230101000356

O形圈

O-Ring-23.7

13186696

21T回转马达用接头

Connector

13186692

19T加注齿轮油管总成

Tube, fill

60263201

通气帽

Cap, breather

B229900006314

减速机总成

Reducer AS

A210111000062

螺栓M20×60GB5783 10.9级

Bolt

A210491000132

垫圈

Washer

A820301012852

回转机构定位销

Pin, dowel

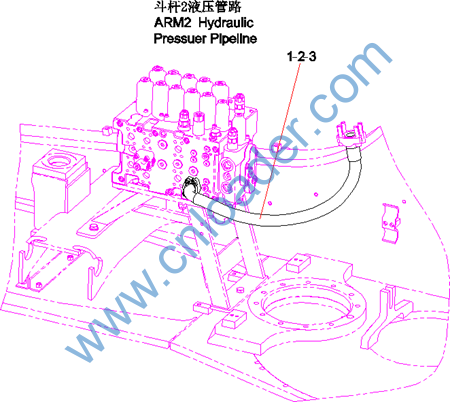

零件代码 PART NUMBER

名称 PART NAME

60078309

胶管    Hose AS

B210780000244

对开法兰    Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级    Screw

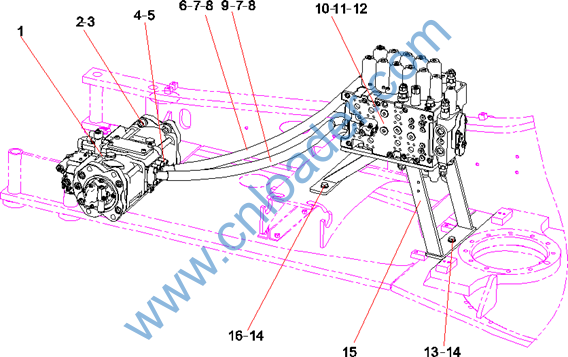

零件代码 PART NUMBER

名称 PART NAME

60123319

柱塞泵

Plunger Pump

A210204000300

螺钉M20×55GB70.1 10.9级

Bolt, socket head

A210491000132

垫圈

Washer

B210780000004

对开法兰

Flange, Split

A210204000462

螺钉M12×45GB70.1 10.9级

Screw

60273783

胶管

Hose AS

B210780000244

对开法兰

Flange, Split

A210204000354

螺钉 M10×30GB70.1 10.9级

Screw

60284989

胶管

Hose AS

60318588

多路阀

Valve, main control

A210111000203

螺栓

Bolt

A210204000198

螺钉M16×35GB70.1 10.9级

Bolt, socket head

A210111000212

螺栓M16×35GB5783 10.9级

Bolt

60060553

垫圈16GB96.1 达克锈

Washer

13665281

主阀架

Bracket, mounting

A210110000324

螺栓M16×65GB5782 10.9级

Bolt

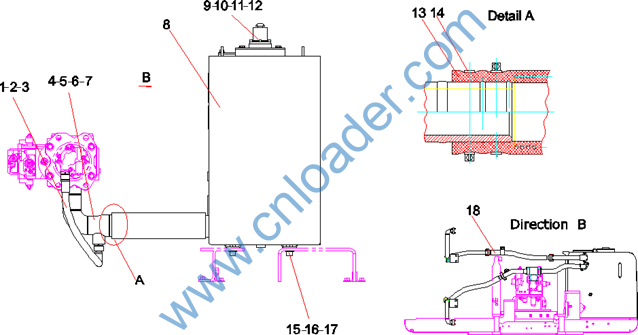

零件代码 PART NUMBER

名称 PART NAME

B230103001168

胶管

Hose AS

B230101000356

O形圈

O-Ring-23.7

A820205000187

管接头

Fitting

13623327

吸油钢管

Tube, suction

B230101000038

O形圈

O-Ring-69.4

A210204000337

螺钉M12×30GB70.1 10.9级

Bolt

24000639

垫圈12GB97.1 达克锈

Washer

13623847

液压油箱总成

Tank, hydraulic

60129702

呼吸阀

Valve, breather AS

A210204000130

螺钉

Screw

24000632

垫圈6GB97.1 达克锈

washer

B230101000366

O形圈

O-ring

13623276

吸油胶管

Hose

60250343

T型抱箍φ104.8-φ112.7 带弹簧

Clamp, hose

A210204000198

螺钉M16×35GB70.1 10.9级

Bolt, socket head

A820101118172

垫片

Spacer

A210491000118

垫圈

High-strength steel washer

13657741

回油管路

Tube, return










零件代码 PART NUMBER

名称 PART NAME

11539370

夹板

Clamp

11539392

U型螺栓

U type bolt

A210307000012

螺母

Nut

60060565

垫圈8GB96.1 达克锈

Washer

11160698

U型螺栓

U type bolt

A210307000036

螺母

Nut

60060546

垫圈10GB96.1 达克锈

Washer

11539375

钢管总成

Tube group

60000846

O形圈

O-ring
