SY215C9 hydraulic excavator SANY SAV



60093151

Plate, port

60151387

Plate, port

60008550

Cover

60008511

Cover

60008543

Bolt, socket head

60039371

Bolt, socket head

60008722

Rivet

60008717

Bolt, socket head

60008725

Plug

60038547

Nameplate

60008530

Pin

60008518

Piston

60008521

Plate, retaining

60008542

Plate, retaining

60008501

Sleeve

60008549

Pin

60008693

O-ring

60008695

O-ring

60008691

O-ring

60008544

Stud








60008742

Stud

60008705

O-ring

60038330

Eyebolt

60151388

Seal

60039326

Ring

60039325

Ring, Retainer

60038452

Nut

60039359

Nut

60008723

Ring, retaining

60008737

Pin








60008508

Stem, valve

60008493

Seat, valve

60008523

Ring, retaining

60008500

Spring

60008496

Screw, adjusting

60008505

Nut

60008512

Body

60008552

Gear, drive

60008581

Gear, driven

60008491

Filter

60008509

Cover

60008730

Bolt

60008731

Bolt

60008729

Screw

60008873

Washer

60008504

O-ring

60008736

Pin

B230101000047

O-Ring-10.8

B230101000229

O-ring








60118638

Stud

60118639

Pin

60008546

Pin

60118637

Nut

60008698

O-ring

60008697

O-ring

60008702

O-ring

A210609000036

O-ring

60008708

O-ring

60008694

O-ring

60118625

Cover

60118643

Spool

60118631

Valve, sleeve

60193177

Spring

60118636

Piston

60118640

Valve, seat

60155069

Rod, adjusting

60118630

Spring, seat

60118634

Plug

60118644

Lever








60118627

Body, regulator

60119019

Ball

60118635

Valve, seat

60118629

Seal

60008728

Screw, set

60008724

Plug

60150556

Bolt

60150559

Bolt

A210204000217

Bolt

60018102

Bolt

60038565

Bolt, socket head

60118626

Cover

60119020

Valve GP, check

60081917

Valve, proportional reducing








60008713

Plug

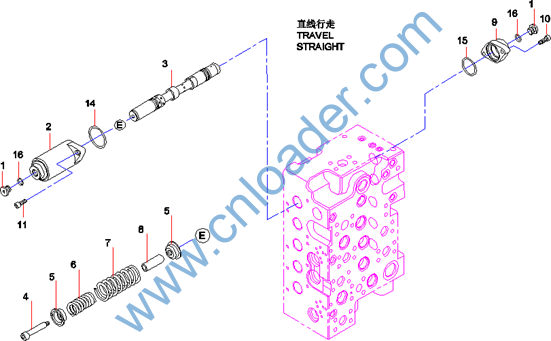

60100505

Cap, pilot

60100498

Spool, valve, straight travel

60008819

Bolt, socket head

60008823

Seat

60100503

Spring

60100502

Spring

60008818

Ring, retaining

60008789

Cap

60008721

Bolt, socket head

60100514

O-ring

60050051

O-ring

60008700

O-ring








60100505

Cap, pilot

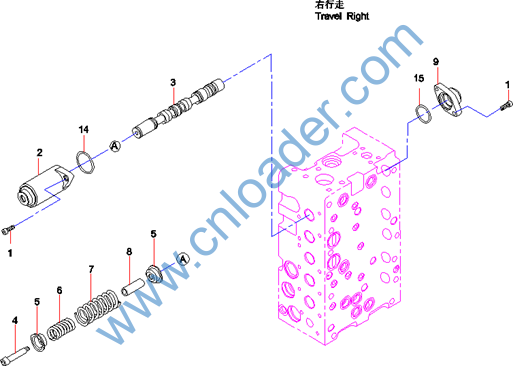

60100501

Spool, valve, travel

60008819

Bolt, socket head

60008823

Seat

60008770

Spring

60008769

Spring

60008818

Ring, retaining

60008789

Cap

60008721

Bolt, socket head

60100514

O-ring

60050051

O-ring








60008721

Bolt, socket head

60100505

Cap, pilot

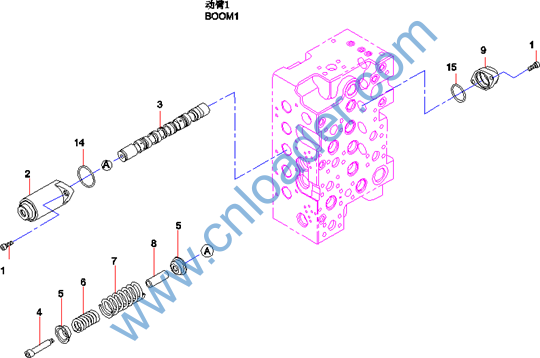

60100479

Spool, valve, boom

60008819

Bolt, socket head

60008823

Seat

60008770

Spring

60008769

Spring

60008818

Ring, retaining

60008789

Cap

60100514

O-ring

60050051

O-ring








60008819

Bolt, socket head

60008823

Seat

60008770

Spring

60008769

Spring

60008818

Ring, retaining

60008721

Bolt, socket head

60100505

Cap, pilot

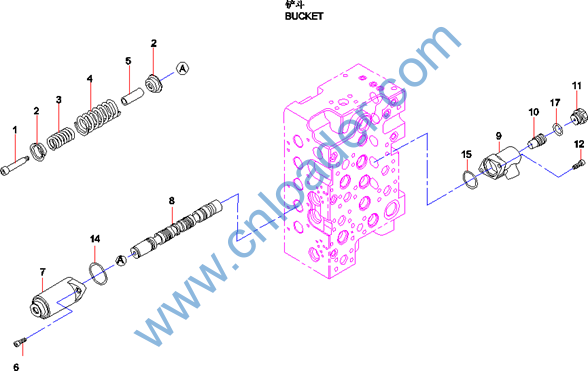

60100474

Spool, valve, bucket

60100469

Cap

60100509

Spool

60100468

Plug

60100514

O-ring

60050051

O-ring

60008705

O-ring








60008819

Bolt, socket head

60008823

Seat

60008770

Spring

60008769

Spring

60008818

Ring, retaining

60008721

Bolt, socket head

60100505

Cap, pilot

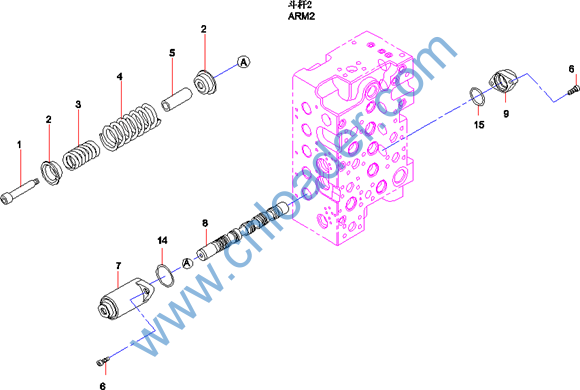

60100482

Spool, valve, arm

60008789

Cap

60100514

O-ring

60050051

O-ring
