60008721 |
Bolt, socket head |
|
60100505 |
Cap, pilot |
|
60100501 |
Spool, valve, travel |
|
60008819 |
Bolt, socket head |
|
60008823 |
Seat |
|
60008770 |
Spring |
|
60008769 |
Spring |
|
60008818 |
Ring, retaining |
|
60008789 |
Cap |
|
60100514 |
O-ring |
|
60050051 |
O-ring |
|
60008819 |
Bolt, socket head |
|
60008823 |
Seat |
|
60008770 |
Spring |
|
60008769 |
Spring |
|
60008818 |
Ring, retaining |
|
60008721 |
Bolt, socket head |
|
60100505 |
Cap, pilot |
|
60100485 |
Spool, valve, swing |
|
60008789 |
Cap |
|
60100514 |
O-ring |
|
60050051 |
O-ring |
|

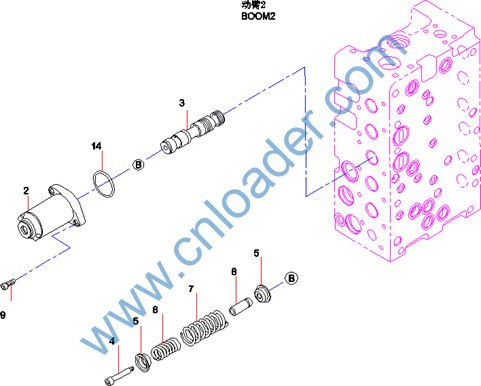

60100506 |
Cap, pilot |
|
60100480 |
Spool, valve, boom |
|
60008819 |
Bolt, socket head |
|
60008823 |
Seat |
|
60008772 |
Spring |
|
60008771 |
Spring |
|
60008801 |
Ring, retaining |
|
60100514 |
O-ring |
|

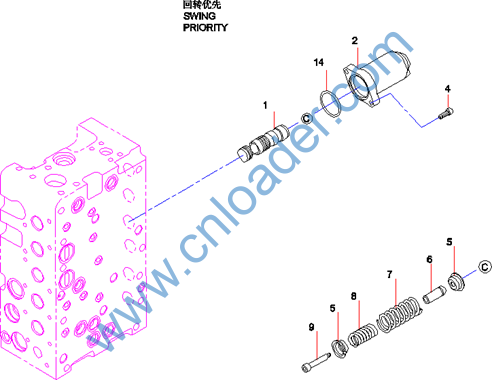

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

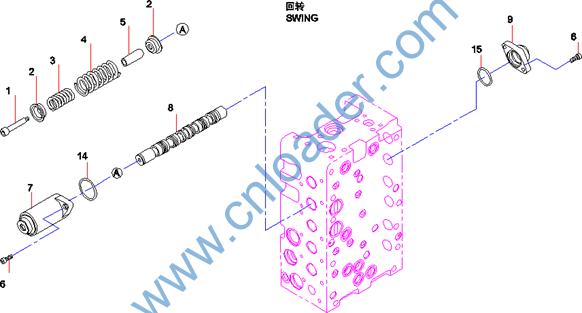

3-113-1 |
1 |
60100487 |
1 |
回转优先阀 |
Valve, swing priority |
|
3-113-2 |
2 |
60100506 |
1 |
弹簧盖 |
Cap, pilot |
|
3-113-4 |
4 |
60008721 |
2 |
内六角螺钉 |
Bolt, socket head |
|
3-113-5 |
5 |
60008823 |
2 |
座 |
Seat |
|
3-113-6 |
6 |
60008801 |
1 |
挡圈 |
Ring, retaining |
|
3-113-7 |
7 |
60008769 |
1 |
弹簧 |
Spring |
|
3-113-8 |
8 |
60039319 |
1 |
弹簧 |
Spring |
|
3-113-14 |
14 |
60100514 |
1 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

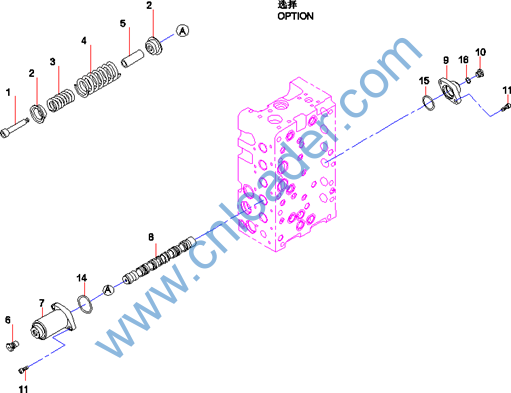

3-115-1 |
1 |
60008819 |
1 |
螺柱 |
Bolt, socket head |
|
3-115-2 |
2 |
60008823 |
2 |
座 |
Seat |
|
3-115-3 |
3 |
60008770 |
1 |
弹簧 |
Spring |
|
3-115-4 |
4 |
60008769 |
1 |
弹簧 |
Spring |
|
3-115-5 |
5 |
60008818 |
1 |
挡圈 |
Ring, retaining |
|
3-115-6 |
6 |
60100466 |
1 |
堵 |
Plug |
|
3-115-7 |
7 |
60100505 |
1 |
弹簧盖 |
Cap, pilot |
|
3-115-8 |
8 |
60100473 |
1 |
备用阀芯 |
Spool, valve, service valve |
|
3-115-9 |
9 |
60008789 |
1 |
盖 |
Cap |
|
3-115-10 |
10 |
60008713 |
1 |
堵 |
Plug |
|
3-115-11 |
11 |
60008721 |
4 |
内六角螺钉 |
Bolt, socket head |
|
3-115-14 |
14 |
60100514 |
1 |
O形圈 |
O-ring |
|
3-115-15 |
15 |
60050051 |
1 |
O形圈 |
O-ring |
|
3-115-16 |
16 |
60008700 |
1 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

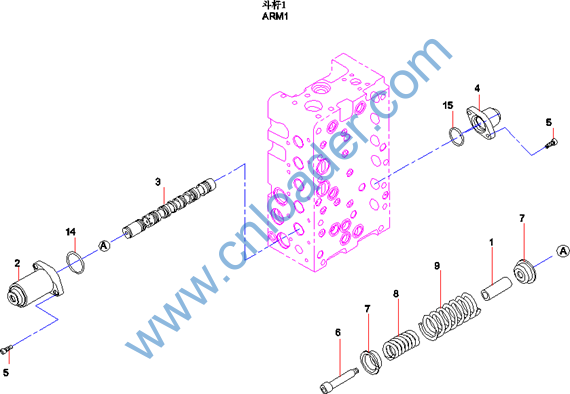

3-117-1 |
1 |
60008818 |
1 |
挡圈 |
Ring, retaining |
|
3-117-2 |
2 |
60100505 |
1 |
弹簧盖 |
Cap, pilot |
|
3-117-3 |
3 |
60100481 |
1 |
斗杆阀芯 |
Spool, valve, arm |
|
3-117-4 |
4 |
60008790 |
1 |
盖 |
Cap |
|
3-117-5 |
5 |
60008721 |
4 |
内六角螺钉 |
Bolt, socket head |
|
3-117-6 |
6 |
60008819 |
1 |
螺柱 |
Bolt, socket head |
|
3-117-7 |
7 |
60008823 |
2 |
座 |
Seat |
|
3-117-8 |
8 |
60008770 |
1 |
弹簧 |
Spring |
|
3-117-9 |
9 |
60008769 |
1 |
弹簧 |
Spring |
|
3-117-14 |
14 |
60100514 |
1 |
O形圈 |
O-ring |
|
3-117-15 |
15 |
60050051 |
1 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

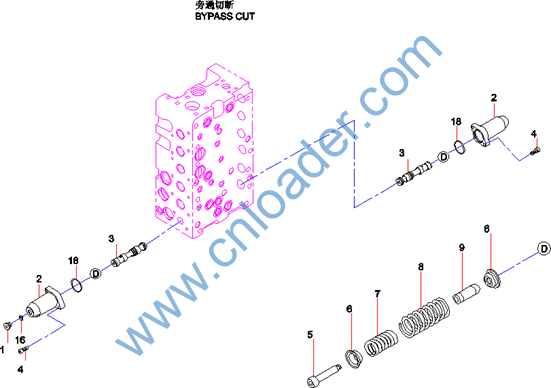

3-119-1 |
1 |
60008713 |
1 |
堵 |
Plug |
|
3-119-2 |
2 |
60100507 |
2 |
弹簧盖 |
Cap, pilot |
|
3-119-3 |
3 |
60100496 |
2 |
液压切断阀 |
Valve, hydraulic cutoff |
|
3-119-4 |
4 |
60008721 |
4 |
内六角螺钉 |
Bolt, socket head |
|
3-119-5 |
5 |
60038528 |
2 |
螺栓 |
Bolt, socket head |
|
3-119-6 |
6 |
60008825 |
4 |
座 |
Seat |
|
3-119-7 |
7 |
60038244 |
2 |
弹簧 |
Spring |
|
3-119-8 |
8 |
60038243 |
2 |
弹簧 |
Spring |
|
3-119-9 |
9 |
60100508 |
2 |
挡圈 |
Ring, retaining |
|
3-119-16 |
16 |
60008700 |
1 |
O形圈 |
O-ring |
|
3-119-18 |
18 |
60008821 |
2 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

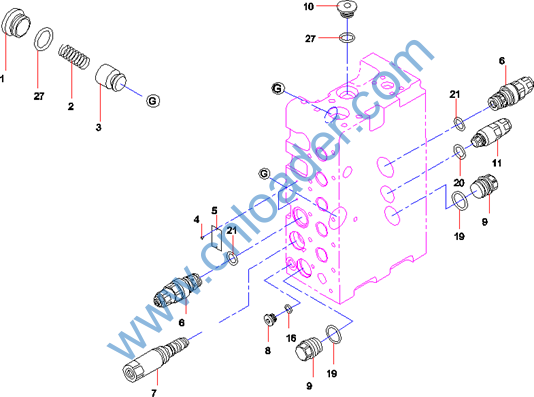

3-121-1 |
1 |
60008715 |
2 |
堵 |
Plug |
|
3-121-2 |
2 |
60008817 |
2 |
弹簧 |
Spring |
|
3-121-3 |
3 |
60008783 |
2 |
单向阀 |
Valve, check |
|
3-121-4 |
4 |
60008722 |
2 |
铆钉 |
Rivet |
|
3-121-5 |
5 |
60100511 |
1 |
铭牌 |
Nameplate |
|
3-121-6 |
6 |
60100488 |
2 |
流阀 |
Valve, relief |
|
3-121-7 |
7 |
60100484 |
1 |
斗杆再生阀 |
Valve, arm regeneration |
|
3-121-8 |
8 |
60008713 |
1 |
堵 |
Plug |
|
3-121-9 |
9 |
60100465 |
2 |
堵 |
Plug |
|
3-121-10 |
10 |
60008712 |
1 |
堵 |
Plug |
|
3-121-11 |
11 |
60100490 |
1 |
节流阀 |
Valve, relief |
|
3-121-16 |
16 |
60008700 |
1 |
O形圈 |
O-ring |
|
3-121-19 |
19 |
60100516 |
2 |
O形圈 |
O-ring |
|
3-121-20 |
20 |
60100517 |
1 |
O形圈 |
O-ring |
|
3-121-21 |
21 |
60100515 |
2 |
O形圈 |
O-ring |
|
3-121-27 |
27 |
60335071 |
3 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

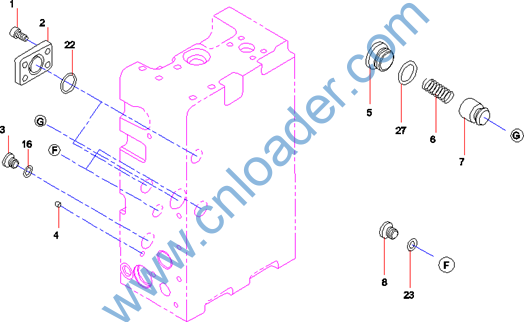

3-123-1 |
1 |
60008717 |
8 |
螺栓 |
Bolt, socket head |
|
3-123-2 |
2 |
60008781 |
2 |
法兰 |
Cap, flanged |
|
3-123-3 |
3 |
60008713 |
1 |
堵 |
Plug |
|
3-123-4 |
4 |
60008728 |
1 |
紧定螺钉 |
Screw, set |
|
3-123-5 |
5 |
60008715 |
1 |
堵 |
Plug |
|
3-123-6 |
6 |
60008817 |
1 |
弹簧 |
Spring |
|
3-123-7 |
7 |
60008783 |
1 |
单向阀 |
Valve, check |
|
3-123-8 |
8 |
60008711 |
2 |
堵 |
Plug |
|
3-123-16 |
16 |
60008700 |
1 |
O形圈 |
O-ring |
|
3-123-23 |
23 |
60008697 |
2 |
O形圈 |
O-ring |
|
3-123-27 |
27 |
60335071 |
1 |
O形圈 |
O-ring |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

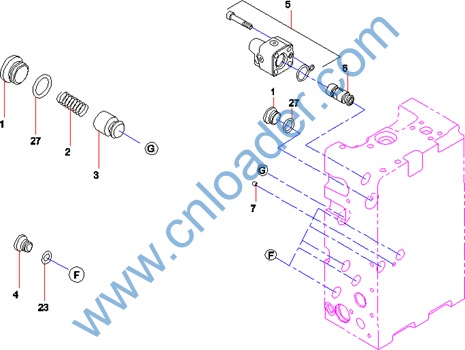

3-125-1 |
1 |
60008715 |
1 |
堵 |
Plug |
|
3-125-2 |
2 |
60008817 |
1 |
弹簧 |
Spring |
|
3-125-3 |
3 |
60008783 |
1 |
单向阀 |
Valve, check |
|
3-125-4 |
4 |
60008711 |
5 |
堵 |
Plug |
|
3-125-5 |
5 |
60100494 |
1 |
逻辑阀 |
Bolt, socket head |
|
3-125-6 |
6 |
60100476 |
1 |
单向阀 |
Valve, check |
|
3-125-7 |
7 |
60008728 |
1 |
紧定螺钉 |
Screw, set |
|
3-125-23 |
23 |
60008697 |
5 |
O形圈 |
O-ring |
|
3-125-27 |
27 |
60335071 |
2 |
O形圈 |
O-ring |
