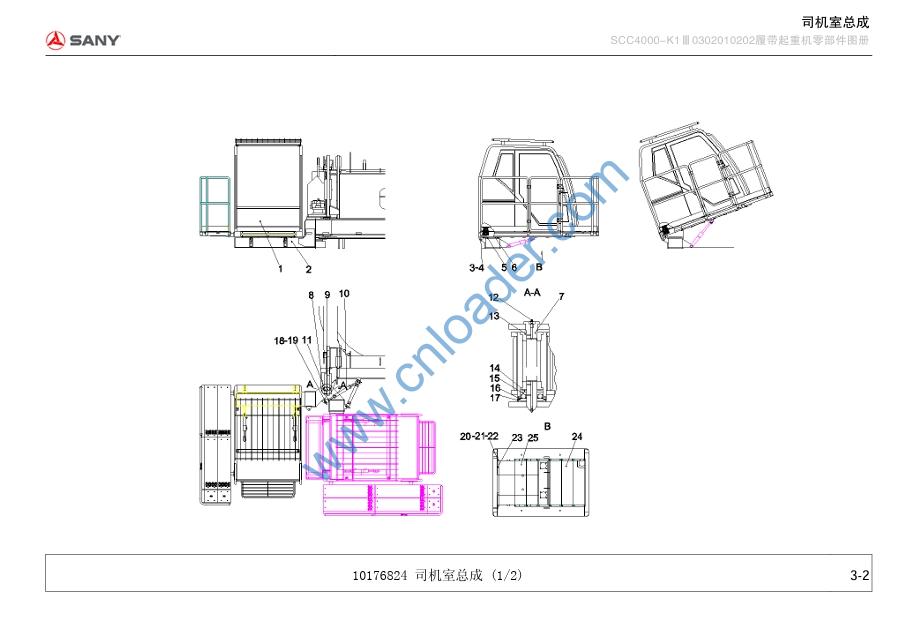

Driver’s cab assembly

Driver’s cab assembly

1 10176823 Cab 1
2 10176820 swivel arm 1
3 10175105 pin 6
4 21012137 Pin Pin 6
5 21017097 screw 8
6 10143763 Rubber plate 2
7 10470482 reversal pin 1
8 A210111000012 bolt M10×20GB5783 10.9 level 2
9 10176822 Homemade turnbuckle screw Q400C.25(a).4 1
10 10175081 pressure plate Q400C.25(a)-1 1
11 10180605 Locking pin Q400C.25(a).5 1
12 A210804000002 oil cup 2
13 10470483 Copper sleeve Q400C.25(a)-3 2
14 10470484 External positioning sleeve Q400C.25(a)-4 1
15 21012404 rolling bearing 1
16 10470485 retaining ring Q400C.25(a)-5 1
17 A210205000018 screw M5×12GB71 2
18 10175104 Pin 2
19 21011762 Pin Pin 2
20 A210111000089 bolt M8×20GB5783 26
21 A210405000007 gasket 8GB97.1 26
22 A210401000017 Washer 8GB93 26

23 10916191 Folded plate Q400C.25(a)-6 1
24 10886325 Folded plate 5
25 11074053 Folded plate Q400C.25(a)-7 1
