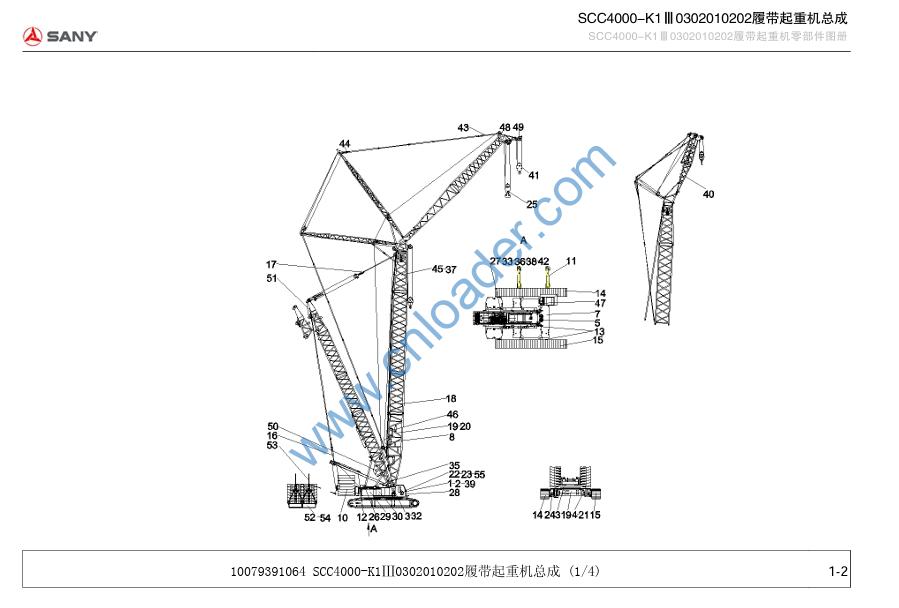

10079391064 SCC4000-K1Ⅲ0302010202履带起重机总成
1 10186816 Control assembly 1
2 10176824 Cab assembly 1
3 10713051 Air conditioning system Q400C.27(b) 1
4 21011765 Base assembly 1
5 10176179 Rotary mechanism 1
7 21024542 Aisle board 1
8 10136749 Main lifting mechanism 1
9 21014482 Central counterweight 2
10 21014483 Host rear counterweight 1
11 21013234 Side leg assembly 2
12 21012707 Main luffing mast 1
13 21017983 Centralized lubrication system 1
14 10110783 Left track frame assembly 1
15 10107403 Right track frame assembly 1
16 21031235 Main luffing force limiter assembly 1
17 21031237 Main arm force limiter assembly 1
19 10116935 Main boom lower section 1
18 21013545 6m main boom 2
20 10822073 Main arm electrical 1
21 10509157 Get off the electric Q400C.108(a) 1
22 10848223 Force limiter electrical 1
23 10351981 Cab electrical 1
24 10210554 Dismounted travel hydraulic system 1
25 21012710 400t hook 1
26 10136799 Main luffing mechanism 1
27 10181334Motorized equipment1
28 10998952Sign 1
29 10206317 Hydraulic oil tank Q400C.124(a) 1
30 10170957 Cover 1
31 10175206 Main platform 1
32 10256030 distribution cabinet cabinet 1
33 10219114 Auxiliary hydraulic system 1
35 10210294 Upper hydraulic system II 1
36 10224577 Anti-backward hydraulic system 1
37 10836132 Light main arm electrical 1
38 10221649 Servo control hydraulic system 1
39 10392476 Platform Electrical 1
40 10836118 Fixed jib electrical 1
41 10136798 Deputy lifting mechanism 1
42 10227790 Upper hydraulic system Ⅰ 1
43 21031238 Auxiliary luffing force limiter assembly 1
44 21031239 Jib force limiter assembly 1
45 21013575 Main boom upper section arm 1
46 10139316 Jib luffing mechanism 1
47 21017977 Auxiliary winch mechanism 1
48 10824043 Luffing jib electrical 1
49 10597727 Extended arm electrical 1
50 10139317 Super starting luffing mechanism 1
51 10399813 Super mast electrical 1
52 10398112 Super lifting counterweight electrical 1
53 10219086 Super lifting counterweight lifting hydraulic system 1
55 10486657 Closed circuit surveillance system 1
54 21025502 Super lifting counterweight 2
56 21013524 3m main boom 1
57 21013567 12m main boom (A) 1
58 21013706 12m main boom (B) 1
59 21013707 12m main boom (C) 1
60 21013654 Mixing arm transition section 1
61 21038079 Luffing jib basic arm 1
63 21012047 12m luffing jib 1
64 21012053 jib upper section 1
65 10228918 Light main boom upper section arm 1
66 10228992 Fixed jib assembly 1
67 10227862 12m light main boom I 1
68 10227864 12m light main boom II 1
69 10145209 Super lifting mast Q400C.52(a) 1
71 21013652 250t arm head 1
72 21013323 Extended arm 1
73 21013819 400t arm head 1
75 21014372 Central counterweight 1
76 21014413 Counterweight block 10t 1
77 21029307 5t counterweight 1
78 21013820 15t hook 1
79 21012708 35t hook 1
80 21012709 100t hook 1
