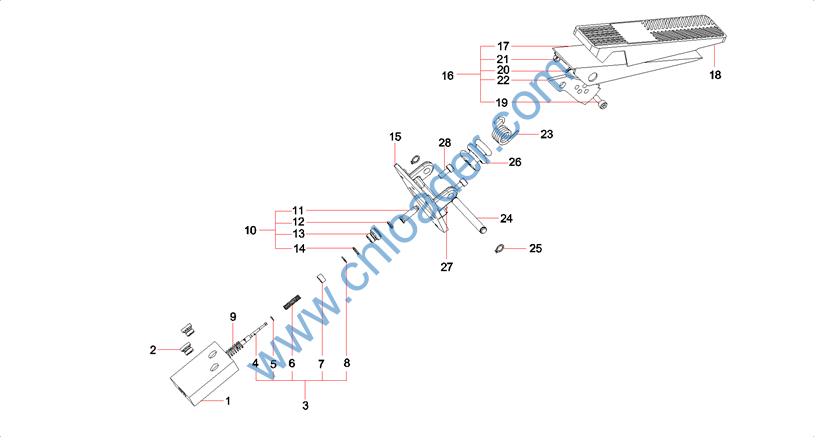

SY335C9I2KH hydraulic excavator SANY QFE



零件代码 PART NUMBER

名称 PART NAME

60209583

阀体

Body, valve

60209584

堵头

Plug

60209585

阀芯组件

Spool AS, valve

60209586

阀芯

Spool, valve

60082153

弹簧座

Seat, spring

60209587

弹簧

Spring

60082154

弹簧座

Seat, spring

60082140

挡环

Ring, retaining

60209588

弹簧

Spring

60209589

插销组件

Pin GP

60209590

推杆组件

Plunger GP

60209591

油封

Seal, oil

60209592

密封圈

Ring, seal

60038815

O形圈

O-ring

60209593

Plate

60209594

踏板组件

Pedal GP

60209595

踏板

Pedal

60209596

踏板面

Panel, pedal

A210204000220

螺钉M8×20GB70.1 10.9级

Screw

A210405000007

垫圈

Washer










零件代码 PART NUMBER

名称 PART NAME

A210307000055

螺母M8GB6170 10级

Nut

60209597

连接轴

Shaft, connecting

60209598

弹簧

Spring

60209599

定位销

Dowel

60209600

卡簧

Spring, snap

60209601

波纹套

Sheath, corrugated

A210207000001

螺钉

Screw

23002134

螺钉

Screw



零件代码 PART NUMBER

名称 PART NAME

12882471

三一标识

SANY Marking

60210572

节能高效英文版贴花

dacal

23000879

胶管

Rubber Hose

13353565

三一显示屏SECD-5I7K-

Sany Encourage Control Display

11742013

喇叭开关线束

Horn Switch Harness

12265746

液压挖掘机操作保养手册

SY285-305-335-365C9 Hydraulic

11826337

三一挖掘机保养及保修手册(英)    SANY excavotor maintenance and

60118712

随机附件箱

Accessories Box

60054415

螺纹屏蔽胶带

Threaded shield tape

A810502019122

油缸护套

Oil cylinder protective sleeve-

B240600000116

压力传感器

Pressure Sensor-

B240600000117

负流量压力传感器

Pressure sensor

11806747

轴套

Shaft Sleeve SY285C8I2K.3-2
