零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230101000047 |
O形圈 |
O-Ring-10.8 |
|
A230101000247 |
O形圈 |
O-ring 10.9×2.3(JISB2401) |
|
B230101000049 |
O形圈 |
O-ring |
|
A230101000243 |
O形圈 |
O-ring 16.7×3.5(JISB2401) |
|
A229900001581 |
O形圈 |
O-ring 21.7×3.5(JISB2401) |
|
B230101000356 |
O形圈 |
O-Ring-23.7 |
|
B230101000050 |
O形圈 |
O-ring |
|
A210609000136 |
O形圈 |
O-ring |
|
B230101000456 |
O形圈 |
O-ring |
|
B230101000445 |
O形圈 |
O-Ring-47.7×3.5JISB2401 |
|
A210608000108 |
O形圈 |
O-Ring-149.5 |
|
10442742 |
随机工具 |
Accompanying tools-SY360C.6.1 |
|
60201219 |
燃油精滤芯 |
Fuel Fine Filter Core |
|
60201220 |
燃油粗滤芯 |
Fuel Strainer Element |
|
B222100000494 |
机油滤清器 |
Oil filter |
|
A229900005005 |
钥匙扣 |
Key Ring A31 |
|
A230106000403 |
V带 |
Type A Triangular Belt |
|
59000039 |
产品合格证 |
Manufacturer Certificate |
|

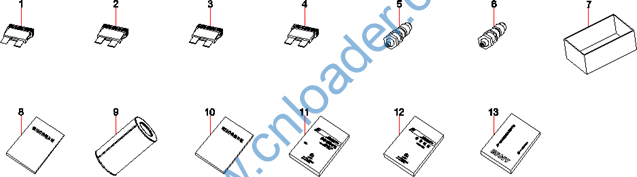

零件代码 PART NUMBER |
名称 PART NAME |
|
A241300000019 |
熔断器5-6.75A 国产 Chip fuse (Excavator) 5A |
|
A241300000018 |
熔断器 Chip fuse (Excavator) 20A |
|
A241300000017 |
熔断器 Chip fuse (Excavator) 15A |
|
A241300000016 |
熔断器 Fuse |
|
B229900000686 |
黄油嘴 Grease nipple |
|
B229900000379 |
黄油嘴 Zerk, grease |
|
变更或见其他配置 |
随机附件箱 Box, manuals |
|
变更或见其他配置 |
三一重机常用件价格目录 Manual, parts |
|
B222100000641 |
空气滤清器主滤芯 Main cartridge of air cleaner |
|
变更或见其他配置 |
服务第一品牌手册 |
|
变更或见其他配置 |
SY305~335C9液压挖掘机操作保养 SY305~SY335C9 Hydraulic |
|
12745158 |
SY335C9零部件图册 SY335C9 spare parts drawing |
|
变更或见其他配置 |
三一挖掘机保养及保修手册 Manual, operation and |
|

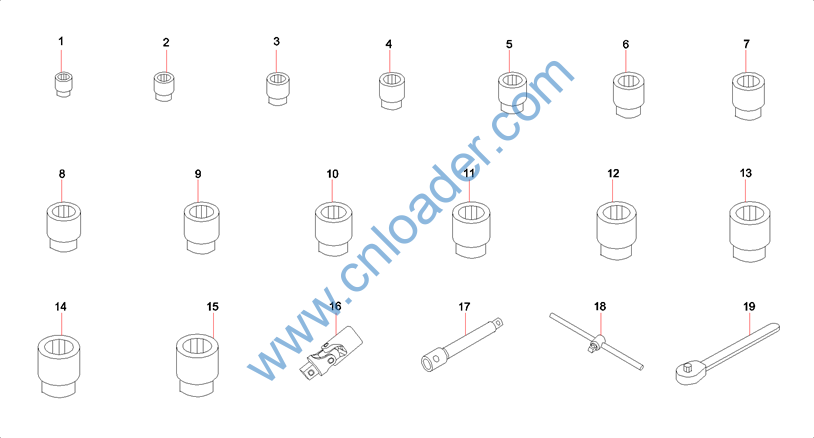

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A260401010023 |
套筒 |
Socket |
|
A260401010063 |
套筒 |
Socket |
|
A260401010024 |
套筒 |
Socket |
|
A260401010095 |
套筒 |
Socket |
|
A260401010025 |
套筒 |
Socket |
|
A260401010077 |
套筒 |
Socket |
|
60001295 |
套筒 |
Socket |
|
A260401010081 |
套筒 |
Socket |
|
A260401010027 |
套筒 |
Socket |
|
A260401010078 |
套筒 |
Socket |
|
A260401010051 |
套筒 |
Socket |
|
A260401010031 |
套筒 |
Socket |
|
A260401010037 |
套筒 |
Socket |
|
A260401010055 |
套筒 |
Socket |
|
A260401010057 |
套筒 |
Socket |
|
A229900007607 |
万向接头 |
Joint, universal |
|
A260401010065 |
接杆 |
Extension |
|
60001293 |
滑行头手柄 |
T-handle |
|
A260401090010 |
可逆式棘轮扳手 |
Wrench, rachet |
|

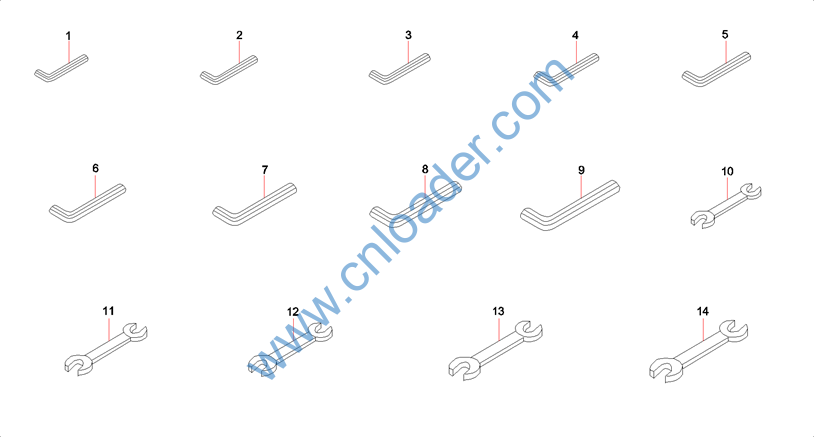

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A260401020014 |
内六角扳手 |
Wrench, allen |
|
A260401020015 |
内六角扳手 |
Wrench, allen |
|
A260401020008 |
内六角扳手 |
Wrench, allen |
|
A260401020009 |
内六角扳手 |
Wrench, allen |
|
A260401020010 |
内六角扳手 |
Wrench, allen |
|
A260401020011 |
内六角扳手 |
Wrench, Allen 8RGB5356 |
|
A260401020004 |
内六角扳手 |
Wrench, allen |
|
B260401020048 |
内六角扳手 |
Wrench, allen |
|
B260401020049 |
内六角扳手 |
Wrench, allen |
|
A260401030002 |
双头呆扳手 |
Wrench, open end |
|
A260401030001 |
双头呆扳手 |
Wrench, open end |
|
A260401030027 |
双头呆扳手 |
Wrench, open end |
|
A260401030005 |
双头呆扳手 |
Wrench, open end |
|
A260401030029 |
双头呆扳手 |
Wrench, open end |
|

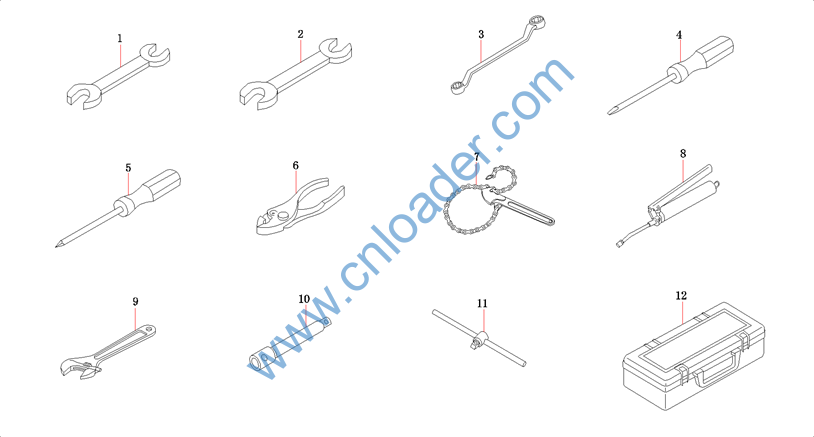

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A260401030007 |
双头呆扳手 |
Wrench, open end |
|
A260401030008 |
双头呆扳手 |
Wrench, open end |
|
A260401030100 |
双头梅花扳手 |
Wrench, box end |
|
A260402010022 |
一字槽螺钉旋具 |
Screw driver, slotted |
|
A260402020026 |
十字槽螺钉旋具 |
Screwdriver, recessed |
|
A260404000002 |
钢丝钳 |
Pliers |
|
60001296 |
链条扳手20节 |
Wrench, chain |
|
B260409000015 |
高压黄油枪 |
Grease-gun |
|
A260401040004 |
活扳手 |
Wrench, adjustable |
|
A260401010021 |
接杆 |
Extension, socket |
|
60001294 |
滑行头手柄 |
T-handle |
|
A290000000155 |
手提工具箱 |
Toolbox |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60153777 |
上盖 |
Cover, upper |
|
60153697 |
把手 |
Handle |
|
60153693 |
锁扣 |
Latch |
|
60153713 |
底座 |
Base |
|
60153827 |
托盘 |
Tray |
|
60153665 |
左架 |
Support, left |
|
60153654 |
右架 |
Support, right |
|

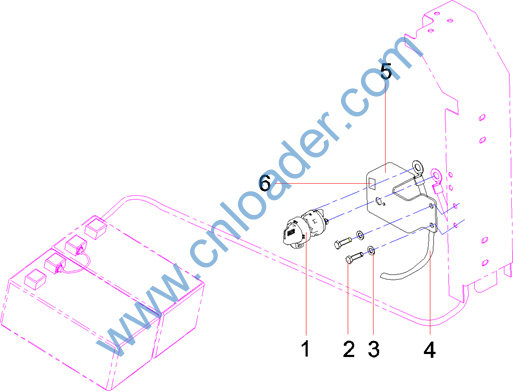

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60125384 |
旋钮开关 |
Master switch of power supply |
|
A210111000202 |
螺栓 |
Bolt |
|
60060548 |
垫圈12GB96.1 达克锈 |
Washer |
|
13654121 |
电源线 |
Power Supply Line |
|
13774935 |
电源开关支架 |
Bracket of power switch |
|
13336869 |
电源开关指示牌 |
Battery Disconnect Switch |
