SY335C9I2KH hydraulic excavator SANY SBE



零件代码 PART NUMBER

名称 PART NAME

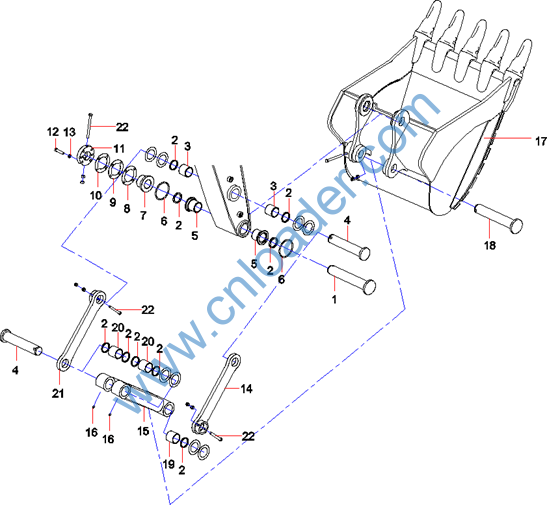

11945933

销轴

Lock pin

60055872

DLI防尘圈

O-ring

A820202003323

轴套

Bushing

A810303990032

销轴

PinSY300.3.10

13840151

斗杆前端轴套

Bushing SY305.3-2

A210608000108

O形圈

O-Ring-149.5

A820403000465

压紧套

Bush

11945936

调整垫片

Adjusting spacer

11945934

调整垫片

Adjusting spacer

11945935

调整垫片

Adjusting spacer

11904436

Plate

A210110000172

螺栓M20×70GB5782 10.9级

Bolt

24000515

垫圈20GB93 达克锈

Washer

11267311

左摇杆

Left jiggle bar

11789611

连杆

Connecting bar SY335C.3.6A

B229900000686

黄油嘴

Grease nipple

12002883

铲斗

Bucket

A810303990031

销轴

PinSY300.3.9

A820202003320

轴套

Bushing

A820202003321

轴套

Bushing












零件代码 PART NUMBER

名称 PART NAME

11267298

右摇杆    Right jiggle bar

A210110000352

螺栓 M20×180GB5782 10.9级    Bolt-M20×180








零件代码 PART NUMBER

名称 PART NAME

A210204000366

螺钉

Screw

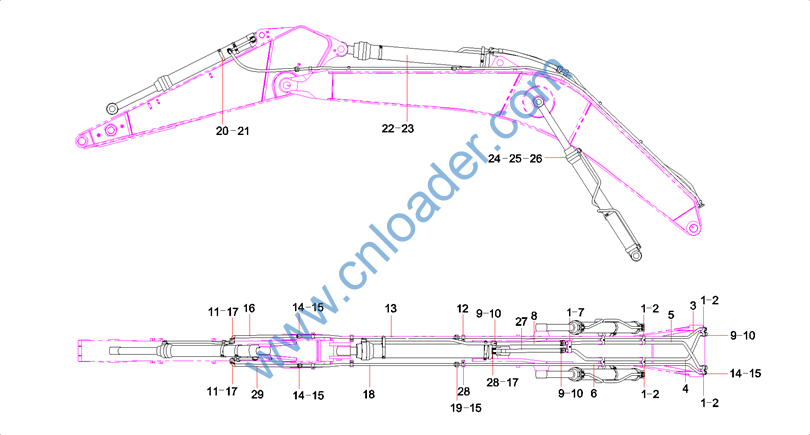

11881916

管夹

Clamp, tube

12175241

钢管总成

Steel Pipe

12709039

斗杆无杆腔钢管总成

Steel Pipe

12709037

斗杆有杆腔钢管总成

SY335C9I2K.3.1D.2A

12934846

钢管总成

Steel Pipe

11859784

管夹

Clamp, tube

11836087

胶管

hose

B210780000693

对开法兰

Flange, Split

A210204000353

螺钉M14×50GB70.1 10.9级

Screw

21027533

螺钉M12×55GB70.1 10.9级

Screw

11881917

管夹

Clamp, tube

12904729

钢管总成

Steel Pipe

B210780000244

对开法兰

Flange, Split

A210204000355

螺钉M10×40GB70.1 10.9级

Bolt, socket head

60171395

胶管

Rubber Hose

B210780000004

对开法兰

Flange, Split

12904578

钢管总成

Steel Pipe

B230101000456

O形圈

O-ring

60011434

铲斗油缸

Bucket Oil Cylinder








零件代码 PART NUMBER

名称 PART NAME

12182683

铲斗油缸管路

Bucket cylinder pipeline

12261944

斗杆油缸管路

Bucket rod cylinder pipeline

60011436

斗杆油缸

Arm cylinder

60011435

动臂油缸

Boom Cylinder

11219750

右动臂油缸管路

Right derrick oil cylinder pipeline

11219749

左动臂油缸管路

Left derrick oil cylinder pipeline

60159782

胶管

RubberHose

A210204000351

螺钉M12×50GB70.1 12.9级

Screw

60171396

胶管

Rubber Hose








零件代码 PART NUMBER

名称 PART NAME

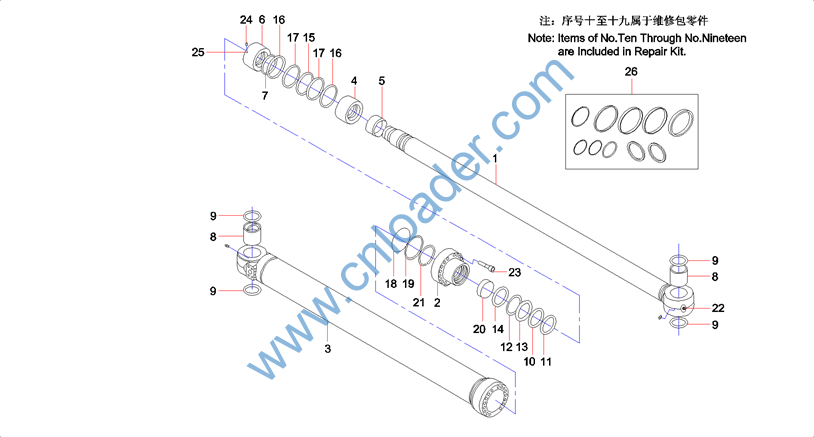

60193825

活塞杆

ROD – PISTON

60193826

端盖

Cover, end

60193827

缸体

Cylinder block

60193828

活塞

Piston

60065206

缓冲套

Sleeve, buffer

60154028

螺母

Nut

60174451

垫片

Gasket

60044359

轴套

Sleeve, shaft

60044361

防尘圈

Ring, dust

60065342

防尘圈

Ring, dust

60065242

挡圈

Ring, retaining

60154049

轴用密封圈

Seal Ring

60154022

开口挡圈

Retaining Ring

60065204

缓冲圈

Buffer ring

60174503

孔用密封圈

Ring, seal

60065218

纳污环

Ring, contaminant

60174497

成型导向环

Ring, guide

60174489

O形密封圈

Ring, seal

60065236

O形圈挡圈

Retainer Ring

60154009

滑动轴套

Sleeve, sliding








零件代码 PART NUMBER

名称 PART NAME

60153990

挡圈

Ring, retaining

60169622

油杯

Grease Cup

60022043

螺钉

60174438

凹端螺钉

Screw, socket head

21010039

钢球

Steel Ball

60140865

30T铲斗油缸维修包

Repair kit, cylinder, bucket








零件代码 PART NUMBER

名称 PART NAME

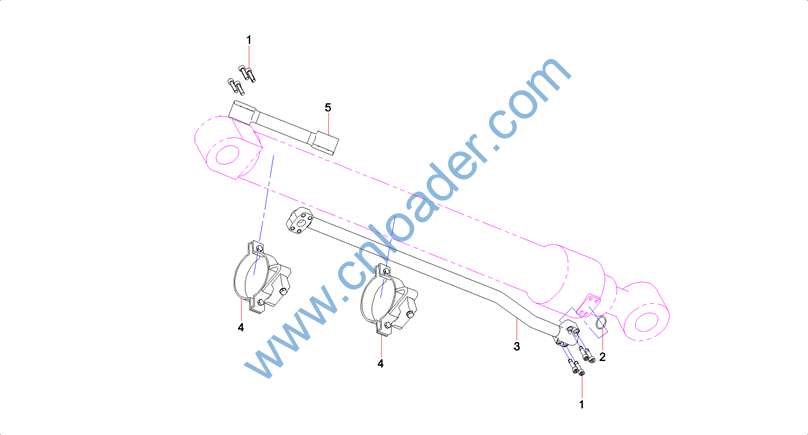

A210204000462

螺钉M12×45GB70.1 10.9级

Bolt

B230101000456

O形圈

O-ring

A810201022142

钢管总成

Steel Pipe Assy.

11162112

管卡组合

pipe clip combination

A810201022143

钢管总成

Steel Pipe Assy.








零件代码 PART NUMBER

名称 PART NAME

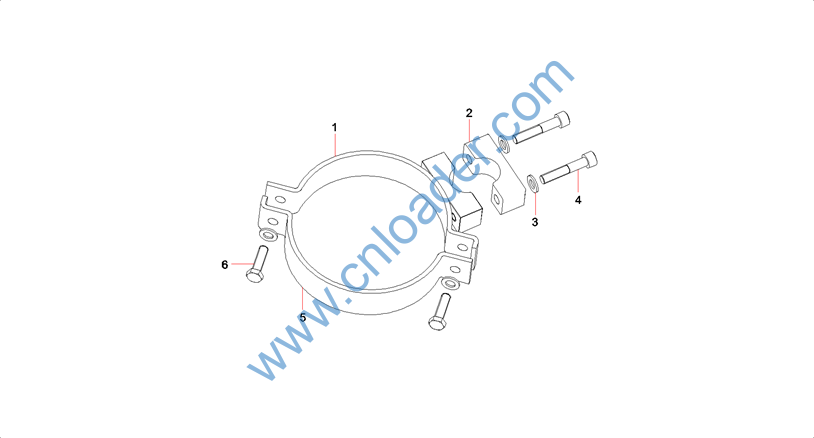

11162101

管卡焊接

Tube clamp weldment

A820403000560

管夹

Clamp

A210405000011

垫圈

Washer

A210204000011

螺钉

Screw

11160686

管卡

tube clamp

A210111000025

螺栓

Bolt
