零件代码 PART NUMBER |
名称 PART NAME |
|
|
60088076 |
履带螺栓 |
Track Bolt LS216M22C |
|
60110071 |
履带防松螺母 |
Track nut LM216M22B |
|
13914437 |
链轨总成 |
chain track assy. |
|
14080462 |
履带合件 |
Track Unit |
|
13156417 |
履带主销套 |
Master Bush |
|
60339105 |
履带主垫片 |
main spacer |
|
11402653 |
主销轴 |
Master pinSTC216MA-6045.1-2 |
|
11402655 |
销轴 |
pinSTC216MA-6045.1-4 |
|
60173184 |
LD密封圈 |
Seal Ring |
|
12917166 |
履带销套 |
Track Bush |
|
13912646 |
右链轨节 |
link chain-track right |
|
13912645 |
左链轨节 |
link chain-track left |
|
12407733 |
履带板 |
Track Shoe |
|

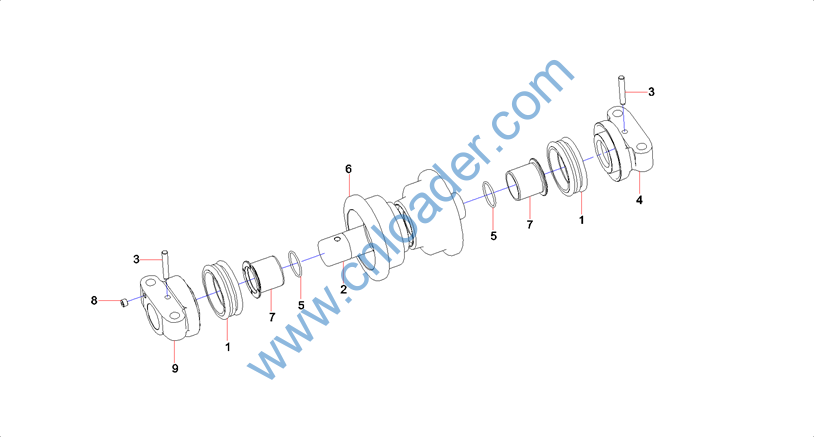

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60047793 |
支浮动油封 |
Seal, oil |
|
11358476 |
轴 |
Shaft |
|
60047787 |
支圆柱销 |
pin |
|
11358478 |
左轴端盖 |
left_coverSWZ216A-3 |
|
A210609000168 |
O形圈 |
O-ring |
|
11358482 |
支重轮轮体 |
Thrust wheel body |
|
60047784 |
支衬套 |
Sleeve |
|
60027515 |
闷头螺塞 |
Plug |
|
11358477 |
右轴端盖 |
Cover,shaft,right |
|

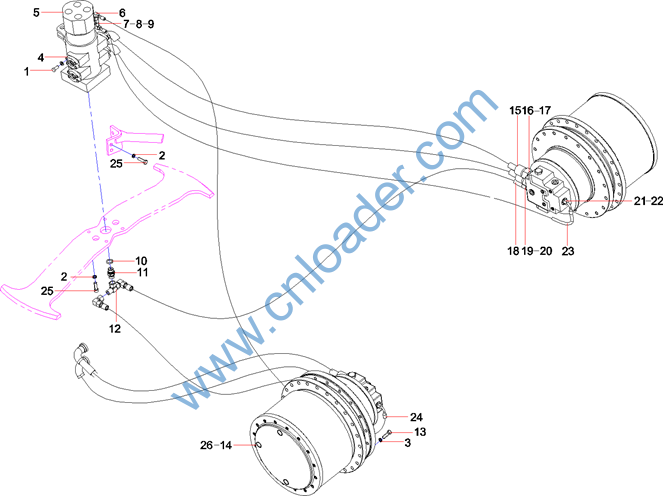

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000354 |
螺钉 M10×30GB70.1 10.9级 |
Bolt |
|
A210491000121 |
垫圈 |
Washer |
|
A210491000122 |
垫圈 |
Washer |
|
B210780000244 |
对开法兰 |
Flange, Split |
|
60243992 |
中央回转接头 |
Center Swivel Joint |
|
B210780000418 |
管接头 |
Fitting |
|
B210780000172 |
管接头 |
Fitting |
|
A820205000839 |
接头 |
Fitting |
|
A230101000247 |
O形圈 |
O-ring 10.9×2.3(JISB2401) |
|
A229900001581 |
O形圈 |
O-ring 21.7×3.5(JISB2401) |
|
A820205000842 |
M24-M22接头 |
Connector |
|
B210780000413 |
三通组合接头 |
Fitting, tee |
|
A210111000200 |
螺栓M24×70GB5783 10.9级 |
Bolt-M24×70GB5783 grade 10.9 |
|
12940338 |
减速机总成 |
reducer |
|
B230103002697 |
胶管 |
hose |
|
A820205001334 |
G1-M42接头 |
Connector |
|
B230101000050 |
O形圈 |
O-ring |
|
B230103000293 |
胶管 |
Hydraulic Hose Assembly |
|
A820205000843 |
接头 |
Fitting |
|
B230101000090 |
O形圈 |
B230101000090 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820205000844 |
接头 |
Fitting |
|
B230101000047 |
O形圈 |
O-Ring-10.8 |
|
B230103001563 |
胶管 |
Rubber hose |
|
B230103002658 |
胶管 |
Hose AS |
|
A210111000204 |
螺栓 |
Bolt |
|
60223357 |
液压马达 |
Plunger motor |
|

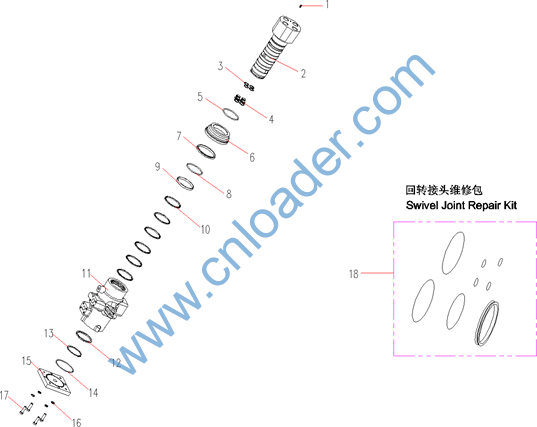

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60306072 |
锥堵 |
Conical plug |
|
60306073 |
回转轴 |
Rotary shaft |
|
60306074 |
O形圈 |
o-ring |
|
60306075 |
堵头 |
Plug |
|
60306076 |
O形圈 |
o-ring |
|
60306077 |
防尘套 |
Dust Cover |
|
60306078 |
防尘圈 |
Dust Ring |
|
60306079 |
O形圈 |
o-ring |
|
60306080 |
抗磨环 |
Wear-proof rong |
|
60306081 |
旋转密封圈 |
Rotary sealing ring |
|
60306082 |
回转体 |
Revolving body |
|
60306083 |
O形圈 |
o-ring |
|
60306084 |
挡板 |
Baffle |
|
60306085 |
轴用弹性挡圈 |
Flexible baffle ring for shaft |
|
60306086 |
端盖 |
End cover |
|
60306087 |
标准型弹簧垫圈 |
Spring washer |
|
60306088 |
六角头螺栓 |
Hexagon bolt |
|
60306104 |
回转接头维修包 |
Swivel Joint Repair Kit |
|

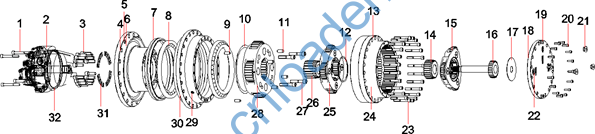

零件代码 PART NUMBER |
名称 PART NAME |
|
|
23000431 |
螺钉GB70.1 10.9级 |
Screw |
|
60223357 |
液压马达 |
Plunger motor |
|
60052088 |
螺钉 |
Screw |
|
12940208 |
固定座 |
bearing seat GT60T65B-1 |
|
12498088 |
快速铆钉 |
|
|
12295416 |
铭牌 |
Name plate |
|
60123853 |
浮动油封 |
Floating seal |
|
60194591 |
滚动轴承 |
Rolling bearing |
|
A210503000024 |
销 |
shaft |
|
11273944 |
调整垫 |
Adjusting Spacer |
|
24003542 |
销 |
shaft |
|
11273937 |
挡圈 |
GT60T65-5 |
|
11273936 |
内齿圈 |
Annulus |
|
11273941 |
太阳轮 |
Sun Gear Ⅱ GT60T65-9 |
|
11296731 |
行星架总成 |
set |
|
12940221 |
太阳轮 |
|
|
11273939 |
挡板 |
Plate, retaining |
|
60233672 |
O形圈 |
O ring |
|
11273938 |
端盖 |
end coverGT60T65-6 |
|
12457643 |
螺塞 |
Plug |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230101000356 |
O形圈 |
O-Ring-23.7 |
|
A210204000448 |
螺钉M14×100GB70.1 12.9级 |
Screw |
|
A210608000322 |
O形圈 |
O-ring |
|
11296732 |
行星架总成 |
Planetary |
|
11273942 |
太阳轮 |
Sun Gear |
|
60022043 |
螺钉 |
|
|
11296733 |
行星架总成 |
set GT60T65.3 |
|
60060216 |
螺塞 |
plug |
|
11273935 |
输出法兰 |
Housing |
|
11273945 |
垫块 |
Block, cushion |
|
60052139 |
O形圈 |
O-ring seal |
|

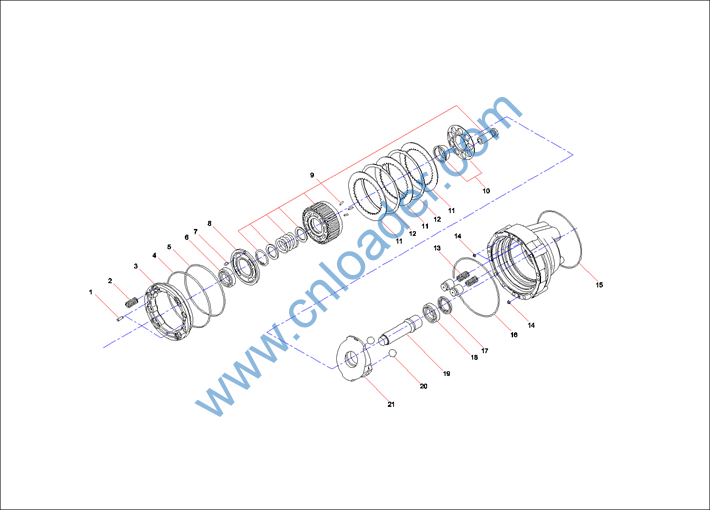

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008464 |
销 |
Pin |
|
60008465 |
弹簧 |
Spring |
|
60311006 |
刹车活塞 |
Brake |
|
60008475 |
密封环 |
Ring, sealing |
|
60008476 |
密封环 |
Ring, sealing |
|
60008642 |
球轴承 |
Bearing, ball |
|
60311003 |
销 |
Pin |
|
60311007 |
配油盘 |
Plate, port |
|
60311011 |
柱塞缸组件 |
block kit cylinder |
|
60311012 |
成套垫板 |
Plate retainer kit |
|
B229900003189 |
20T行走制动从动片 |
Plate |
|
B229900003190 |
20T行走制动主动片 |
Plate, seperator |
|
60008467 |
弹簧 |
Spring |
|
60202326 |
O形圈 |
O-ring |
|
60311008 |
O型圈 |
O-ring |
|
60311525 |
O型圈 |
O-ring |
|
60311005 |
密封圈 |
Seal, oil |
|
60008641 |
球轴承 |
Bearing, ball |
|
60008647 |
轴 |
SHAFT |
|
60008474 |
钢球 |
Ball, steel |
