SY335C9I2KH hydraulic excavator SANY BDH

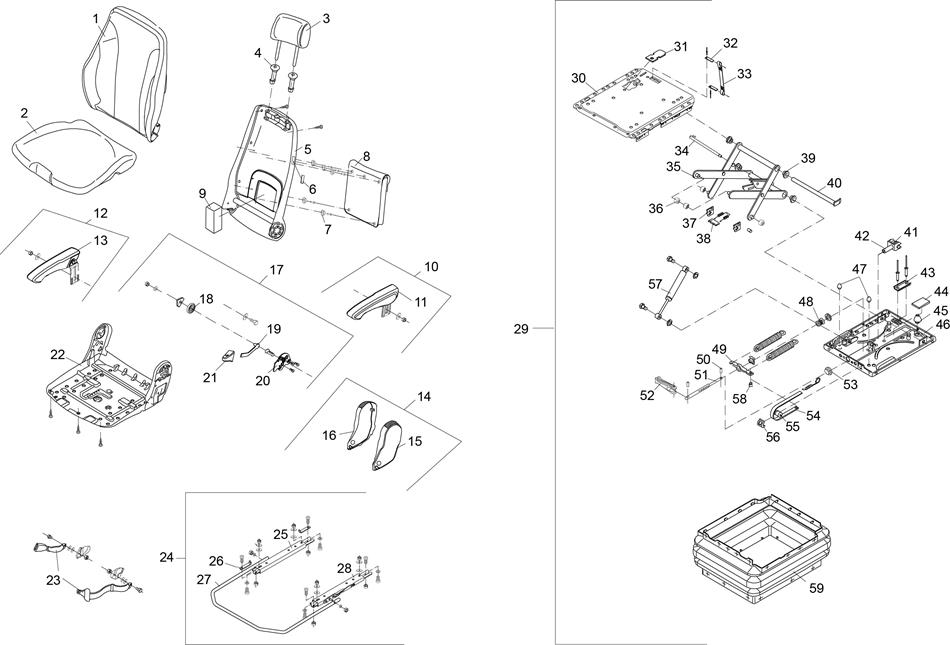

零件代码 PART NUMBER

名称 PART NAME

60153633

靠垫

Cushion, back

60153810

1 垫

Seat cushion local fabric gray

60153648

头枕

Headrest

60153704

衬套

Bushing

60153632

靠背

Backrest

60153625

黑色盖子

Cover, black

60153669

套环

Ring

60153650

文件袋

Bag, document

60153643

泡沫块

Foam

60153808

左扶手装置

Armrest-L kit

60153807

左扶手

Armrest (LH)

60153795

右扶手装置

Armrest-R kit

60153794

右扶手

Armrest (RH)

60153754

铰链封盖装置

Cover AS, hinge

60153664

左封盖

Cover LH

60153653

右封盖

Cover RH

60153756

靠背角度调节装置

Adjuster, backrest angle

60153711

弹簧支柱

Pillar, spring

60153831

左杠杆

Lever, left

60153626

活动板

Plate, movable










零件代码 PART NUMBER

名称 PART NAME

60153751

角度调节手柄

Handle, angle adjustment

60153812

座椅骨架

Framework, seat

60153695

安全带

Seat belt

60153746

滑轨装置

Rail AS

60153796

右滑轨

Slide rail RH.

60153752

角支座

Support, angle

60153651

限位弯杆

Bar, limit

60153809

左滑轨

Slide rail LH.

60153814

座椅悬挂总成

Suspension AS, seat

60153811

座垫固定板

Plate, seat-holding

60153656

整齐嵌板

Panel

60153646

嵌板

Panel

60153696

安全带短带

Belt, safety, short

60153701

插销

Pin

60153790

摇臂总成

Assembly, rocker

60153739

滚筒

Roll

60153733

隔板

Separator

60153647

条板

Strip

60153822

套筒

Sleeve

60153700

插销

Pin










零件代码 PART NUMBER

名称 PART NAME

60153802

轴承滚柱

Roller, bearing

60153657

支端

Support

60153617

U型固定槽

Profile, U-shaped

60153817

橡胶板

Plate, rubber

60153679

缓冲器

Bumper

60153813

座椅悬挂底板

Plate, bottom, suspension

60153691

阻尼减震器

Damper

60153801

轴承滚珠保持架

Race, ball,bearing

60153707

弹簧吊架

Hanger, spring

60153712

弹性圆柱销

Pin, cylindrical

60153699

插销

Pin

60153619

触发器

Trigger

60153703

衬套

Bushing

60153799

指示器

Indicator

60153740

滚柱

Roller

60153820

尺标

Scale

60153680

缓冲器

Damper

60153738

固定销

Pin, retainer

60153644

气囊箱

Bellow

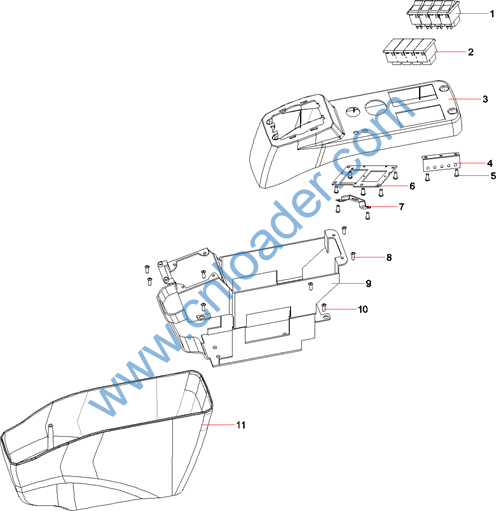

零件代码 PART NUMBER

名称 PART NAME

A241200000121

翘板开关(四联)

Switch, seesaw

60309919

四联框

4-section frame

60307220

右扶手箱上盖

Right armrest box upper cover

60309924

线束固定架

Bracket

A210210000006

螺钉

Bolt, socket head

60309925

油门旋钮支架

Bracket

60309915

点火开关支架

Bracket

A210210000017

螺钉

Bolt

60309927

右钢架

Bracket

A210210000008

螺钉

Screw

60309922

下壳体

Console, lower right

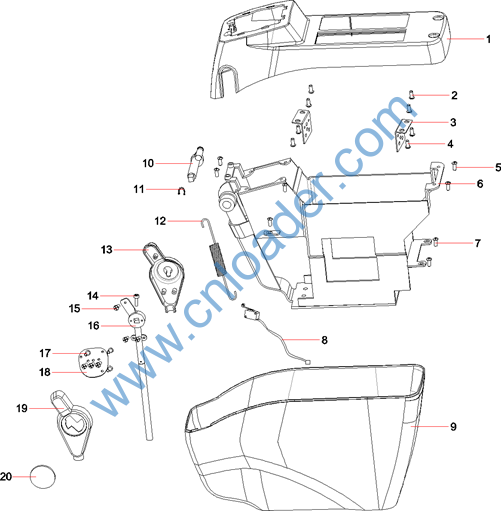

零件代码 PART NUMBER

名称 PART NAME

60307219

左扶手箱上盖

Cover, upper, left console

A210210000006

螺钉

Bolt, socket head

60309918

收音机支架

Bracket

A210210000002

螺钉

Screw

A210210000017

螺钉

Bolt

60309930

左钢架

Bracket

A210210000008

螺钉

Screw

60309921

微动开关

Microswitch

60309922

下壳体

Console, lower right

60309920

凸轮轴

Rod

60309917

卡簧

Clip

60309914

弹簧

Spring

60309929

左端盖

Base, lever

60062048

螺钉

Bracket

A210210000015

螺钉

Screw

60309923

先导杆

Rod, lever

A210210000009

螺钉

Bolt

60309916

端盖连接板

Plate, mounting

60309926

右端盖

Cover, lever

60309928

圆盖

Cap

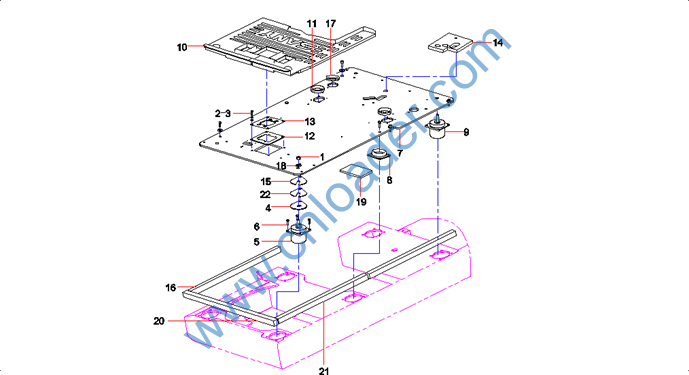

零件代码 PART NUMBER

名称 PART NAME

A210307000028

螺母

Nut

A210491000120

垫圈

washer

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt

11546613

垫板

Cushion board

B229900000244

司机室支承

Cab, mount

A210111000024

螺栓

Bolt

12324425

底板

Base PlateSY335C9I2K.1.5.6.1

12827984

橡胶垫

Pad, rubber

B229900000245

司机室支承

Cab, support

A820606030753

地板垫

Floor Cushion

A820606030056

护孔环

protecting ring

11937141

脚踏阀密封垫

Gasket

A810402050021

连接板

Plate

11935737

密封海绵

Foam, seal

11593942

垫片

Spacer

12385099

驾驶室底板海绵

Cab, seal

A820606030059

护孔环

protecting ring

A210491000118

垫圈

High-strength steel washer

A820699000215

背部海绵

Back sponge

12768939

驾驶室底板海绵

Cab, seal








零件代码 PART NUMBER

名称 PART NAME

12768943

驾驶室底板海绵    Cab, seal

11594064

垫片    Cab, shim

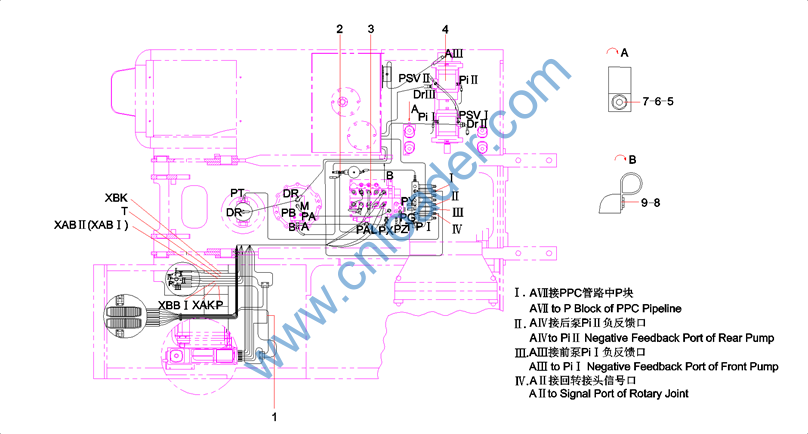

零件代码 PART NUMBER

名称 PART NAME

11772669

PPC管路

PPC pipeline SY335C9I2K.1.4.1

12757265

电磁阀管路

Electromagnetic valve pipeline

12757236

主阀管路

Main valve pipeline

12757217

主泵管路

Main pump pipeline

60086356

线束固定夹

Clamp

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt

变更或见其他配置

垫圈10GB97.1 达克锈

Washer

60086354

线束固定夹

Clamp

A210111000199

螺栓M12×20GB5783 10.9级

Bolt
