零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004288 |
管 |
Tube AS |
|
B210199000025 |
螺栓 |
Bolt |
|
B229900002619 |
垫圈 |
Shim |
|
B229900004289 |
管 |
Tube AS |
|
B229900004291 |
管 |
Tube AS |
|
B229900004709 |
管夹 |
pipe nip |
|
B229900004920 |
螺栓 |
Bolt 050540-6300 M6×30 flange |
|
B222100000655 |
滤清器座 |
Cover Fuel filter |
|
B222100000492 |
柴油滤清器 |
Diesel Fuel Cleaner |
|

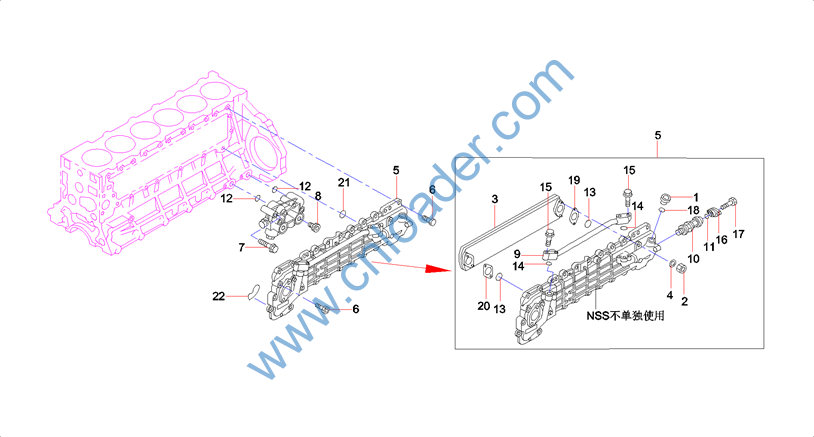

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004656 |
堵塞 |
Plug |
|
B229900004809 |
螺母 M10凸缘 |
Nut 113219-3240 M10 flange |
|
B220700000033 |
机油冷却器 |
Cooler, Oil |
|
B229900004621 |
垫圈 |
Washer |
|
B229900005125 |
机油冷却架总成 |
Cooler rack of engine oil assembly |
|
B229900004873 |
螺栓 M8×22 凸缘 |
Bolt |
|
B229900004892 |
螺栓 M10×90凸缘 |
Bolt 028151-0900 M10×90 flange |
|
B229900004660 |
堵塞 |
Plug |
|
B229900004296 |
管 |
Pipe |
|
B229900004474 |
自动调温器 |
Regulator, Temperature |
|
B229900004605 |
垫圈 |
Washer |
|
B229900004607 |
垫圈 |
Washer |
|
B229900004564 |
垫片 |
Shim |
|
B229900004527 |
垫片 |
Spacer |
|
B229900004853 |
螺栓 |
Bolt 028050-8300 M8×30 flange |
|
B229900004374 |
连接塞 |
Connecting plug |
|
B229900004850 |
螺栓 |
Bolt 028050-8160 M8×16 flange |
|
B229900004602 |
垫圈 |
Washer |
|
B229900004545 |
垫片 |
Spacer |
|
B229900004563 |
垫片 |
Spacer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
B229900004609 |
垫圈 Washer |
|
B229900004604 |
垫圈 Washer |
|

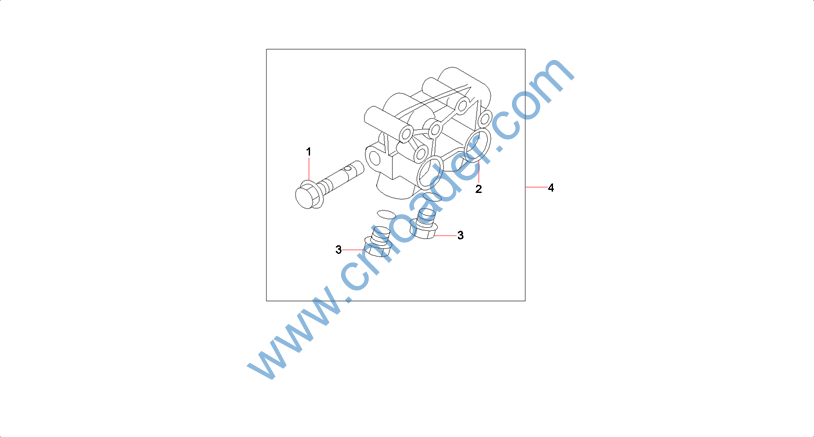

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900004737 |
铰接螺栓 |
Articulating Bolt |
|
B229900004331 |
机滤座 |
Machine filtration seat |
|
B229900003258 |
放油螺塞 |
Plug |
|
B229900004332 |
机滤座 |
Machine filtration seat |
|

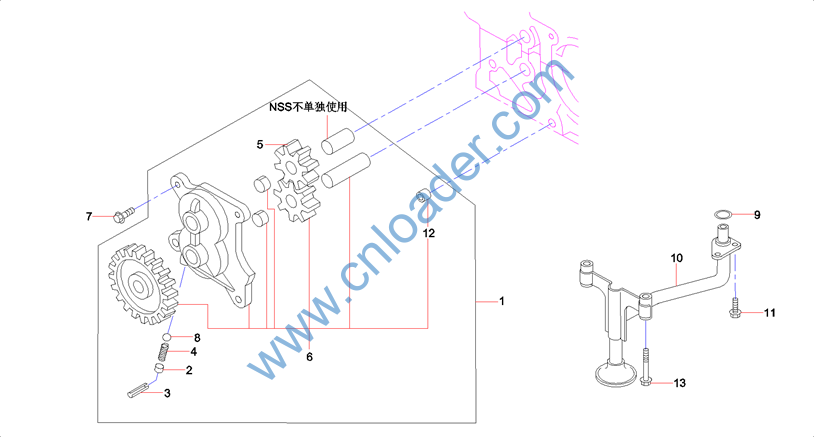

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220301000572 |
机油泵 |
Pump GP, Oil |
|
B229900004514 |
弹簧座 |
Spring Seat |
|
B229900005063 |
销 |
shaft |
|
B229900004504 |
弹簧 |
Spring |
|
B221801000034 |
齿轮 |
Gear |
|
B220301000573 |
机油泵齿轮 |
Engine oil pump gear |
|
B229900004852 |
螺栓 |
Bolt 028050-8250 M8×25 flange |
|
B229900004399 |
球 |
Ball Valve |
|
B229900004606 |
垫圈 |
Washer |
|
B229900004784 |
滤网架 |
Bracket, Strainer |
|
B229900004869 |
螺栓 M8×14凸缘 |
Bolt 028080-8140 M8×14 flange |
|
B229900004495 |
衬套 |
Sleeve |
|
B229900004895 |
螺栓 M10×150凸缘 |
Bolt 028156-0150 M10×150 |
|

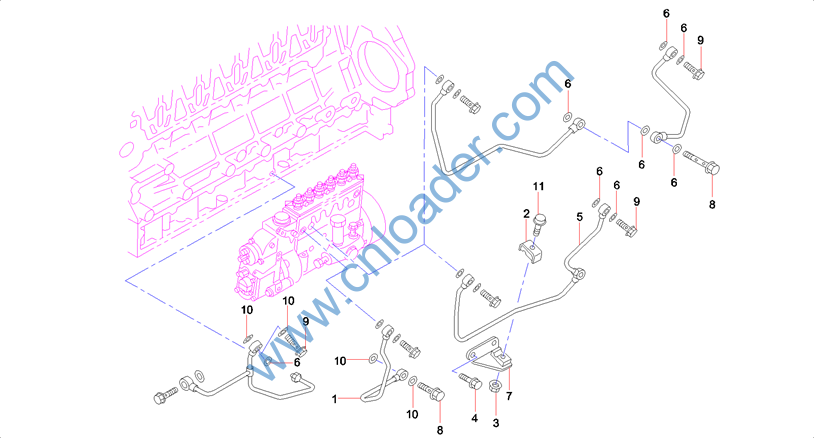

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005083 |
油管 |
Tube AS, Oil |
|
B229900004705 |
管夹 |
Clip |
|
B229900004803 |
螺母 M10凸缘 |
Nut 091180-2100 M10 flange |
|
B229900004850 |
螺栓 |
Bolt 028050-8160 M8×16 flange |
|
B229900005081 |
油管 |
Tube AS, Oil |
|
B229900004530 |
垫片 |
Shim |
|
B229900005087 |
油管架 |
Bracket |
|
B229900004936 |
螺栓 M12×27凸缘 |
Bolt 109675-0850 M12×27 flange |
|
B229900004933 |
螺栓 M10×21 凸缘 |
Bolt 109675-0770 M10×21 flange |
|
B229900004532 |
垫片 |
Shim |
|
B229900004866 |
螺栓 M6×22凸缘 |
Bolt |
|

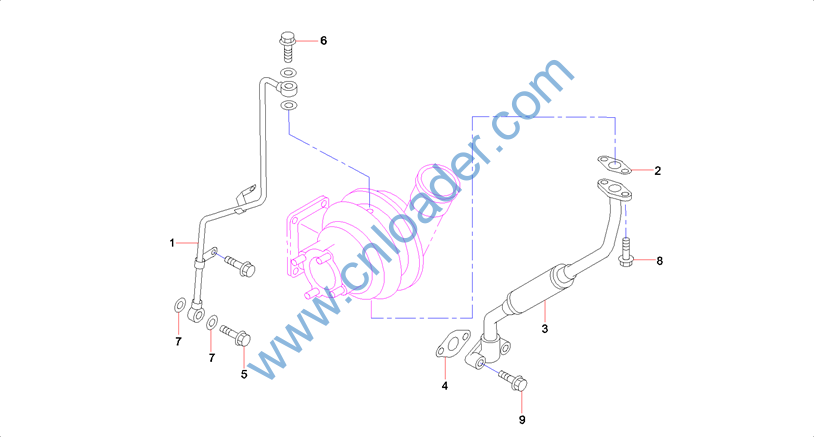

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B229900005082 |
油管 |
Tube AS, Oil |
|
B229900004559 |
垫片 |
Gasket |
|
B229900005080 |
油管 |
Tube AS, Oil |
|
B229900004562 |
垫片 |
Gasket |
|
B210199000025 |
螺栓 |
Bolt |
|
B229900004937 |
螺栓 |
Bolt |
|
B229900002619 |
垫圈 |
Shim |
|
B229900004897 |
螺栓 M8×25凸缘 |
Bolt 028650-8250 M8×25 flange |
|
B229900004855 |
螺栓 M8×40凸缘 |
Bolt |
|

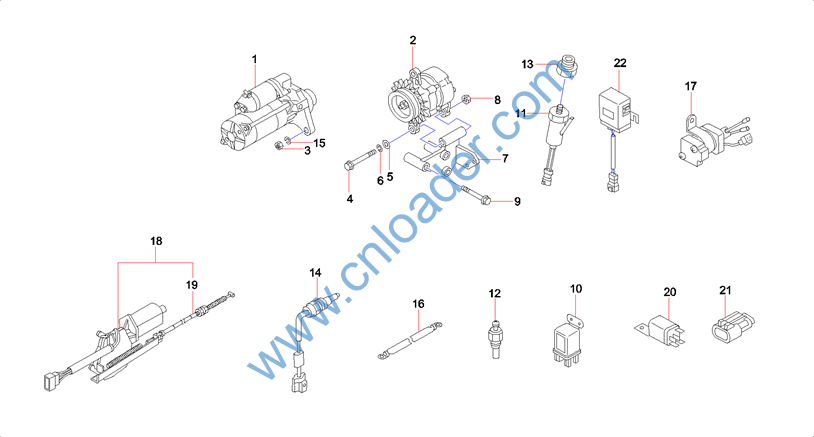

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B220501000293 |
起动马达 |
Starting Motor |
|
60136798 |
交流发电机 |
GENERATOR ASM |
|
B229900004794 |
螺母 |
Nut |
|
B229900004922 |
螺栓 |
Bolt |
|
B229900004582 |
垫圈 |
Washer |
|
B229900004581 |
垫圈 |
Washer |
|
B229900004685 |
发电机支架 |
Bracket, Alternator |
|
B229900004813 |
螺母 |
Nut |
|
B229900004891 |
螺栓 M10×80凸缘 |
Bolt 028151-0800 M10×80 flange |
|
B249900001038 |
预热继电器 |
Glow Relay |
|
B241200001057 |
关 |
Switch |
|
B240600000267 |
水温传感器 |
Coolant Temperature Sensor |
|
B240600000332 |
传感器 |
Sensor |
|
B241200001055 |
开关 |
Sensor, water temperature |
|
B229900004614 |
垫圈 |
Washer |
|
B241300000087 |
电缆 |
Cable |
|
B240700000382 |
安全继电器 |
Safety relay |
|
B229900002662 |
电机Z0.06-24-3带拉线 |
Stopper GP, electric |
|
B241300000086 |
电缆 |
Cable |
|
B249900001039 |
发动机停车续电器 |
Relay, Stopper (Engine) |
