SY335C9I2KH hydraulic excavator SANY SWG



零件代码 PART NUMBER

名称 PART NAME

60039406

制动活塞    Piston, braking

60039405

制动弹簧    Spring, retarding

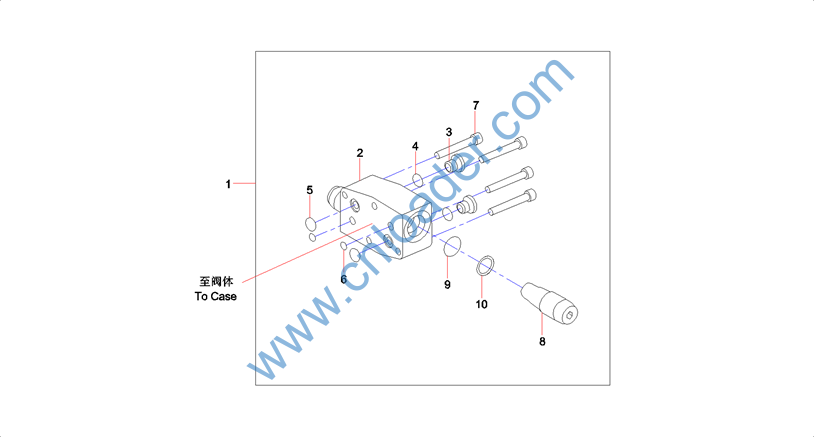

零件代码 PART NUMBER

名称 PART NAME

B220401000687

回转马达防摆阀

Valve, anti-rebound, swing motor

60008793

机体

Valve, body

60008711

Plug

60038711

O形圈

O-ring(seal)

60039420

O形圈

O-RING

60039424

O形圈

O-RING

60039369

内六角螺钉

Screw, socket head

60008753

防反转阀

Valve, anit-rebound

60038715

O形圈

O-ring(seal)

60039404

支承圈

Ring, supporting

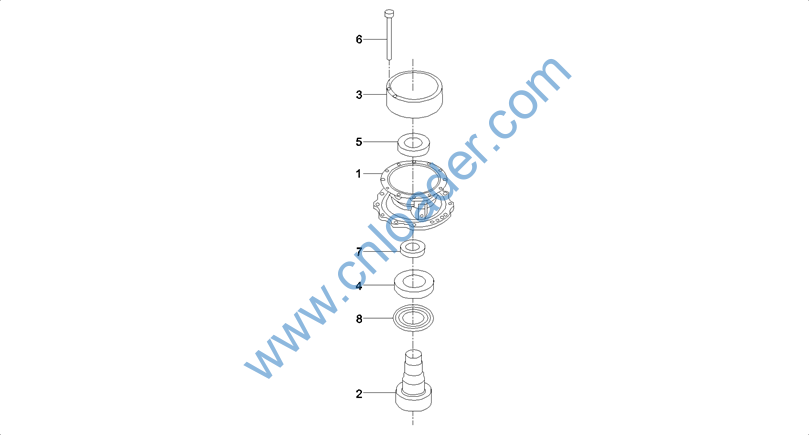

零件代码 PART NUMBER

名称 PART NAME

60110640

壳体

Housing

60110641

驱动轴

Shaft, drive

60081432

齿圈

Ring, gear

60039303

圆柱滚珠轴承

Bearing, ball, cylindrical

60039302

圆柱滚珠轴承

Bearing, ball, cylindrical

60081464

内六角螺钉

Bolt

60081495

油封

Seal, oil

60081496

轴承密封件

Seal, bearing








零件代码 PART NUMBER

名称 PART NAME

60081427

2号行星齿轮

Gear, planetary, No. 2

60081426

2号太阳齿轮

Gear, sun, No. 2

60081429

一级行星轮

Gear, planetary, first level

60081425

1号太阳齿轮

Gear, sun, No. 1

60081431

2号支架

Bracket, No. 2

60081469

一级行星架

Carrier B no.1

60081428

二级行星轮组件

Gear GP, planetary, secondary

60081470

一级行星轮轴

Shaft, planetary gear, first level

60081403

Gasket

60081430

2号行星齿轮垫片

Gasket, No. 2 planetary gear

60081404

Gasket

60081471

油尺

Gauge, oil

60081472

油尺外管

Tube, oil gauge

60008615

加油管

Tube, fill

B229900002437

呼吸管盖

Cap, breather

60081476

轴套

Sleeve, shaft

60064417

1号太阳齿轮卡环

Gear, sun

60081447

弹性挡圈

Ring, snap

60331158

一级行星架组件

Component

60331159

二级行星架组件

Component

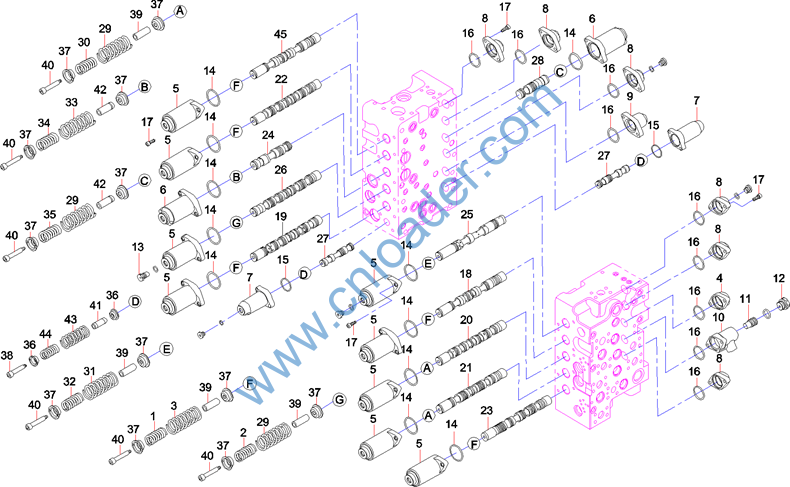

零件代码 PART NUMBER

名称 PART NAME

60150693

弹簧

Spring

60008770

弹簧

Spring

60081441

弹簧

Spring

60150678

Cover Spool

60100505

弹簧盖

Cap, pilot

60100506

弹簧盖

Cap, pilot

60100507

弹簧盖

Cap, pilot

60008789

Cap

60008790

Cap

60100469

Cap

60100509

活塞

Spool

60100468

Plug

60100466

Plug

60100514

O形圈

O-ring

60008821

O形圈

O-ring

60050051

O形圈

O-ring

60008721

内六角螺钉

Bolt, socket head

60150691

左行走阀芯

Sub-Ass’Y Travel Spool

60150682

斗杆阀芯

Sub-Ass’Y Arm1 Spool

60150680

动臂阀芯

Sub-Ass’Y Boom1 Spool












零件代码 PART NUMBER

名称 PART NAME

60221775

铲斗阀芯

Spool bucket

60150685

回转阀芯

Spool Swing

60150683

斗杆阀芯

Spool Arm2

60150681

动臂阀芯

Spool Boom2

60150689

直线行走阀芯

Sub-Ass’Y Straight Travel Spool

60100473

备用阀芯

Spool, valve, service valve

60150687

液压切断阀

Spool Bypass-Cut

60150686

回转优先阀

Spool Swing Priority

60008769

弹簧

Spring

60081442

弹簧

Spring

60100502

弹簧

Spring

60100503

弹簧

Spring

60008771

弹簧

Spring

60150692

弹簧

Spring

60039319

弹簧

Spring

60008825

Seat

60008823

Seat

60038528

螺栓

Bolt, socket head

60008818

挡圈

Ring, retaining

60008819

螺柱

Bolt, socket head








零件代码 PART NUMBER

名称 PART NAME

60100508

挡圈

Ring, retaining

60008801

挡圈

Ring, retaining

60150695

弹簧

Spring

60150694

弹簧

Spring

60150688

右行走阀芯

Spool Travel

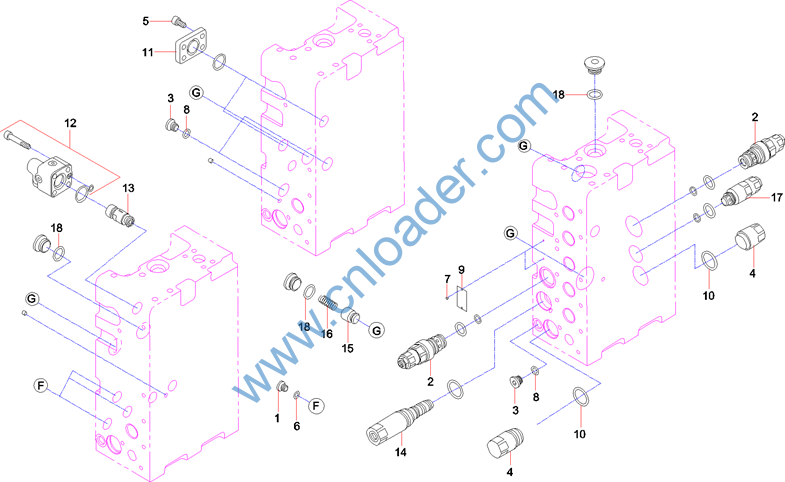

零件代码 PART NUMBER

名称 PART NAME

60008711

Plug

60100489

节流阀

Valve, throttle

60008713

Plug

60100465

Plug

60008717

螺栓

Bolt, socket head

60008697

O形圈

O-ring

60008722

铆钉

Rivet

60008700

O形圈

O-ring

60100511

铭牌

Nameplate

60100516

O形圈

O-ring

60008781

法兰

Cap, flanged

60100494

逻辑阀

Bolt, socket head

60221776

逻辑阀

Assy logic poppet

60100484

斗杆再生阀

Valve, arm regeneration

60008783

单向阀

Valve, check

60008817

弹簧

Spring

60100491

节流阀

Valve, throttle

60008705

O形圈

O-ring
