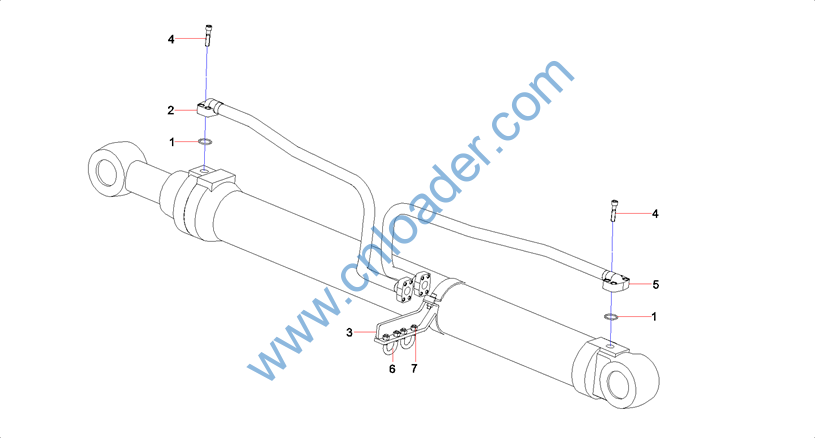

零件代码 PART NUMBER |
名称 PART NAME |
|
|
12709045 |
斗杆油缸有杆腔钢管总成 |
Steel Pipe Assy. |
|
A210204000462 |
螺钉M12×45GB70.1 10.9级 |
Bolt |
|
B230101000456 |
O形圈 |
O-ring |
|
12204196 |
管夹总成 |
tube clamp assembly |
|
12203289 |
管夹总成 |
tube clamp assembly |
|

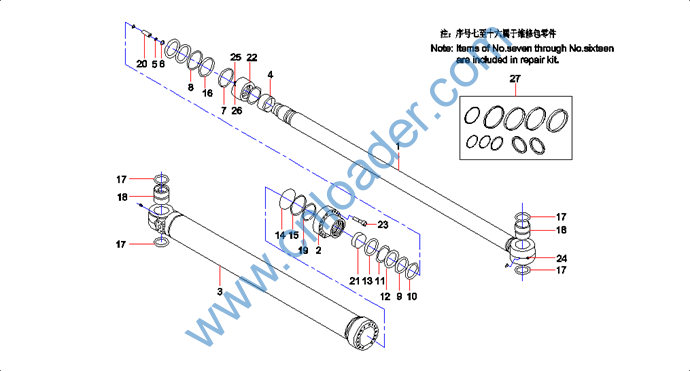

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60193814 |
活塞杆 |
ROD – PISTON |
|
60193815 |
端盖 |
Cover, end |
|
60193816 |
缸体 |
Cylinder block |
|
60193817 |
缓冲套 |
Sleeve, buffer |
|
60065195 |
后缓冲套 |
Sleeve, buffer, rear |
|
60153983 |
卡圈 |
Ring, retainer |
|
60153986 |
纳污环 |
Ring, contaminant |
|
60087462 |
SPGW密封圈 |
Ring, seal |
|
60193818 |
DKBI防尘圈 |
Ring, dust |
|
60193819 |
防尘圈用挡圈 |
Ring, dust |
|
60097634 |
IUH密封圈 |
Ring, seal |
|
60193820 |
开口挡圈 |
Ring, retainer, switch |
|
60097633 |
HBY密封圈 |
HBY seal ring |
|
60193822 |
O形密封圈 |
Ring, seal |
|
60153989 |
O形圈挡圈 |
Ring, retaining |
|
60154039 |
成型导向环 |
Ring, guide |
|
60046231 |
防尘圈 |
Ring, dust |
|
60046228 |
B型轴套 |
Sleeve, shaft |
|
60193821 |
挡圈 |
Ring, retaining |
|
60174501 |
缓冲环 |
Ring, buffer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60193823 |
滑动轴套 |
Sleeve, sliding |
|
60193824 |
活塞 |
Piston |
|
A210204000267 |
螺钉M20×100GB70.1 12.9级 |
Screw M20×100 |
|
60169622 |
油杯 |
Grease Cup |
|
21010039 |
钢球 |
Steel Ball |
|
60154027 |
螺钉 |
Screw |
|
60217494 |
斗杆油缸K维修包 |
Arm maintenance package |
|

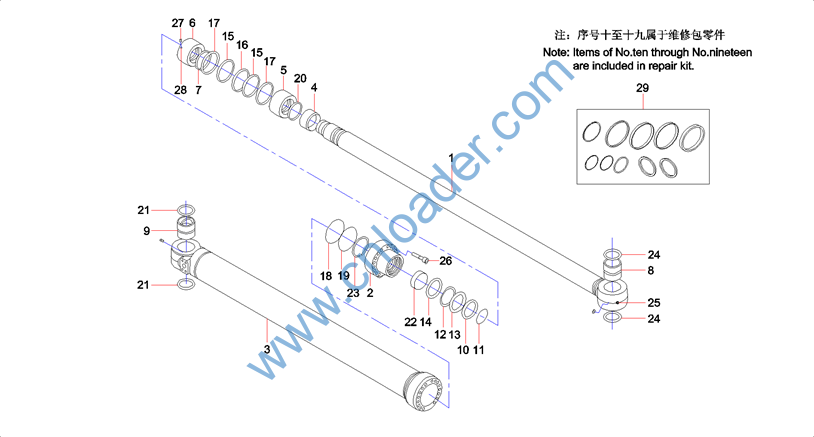

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60193829 |
活塞杆 |
Rod, piston |
|
60193830 |
端盖 |
Cover, end |
|
60193831 |
缸体 |
Cylinder block |
|
60193832 |
活塞 |
Piston |
|
60065206 |
缓冲套 |
Sleeve, buffer |
|
60154028 |
螺母 |
Nut |
|
60174451 |
垫片 |
Gasket |
|
60044357 |
B型轴套 |
Sleeve, shaft |
|
60044359 |
轴套 |
Sleeve, shaft |
|
60065342 |
防尘圈 |
Ring, dust |
|
60065242 |
挡圈 |
Ring, retaining |
|
60154049 |
轴用密封圈 |
Seal Ring |
|
60154022 |
开口挡圈 |
Retaining Ring |
|
60065204 |
缓冲圈 |
Buffer ring |
|
60174498 |
成型导向环 |
Ring, guide |
|
60174503 |
孔用密封圈 |
Ring, seal |
|
60065218 |
纳污环 |
Ring, contaminant |
|
60174489 |
O形密封圈 |
Ring, seal |
|
60065236 |
O形圈挡圈 |
Retainer Ring |
|
60065346 |
缓冲环 |
Ring, buffer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60044361 |
防尘圈 |
Ring, dust |
|
60154009 |
滑动轴套 |
Sleeve, sliding |
|
60153990 |
挡圈 |
Ring, retaining |
|
60044360 |
防尘圈 |
Ring, dust |
|
60169622 |
油杯 |
Grease Cup |
|
60022043 |
螺钉 |
|
|
60174438 |
凹端螺钉 |
Screw, socket head |
|
21010039 |
钢球 |
Steel Ball |
|
60140866 |
30T动臂油缸维修包 |
Repair kit, cylinder, boom |
|

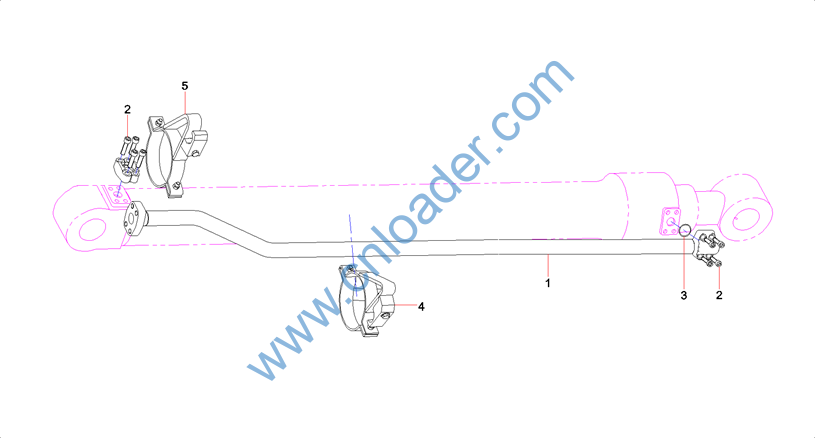

零件代码 PART NUMBER |
名称 PART NAME |
|
|
B230101000456 |
O形圈 |
O-ring |
|
12809824 |
右小腔钢管总成 |
Right locular steel tube assembly |
|
A810312990198 |
管卡组合 |
pipe clip combination |
|
A210204000462 |
螺钉M12×45GB70.1 10.9级 |
Bolt |
|
12809826 |
右大腔钢管总成 |
Right large-lumen steel |
|
A820301013877 |
U型螺栓 |
U type bolt |
|
A210307000031 |
螺母M12GB6170 10级 |
Nut M12 |
|

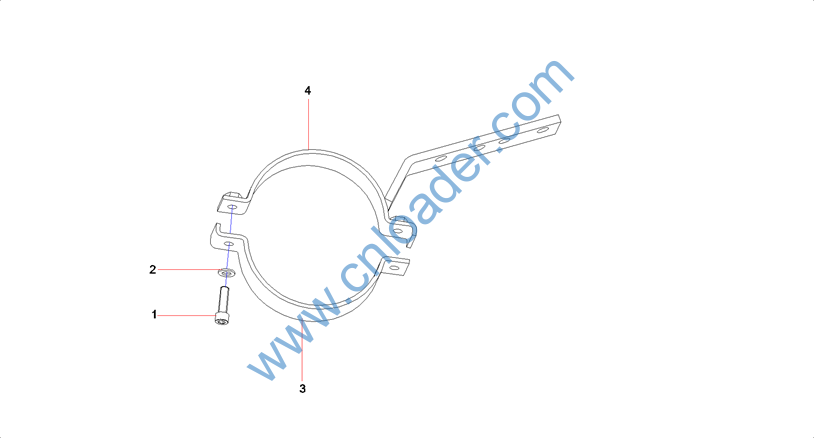

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210204000355 |
螺钉M10×40GB70.1 10.9级 |
Bolt, socket head |
|
A210405000011 |
垫圈 |
Washer |
|
A820101311191 |
管卡 |
Clamp, pipe |
|
A810312990199 |
管卡焊接 |
Tube clamp weldment |
