零件代码 PART NUMBER |
名称 PART NAME |
|
60311018 |
斜盘 plate swash |
|

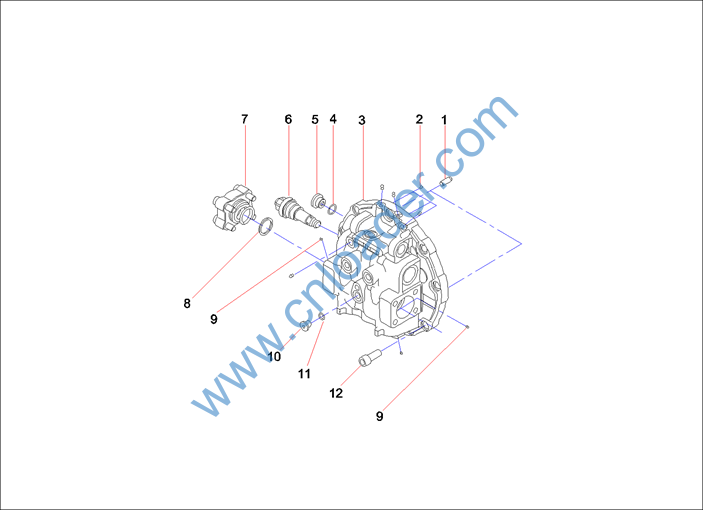

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60008464 |
销 |
Pin |
|
60311017 |
节流口 |
Orifice |
|
60311010 |
固定板套装 |
plate kit base |
|
60081488 |
O形圈 |
O-ring |
|
60008472 |
堵头 |
Plug |
|
60311016 |
溢流阀组件 |
Valve relief assy |
|
60311013 |
成套盖子 |
case kit |
|
60008486 |
弹簧座 |
Seat, spring |
|
60008488 |
节流口 |
Orifice |
|
60008460 |
堵头 |
O-ring |
|
60081486 |
O形圈 |
Plug |
|
60311004 |
齿圈螺栓 |
Bolt |
|

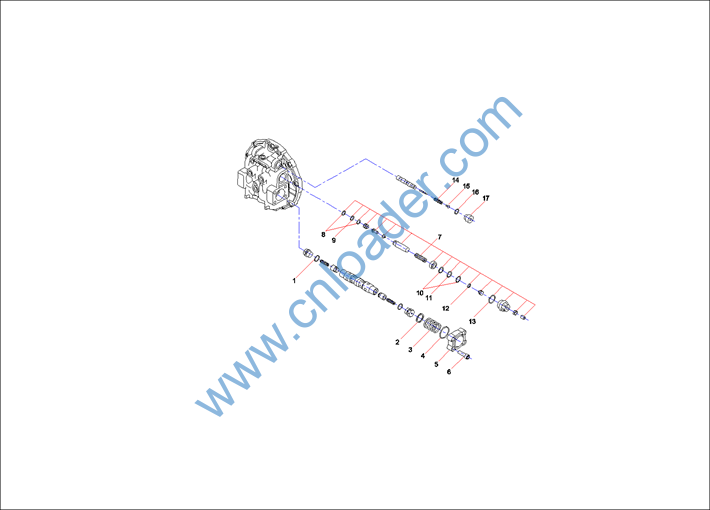

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60081489 |
O形圈 |
O-ring |
|
60008486 |
弹簧座 |
Seat, spring |
|
60311014 |
弹簧 |
Spring |
|
60081490 |
O形圈 |
O-ring |
|
60311015 |
盖板 |
Cap |
|
60081458 |
螺钉 |
Bolt |
|
60311016 |
溢流阀组件 |
Valve relief assy |
|
60065007 |
备用挡圈 |
Ring, retaining |
|
60081487 |
O形圈 |
O-ring |
|
60065008 |
备用挡圈 |
Ring, retaining |
|
60081489 |
O形圈 |
O-ring |
|
60310785 |
O型圈 |
O-ring |
|
60081484 |
O形圈 |
O-ring |
|
60008628 |
弹簧 |
Spring |
|
60008648 |
弹簧倒向环 |
Guide, spring |
|
60081488 |
O形圈 |
O-ring |
|
60008461 |
堵头 |
Plug |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

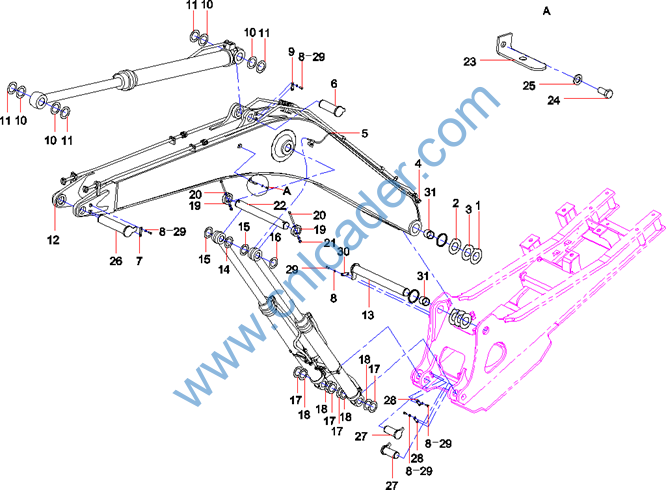

11166679 |
树脂垫片 |
Resin spacer |
|
11078548 |
树脂垫片 |
Resin spacer |
|
11561637 |
树脂垫片 |
Resin Spacer |
|
12174692 |
工作装置管路 |
Work device tube |
|
12127622 |
润滑管路 |
Work device Lubrication Pineline |
|
A810303990037 |
销轴 |
PinSY300.3.15 |
|
A820101211702 |
压板 |
ClampSY300.3-3 |
|
24000642 |
垫圈16GB97.1 达克锈 |
Washer |
|
A820101211710 |
压板 |
Clamp |
|
A820102010744 |
垫片 |
Spacer |
|
A820102010760 |
垫片 |
Spacer |
|
12672624 |
动臂 |
Boom SY335C9I2K.3.2H |
|
A810303990036 |
销轴 |
PinSY300.3.14 |
|
11078567 |
树脂垫片 |
Resin spacer |
|
11169586 |
树脂垫片 |
Resin spacer |
|
11166681 |
树脂垫片 |
Resin spacer |
|
11041901 |
树脂垫片 |
Gasket |
|
11112327 |
树脂垫片 |
Gasket |
|
A820101211704 |
挡片 |
PlateSY300.3-7 |
|
A210110000347 |
螺栓M20×200GB5782 10.9级 |
Bolt-M20 |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210307000029 |
螺母 |
Nut |
|
A820301020537 |
销轴 |
Pin |
|
A820101322531 |
灯架 |
Bracket, lamp |
|
A210111000263 |
螺栓 |
Bolt |
|
24000514 |
垫圈16GB93 达克锈 |
Washer |
|
12740454 |
销轴 |
PinSY335.3.8 |
|
A810303990034 |
销轴 |
PinSY300.3.12 |
|
11274145 |
压板 |
Clamp |
|
A210111000212 |
螺栓M16×35GB5783 10.9级 |
bolt |
|
11274177 |
压板 |
Board |
|
11306936 |
轴套 |
Shaft Sleeve SY300.3-14B |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|

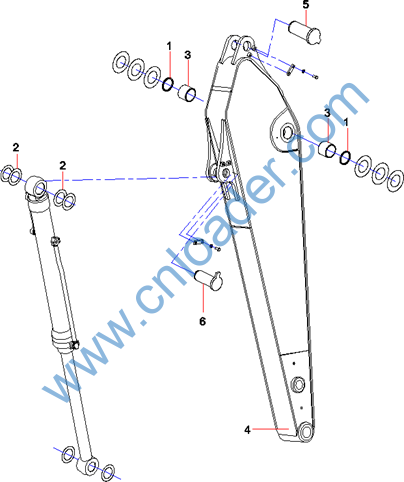

B230101000534 |
ME-2防尘圈 |
Dust Ring |
|
A820102010387 |
垫片 |
Gasket |
|
变更或见其他配置 |
动臂前叉轴套 |
Bushing |
|
12689367 |
斗杆 |
Arm SY335H.3.3 |
|
A810303990035 |
销轴 |
PIN |
|
A810303990033 |
销轴 |
PinSY300.3.11 |
