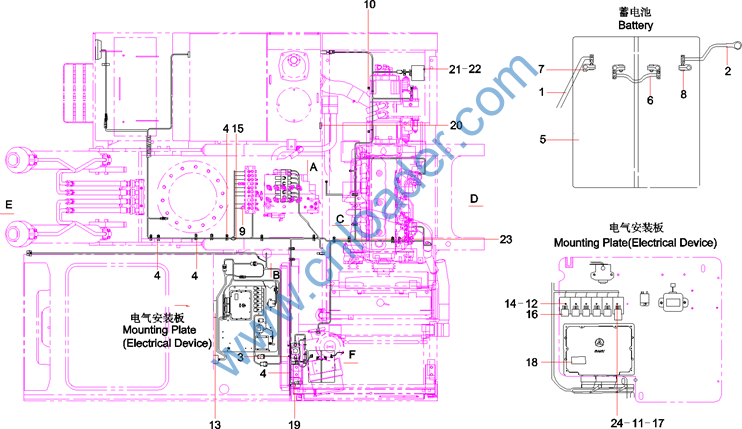

零件代码 PART NUMBER |
名称 PART NAME |
|
60203569 |
电源线 Power Supply Line |
|
60203568 |
电源线 Power Supply Line |
|
变更或见其他配置 |
螺栓 Bolt |
|
60260292 |
尼龙扎带20×179 带φ12.5固定孔 Strap, nylon |
|
60071633 |
蓄电池 Storage Battery |
|
60012792 |
电源线 Power Supply Harness |
|
60013322 |
A型蓄电池正极接头总成 Terminal GP, battery, positive |
|
60013321 |
A型蓄电池负极接头总成 Terminal GP, battery, negative |
|
变更或见其他配置 |
压力传感器 Sensor, pressure |
|
变更或见其他配置 |
压力传感器 Sensor, pressure |
|
变更或见其他配置 |
垫圈5GB96.1 达克锈 Washer |
|
A210210000030 |
螺钉 Bolt, socket head |
|
60236122 |
步进电机驱动器 Step motor driver |
|
60060562 |
垫圈4GB97.1 达克锈 Washer |
|
11779657 |
胶套 Grommet |
|
60245361 |
中间继电器 Relay |
|
24000509 |
垫圈5GB93 达克锈 Washer |
|
13178574 |
三一可组态液压控制器 Sany Encourage Hydraulic Control |
|
变更或见其他配置 |
垫圈8GB96.1 达克锈 Washer |
|
60060301 |
温度传感器 Sensor, hydraulic oil temperature |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
60041901 |
DK金属固定夹 |
metal mounting bracket |
|
A210111000195 |
螺栓 |
Bolt |
|
60083322 |
线夹 |
Clamp |
|
A210210000003 |
螺钉 |
Screw |
|

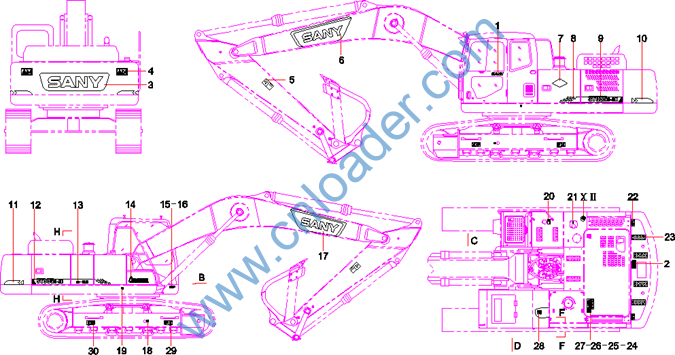

零件代码 PART NUMBER |
名称 PART NAME |
|
|
12842974 |
三一标贴 |
Decal, cab power |
|
12728493 |
严禁脚踏排气提示 |
Decal, exhaust |
|
12722067 |
配重贴花 |
Decal, counterweight, Sany |
|
A820699001016 |
配重警示牌 |
Counterweight warning board |
|
A820601990963 |
斗杆警示牌 |
Decal, warning, arm |
|
12722073 |
动臂左侧贴花 |
boom left marking |
|
变更或见其他配置 |
左节能高效 |
decal |
|
12780268 |
机身左贴花 |
Machine Model Marking |
|
12780272 |
机器型号贴花 |
Machine Model Marking |
|
12727594 |
配重反光膜 |
Counterweight reflective coating |
|
12727593 |
配重反光膜 |
Counterweight reflective coating |
|
12780269 |
机身右贴花 |
Machine Model Marking |
|
变更或见其他配置 |
三一重机贴花 |
SANY company brand Marking |
|
变更或见其他配置 |
服务热线 |
Decal, service hotline |
|
10251978 |
铭牌 |
Plate, machine ID |
|
A210510000007 |
铆钉 |
Rivet |
|
12722074 |
动臂右侧贴花 |
boom right marking |
|
A820601990968 |
张紧装置警示牌 |
Decal, warning, tensioner |
|
12033801 |
重心标牌 |
Decal, center of gravity |
|
A820601991039 |
燃油箱标识牌 |
Logo plate of fuel tank |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
14204839 |
液压油箱指示牌 |
Decal, hydraulic tank |
|
A820601990926 |
防跌落警示牌 |
Decal, warning, fall |
|
A820699000369 |
长防滑贴 |
Tape, anti-skid, long |
|
A820601990973 |
机顶罩警示牌 |
Decal, warning, engine hood |
|
A820699001017 |
皮带安全警示牌 |
Decal, warning, belt safety |
|
A820101050793 |
风扇打手警示牌 |
Fan Tough Caution Board |
|
A820699000948 |
防喷溅警示牌 |
Decal, warning, operator manual |
|
11323371 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
|
A820101990552 |
吊钩点标示图 |
Mark diagram of hook point |
|
A820601990934 |
装运固定点标志 |
Decal, tie-down, shipping |
|

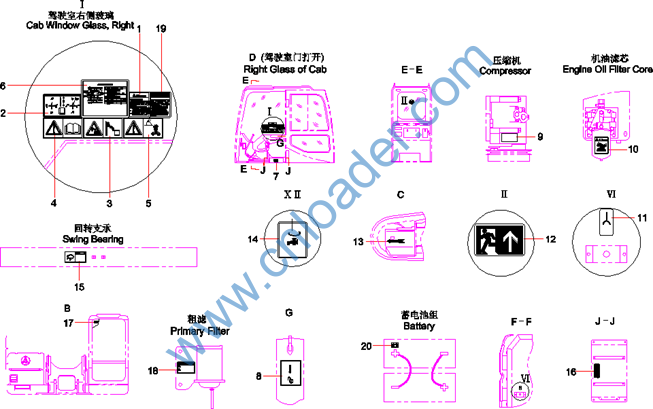

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11648786 |
启动发动机前注意事项标识牌 |
Decal, warning, pre-start |
|
A820601990961 |
操纵标示图 |
Decal, instruction, operation |
|
11464432 |
高压回避警示牌 |
Decal, warning, high voltage |
|
11464425 |
查阅说明书警示牌 |
Decal, warning, “read manual” |
|
11464441 |
钥匙断电警示牌 |
Decal, warning, power-off |
|
13536535 |
润滑图表 |
Decal, grease point |
|
A820601990967 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
|
A820601990927 |
开锁标识牌 |
Decal, unlock |
|
A820699001284 |
冷媒更换说明 |
Decal, instruction, refrigerant |
|
A820101050798 |
烫手警示标牌 |
Decal, warning, hot surface |
|
A820699001109 |
电源插座标志 |
Decal, power socket |
|
A820601990969 |
安全出口标志 |
Decal, emergency exit |
|
12057746 |
前进方向标志 |
Decal, travel direction |
|
A820601990929 |
油箱放水标识 |
Decal, drain, fuel tank |
|
12403551 |
回转支承警示牌 |
Rotary bearing caution plate |
|
11993325 |
铭牌 |
Plate, serial number |
|
A820699001019 |
前窗锁紧警示牌 |
Decal, warning, front window |
|
A820601990962 |
油水分离器放水标识 |
Decal, drain, water separator |
|
12919461 |
停机警示牌 |
Decal, engine caution |
|
A820601990972 |
电源标志 |
Decal, power supply |
