SY335C9I2KH hydraulic excavator SANY DEB






零件代码 PART NUMBER

名称 PART NAME

A210491000120

垫圈    washer

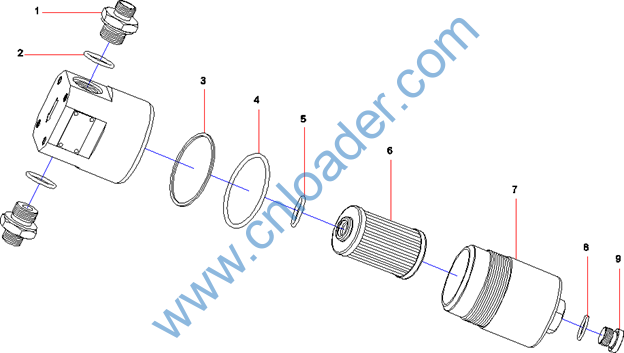

零件代码 PART NUMBER

名称 PART NAME

60294881

管接头

Fitting

29010015

O形圈

O-ring

60294882

密封垫

Ring, back up

A230101000563

O形密封圈

O-ring

24002612

O形圈

O-ring

A222100000119

先导滤芯

Filter, pilot

60294883

壳体

Housing

21000077

O形圈

O-ring

60294884

螺塞

Plug

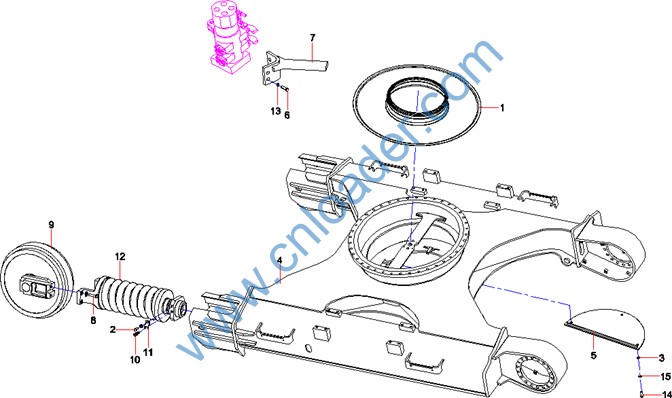

零件代码 PART NUMBER

名称 PART NAME

A810401990192

黄油池

seal module SY420.45.3

A210111000101

螺栓M12×25GB5783 10.9级

Bolt

24000513

垫圈12GB93 达克锈

Washer

12408629

履带架

track frame SY335C9I2K.2.1B

10131971

盖板总成

Plate, bottom GP

A210111000204

螺栓

Bolt

12804286

止动座

Stopping seatSY420.13.4.1.2

A210110000202

螺栓M20×80GB5782 10.9级

bolt

12286069

引导轮总成

Leading Wheel

B229900000862

黄油阀

Grease Valve

A820101010372

支板

Shoe, triple grouser

60310119

张紧装置

Tensioning Equipment

A210491000121

垫圈

Washer

A210111000202

螺栓

Bolt

60060548

垫圈12GB96.1 达克锈

Washer

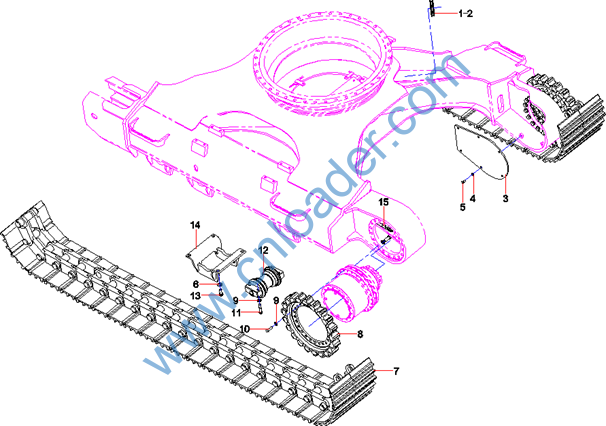

零件代码 PART NUMBER

名称 PART NAME

A239900000066

尼龙扎带

Strap, nylon

A820606030424

护套

Protective sleeveSY300.2-2

10505384

马达盖板

motor coverSY360C.2-3

24000514

垫圈16GB93 达克锈

Washer

A210111000212

螺栓M16×35GB5783 10.9级

bolt

A210491000122

垫圈

Washer

13914436

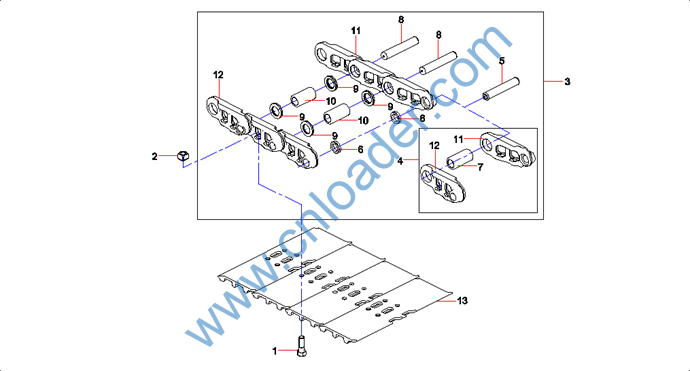

履带总成

crawler assembly

12801895

驱动轮

Drive Wheel SWQ216-1A

A210491000132

垫圈

Washer

60022786

螺栓

Bolt

A210110000233

螺栓 M20×110GB5782 10.9级

Bolt

11358479

支重轮总成

track roller

A210111000346

螺栓M24×55GB5783 10.9级

Bolt M24×55GB5783 Grade 10.9

12007195

护板

Protective Plate SY300.2.2A

11172918

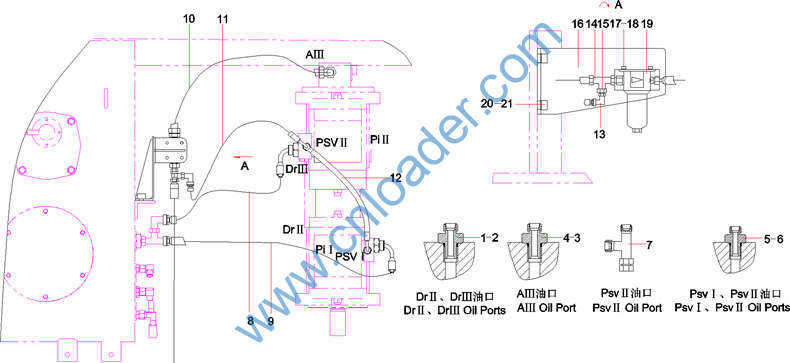

行走装置液压管路

Travel device hydraulic pipeline








零件代码 PART NUMBER

名称 PART NAME

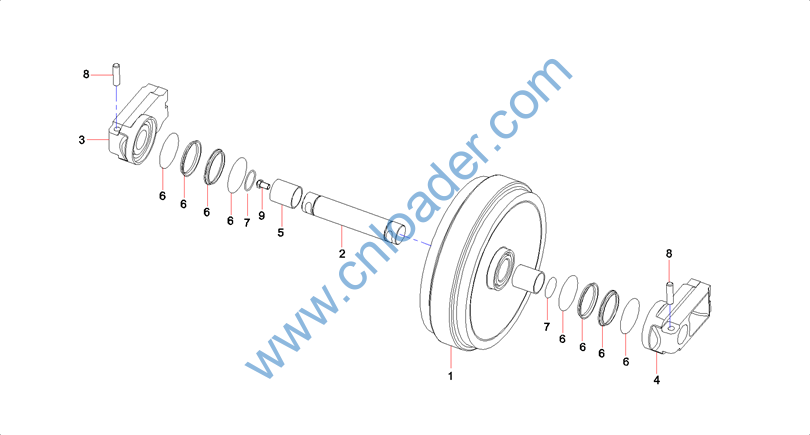

12286076

引导轮轮体总成

Leading Wheel Body

12286066

ShaftSWY216A-1

12286068

右支座

Right-Support AbutmentSWY216A

12286067

左支座

Left-Support AbutmentSWY216A-

60164763

衬套92×85×75法兰

Bush

60164477

浮动油封120×142×38线径

Floatingoilseal

A210608000098

O形圈

O-ring 79.4×3.1JISB2401

60164863

Pin

60027515

闷头螺塞

Plug

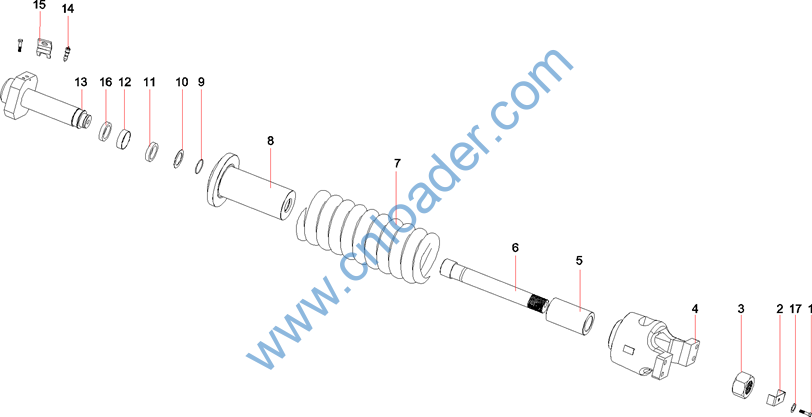

零件代码 PART NUMBER

名称 PART NAME

A210111000037

螺栓

Bolt

60310538

锁板

Lock Plate

60310536

螺母

Nut

60310535

支座

Support

60310537

限位套

Limitative sheath

60310534

拉杆

Pull rod

60310533

弹簧

Spring

60310532

缸体

Cylinder

60310543

O形圈

Ring

60310544

轴用弹性挡圈

Retaining ring

60310541

密封圈

Sealing ring

60310542

耐磨环

Wearable ring

60310531

顶杆

Shaft

B229900000862

黄油阀

Grease Valve

60310539

Plate

60310540

防尘圈

Dust ring

10132662

垫圈
