10425013 Door, left

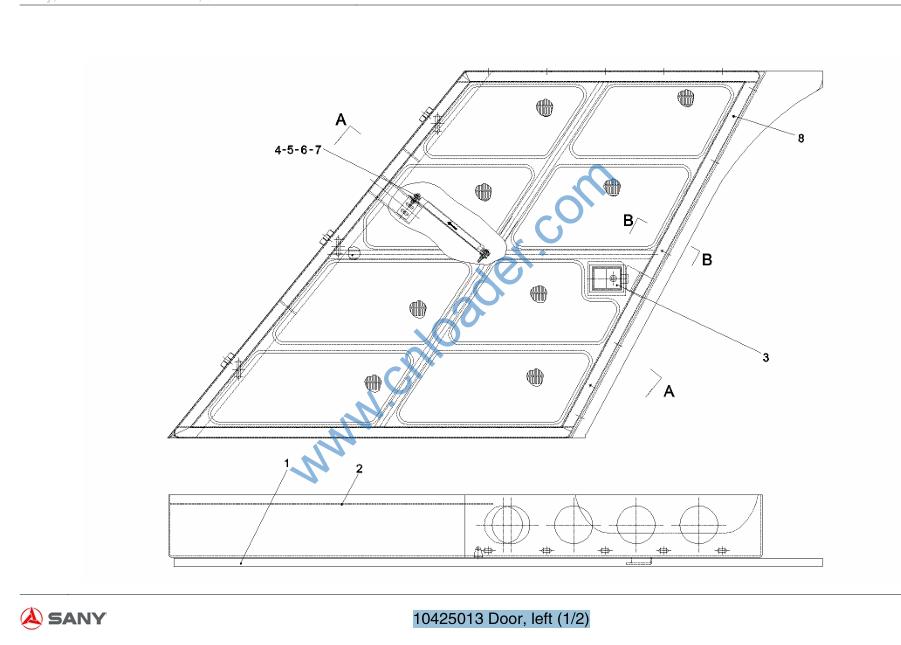

10425013 Door, left (1/2)

1 11898442 Plate, connecting, door lock 1
2 12004262 Cover, hydraulic oil radiator 1
3 A210204000196 Screw 2
4 A210404000009 Washer 9
5 A210319000003 Nut 9
6 A229900009852 Spring, air 1
7 A210111000094 Bolt 2
8 A210401000017 Washer 2

9 11360286 Pad, elastic 3
10 A222200000042 Lock, door 1
11 10424998 Mast, left 1
12 10196925 Plate, support, air spring 1
13 A210111000011 Bolt 2
14 A210401000001 Washer 4
15 A210405000011 Washer 4
16 10196926 Hinge 3
17 A210111000080 Bolt 9
18 A210307000012 Nut 4
19 A210405000007 Washer 4
20 A210211000008 Screw 9

1 A210204000196 Screw 2
2 11898462 Plate, connecting, door lock 1
3 11360286 Pad, elastic 3
4 A210404000009 Washer 9
5 A210319000003 Nut 9
6 A229900009852 Spring, air 1
7 A210111000094 Bolt 2
8 A210401000017 Washer 2

9 12004268 Cover, radiator, air conditoner 1
10 10424831 Mast, right 1
11 A222200000042 Lock, door 1
12 10196925 Plate, support, air spring 1
13 A210111000011 Bolt 2
14 A210401000001 Washer 4
15 A210405000011 Washer 4
16 10196926 Hinge 3
17 A210111000080 Bolt 9
18 A210307000012 Nut 4
19 A210405000007 Washer 4
20 A210211000008 Screw 9
