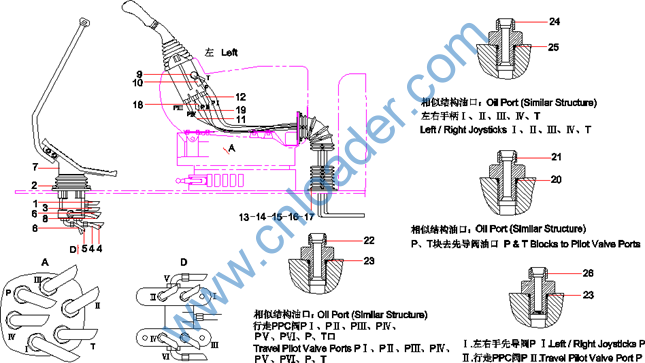

SY335C9I2KH hydraulic excavator SANY SVR






零件代码 PART NUMBER

名称 PART NAME

B230103000982

胶管

Hose AS

A210204000334

螺钉M10×16GB70.1 10.9级

Bolt, socket head

B230103004256

胶管

Hose AS

B230103001563

胶管

Rubber hose

B230103002275

胶管

Rubber hose

B230103000899

胶管

Rubber hose

60170604

先导阀PVD8PC6008(脚踏)

Valve, travel

B230103002658

胶管

Hose AS

B230103002263

胶管

Hose AS

A831211120000

胶管

Hose AS

B230103003988

胶管

Hose

B230103002649

胶管

Hose

A820601990304

法兰

Flange

A820601990336

波纹管

Grommet

11243401

胶套

Sleeve, rubber

A210111000079

螺栓

Bolt

24000632

垫圈6GB97.1 达克锈

washer

B230103004390

胶管

Hose

B230103002650

胶管

Hose

A230101000247

O形圈

O-ring 10.9×2.3(JISB2401)








零件代码 PART NUMBER

名称 PART NAME

A820205000839

接头

Fitting

A820205000940

接头

Fitting

B230101000047

O形圈

O-Ring-10.8

A820205000946

接头

Fitting

B230101000049

O形圈

O-ring

60020078

过滤接头

Fitting, screen

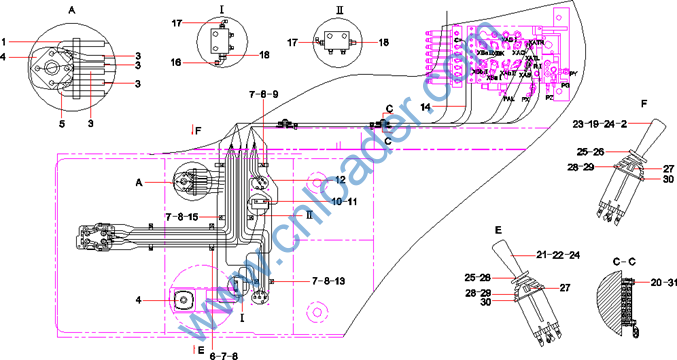

零件代码 PART NUMBER

名称 PART NAME

B230103000983

胶管

Hose

A229900006438

插入件

Insert, switch

B230103002569

胶管

Hose

B220401001302

先导阀

Valve, pilot

B230103005981

胶管

Rubber Hose

A820101117104

管夹

pipe nip

A210111000342

螺栓M8×16GB5783 10.9级

Bolt

60060565

垫圈8GB96.1 达克锈

Washer

11076393

管夹

pipe nip

A820199000360

PT块

Block, PT

21005186

螺栓

Bolt

B230103004385

胶管

Hose Assembly

A820101117116

管夹

Clamp

B230103002553

胶管

Rubber Hose

10379080

管夹

pipe nip

B210780000024

直角组合接头

Fitting, Elbow

B210780000418

管接头

Fitting

A820205000894

接头

Fitting

B229900001614

右手柄

Joystick, right

A210204000028

螺钉

Screw M12×75GB70.1-00

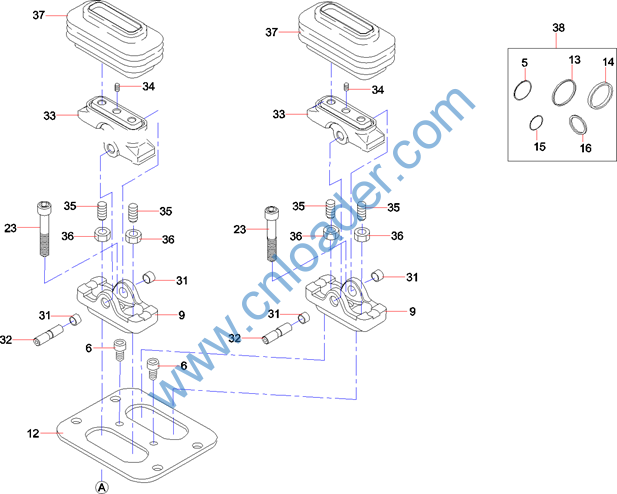

零件代码 PART NUMBER

名称 PART NAME

B229900001613

左手柄

Joystick , left

60116344

插入件

Insert, switch

变更或见其他配置

按钮开关

Switch

A210264000022

自攻螺钉

Screw, self-tapping

11050165

手柄

Handle, grip

A210308000006

螺母

Nut

A210307000002

螺母

Nut

A229900006446

Joystick, rubber cover

A229900001028

Joystick, rubber cover

A229900001027

Plate

A210491000121

垫圈

Washer

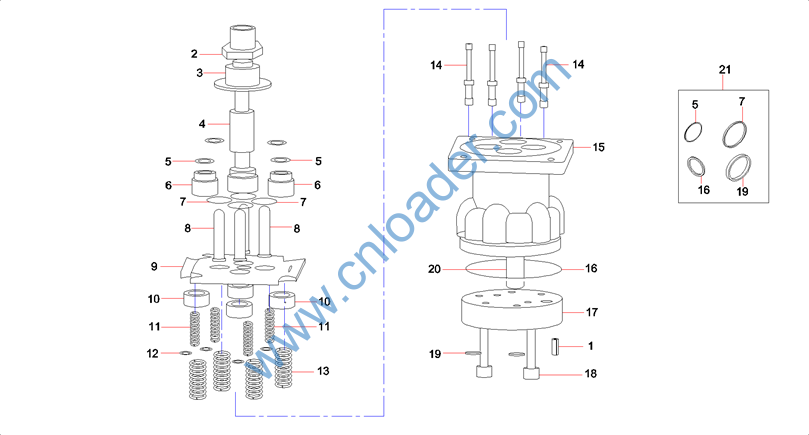

零件代码 PART NUMBER

名称 PART NAME

60237073

内六角螺钉

Screw

60237074

压盘

Mount, lower

60237075

安装板

Plate

60237078

内六角螺钉

Screw, socket head

60008690

轴套

Sleeve, shaft

60008585

凸轮轴

Shaft

60008591

凸轮

Mount, upper

60237082

紧定螺钉

Screw, set

60008592

调整螺杆

Screw, adjusting

60038480

螺母

Nut

60237083

护套

Cover, rubber

60331164

脚踏先导阀维修包

Kit, seal

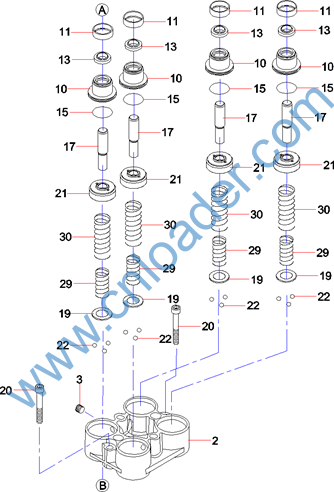

零件代码 PART NUMBER

名称 PART NAME

60237072

阀体

Valve

60008728

紧定螺钉

Screw, set

60163768

Plug

60008754

Cover

60163771

防尘圈

Ring, dust

60038720

O形圈

O-ring

60273527

柱塞

Rod

60008756

弹簧座

Seat, spring

60038563

内六角螺钉

Screw, socket head

60008803

活塞

Piston

60237077

滚珠

Ball, steel

60008766

弹簧

Spring

60008767

弹簧

Spring

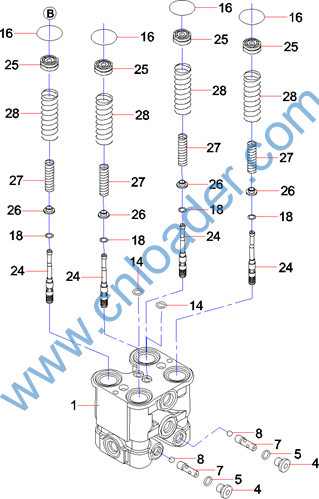

零件代码 PART NUMBER

名称 PART NAME

60273523

壳体

Valve, travel, pilot

60273524

堵头

Plug

60221657

O形圈

O-ring

60273525

阀座

Spool, cartridge

60273526

滚珠

Ball, steel

60038727

O形圈

O-ring

60038820

O形圈

O-ring

60008597

垫圈

Washer

60273528

阀芯

Spool

60237080

弹簧座

Seat, spring

60008589

垫圈

Washer

60008594

弹簧

Spring, small

60038221

弹簧

Spring, large
