SY335C9I2KH hydraulic excavator SANY SVE










零件代码 PART NUMBER

名称 PART NAME

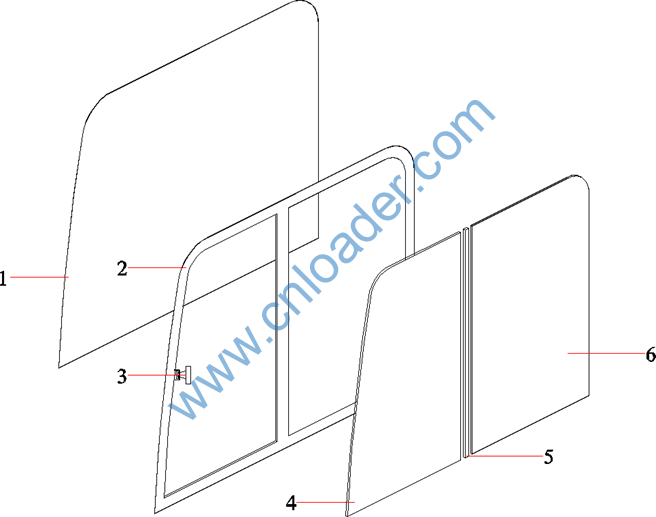

A230105000109

驾驶窗胶条

Driver-Side Window Rubber Strip

61019830

推拉窗框

Window frame

A230300000109

门推玻璃锁扣

Door Glass Lock Catch

A230300000102

驾驶窗前玻璃

Glass, cab front

60036512

推拉窗玻璃间密封条

Sealed strip between the glass of

A230300000103

驾驶窗后玻璃

Glass, rear












零件代码 PART NUMBER

名称 PART NAME

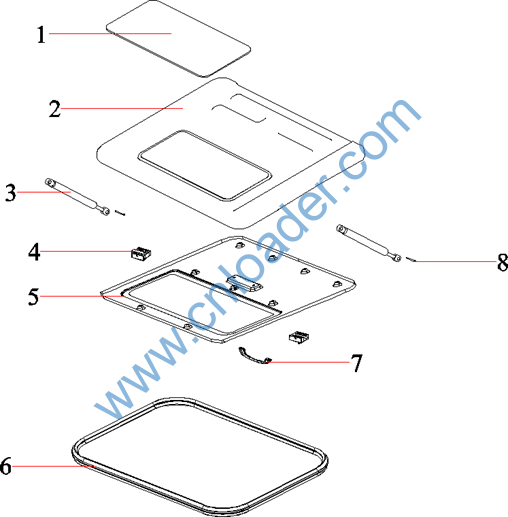

A230300000108

顶天窗玻璃

Glass, roof

A229900004760

顶天窗总成

Sunroof Assy. EMC0512.44

61019391

天窗气弹簧

Gas spring,sunroof

A229900004682

顶天窗锁机构

Sunroof Lock Mechanism

A229900007688

天窗顶板 TR012-2-针织面料

Plate,top,skylight

A230105000113

顶天窗密封胶条

Sunroof Seal Rubber Strip

A229900009417

前窗把手

Handle,window,front

A210491000008

Pin, Cotter










零件代码 PART NUMBER

名称 PART NAME

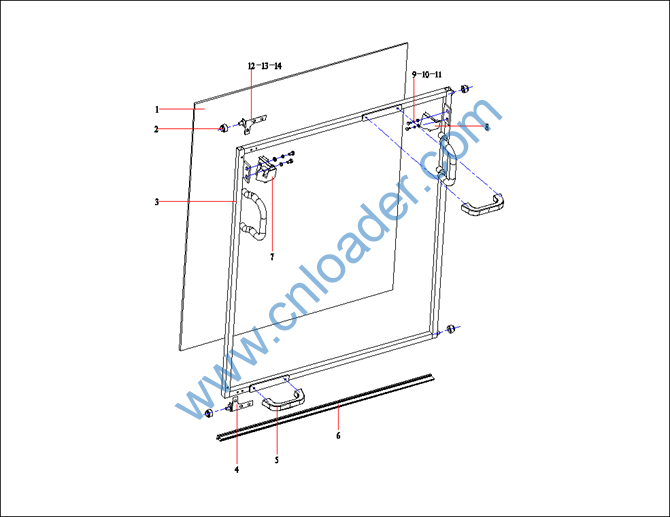

A230300000100

前围上移玻璃

Glass, upper

60076070

滑轮

Pulley

A229900003403

前窗框

Front Window Frame EMC0502.13

61019388

下侧板

Plate,lower

A229900009417

前窗把手

Handle,window,front

A230105000107

前围上移窗胶条

Front Side Up-Move Window

A229900003763

前窗锁总成

Front Window Lock Assy.

61019389

前窗锁总成

Lock AS,front window

A210111000342

螺栓M8×16GB5783 10.9级

Bolt

24000511

垫圈8GB93 达克锈

Washer

60060565

垫圈8GB96.1 达克锈

Washer

61019390

上侧板

Plate,upper

A210111000079

螺栓

Bolt

60238783

垫圈6GB96.1 达克锈

Washer








零件代码 PART NUMBER

名称 PART NAME

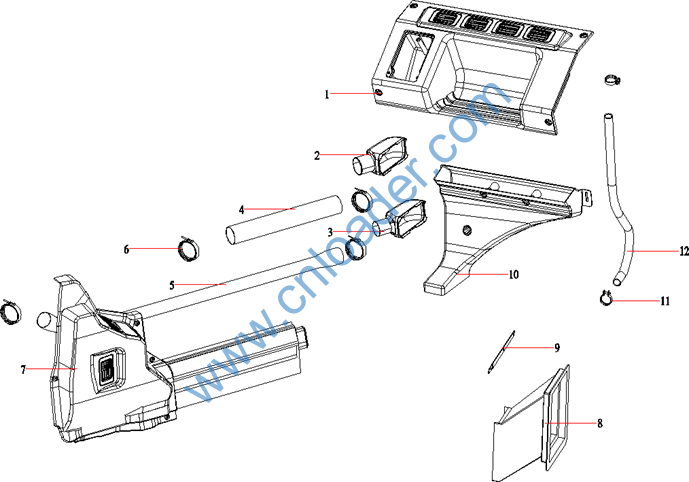

60015519

空调罩总成

A/C Cover Assy

61019353

空调风道接头

Fitting,air duct

61019354

空调风道接头

Fitting,air duct

61019355

空调软管

Hose,air conditioner

61019356

空调软管

Hose,air conditioner

61018430

大卡箍

Big clamp

60015520

前控箱总成

A229900003664

侧风道

Vent,side

61019357

侧风道压板

Plate,air duct

A229900003662

新风道

Air duct,new

61018431

小卡箍

Small clamp

61018432

保鲜盒软管

Hose,crisper










零件代码 PART NUMBER

名称 PART NAME

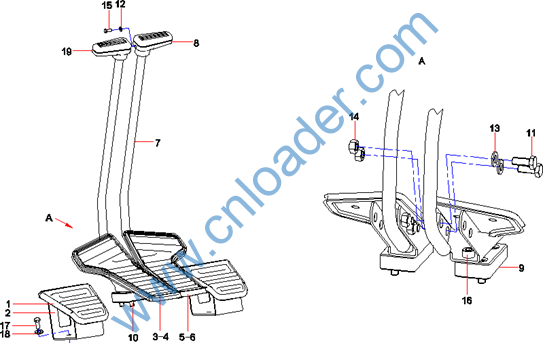

12002592

脚踏套

Pedal sleeve

12004584

脚踏

Pedal

12003641

脚踏阀垫板总成左

Left backup plate of pedal

12009258

蝶形脚踏垫板套

Backup sleeve of pedal

12009972

脚踏阀垫板总成右

Right backup plate of pedal Asy.

12010268

脚踏阀垫板套右

Backup sleeve of pedal

13162846

操纵杆

Control Lever

12691132

右手柄

right handle

11571909

联接块

Block

A210204000313

螺钉M10×20GB70.1 12.9级

Screw

A210111000197

螺栓

Bolt

60060562

垫圈4GB97.1 达克锈

Washer

A210491000120

垫圈

washer

A210307000036

螺母

Nut

A210210000030

螺钉

Bolt, socket head

A210204000334

螺钉M10×16GB70.1 10.9级

Bolt, socket head

A210204000340

螺钉M8×16GB70.1 10.9级

Bolt, socket head

24000511

垫圈8GB93 达克锈

Washer

12688927

左手柄

left Handle








零件代码 PART NUMBER

名称 PART NAME

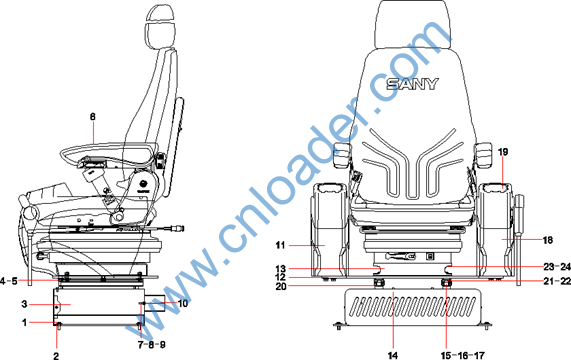

A210111000342

螺栓M8×16GB5783 10.9级

Bolt

60060565

垫圈8GB96.1 达克锈

Washer

13285402

座椅下底座架

Frame, lower base

A210111000012

螺栓 M10×20GB5783 10.9级

Bolt

A210491000120

垫圈

washer

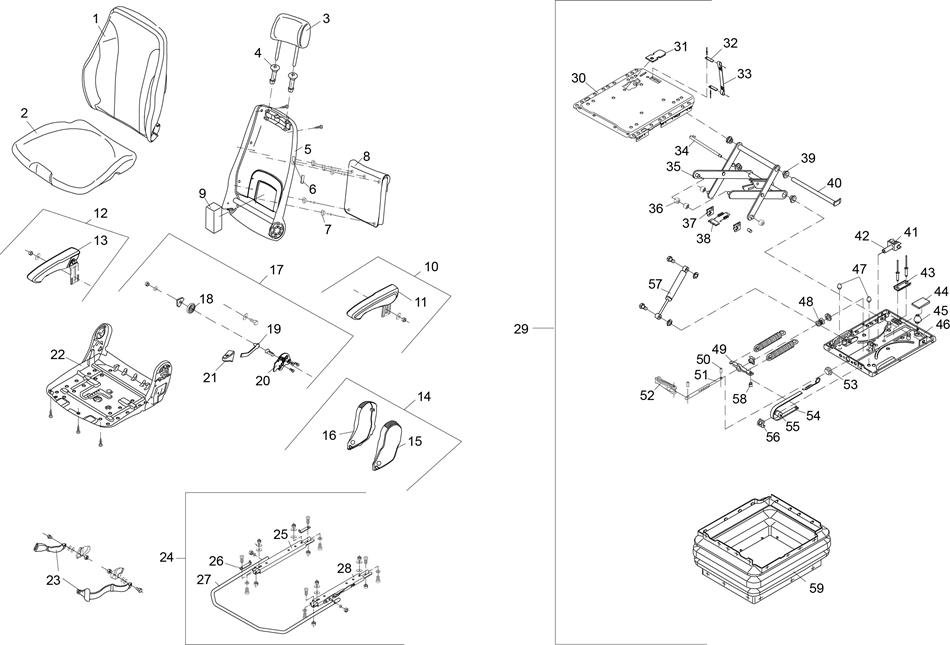

B229900000265

机械悬浮式驾驶座椅

Mechanical Suspension Driver seat

24000632

垫圈6GB97.1 达克锈

washer

A210111000079

螺栓

Bolt

60238783

垫圈6GB96.1 达克锈

Washer

10241175

风道连接法兰

Air duct connection flange

60204190

右扶手箱总成

Right armrest box assembly

10115283

支撑平板

Supporting flat plat

10115295

座椅上底座架

Seat upper base frame

10140450

电装底座架前盖

Front cover of electric assembly

60313915

座椅左导轨

Rail guide, left

B229900000494

座椅拉杆

Seat, lock rod

A210204000340

螺钉M8×16GB70.1 10.9级

Bolt, socket head

60204189

左扶手箱总成

Armrest AS, left

60240844

控制面板

Cover, left

60313916

座椅右导轨

Rail guide, right








零件代码 PART NUMBER

名称 PART NAME

24000431

螺钉M8×30GB70.1 10.9级

Bolt, socket head

A210307000055

螺母M8GB6170 10级

Nut

A210111000343

螺栓M8×20GB5783 10.9级

Bolt

24000511

垫圈8GB93 达克锈

Washer
