SY335C9I2KH hydraulic excavator SANY EGR

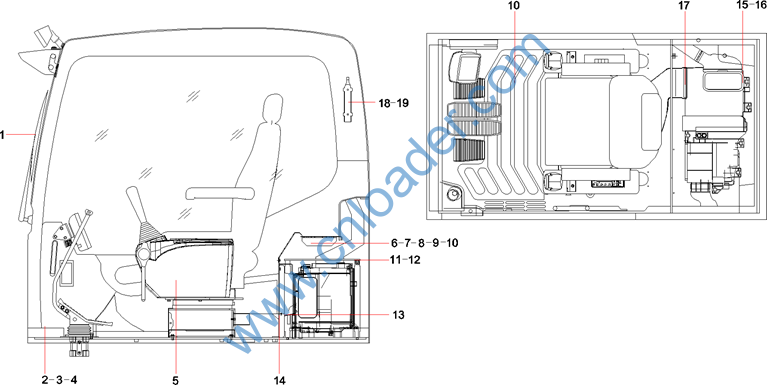

零件代码 PART NUMBER

名称 PART NAME

60211180

扬子驾驶室

Yangzi Cab

12076176

行走操纵机构

Running control mechanism

A210111000204

螺栓

Bolt

A210111000104

螺栓M12×70GB5783 10.9级

Bolt

12773451

座椅及操纵箱

Seat and controlbox

60060548

垫圈12GB96.1 达克锈

Washer

A210111000343

螺栓M8×20GB5783 10.9级

Bolt

A210111000342

螺栓M8×16GB5783 10.9级

Bolt

60060565

垫圈8GB96.1 达克锈

Washer

12777161

底板架

Floor SY335C9.1.5.6A

13288272

电气安装板

Installation plate for electrical

12752753

支撑杆

New supporting Lever

13687728

立板

frame

A229900010630

吹脚风道

Duct, lower air

A210210000030

螺钉

Bolt, socket head

60060562

垫圈4GB97.1 达克锈

Washer

10567493

吹脚风道密封海绵

Sealing sponge of Foot-Blowing

60312104

简易式干粉灭火器

Simple dry-chemical fire

A210211000007

螺钉

Bolt

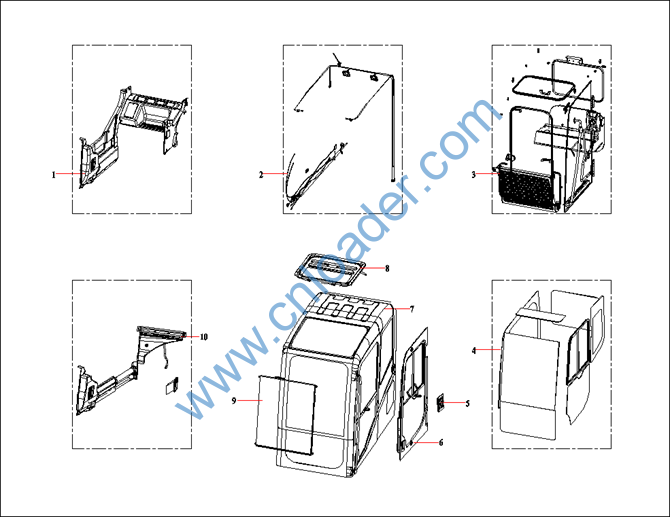

零件代码 PART NUMBER

名称 PART NAME

A229900003660

内饰件总成

Plate GP,protect,decoration,inner

61019348

电气总成

Electric AS

61022830

附属件总成

Accessory AS

61019350

玻璃总成

Glass AS

60238725

风门EMC0512.3.1 扬子钣金

Air floor

A229900009414

驾驶室门总成

Cab door hinge

61022831

驾驶室焊合总成

Cab weldment AS

A229900009424

天窗总成

Skylight AS

61020327

前窗总成

Front window AS

61019352

风道总成

Duct AS

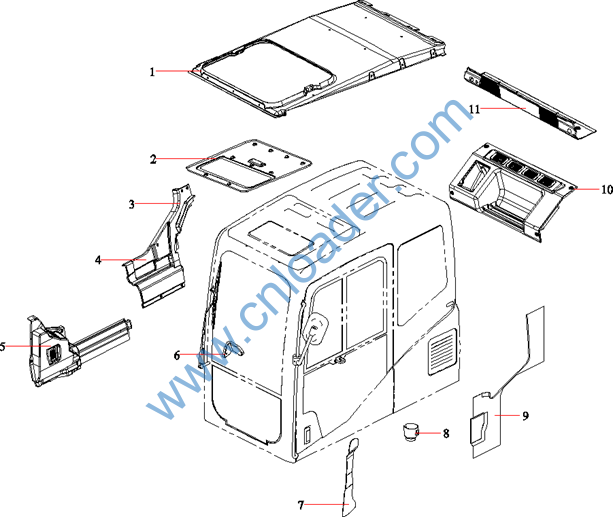

零件代码 PART NUMBER

名称 PART NAME

60067994

顶内装饰件

Trim, upper

A229900007688

天窗顶板 TR012-2-针织面料

Plate,top,skylight

60067380

右侧内装饰件(后)

Cover, interior

60067382

右侧内装饰件(中)

Cover, interior

60015520

前控箱总成

A229900007315

底座罩总成

Base Cover Assy. EMC0512.18

60036511

驾驶室门锁塑料护板

Protective board of door lock

61019387

水杯座

Holder,cup

60067996

左侧装饰件

Trim, left

60015519

空调罩总成

A/C Cover Assy

60067998

喇叭罩

Horn cover

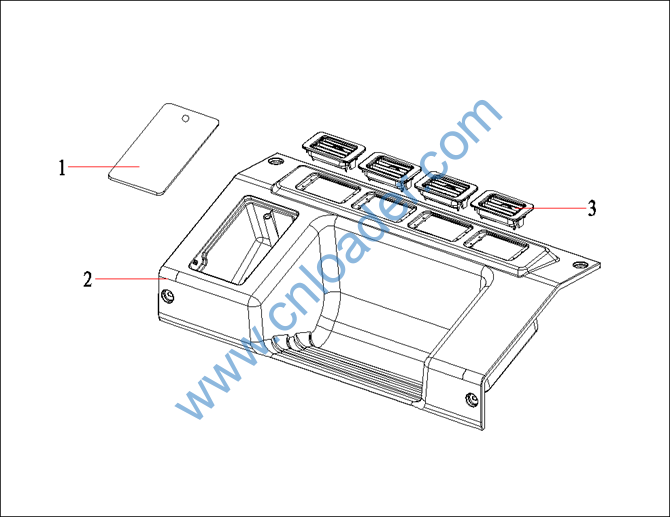

零件代码 PART NUMBER

名称 PART NAME

60048510

手机盒

Box, mobile phone

60067381

右侧内装饰件(前)

Decoration, interior, right

60031109

吹背出风口栅格

Rear air outlet grid

A229900003884

烟灰盒

Ashtray EMC0512.9

A229900003764

点烟器

Lighter

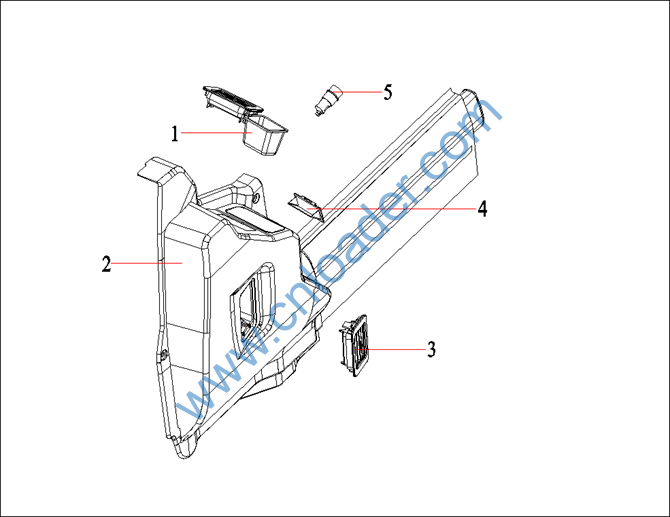

零件代码 PART NUMBER

名称 PART NAME

A229900009881

杂物盒 内饰件    Case,glove

60067995

后内装饰件    Interior, inner rear

60031109

吹背出风口栅格    Rear air outlet grid

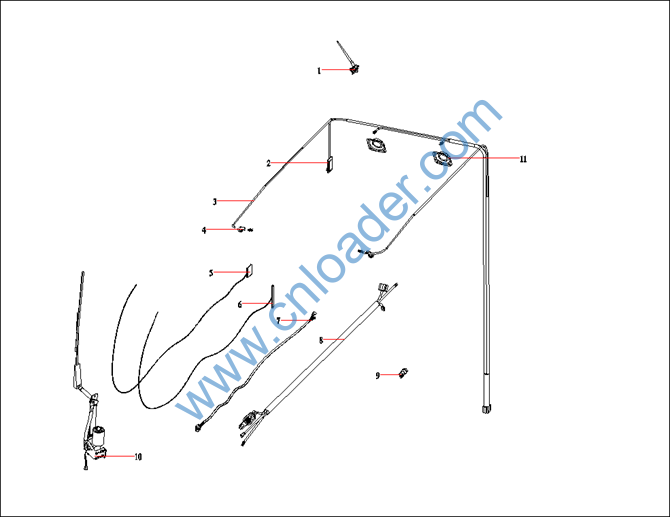

零件代码 PART NUMBER

名称 PART NAME

A249900000827

收音机天线总成

Radio Antenna Assy. EMC0512.35

A229900003178

厢灯

Carriage Lamp cEMC0502.8 20

11140229

驾驶室左侧线束

Cluster Cab Left

60031112

驾驶室工作灯过线圈

Coil,lamp,working,cab

11822508

GPS有源线束

Antenna of GPS

11822542

GPRS有源线束

Harness of GPRS

A810201058466

雨刮器电源线

Wiper Power Wire

11897042

OPUS显示器线束

OPUS Display Screen Cluster

A229900003764

点烟器

Lighter

A229900008240

刮水器总成

Wiper AS

60023703

音箱

Speaker

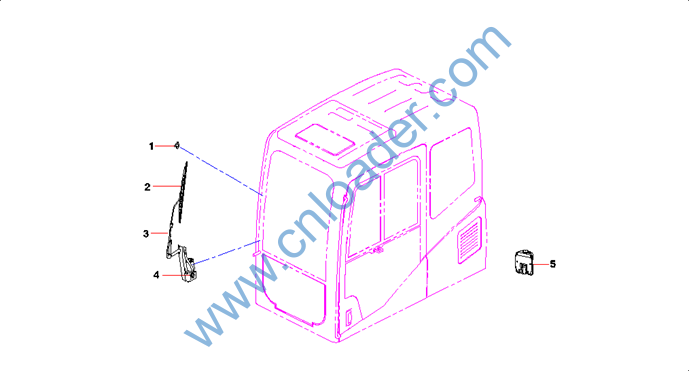

零件代码 PART NUMBER

名称 PART NAME

A229900004761

雨刮器喷嘴

Wiper Nozzle EMC0512.45

60042511

雨刮器刮片

Wiper Blade

60042510

雨刮器刮杆

Wiper Arm

A229900003761

刮水器总成

Wiper Assembly

60176259

洗涤器

watering can
