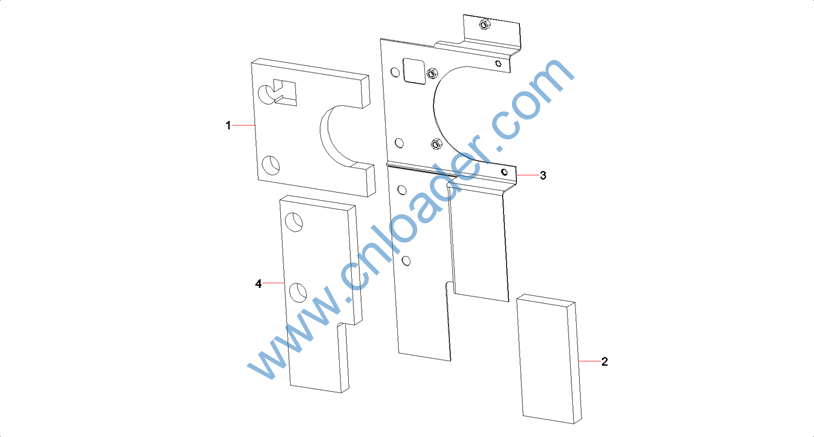

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820606010409 |
橡胶块 |
plaste |
|
24000633 |
垫圈8GB97.1 达克锈 |
Washer |
|
A820101213532 |
防摆座 |
Antiswing seat |
|
A210203000008 |
螺钉 |
Screw-M6 |
|
A210111000323 |
螺栓 |
Bolt |
|
A810502012228 |
左上后盖板 |
CoverSY310C1.1.6.4.1 |
|

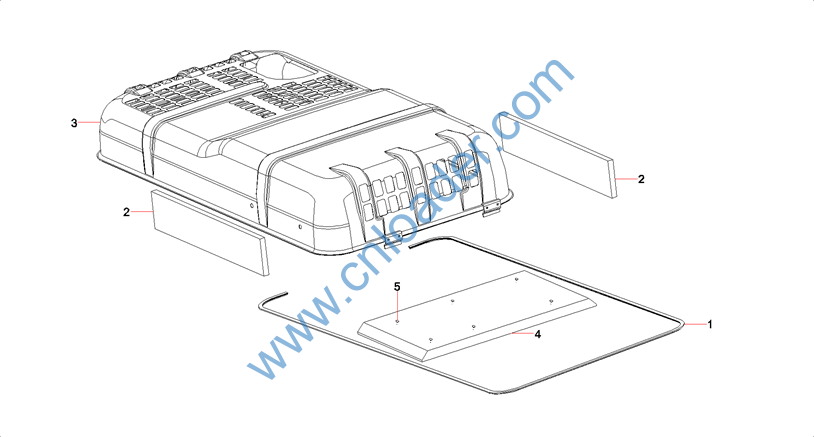

零件代码 PART NUMBER |
名称 PART NAME |
|
|
11348911 |
密封条 |
Sealing strip |
|
A820699001228 |
侧面海绵 |
Side sponge |
|
11255413 |
机顶罩总成 |
Bonnet Assy. |
|
A820699000947 |
顶部海绵 |
Top sponge |
|
11961759 |
扣钉 |
Cramp |
|

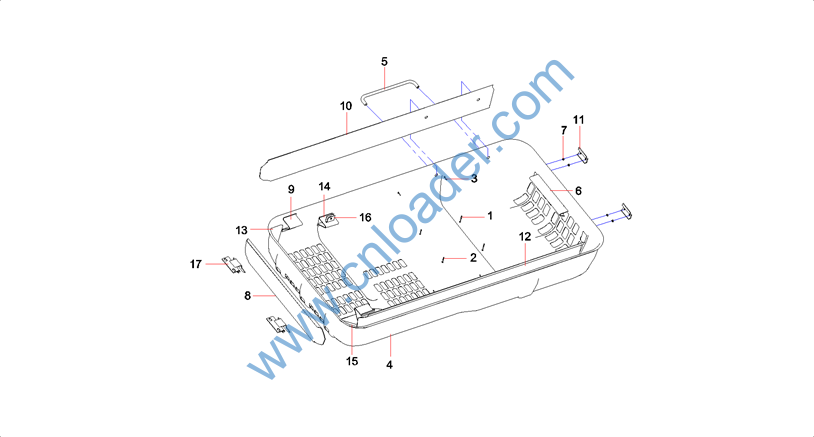

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60168508 |
螺柱 |
Threadedstud |
|
60166959 |
螺柱 |
Threadedstud |
|
60166958 |
螺柱 |
Threadedstud |
|
11250346 |
机顶罩主壳体 |
Engine cover main frame |
|
A820299000358 |
机罩拉手 |
Hood handle |
|
A820101346644 |
防摆罩 |
Antiswing cover |
|
A210307000012 |
螺母 |
Nut |
|
11254803 |
后部加强筋 |
Rear reinforced |
|
11254559 |
弹簧支承座 |
Support seat |
|
11254541 |
右侧加强筋 |
Right-hand reinforced rib |
|
A820101342394 |
机罩锁安装座 |
Mounting plate for hood lock |
|
11254192 |
左侧加强筋 |
Left-hand reinforced rib |
|
11254652 |
拐角加强筋 |
Cape Reinforced bar |
|
A820101330217 |
支撑板 |
Supporting Plate |
|
11255109 |
拐角加强筋 |
Cape Reinforced bar |
|
A820101213425 |
支撑座 |
Support stay |
|
A810599000264 |
铰链 |
Hinge |
|

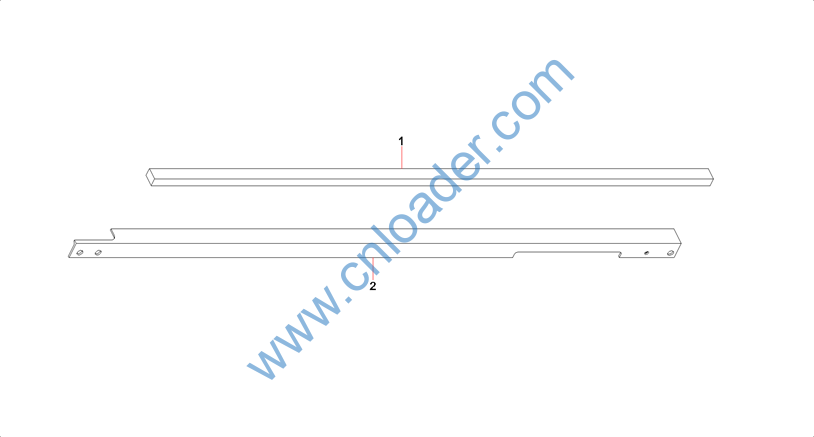

零件代码 PART NUMBER |
名称 PART NAME |
|
A820699000953 |
海绵 Sponge |
|
A810502015203 |
横梁杆 Rear beam |
|

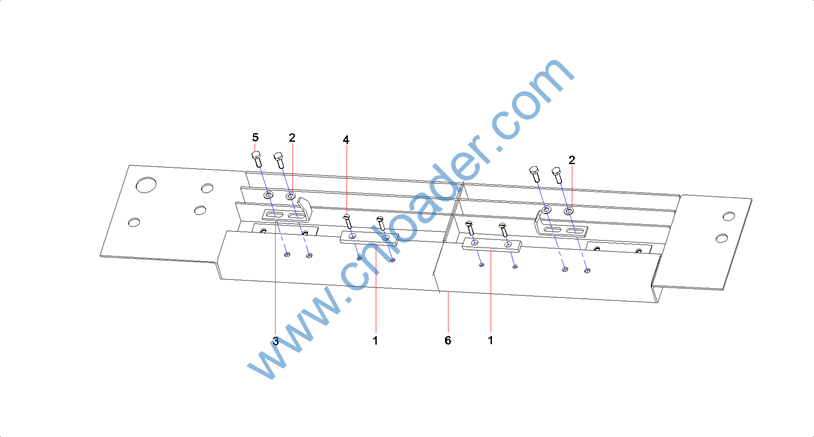

零件代码 PART NUMBER |
名称 PART NAME |
|
|
A820699001116 |
上部海绵 |
Upper sponge |
|
A820699001117 |
右下海绵 |
Right lower sponge |
|
A810502012223 |
下隔板组焊件 |
Welds of lower baffle plate |
|
A820699001118 |
左下海绵 |
Left lower sponge |
|

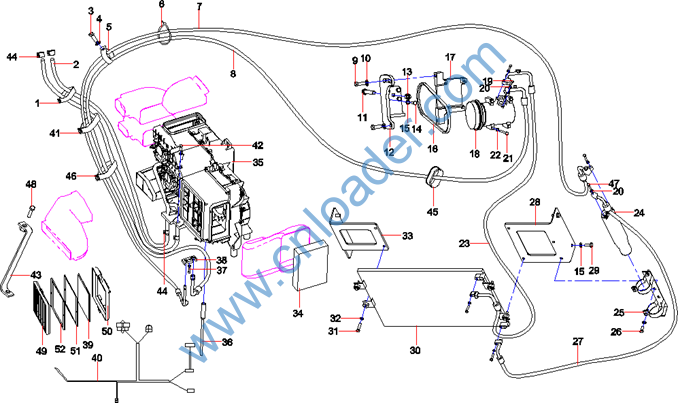

零件代码 PART NUMBER |
名称 PART NAME |
|
|
60086355 |
线束固定夹 |
the fixity of line |
|
13255673 |
蒸汽胶管 |
Hose |
|
A210111000199 |
螺栓M12×20GB5783 10.9级 |
Bolt |
|
A210491000121 |
垫圈 |
Washer |
|
60149606 |
线束固定夹 |
Clamp |
|
A239900000066 |
尼龙扎带 |
Strap, nylon |
|
60006323 |
液体胶管 |
Liquid rubber hose B |
|
60001235 |
吸气胶管 |
Suction rubber tube |
|
A210111000208 |
螺栓 |
Bolt |
|
A210444000001 |
垫圈 |
Washer |
|
A210110000304 |
螺栓M20×120GB5782 10.9级 |
bolt |
|
A810505011071 |
压缩机支架 |
CompressorBracketSY310C1.1.8.1 |
|
A210307000029 |
螺母 |
Nut |
|
A210111000026 |
螺栓 |
Bolt |
|
A210491000120 |
垫圈 |
washer |
|
A230106000403 |
V带 |
Type A Triangular Belt |
|
10144193 |
调整座 |
Adjusting seatSY310C1.1.8.2A |
|
B220203000007 |
压缩机 |
Compressor |
|
A210111000082 |
螺栓 |
Bolt |
|
24000632 |
垫圈6GB97.1 达克锈 |
washer |
|
零件代码 PART NUMBER |
名称 PART NAME |
|
|
A210111000097 |
螺栓 |
Bolt |
|
24000633 |
垫圈8GB97.1 达克锈 |
Washer |
|
60001233 |
排气胶管 |
Hose, discharge |
|
B229900005141 |
储液器 |
Dryer |
|
A229900008784 |
储液器支架 |
Bracker, dryer clamp |
|
A210111000343 |
螺栓M8×20GB5783 10.9级 |
Bolt |
|
60001238 |
液体胶管 |
Hose |
|
10368412 |
冷凝器右支架 |
Right support of |
|
A210111000197 |
螺栓 |
Bolt |
|
A220700000028 |
冷凝器总成 |
Condenser |
|
A210111000092 |
螺栓 |
Bolt |
|
60060565 |
垫圈8GB96.1 达克锈 |
Washer |
|
10368413 |
冷凝器左支架 |
Left support of condenser |
|
60250669 |
外气过滤器 |
Filter |
|
60168171 |
空调单元总成 |
Assembly, air conditioner |
|
A229900009481 |
排水管 |
Hose, drain |
|
24002251 |
螺钉M6×25GB70.1 10.9级 |
Screw M6×25GB70.1 Grade 10.9 |
|
60250668 |
压板接头 |
Plate |
|
B222100000711 |
内气过滤器 |
Inner air filter |
|
10473304 |
空调电气系统 |
Electric system of air conditioner |
