Body,container reach stacker,RSC45C2 SANY SVE





Part No.

Description

12894716

Harness, boom frame

12894791

Harness, boom frame

13654076

Clamp, fastening

12895470

Lamp, halogen

60199416

Bridge, cable, boom

12893720

Light, alarm, LED

12889986

Sensor, length and angle

13654056

Clamp, fastening

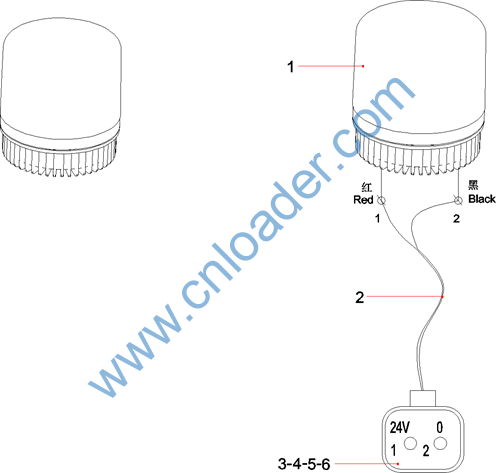

Part No.

Description

60116987

Light, alarm, LED

A240900000016

Sleeve, plastic (Black)

B241200000582

Receptacle, 2-pin

B249900000288

Pin

A249900001139

Lock, 2-pin

60120497

Tail, socket, 2-wire

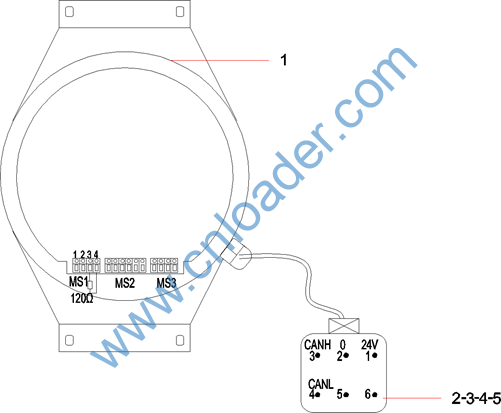

Part No.

Description

B240600000272

Sensor, length and angle

B241200000606

Receptacle, 6-pin

60120499

Tail, socket, 6-wire

A249900001140

Lock, 6-position Receptacle

B249900000288

Pin










Part No.

Description

60180758

Assembly, reversing monitor

A241900000014

Cable

A241400000007

Tube, corrugated

B249900000288

Pin

B229900001093

Socket

A249900001139

Lock, 2-pin

B241200000584

Lock, 2-pin

B241200000582

Receptacle, 2-pin

B241200000590

Plug, 2-pin

A210111000091

Bolt M8x30

A210307000012

Nut

A210401000017

Washer Lock M8

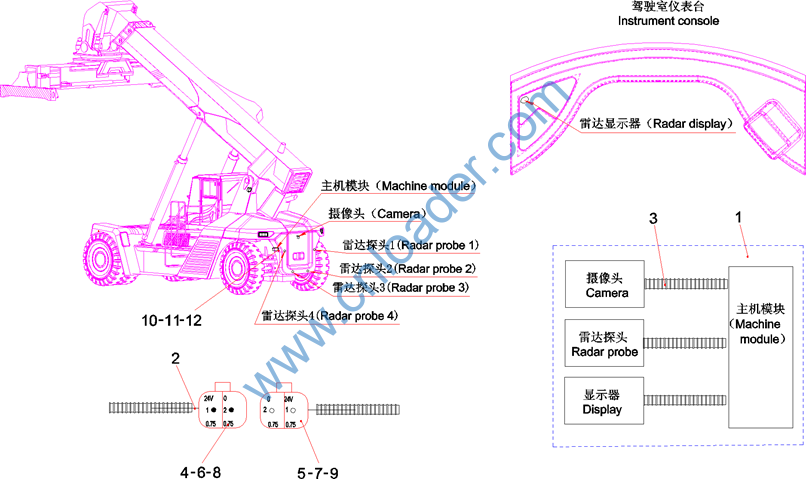

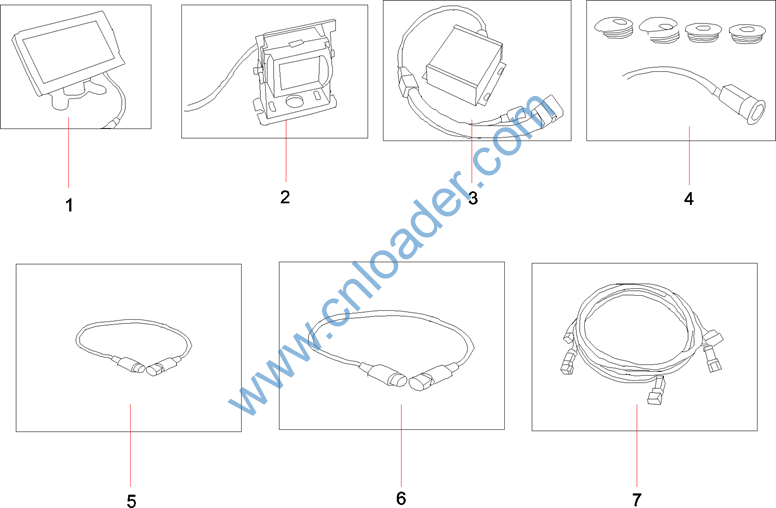

Part No.

Description

60220625

Display, LED

60192294

Camera, machine

60220626

Body, main, reversing radar

60192292

Detector, reversing radar

60220627

Harness, video transmission

60220628

Harness, video transmission

60220629

Harness, main, detector power supply

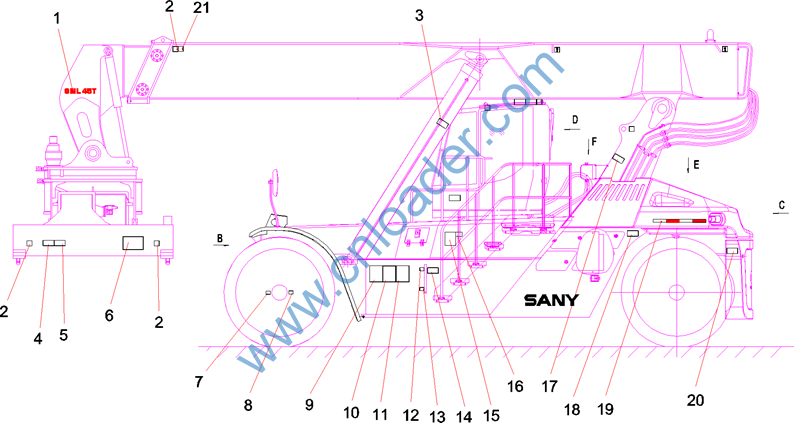

Part No.

Description

10061340

Label, safety load

A820101990552

Diagram, hoisting point

13567189

Label, beware of head

13564363

Label, caution high voltage wire

13567166

Label, watchful of the hanged objects

13609639

Label, warning, spreader

13564381

Label, air pressure of tyre

13564392

Label, check, tyre bolt

13564394

Label, hydraulic pressur

13578390

Label, lubrication points

13564292

Label, safety operating

12120439

Label, instruction, max. oil level

12120438

Label, instruction, min. oil level

13564377

Label, hydraulic oil tank

12393603

Nameplate

10061841

Nameplate, CE

13567179

Label, warning, no climbing

13567191

Label, warning, tyre

A290000003269

Mark, reflecting, vehicle body

13567194

Label, no going closer, turning caution board

13816362

Label, fixed point

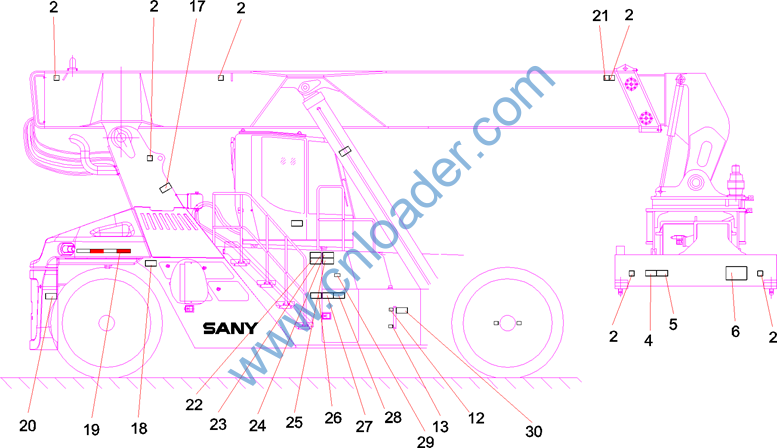

Part No.

Description

A820101990552

Diagram, hoisting point

13564363

Label, caution high voltage wire

13567166

Label, watchful of the hanged objects

13609639

Label, warning, spreader

12120439

Label, instruction, max. oil level

12120438

Label, instruction, min. oil level

13567179

Label, warning, no climbing

13567191

Label, warning, tyre

A290000003269

Mark, reflecting, vehicle body

13567194

Label, no going closer, turning caution board

13816362

Label, fixed point

13564376

Label, fuel tank

13567217

Label, no aether

13567167

Label, warning, anti-pinching

13567185

Label, no smoke or fire

13564372

Label, power supply switch

13564373

Label, battery

13567164

Label, warning, prevent electricity attack

13781617

Label, moving direction

13564379

Label, brake oil
