Body,container reach stacker,RSC45C2 SANY DWH





Part No.

Description

60040547

Sensor, liquid level

B241000000018

Receptacle, 2-position

B241000000002

Pin













Part No.

Description

60246671

Horn, Electrical

B241200000582

Receptacle, 2-pin

A249900001139

Lock, 2-pin

B249900000288

Pin

A241000000040

Receptacle

A241900000014

Cable






Part No.

Description

60232826

Lamp, working

B241100000447

Lamp, turn signal, LED

13479465

Plug, 2-core

13479575

Socket, 2-core








Part No.

Description

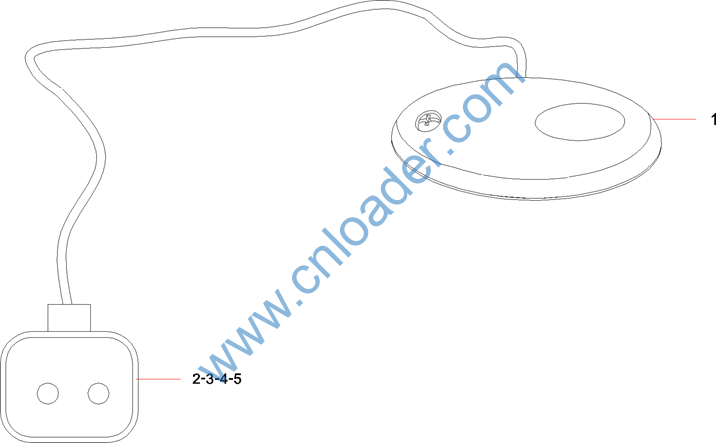

A241100000555

Lamp, mark, side, LED

B241200000582

Receptacle, 2-pin

B249900000288

Pin

A249900001139

Lock, 2-pin

60120497

Tail, socket, 2-wire










Part No.

Description

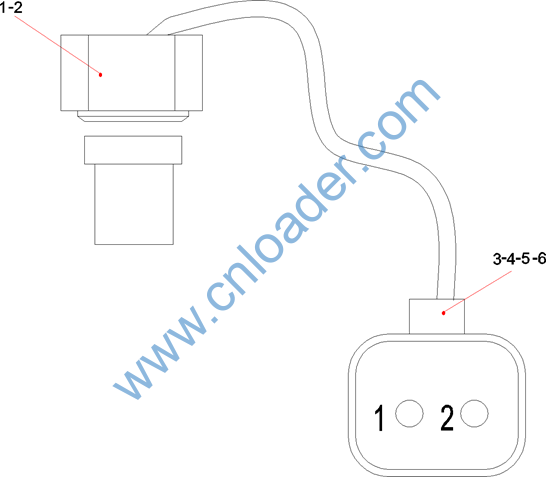

B240600000031

Sensor, temperature

A210434000007

Washer

60120497

Tail, socket, 2-wire

B241200000582

Receptacle, 2-pin

B249900000288

Pin

A249900001139

Lock, 2-pin










Part No.

Description

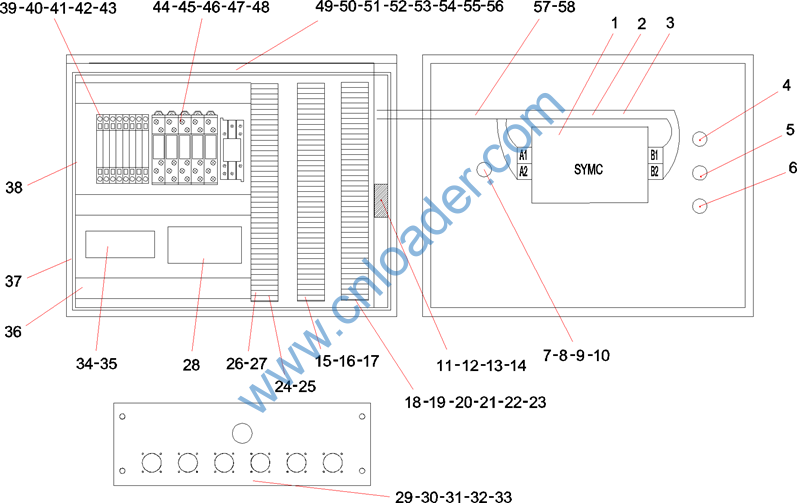

12895887

Layout, electric control cabinet, frame












Part No.

Description

A810201206127

Assembly, movement controller, SANY

A829900003236

Harness, erminal, SYMC

A229900004092

Clamp

60134344

Lamp, indicator

60134345

Lamp, indicator

60134346

Lamp, indicator

60269945

Switch, knob

60263159

Block, contact, normally-closed

60263158

Block, contact, normally-opened

60271427

Pedestal

60210957

Relay

B241000000018

Receptacle, 2-position

B241000000001

Socket, sectional

60162156

Terminal, copper wire, peephole

A241600000002

Rail

A242000000055

Terminal

B242000000017

Terminal

B241800000030

Mark, WSB

B241800000031

Mark, WSB

B241800000032

Mark, WSB

B241800000033

Mark, WSB

B241800000034

Mark, WSB
