Part No. |
Description |
|
A820301020689 |
Shaft, rotating |
|
A820301020690 |
Shaft, pin |
|
A210111000119 |
Bolt M12x45 10.9 |
|
10575078 |
Block, retaining |
|
A820102010538 |
Washer |
|
A221500000196 |
Bearing, rubber |
|
A820202003381 |
Sleeve, shaft |
|
A820101314705 |
Baffle, sliding block |
|
A820699000475 |
Block, sliding, upper |
|
A820101314675 |
Gasket, adjusting |
|
A820699000474 |
Block, sliding, lower |
|
A210401000001 |
Washer Lock M10 |
|
A210204000161 |
Bolt M10x25 Cap Screw |
|
A820101313648 |
Plate, bent, mounting, switch |
|
10423742 |
Lock, chain |
|
A820202003382 |
Sleeve, shaft |
|
A221500000197 |
Bearing, rubber |
|
A820102010533 |
Washer |
|
A210356000006 |
Nut |
|
A210491000023 |
Pin |
|
A820202003384 |
Sleeve, shaft |
|
A820201000724 |
Cover, end, bearing |
|
Part No. |
Description |
|
A221500000195 |
Bearing, joint |
|
A210401000002 |
Washer |
|
A210204000021 |
Bolt M12x30 Cap Screw |
|
A210405000001 |
Washer |
|
A210204000147 |
Screw M8×20GB70.1 |
|
Part No. |
Description |
|
10506526 |
Pin, oblique |
|
A820102010535 |
Washer, pin, oblique |
|
A210307000028 |
Nut |
|
A210401000004 |
Washer |
|
10892015 |
Shaft, pin, steering |
|
10612860 |
Rod, connecting, left |
|
A210307000030 |
Nut M24GB6170 |
|
A210405000009 |
Washer |
|
A210110000109 |
Bolt |
|
10268154 |
Block, counterweight, rear axle |
|
A210612000011 |
Bearing, joint |
|
10611642 |
Rod, connecting, right |
|
10423036 |
Assembly, pin shaft, connecting rod |
|
10507656 |
Assembly, pin shaft, connecting rod |
|
A210405000003 |
Washer |
|
A210111000212 |
Bolt M16x35 10.9 |
|
10421960 |
Cylinder, steering |
|
10421350 |
Beam, steering axle |
|
10431415 |
Assembly, locating pin, oil cylinder |
|
A210111000203 |
Bolt M12x35 |
|
A210113000274 |
Bolt |
|
A210401000011 |
Washer |
|
Part No. |
Description |
|
A210503000024 |
Pin |
|
10614439 |
Knuckle, steering |
|
Part No. |
Description |
|

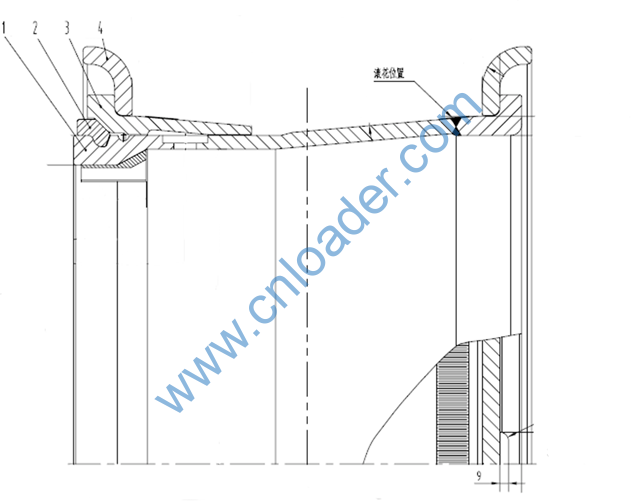

60120988 |
Body, rim |
|
60120997 |
Ring, lock |
|
60121014 |
Ring, seat |
|
60121006 |
Ring, retainer |
|
Part No. |
Description |
|
A229900003468 |
Nozzle, valve |
|
A229900003467 |
Nozzle, valve |
|
A229900003469 |
Nozzle, Valve |
|
Part No. |
Description |
|

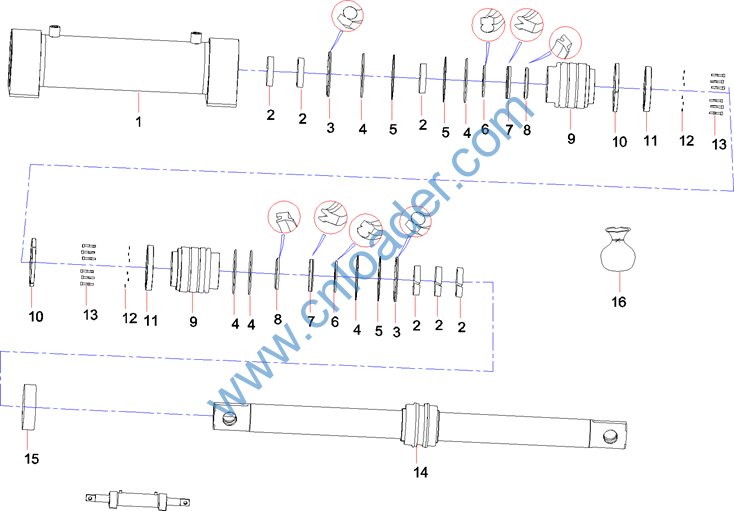

10421964 |
Components, cylinder barrel |
|
A880803040012 |
Guide ring 125×130×25 KT200 |
|
60124157 |
Ring, seal |
|
60011161 |
O-ring 187.5×5.3GB3452.1 |
|
10250757 |
Ring, Back-up |
|
13599577 |
seal ring 125×140.1×6.3 |
|
B230101002134 |
Ring, seal, ZBR |
|
60000474 |
Ring, dustproof, PWD |
|
10421956 |
Sleeve, guide |
|
10421958 |
Key, clipping |
|
10421959 |
Ring, retaining |
|
A210401000017 |
Washer Lock M8 |
|
24002398 |
Screw |
|
10421967 |
Components, piston rod |
|
A880806030154 |
Ring, Seal, MD |
|
10426731 |
Package, sealing parts, industrial art |
