Body,container reach stacker,RSC45C2 SANY WQC





Part No.

Description

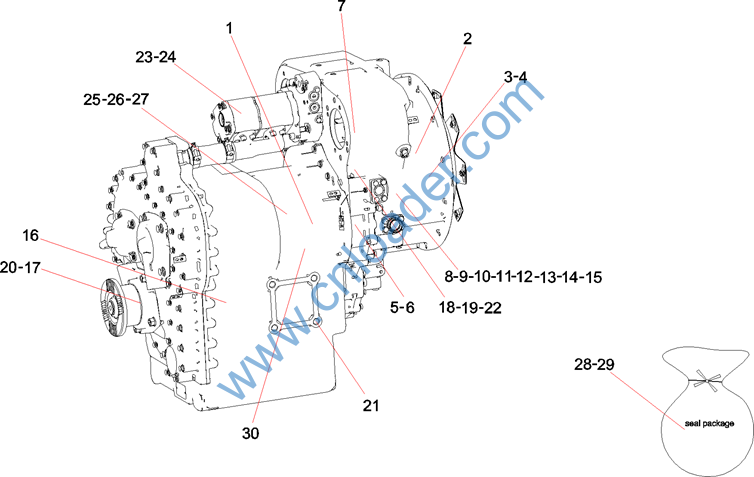

60138966

Components, housing, gearbox

60138967

Components, rear cover, gearbox

60140031

Shaft, turbine

60138822

Group, gear, power input end

60139513

Components, hub

60138447

Components, transmission plate

60139867

Components, drive pump support

60139839

Shaft, transmission, grade 2 3 4, front wheel driving

60138844

Group, gear, speed-change, grade 1

60139838

Shaft, clutch, forward gear

60139893

Shaft, clutch, speed-change, grade 3

60138840

Group, gear, speed-change, grade 3

60139319

Components, shaft, backward gear

60138916

Components, clutch, speed-change, grade 1

60138934

Components, clutch shaft, grade 3 4

60139145

Components, idler shaft

60139925

Components, output shaft

60138682

Components, pressure adjusting valve and feeding pump

60138721

Components, electric adjusting valve

60139923

Components, flange, output end

60138442

Components, transporting cover

60138738

Valve, pressure adjusting










Part No.

Description

60138654

Pump, prefill

60138719

Valve, adjusting, prefill pump

60138733

Components, cover, control valve box

60138722

Components, electric control valve

60138891

Filter, dual

60036527

Kit, repair, transmission case

60140286

Package, sealing parts, converter

60034280

Sensor, Speed (Gearbox Part)










Part No.

Description

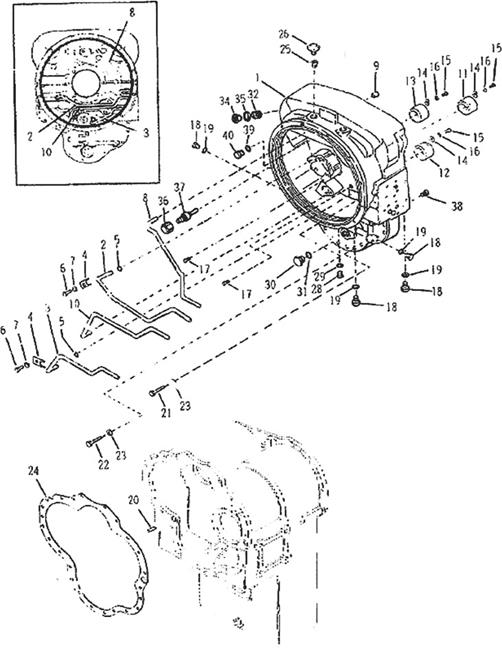

60099583

Body, shell, torque converter

60099675

Pipe, oil, forward gear

60099692

Pipe, oil, 4th gear

60099728

Clamp, fixing, oil pipe

60099742

O-ring

60099632

Screw, Cap

60099698

Washer, Lock

60099645

Pipe, oil supply, control valve

60099727

Bushing, oil pipe

60099683

Pipe, oil, 3rd gear

60099584

Sleeve, Converter Housing

60099586

Tube, sleeve, shell body, torque converter, 4th gear shaft

60099585

Tube, sleeve, shell body, torque converter, forward gear

60099607

Washer

60099632

Screw, Cap

60099698

Washer, Lock

60099508

Plug

60099780

Plug, hole, checking

60099750

O-ring

60099617

Pin, Dowel

60099587

Screw, Cap

60099635

Screw, fixing, rear cover










Part No.

Description

60099700

Washer, Lock

60099588

Pad, sealing, torque converter shell body to gearbox shell body

60121044

Sleeve, shaft

60099702

Breather

60099680

Plug, oil return, lubrication oil

60099752

O-ring

60099492

Plug

60099630

Gasket

60099695

Bushing, speed sensor

60099589

Gasket, thin

60099666

Plug, Screw

60099743

O-ring

60099571

Pin, mounting










Part No.

Description

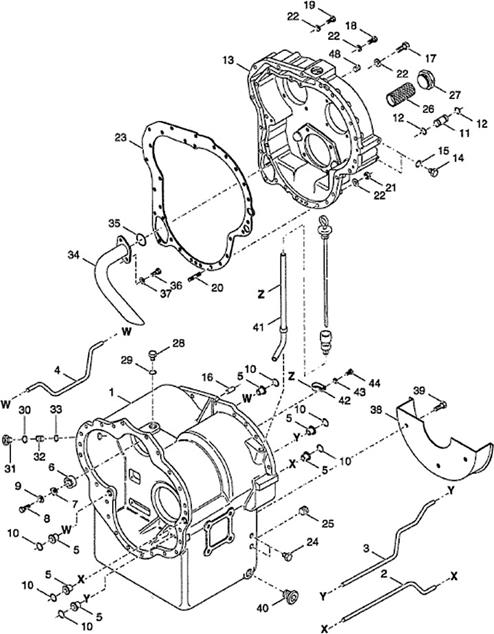

B229900002896

Body, shell

60099717

Pipe, oil, 1st gear clutch

60099722

Pipe, lubrication oil pipe, rear bearing, 1st gear shaft

60099682

Pipe, oil, 3rd gear

60099727

Bushing, oil pipe

60099697

Bushing, lock

60099607

Washer

60099632

Screw, Cap

60099698

Washer, Lock

60099744

O-ring

60099779

Pipe, transmission, 1st gear clutch oil pipe and lubrication oil

60099747

O-ring

60099634

Cover, rear

60099571

Pin, mounting

60099751

O-ring

60099617

Pin, Dowel

60099637

Screw, fixing, rear cover

60099636

Screw, fixing, rear cover

60099635

Screw, fixing, rear cover

60121041

Stud

60099640

Nut

60099700

Washer, Lock










Part No.

Description

60099638

Pad, sealing, rear cover to shell body

60099781

Plug, Oil Level

60099669

Plug, oil exhaust

60099660

Assembly, filter screen

60099661

Plug, assembly, filter screen

60099571

Pin, mounting

60099751

O-ring

60099743

O-ring

60099666

Plug, Screw

60099695

Bushing, speed sensor

60099589

Gasket, thin

60099777

Assembly, air intake pipe

60099745

O-ring

60099662

Screw

60099699

Washer, Lock

60099597

Baffle

60099598

Screw, retainer plate

60099726

Plug, dipstick hole

60099501

Pipe, dipstick

60099659

Clamp, dipstick pipe

60099699

Washer, Lock

60099662

Screw








Part No.

Description

60099603

Screw, guide wheel seat

60099701

Washer, Lock

60099604

Assembly, guide wheel seat

60099582

Pipe, oil intake, torque converter

60099773

Seal, oil, turbine shaft

60099730

Ring, locating, bearing

60099729

Washer, bearing

60121019

Bearing

60099760

Ring, Piston

60099759

Seal, Oil Retainer Disc

60099758

Ring, sealing, oil retainer disc

60099490

Disc, oil retainer

60099599

Ring, clamp, oil retainer disc

60099546

Bearing, rear, turbine shaft












Part No.

Description

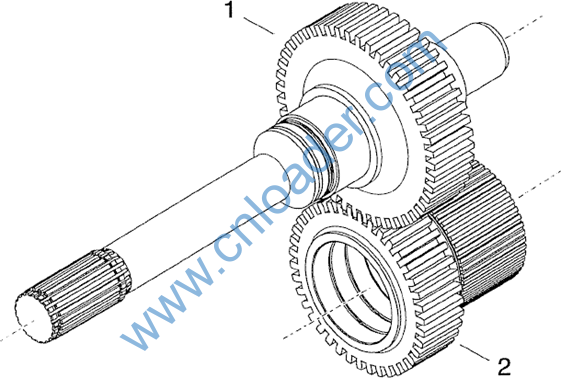

60099707

Shaft, turbine

60099561

Gear, driving, oil pump
