Part No. |
Description |
|
21021297 |
Screw |
|
13295491 |
Thimble |
|
12830208 |
Bushing |
|
60197234 |
Bearing, rolling |
|
13416055 |
Board |
|
A210804000002 |
Zerk, Grease |
|
13544363 |
Board |
|
Part No. |
Description |
|
A210307000017 |
Nut |
|
A210111000203 |
Bolt M12x35 |
|
A210401000002 |
Washer |
|
A210405000001 |
Washer |
|
11250059 |
Cylinder, moving, right |
|
12805036 |
Ring, retaining |
|
10856971 |
Roller |
|
A210310000019 |
Nut |
|
10120851 |
Assembly, front earring seat |
|
13552549 |
Component, guide wheel |
|
12760048 |
Components, connecting |
|
12835398 |
Pad, adjusting |
|
13462558 |
Components, plate |
|
12863195 |
Shaft, pin |
|
A820301020089 |
Pin, cross |
|
A210111000119 |
Bolt M12x45 10.9 |
|
A210307000031 |
Nut M12GB6170 10 |
|
13580970 |
Board |
|
Part No. |
Description |
|
13499487 |
Components, guide wheel shaft |
|
A210405000009 |
Washer |
|
A210401000008 |
Washer Lock M24 |
|
A210307000030 |
Nut M24GB6170 |
|
10975471 |
Wheel, guide |
|
Part No. |
Description |
|
A210204000008 |
Screw M10×40GB70.1 |
|
A210401000001 |
Washer Lock M10 |
|
10710101 |
Components, seat |
|

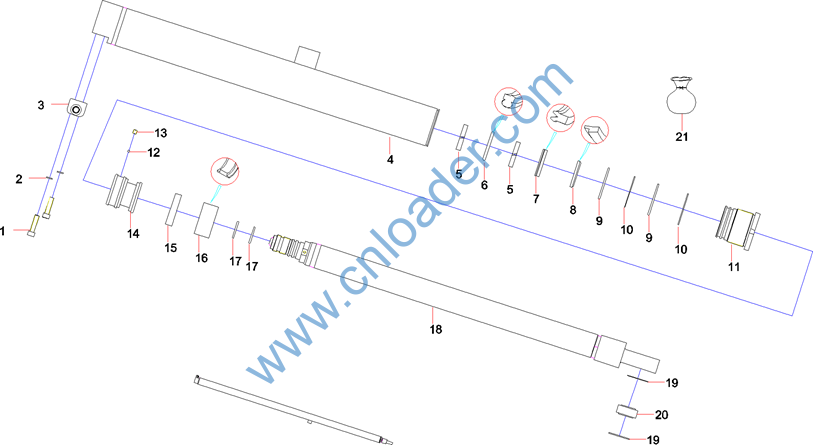

11250060 |
Assembly, cylinder barrel |
|
B230101001494 |
Ring, Wear |
|
B230101001497 |
Seal M55x70.1×6.3 |
|
B230101002121 |
Seal M55x65x10 |
|
B230101001682 |
Seal, Dust, PW |
|
A210609000134 |
O-ring |
|
10250780 |
Ring, Snap |
|
10096737 |
Sleeve, guide |
|
A210661000016 |
Ball, steel |
|
A210206000003 |
Screw |
|
10096745 |
Piston |
|
B230101001492 |
Ring, guide, UP |
|
B230101001573 |
Ring, seal, MD |
|
A210609000272 |
O-ring M33.5×3.55 |
|
10710088 |
Assembly, piston rod |
|
A210416000039 |
Ring, Snap |
|
A221500000035 |
Bearing, Joint |
|
11259569 |
Package, sealing parts, industrial art |
|
Part No. |
Description |
|
13551492 |
Components, guide wheel shaft |
|
A210405000009 |
Washer |
|
A210401000008 |
Washer Lock M24 |
|
A210307000030 |
Nut M24GB6170 |
|
10975471 |
Wheel, guide |
|
Part No. |
Description |
|

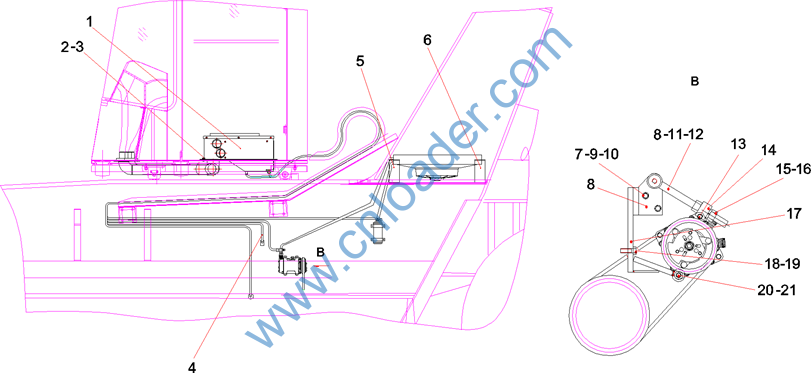

60117914 |
Assembly, air conditioner |
|
A210204000181 |
Screw |
|
A210401000001 |
Washer Lock M10 |
|
A230103000012 |
Hose, vapor |
|
11783411 |
Support, left |
|
11783412 |
Support, right |
|
A210307000017 |
Nut |
|
10025809 |
Seat, mounting |
|
A210111000023 |
Bolt M10x30 |
|
A210307000017 |
Nut |
|
10135045 |
Bolt, movable joint |
|
A210111000029 |
Bolt M10x50 |
|
A210111000003 |
Bolt |
|
10135044 |
Stake, articulated |
|
A210307000040 |
Nut |
|
A210401000004 |
Washer |
|
10025806 |
Support, compressor |
|
21005351 |
Bolt M8×45GB5783 |
|
A210405000007 |
Washer Flat M8 |
|
10365031 |
Bolt, connecting |
|
A210401000017 |
Washer Lock M8 |
