Part No. |
Description |
|

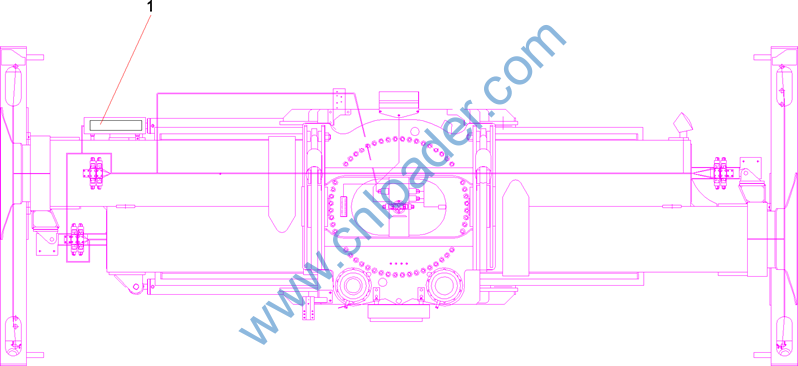

10451446 |
Diagram, number and function, spreader |
|

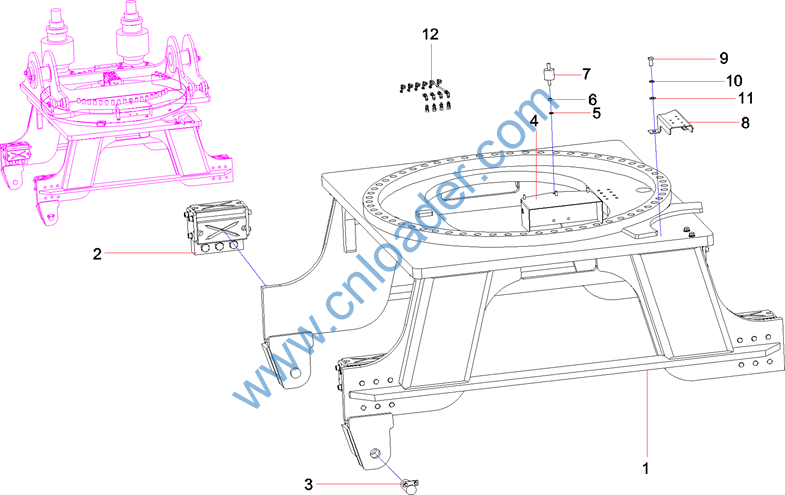

Part No. |
Description |
|
A810421000787 |
Turntable, lower |
|
A810314000009 |
Assembly, sliding block |
|
A810421000799 |
Assembly, pin shaft |
|
A810497000955 |
Cover, indicator lamp |
|
A210405000007 |
Washer Flat M8 |
|
A210307000012 |
Nut |
|
12187870 |
Stud, bamper |
|
A820101328024 |
Support, pipeline |
|
A210111000101 |
Bolt M12×25GB5783 10.9 |
|
A210401000002 |
Washer |
|
A210405000001 |
Washer |
|
11783402 |
Assembly, pipeline, lubrication oil |
|

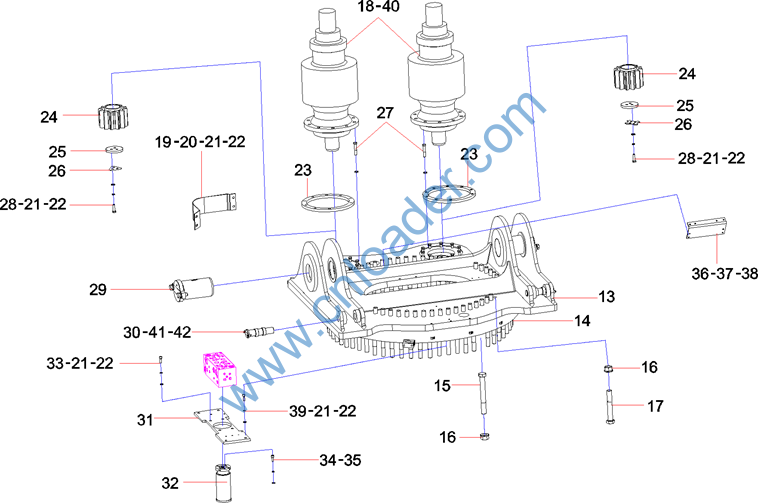

Part No. |
Description |
|
11733318 |
Turntable, upper |
|
11135150 |
Bearing, slewing |
|
A210110000213 |
Bolt M24×200GB5782 10.9 |
|
A229900007632 |
Nut |
|
A210110000260 |
Bolt M24×160GB5782 10.9 |
|

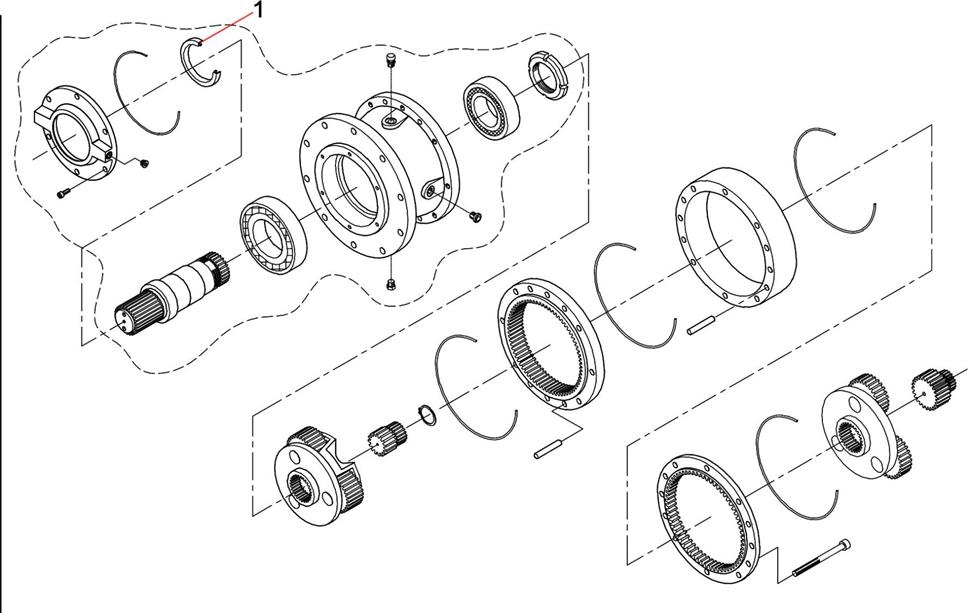

60136999 |
Reductor |
|
A820101328023 |
Baffle, gear, reductor |
|
A210111000011 |
Washer Lock M10 |
|
A210401000001 |
Washer Lock M10 |
|
A210405000011 |
Washer Flat M10 |
|
10265981 |
Ring, nut |
|
A820210000292 |
Gear, small |
|
13016694 |
Plate, pressure |
|
13016697 |
Plate, pressure |
|
A210111000103 |
Bolt M12×60GB5783 10.9 |
|
A210111000293 |
Bolt M8x30 |
|
13196906 |
Shaft, pin, connecting |
|
A810421000800 |
Assembly, pin shaft |
|
A820101328029 |
Plate, connecting, slewing joint |
|
A229900005468 |
Joint, slewing |
|
A210111000023 |
Bolt M10x30 |
|
A210111000323 |
Bolt |
|
Part No. |
Description |
|
A210401000017 |
Washer Lock M8 |
|
10023667 |
Seat, rope-fastening |
|
A210204000129 |
Screw M6×12GB70.1 |
|
A210401000016 |
Washer Lock M6 |
|
A210111000027 |
Bolt M10×40GB5783 |
|
60006613 |
Motor, gerotor |
|
A210804000002 |
Zerk, Grease |
|
A210111000108 |
Bolt M20×50GB5783 |
|

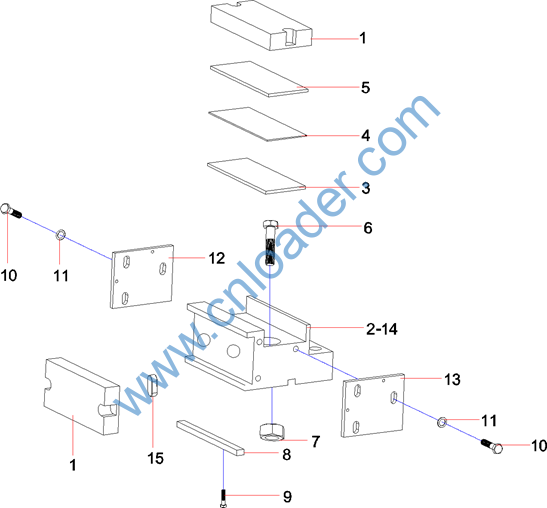

Part No. |
Description |
|
A820699000681 |
Block, sliding |
|
A820101328184 |
Support, main body |
|
A820101328185 |
Plate, backup |
|
A820101331192 |
Plate, backup |
|
A820101339720 |
Gasket |
|
A210110000205 |
Bolt |
|
A229900007631 |
Nut |
|
A820101328187 |
Key, square |
|
A210204000220 |
Screw M8×20GB70.1 10.9 |
|
A210204000337 |
Bolt M12x30 Cap Screw |
|
A210405000001 |
Washer |
|
10180747 |
Components, end baffle |
|
10182627 |
Components, end baffle |
|
10971562 |
Key, 1 |
|
10971566 |
Key, 2 |
|

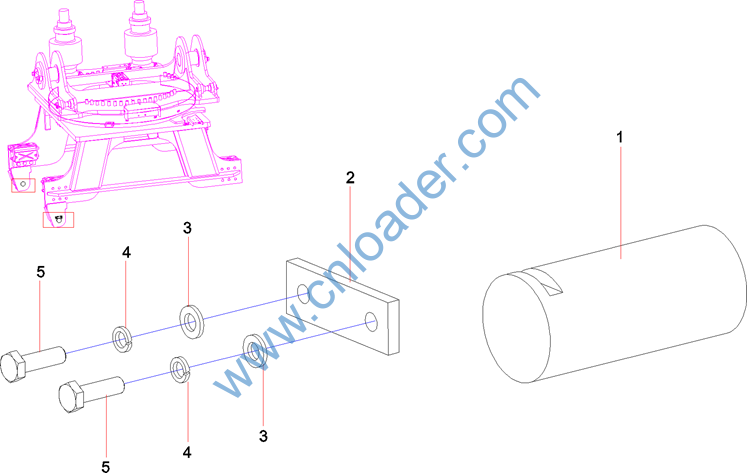

Item No. |
Part No. |
Description |
Qty. |
Remark |
|
1 |
A820301015781 |
Shaft, connecting, side-shifting cylinder |
1000 |
|
|
2 |
A820101339664 |
Plate, lock |
1000 |
|
|
3 |
A210405000006 |
Washer Flat M6 |
2000 |
|
|
4 |
A210401000016 |
Washer Lock M6 |
2000 |
|
|
5 |
A210111000080 |
Bolt M6x20 |
2000 |
|

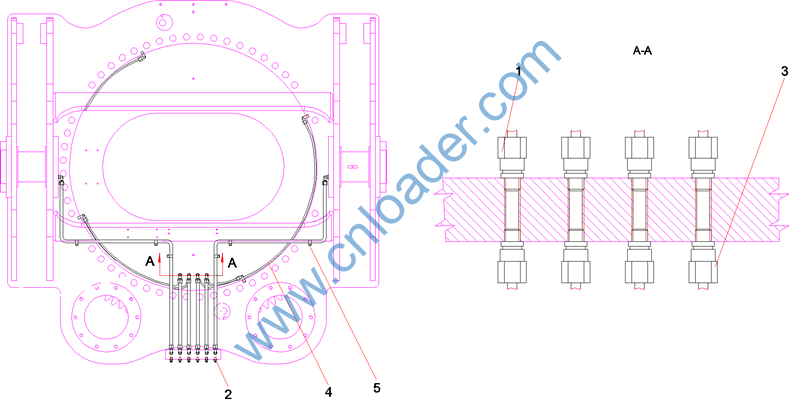

Part No. |
Description |
|
A210770000195 |
Connector, pipe |
|
A210804000002 |
Zerk, Grease |
|
A210711000010 |
Connector |
|
11783389 |
Pipe, oil |
|
A229900010155 |
Clamp |
