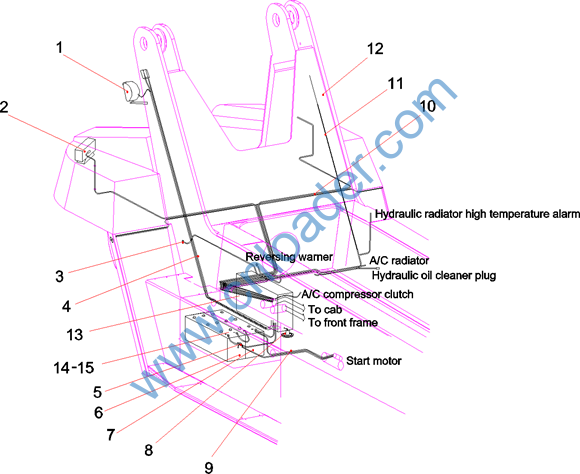

Body,container reach stacker,RSC45C2 SANY WVD








Part No.

Description

12895470

Lamp, halogen

12901982

Lamp, tail, LED

12916541

Switch, proximity

12893891

Harness, diagonal boom

60143816

Switch, power supply

12934743

Battery

12906703

Harness, engine

12912669

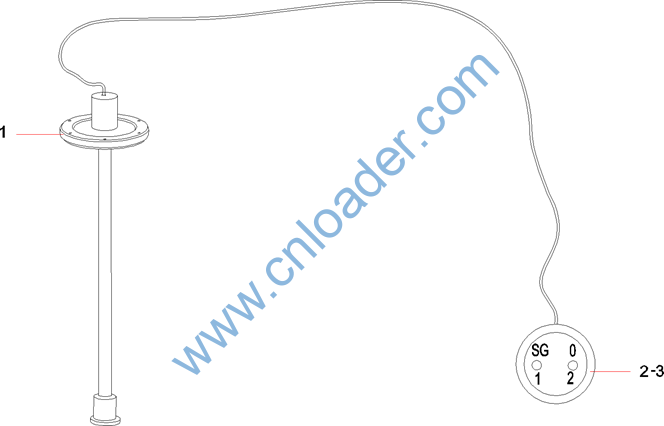

Sensor, liquid level

12905324

Harness, power

12904502

Handle, rear, frame

A810201055737

Diagram, assembling, cable support, frame body

12912580

Horn, polyphonic

60210957

Relay

60154916

Terminals, copper tube

60062765

Terminal, connection, copper










Part No.

Description

12893735

Harness, torque converter, gear shifter

60165334

Clamp, Tube, Single

60111064

Nut

A210204000139

Screw M6×60GB70.1

13654076

Clamp, fastening

13654056

Clamp, fastening

12912575

Horn

12901989

Headlight, front

12901990

Lamp, mark, side, LED

12904869

Handle, middle front, frame

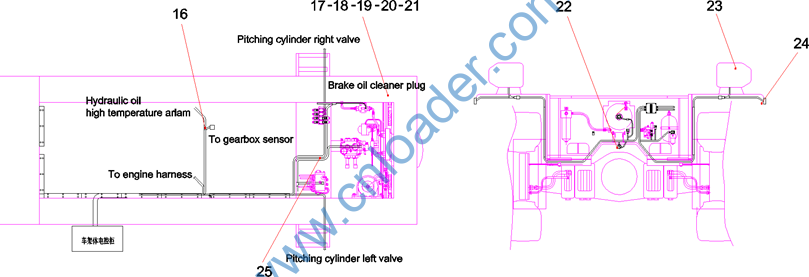

Part No.

Description

12893625

Harness, drag-chain, 3

12893282

Harness, drag-chain, 1

12893508

Harness, drag-chain, 2

B229900002528

Plug

B229900001096

Seal, Plug

12912717

Sensor, temperature

12895956

Assembly, electric control cabinet, frame

12912737

Sensor, pressure

12912711

Sensor, temperature

12912754

Sensor, pressure

13289779

Welding, clamp, frame body

13000731

Lists, configuration, Cummins

60119462

Band, dual loop, black








Part No.

Description

60198785

Lamp, working








Part No.

Description

B241100000446

Lamp, tail, LED

B241100000447

Lamp, turn signal, LED

A239900000561

Loom, Wire

B241200000606

Receptacle, 6-pin

B249900000288

Pin

A249900001140

Lock, 6-position Receptacle

60120499

Tail, socket, 6-wire

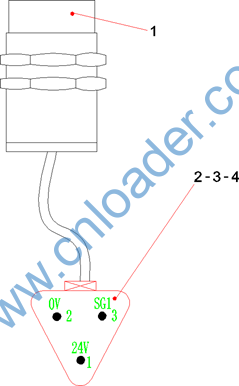

Part No.

Description

B241200000884

Switch, Proximity

B241200000591

Receptacle, 3-pin

B241200000603

Lock, 3-position Plug

B249900000288

Pin










Part No.

Description

60213973

Battery

12495271

Plate, pressure, battery
