Body,container reach stacker,RSC45C2 SANY WVE








Part No.

Description

12920644

Assembly, electric control cabinet, cab

12895249

Harness, panel, right

12907967

Assembly, operation panel, right

12895244

Harness, front panel

12907041

Assembly, front operation panel

12894959

Harness, air conditioning

A241200000698

Switch, lamp, brake

13014972

Pedal, accelerator

12894939

Harness, steering gear

12907176

Assembly, operation, steering gear

13016751

Harness, rear top, cab








Part No.

Description

12890524

Layout, electric control cabinet, cab










Part No.

Description

A241200000220

Breaker, plastic housing

A241200000221

Breaker, monopole

A242000000307

Plate, end and spacer

A242000000303

Terminal

60208346

Jumper, high-low

60208347

Plate, spacer

21001517

Terminal, connection

A241900000042

Wire

A242000000381

Teminal, wiring

B241300000020

Fuse

B241300000021

Fuse

23003013

Jumper, adjacent

60035696

Duct, cabling

A241600000022

Rail, clamp

A242000000382

Terminal, diode

A242300000406

Resistance, plug-in parts

B240700000265

Relay, Intermittent, Wiper

A810299000589

Harness, wire, terminal

A810201206151

Assembly, I/O module, SANY

A810299000548

Assembly, change-over plate, reach stacker, Sany Port

12561952

Busbar, copper, grounding, empty container handler

B240700000399

Relay, intermediate










Part No.

Description

B240700000395

Seat, relay

B241600000002

Clip

B240700000114

Relay, intermediate

B240700000125

Relay seat

A241900000152

Wire

A241900000038

Wire

A239900000052

Strap, nylon

A242000000390

Terminal

60183141

Joint, hose with lock

60183802

Nut, nylon

60208151

Fixer, terminal

60208152

Terminal, connection

60208153

Baffle, combinable socket

60208154

Terminal, connection

B241800000030

Mark, WSB

B242000000013

Jumper, adjacent

A241600000002

Rail










Part No.

Description

B241900000020

Busbar, copper










Part No.

Description

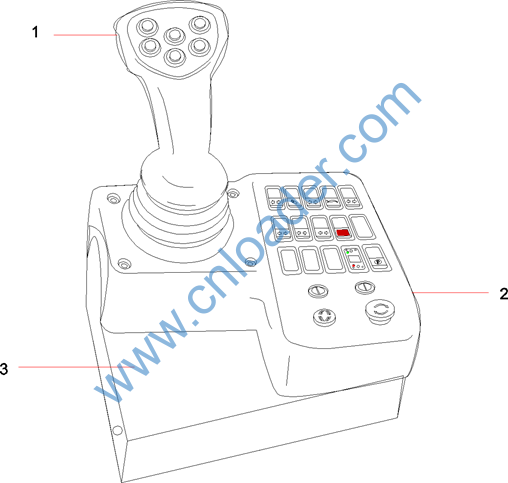

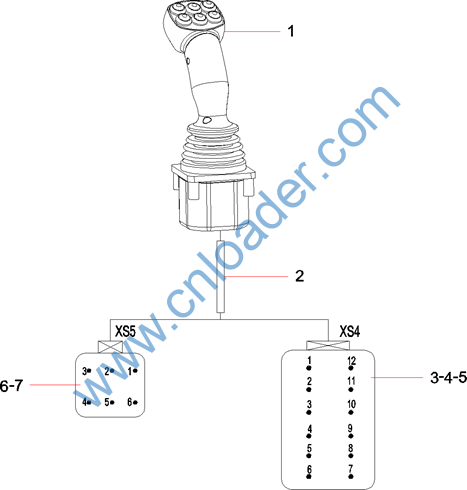

12907177

Assembly, Joystick

12907741

Layout, panel, right

12907942

Diagram, wiring, operation panel, right
