Body,container reach stacker,RSC45C2 SANY WVD

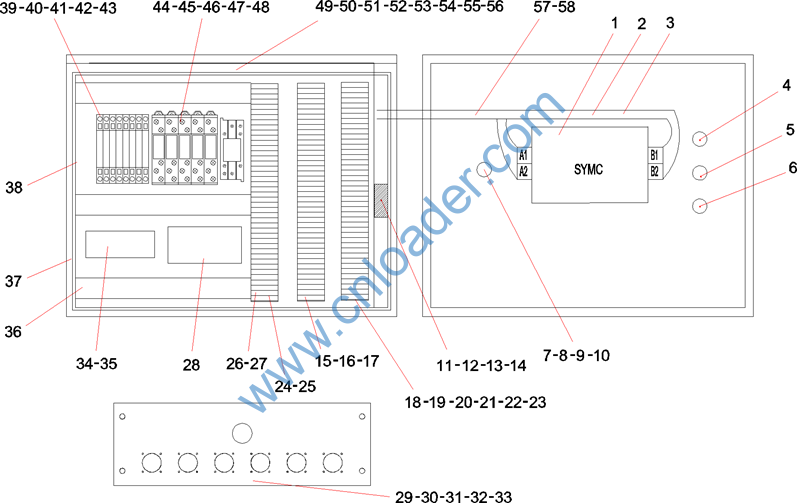

Part No.

Description

B241800000035

Mark, WSB

A241900000055

Wire

A242000000390

Terminal

A241900000152

Wire

A242000000013

Terminal

A810299000548

Assembly, change-over plate, reach stacker, Sany Port

A241200001143

Receptacle, 32-position

60028683

Receptacle, 31-pin

A241000000290

Pin

A241000000291

Pin

11619369

Pad, rubber

12561952

Busbar, copper, grounding, empty container handler

60162155

Terminal, copper wire, peephole

60035696

Duct, cabling

12617045

Cabinet, electric control

A241600000022

Rail, clamp

A242000000381

Teminal, wiring

B241300000022

Fuse

B241300000021

Fuse

B241300000024

Fuse

23003013

Jumper, adjacent

B240700000399

Relay, intermediate

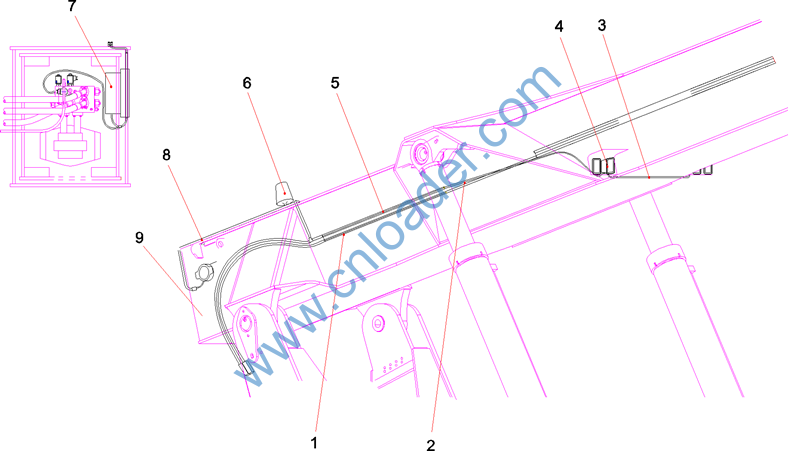

Part No.

Description

B240700000395

Seat, relay

B240700000114

Relay, intermediate

B240700000125

Relay seat

B241600000002

Clip

A210210000015

Screw

A239900000051

Strap, nylon

60016006

Lamp, working

B241200000582

Receptacle, 2-pin

A249900001139

Lock, 2-pin

B249900000288

Pin

B241200000590

Plug, 2-pin

60154916

Terminals, copper tube

B241200000584

Lock, 2-pin

B229900001093

Socket

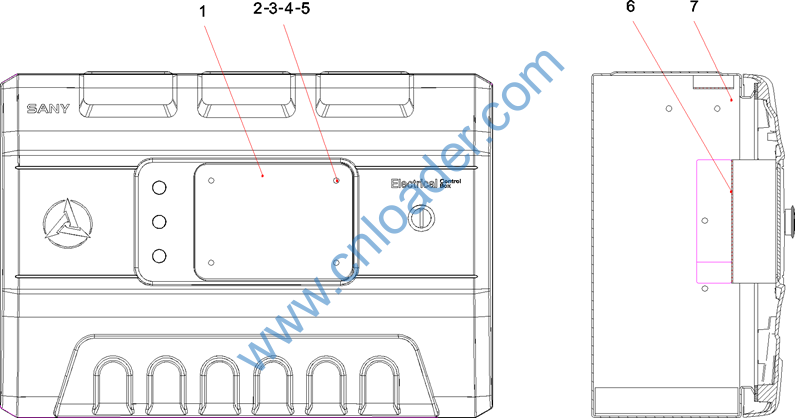

Part No.

Description

12495272

Plate

A210211000008

Screw M6×20GB819.1

A210401000016

Washer Lock M6

A210307000016

Nut

A210405000006

Washer Flat M6

12583793

Plate, mounting, controller

12616326

Cabinet, electric control

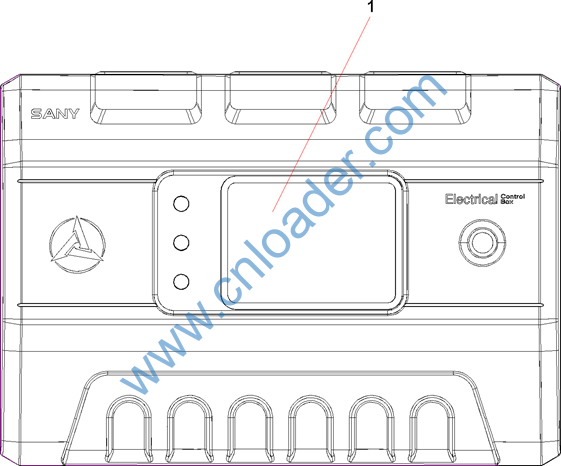

Part No.

Description

11646358

Cabinet, electric control

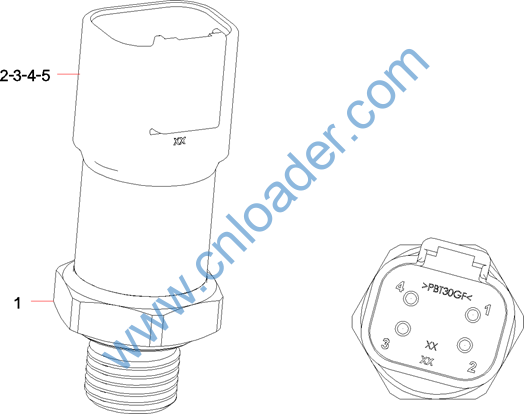

Part No.

Description

60265484

Sensor, pressure

A241200001134

Socket, rectangle, 4-core

B241200000586

Lock, 4-pin

60247805

Sleeve, protective, 4-pin plug

B229900001093

Socket

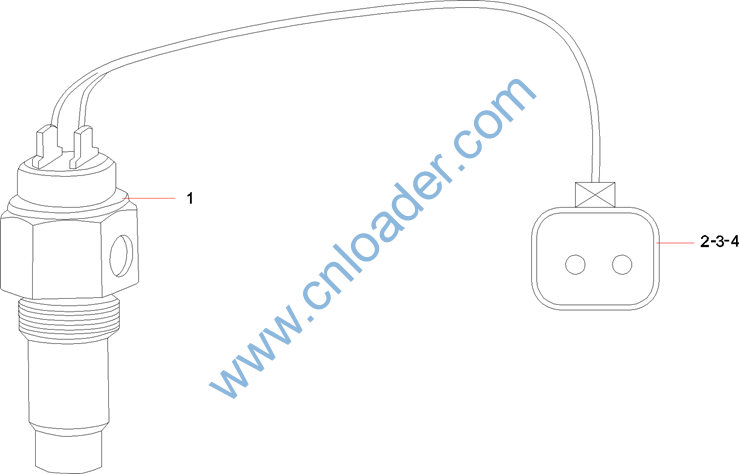

Part No.

Description

B240600000172

Sensor, temperature

B241200000582

Receptacle, 2-pin

B249900000288

Pin

A249900001139

Lock, 2-pin








Part No.

Description

67301761

Sensor, pressure

A241200001134

Socket, rectangle, 4-core

B241200000586

Lock, 4-pin

60247805

Sleeve, protective, 4-pin plug

B229900001093

Socket
