Body,container reach stacker,RSC45C2 SANY WQA

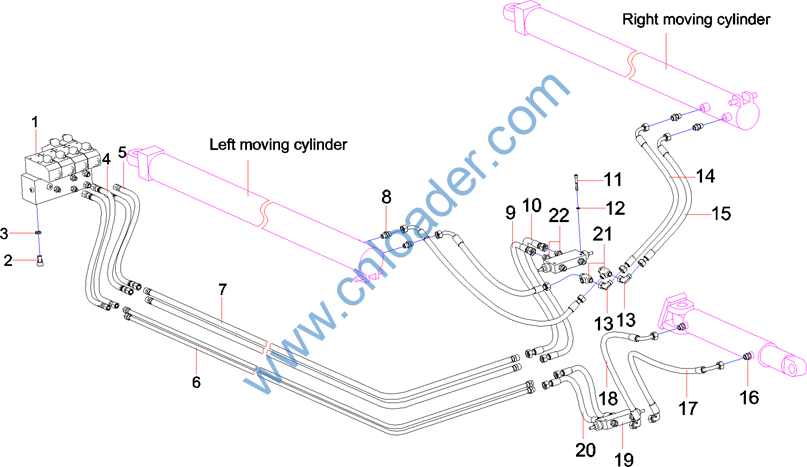

Part No.

Description

12105786

Group, movable valve

A210204000196

Screw

A210401000001

Washer Lock M10

B230103006930

Hose, rubber

B230103006930

Hose, rubber

12070845

Pipe, steel, connection, shift, counterweight

10213222

Pipe, steel

B210780000847

Fitting 31×21×18mm

B230103005168

Hose Assembly

B230103000089

Hose, rubber

A210204000136

Screw M6×45GB70.1

A210401000016

Washer Lock M6

B210780000024

Fitting, Elbow

B230103002390

Hose Assembly

60004179

Hose, rubber

B210780000698

End straight adaptor

60156807

Hose, rubber

B230103003874

Hose, Assembly, Hydraulic

B220401000028

Valve, balance, double-direction, pipe type

B230103000446

Hose, rubber

B210780000016

Fitting, Tee

B210780000180

Connector

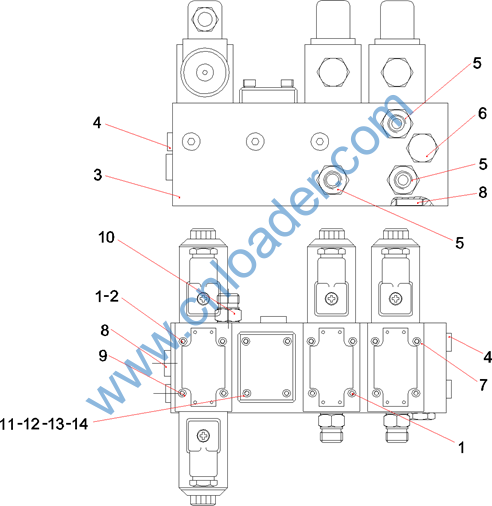

Part No.

Description

A210204000119

Screw M5×30GB70.1

60059724

Valve, reversal, electromagnetic

A820199003193

Block, moveable valve

B210399000003

Plug 14×14×12mm

B210780000036

Fitting 30×21×18mm

B220401000046

Valve, shuttle

60155035

Valve, reversal, electromagnetic

B210780000201

Plug 20×20×20mm

A820601020466

Cover, waterproof

B210780000232

Fitting 30×21×18mm

12105680

Plate, cover

A210401000015

Washer Flat M5

A210204000117

Screw M5×20GB70.1

A210609000091

O-ring

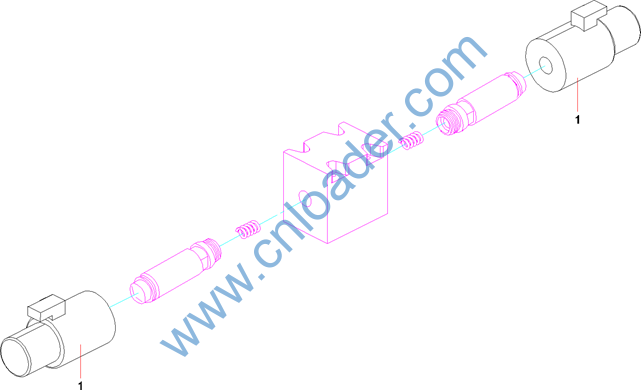

Part No.

Description

60118389

Electromagnetic valve coil

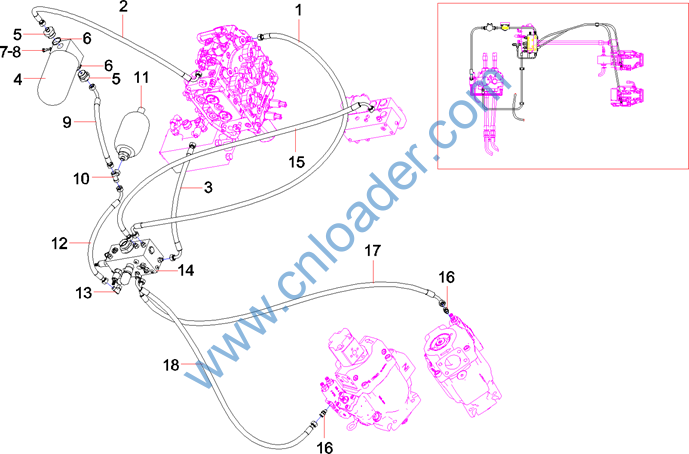

Part No.

Description

B230103007032

Hose, rubber

B230103000475

Rubber hose

B230103000477

Hose Assembly

A222100000128

Filter, pressurized oil

A820205001857

Body, joint

A210434000015

Washer

A210204000262

Screw

A210401000001

Washer Lock M10

60071658

Hose Assembly

B210780000631

Fitting 35×45×20mm

13424467

Assembly, pilot accumulator

B230103000475

Rubber hose

B210780000636

Fitting 36×32×18mm

12947074

Group, pilot valve

B230103000465

Hose Assembly

B210780001286

Fitting 35×20×20mm

B230103005270

Hose, rubber

B230103001702

Hose Assembly

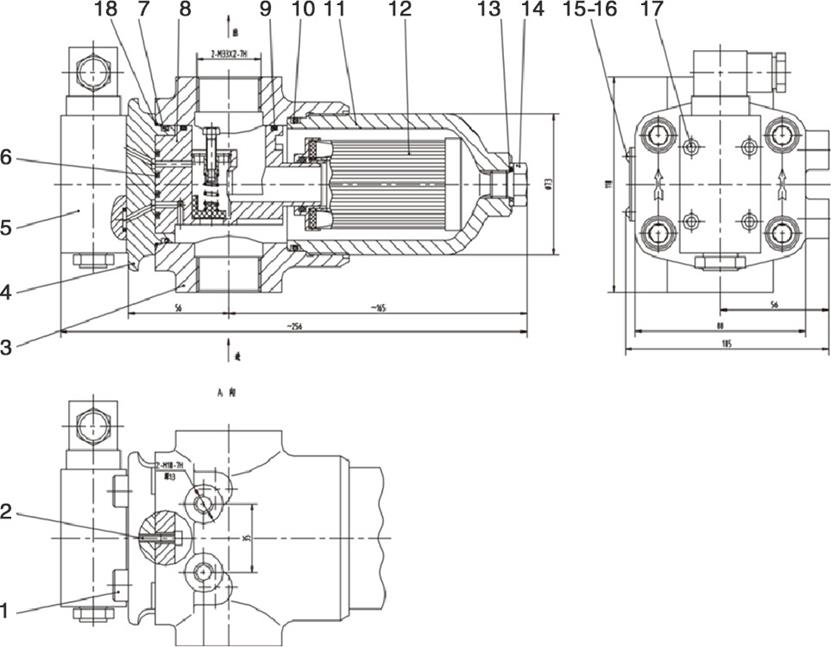

Part No.

Description

A210204000197

Bolt M10x40 Cap Screw

A210204000258

Bolt M4x16 Cap Screw

60136463

Head, filter

60136460

Cover

A240500000033

Transmitter, CMS

29001672

O-ring

A210609000199

O-ring

60136468

Valve, bypass

A210608000074

O-ring

A210609000132

O-ring 61.5×3.55GB3452.1

60136476

Body, shell

A222100000148

Element, filter

A210434000007

Washer

A210333000010

Plug

60136489

Label

A210510000010

Rivet

A210204000120

Screw M5×35GB70.1

60136486

O-ring

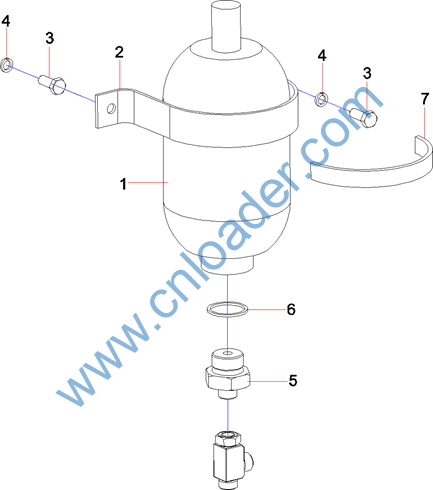

Part No.

Description

B229900000045

Accumulator

A820101320714

Plate, mounting

A210111000089

Bolt M8X20

A210401000017

Washer Lock M8

A820205001856

Body, joint

A210434000013

Washer

13424466

Sleeve, protective, rubber

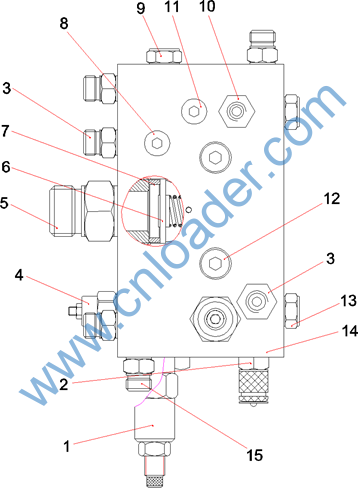

Part No.

Description

B220401000105

Valve, overflow

B210770000084

Connector, pressure measuring

B210780000036

Fitting 30×21×18mm

B220401000536

Valve, pressure reducing

B210780000053

Fitting, Adapter

B220400000421

Core, valve, check valve

10056401

Sleeve, clamp

B210780000201

Plug 20×20×20mm

B220401000046

Valve, shuttle

B210780001286

Fitting 35×20×20mm

B210780000609

Plug

A210204000031

Screw M12×90GB70.1

B220401000539

Valve, check

12947032

Block, pilot valve

B210780000232

Fitting 30×21×18mm
