Body,container reach stacker,RSC45C2 SANY SWA

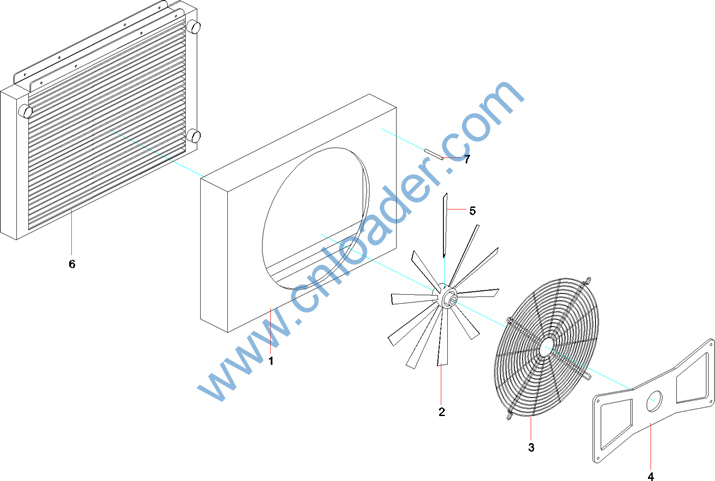

Part No.

Description

60004227

Shroud

B249900000947

Fan

60004228

Guard, Fan

60004226

Plate, Mounting, Motor

B229900002382

Blade, Fan

60136520

Cooler

B241200000833

Switch, Temperature

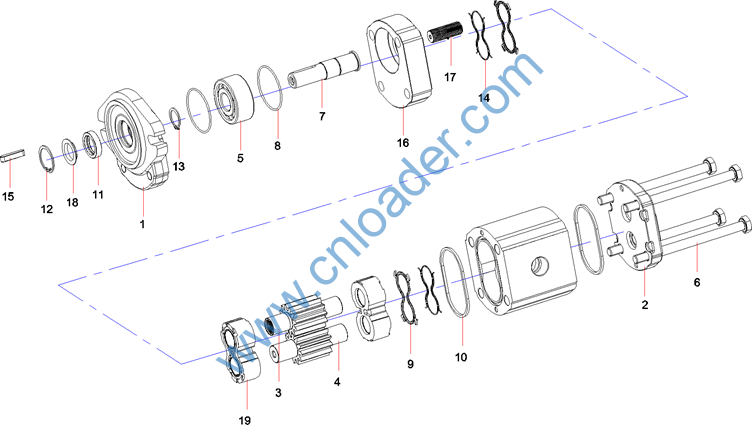

Part No.

Description

60107554

Cover, Front

60107625

Cover, Rear

60107578

Gear, Driving

60107577

Gear, Driving

60123686

Bearing, Ball

21008534

Screw

60107662

Rod, Backup

60107673

O-ring

60107645

Seal

60107544

Ring, Sealing

60107677

Seal

60107547

Ring

60107546

Ring

60107617

Gasket

60107658

Pin

60107616

Flange

60107627

Shaft, Spline

60107661

Washer, Thrust

60107663

Body, Thrust, Gear Pump

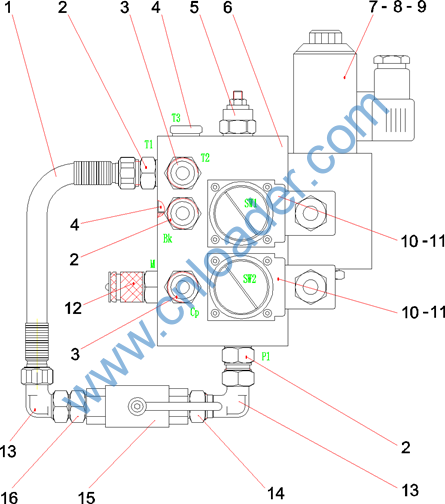

Part No.

Description

B230103003291

Hose, rubber

B210780000036

Fitting 30×21×18mm

B210780000232

Fitting 30×21×18mm

B210399000003

Plug 14×14×12mm

60155029

Valve, overflow

13123193

Block, brake control valve

A210204000119

Screw M5×30GB70.1

60155035

Valve, reversal, electromagnetic

A820601020466

Cover, waterproof

A210204000219

Screw M5×70(GB70.1) 10.9

B240700000131

Relay, pressure

B210770000084

Connector, pressure measuring

B210780000636

Fitting 36×32×18mm

B210780000167

Connector

B220401000263

Valve, ball

B210780000733

Fitting 30×19×21mm










Part No.

Description

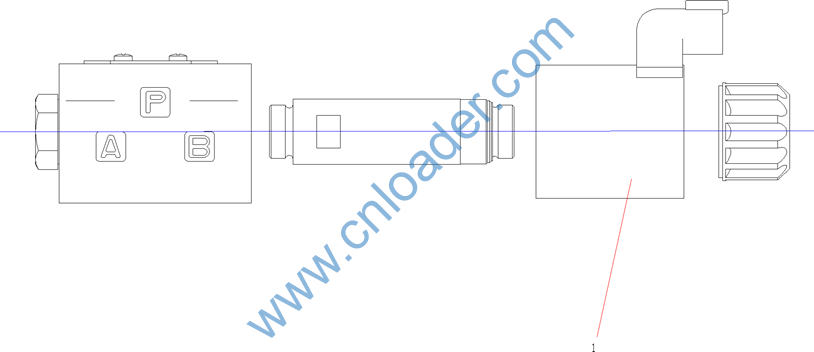

60309807

Coil

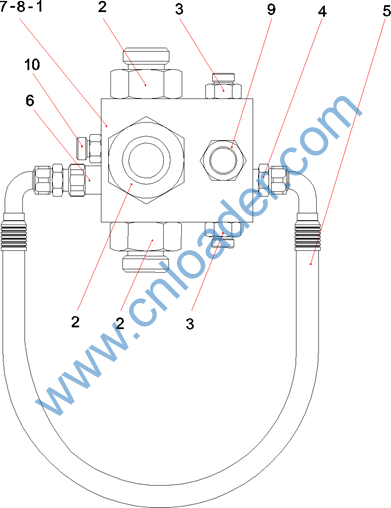

Part No.

Description

A820199002902

Block, oil connecting

B210780000054

Fitting 57×52×50mm

B210780000712

Fitting 38×31×36mm

B210780000040

Fitting 32×27×23mm

B230103002456

Hose, rubber

B220400000106

Valve, check

A210111000089

Bolt M8X20

A210401000017

Washer Lock M8

B210780000131

Fitting 36×30×26mm

B210780000228

Fitting 24×24×25mm

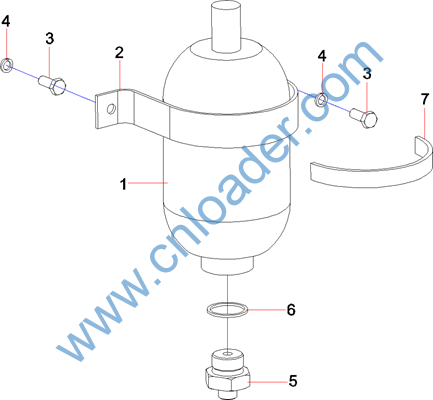

Part No.

Description

24004982

Accumulator

10996273

Clip, accumulator

A210204000196

Screw

A210401000001

Washer Lock M10

13389331

Joint, transition, accumulator

A210434000018

Plug Seal

A820601020473

Sleeve, protective, rubber

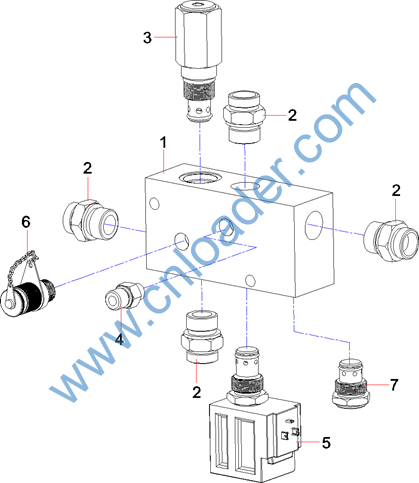

Part No.

Description

A829900002452

Block, cooling switching valve

B210780000131

Fitting 36×30×26mm

B220400000083

Valve, overflow

B210780000201

Plug 20×20×20mm

B220400000182

Valve, reversal, electromagnetic

B210770000084

Connector, pressure measuring

B220401000539

Valve, check
