Body,container reach stacker,RSC45C2 SANY SVE










Part No.

Description

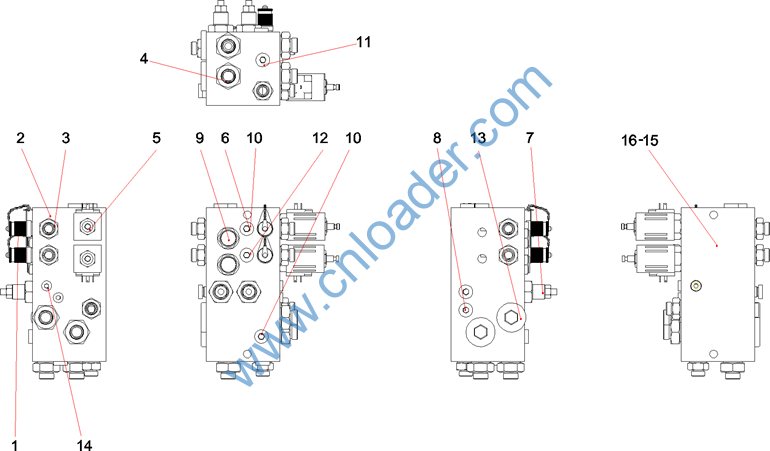

13288264

Block, valve, telescopic

B210770000003

Connector, pressure measuring

B210399000003

Plug 14×14×12mm

B220401000544

Valve, logic

B210780001384

Plug 26×26×19mm

60338455

Electromagnetic Reversing Valve

B210780000036

Fitting 30×21×18mm

B220401000497

Valve, reversal, electromagnetic

A210609000121

O-ring

B220401000540

Valve, Check

60338458

Electromagnetic Reversing Valve

B220401000533

Valve, balance

B220401000546

Valve, trottle, one-way

12217657

Plug, screw, damping

B210399000005

Plug 32×32×21mm

12217584

Plug, screw, damping

B210780000201

Plug 20×20×20mm

B210780000799

Plug








Part No.

Description

B220401000542

Valve, reversal, electromagnetic

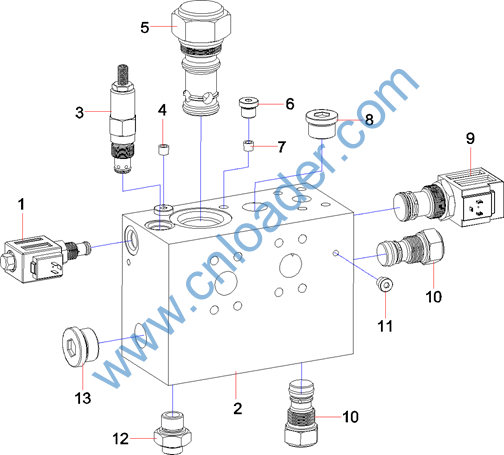

12853387

Block, valve, lifting, right

B210780000799

Plug

B210780000201

Plug 20×20×20mm

12217584

Plug, screw, damping

B220401000544

Valve, logic

12066238

Plug, damping

60155029

Valve, overflow

60338455

Electromagnetic Reversing Valve

B210780000896

Plug 45×45×25mm

B210780000899

Fitting, Adapter

B220401000540

Valve, Check

B210399000003

Plug 14×14×12mm










Part No.

Description

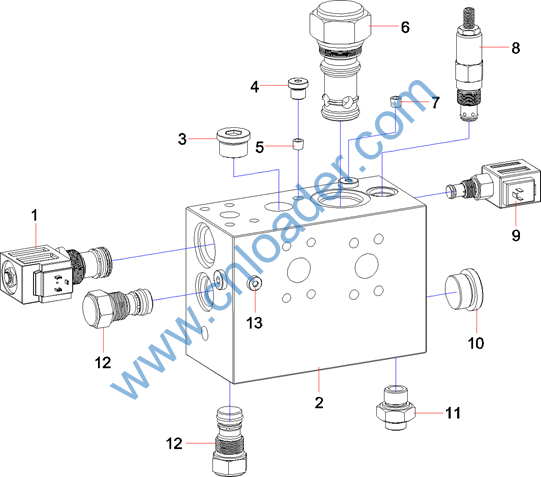

60338455

Electromagnetic Reversing Valve

12853385

Block, valve, lifting, left

60155029

Valve, overflow

12066238

Plug, damping

B220401000544

Valve, logic

B210780000201

Plug 20×20×20mm

12217584

Plug, screw, damping

B210780000799

Plug

B210399000003

Plug 14×14×12mm

B220401000542

Valve, reversal, electromagnetic

B220401000540

Valve, Check

B210780000899

Fitting, Adapter

B210780000896

Plug 45×45×25mm








Part No.

Description

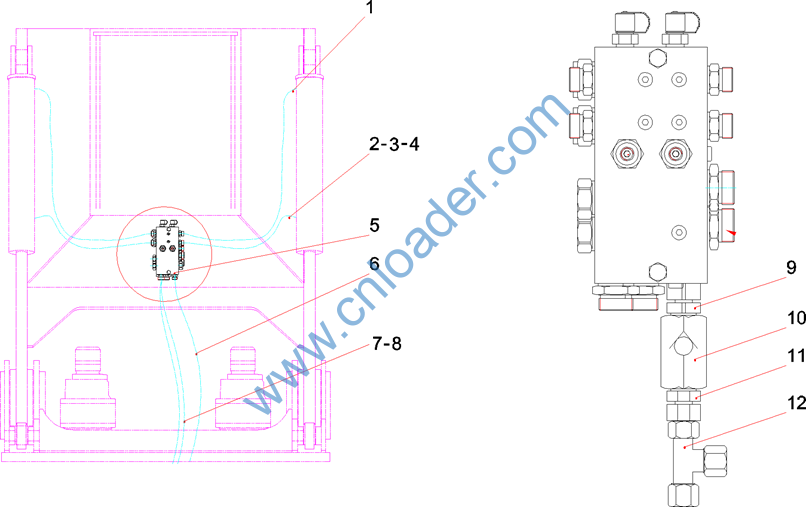

B230103000335

Hose, Assembly, Hydraulic

A832511054000

Hose, rubber

B210780000042

Connector

B210780000025

Fitting 44×43×27mm

13336502

Group, antiswing valve

B230103000098

Hose, rubber

B230103000798

Hose, rubber

B210780000421

End straight adaptor

B210780000329

Connector, pipe

21018928

Valve, one-way

B210780000266

Fitting

B210780000017

Fitting, Tee








Part No.

Description

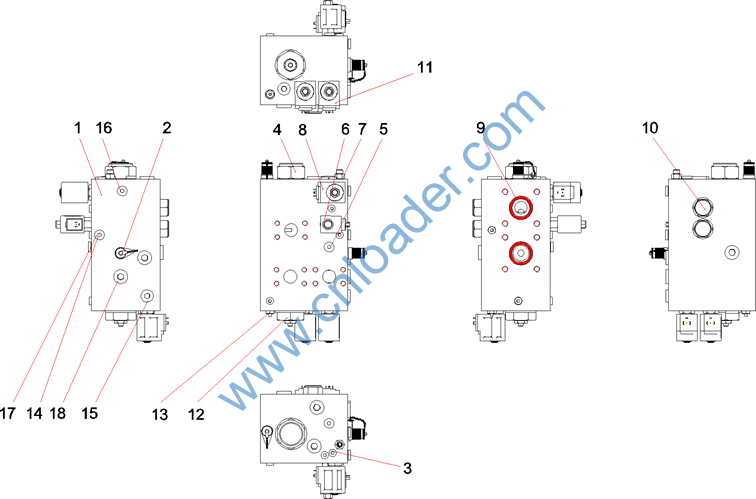

B210770000084

Connector, pressure measuring

13336500

Block, valve, antiswing

B210780000042

Connector

B210780000421

End straight adaptor

B220402000373

Valve Assembly, Solenoid

B210780000201

Plug 20×20×20mm

B220401000913

Valve, Pressure Reducing

B210399000001

Plug

12187261

Plug, damping

B210399000005

Plug 32×32×21mm

B210780001397

Plug 21×32×32mm

B210399000003

Plug 14×14×12mm

A210204000443

Screw

A210401000001

Washer Lock M10















Part No.

Description

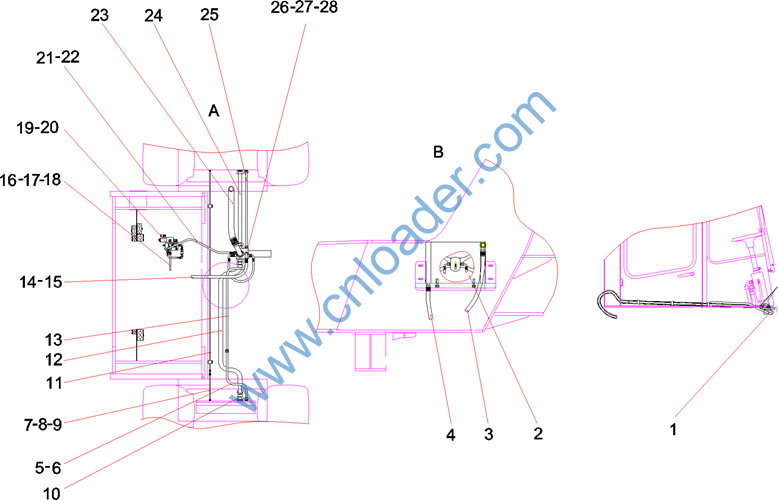

12874447

Diagram, assemblying, components, brake valve

10397015

Assembly, radiator device

60013088

Hose, rubber

B230103007389

Hose, rubber

A810299000244

Pipe, steel

B210780000712

Fitting 38×31×36mm

A810399000553

Pipe, steel

B210780000036

Fitting 30×21×18mm

B210780000015

3-way L-type combined adaptor

B210780000054

Fitting 57×52×50mm

A810312990132

Pipe, steel

60171227

Hose, rubber

A810299000245

Pipe, steel

60187660

Hose, rubber

B210780001310

Right angle combined adaptor

B230103000466

Hose Assembly

B210780000636

Fitting 36×32×18mm

B210780001048

Fitting 20×20×27mm

13805017

Group, brake control valve

A210111000089

Bolt M8X20

B230103000092

Hose, rubber

B210780000024

Fitting, Elbow
